Phoenix Contact SPD VAL-MS 1000DC-PV/2+V/SRT (1801240)
Phoenix Contact Type 2 surge protective device for solar PV systems up to 1000 V DC. 3 plug-in protection modules, 35 mm DIN rail mount. Price on request.
The Phoenix Contact VAL-MS 1000DC-PV/2+V/SRT (order no. 1801240) is a Type 2 surge protective device for the DC side of solar photovoltaic installations up to 1000 V DC. It protects inverters, string combiner boxes and PV modules against surge voltages from lightning and switching.

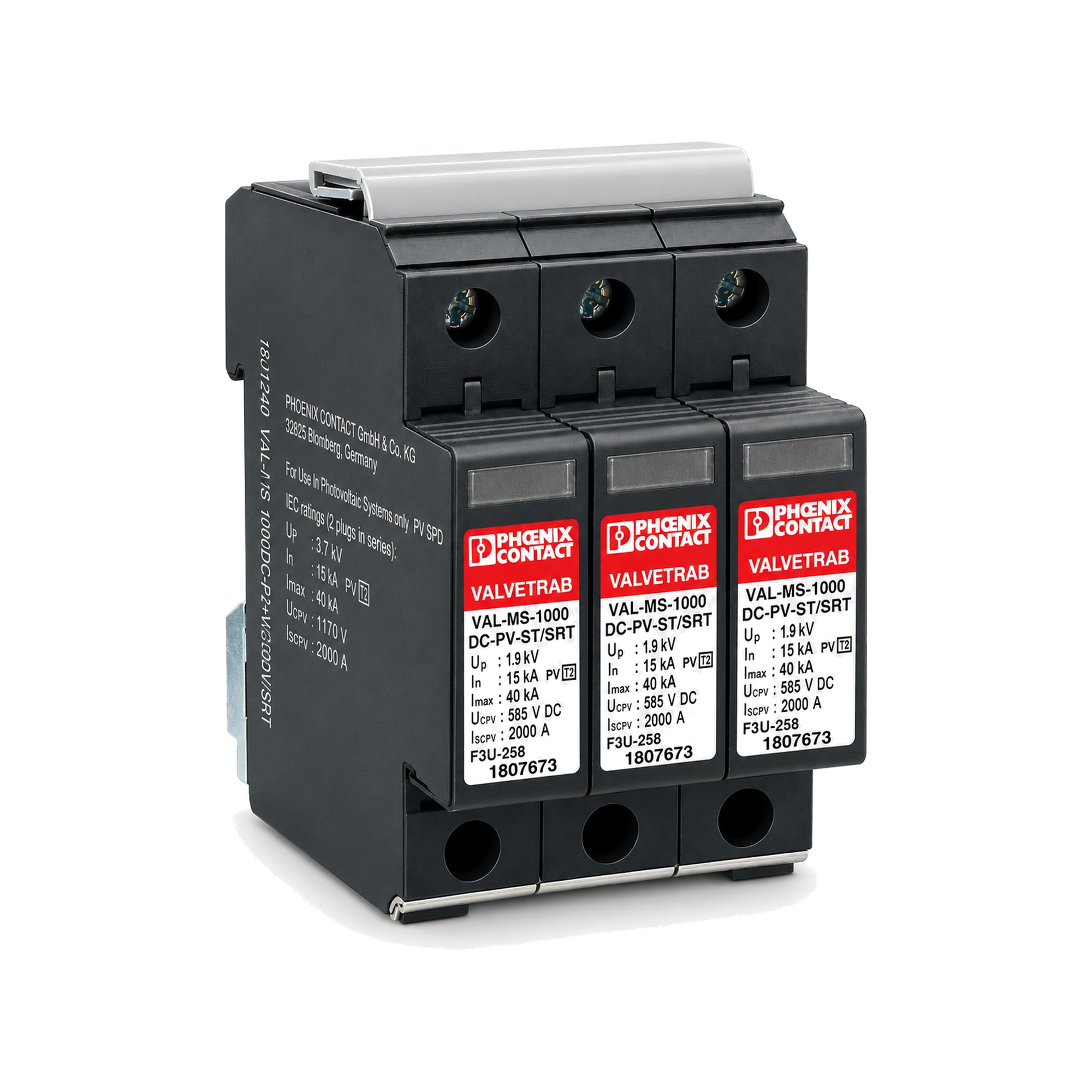

The arrester carries three pluggable VAL-MS-1000DC-PV-ST/SRT protection modules (1807673), so a worn module can be replaced without disturbing the wiring. Each module has a visual status indicator.
- Type 2 / Class II PV surge protection, 1000 V DC
- 3 plug-in protection modules (+, −, earth)
- Visual status indicator on every module
- 35 mm DIN rail mounting, made in Germany
Suitable for rooftop and ground-mount solar plants, DC combiner boxes and inverter input protection.
| Order number | 1801240 |
| Type | VAL-MS 1000DC-PV/2+V/SRT |
| IEC / EN category | Type 2 (T2), PV DC |
| Max. PV voltage UCPV | 1170 V DC |
| Nominal discharge current In (8/20 µs) | 15 kA |
| Max. discharge current Imax (8/20 µs) | 40 kA |
| Voltage protection level Up | 3.7 kV |
| Short-circuit current rating ISCPV | 2000 A |
| Per module | UCPV 585 V DC, Up 1.9 kV |
| Plug-in modules | 3 × VAL-MS-1000DC-PV-ST/SRT (1807673) |
| Mounting | 35 mm DIN rail |
| Country of origin | Germany |
Brand: Phoenix Contact. Genuine Phoenix Contact product sold by Arjun Trading Company, Ludhiana. Price on request — send the order number and quantity on WhatsApp +91 99887 74490 for today's rate.
