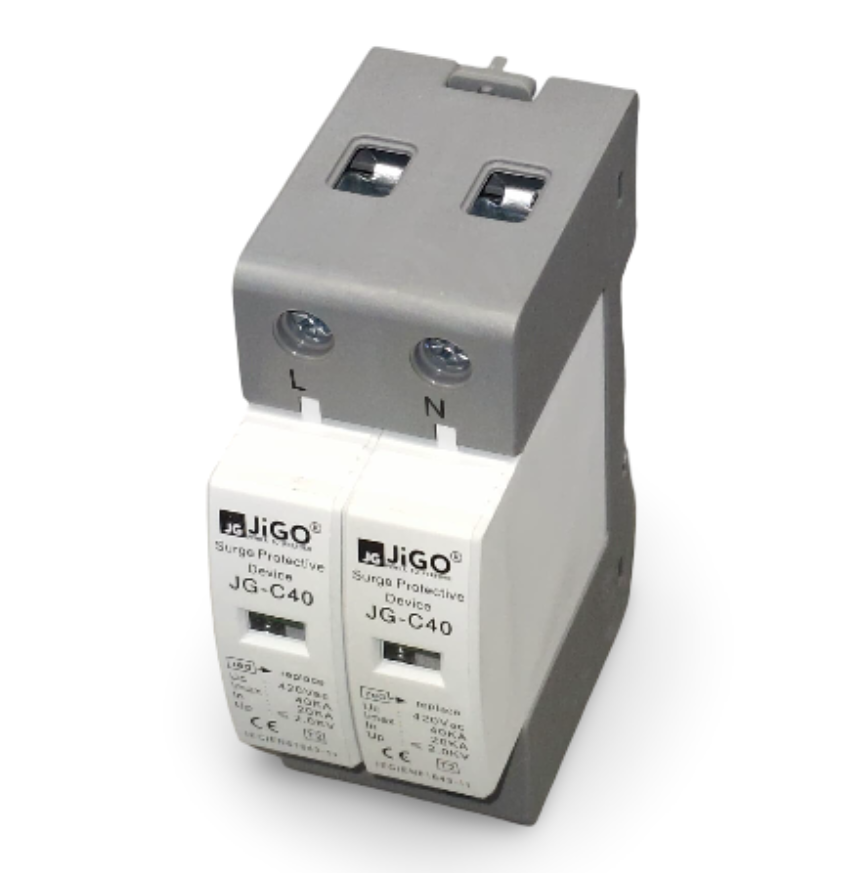

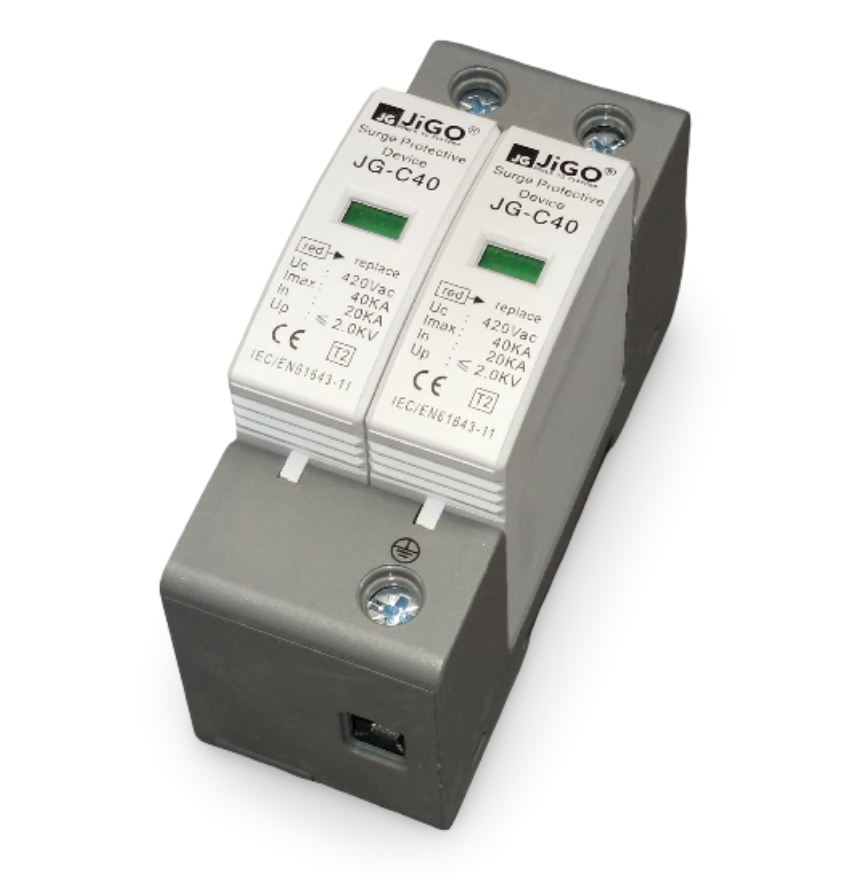

SPD-2P-AC420 Surge Protection Device
SPD-2P-AC420 – 2 Pole AC Surge Protection Device for 420V systems designed to protect electrical installations and equipment from voltage spikes and transients.
Product Details:
Model: SPD-2P-AC420
Poles: 2P (L+N)
Rated Voltage (Un): 420V AC
Maximum Continuous Operating Voltage (Uc): 420V AC
Nominal Discharge Current (In): 20kA
Maximum Discharge Current (Imax): 40kA
Protection Mode: Common and differential mode
Response Time: <25 ns
Indicator Window: Yes (shows protection status)
Mounting: 35mm DIN rail
Enclosure Material: Flame-retardant plastic
Operating Temperature: -40°C to +80°C
Compliance: IEC 61643-11 / EN 61643-11
Key Features:
Dual-pole protection for line and neutral
High discharge capacity up to 40kA
Quick response time to safeguard equipment
Visual fault indication window
Replaceable SPD module (in some models)
Compact DIN rail design for easy installation
Applications:
Residential and commercial distribution boards
Industrial control panels
Renewable energy systems (solar, wind)
Data centers and telecom cabinets
Any 420V AC power distribution system
