SPD-2P-DC1000

    Category: SURGE PROTECTIVE DEVICE
  • Brand: Jigo
  • Minimum quantity: 1
  • Price: ₹ 1200

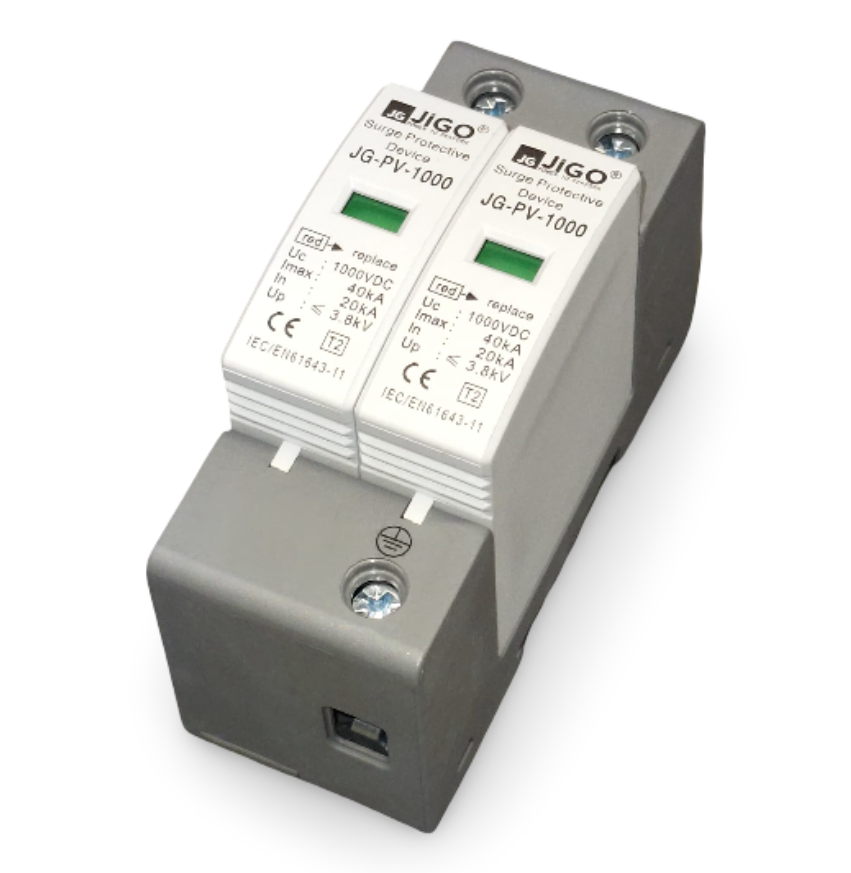

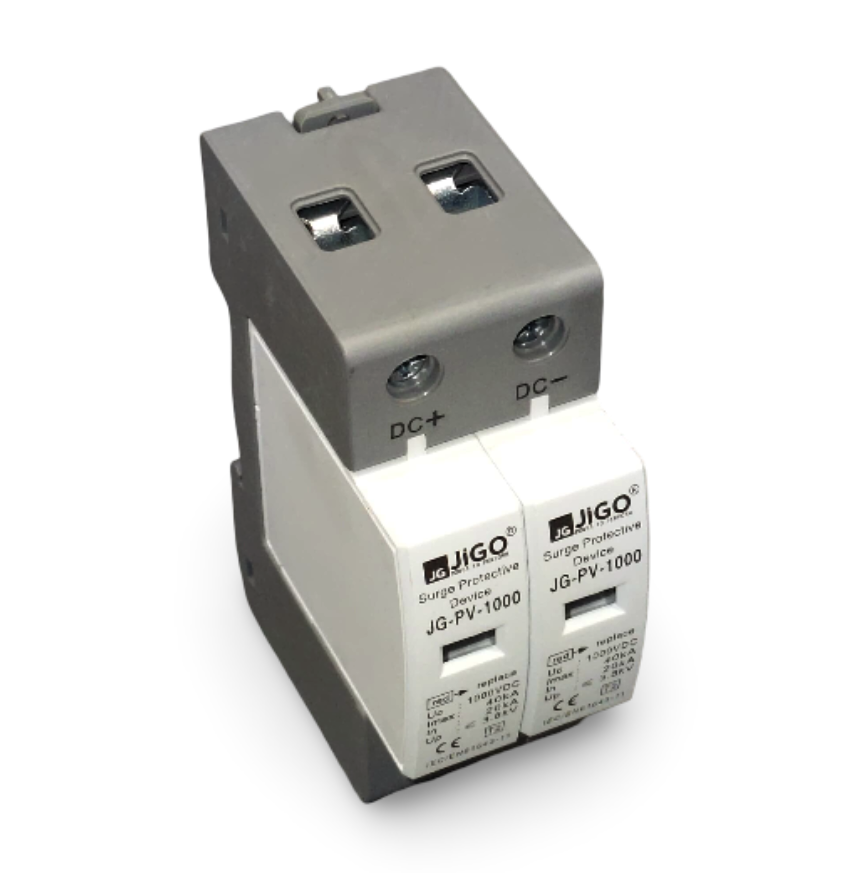

SPD-2P-DC1000 – 2-Pole DC Surge Protection Device designed for photovoltaic (PV) systems up to 1000V DC. Protects solar panels and inverters from overvoltage caused by lightning or switching surges.



Product Details:

Model: SPD-2P-DC1000

Poles: 2P (Positive & Negative)

Rated Voltage (Un): 1000V DC

Max Continuous Operating Voltage (Uc): 1000V DC

Nominal Discharge Current (In): 20kA

Max Discharge Current (Imax): 40kA

Protection Mode: Differential (P-N)

Response Time: ≤25ns

Indicator Window: Yes (disconnection status shown)

Replaceable Module: Yes

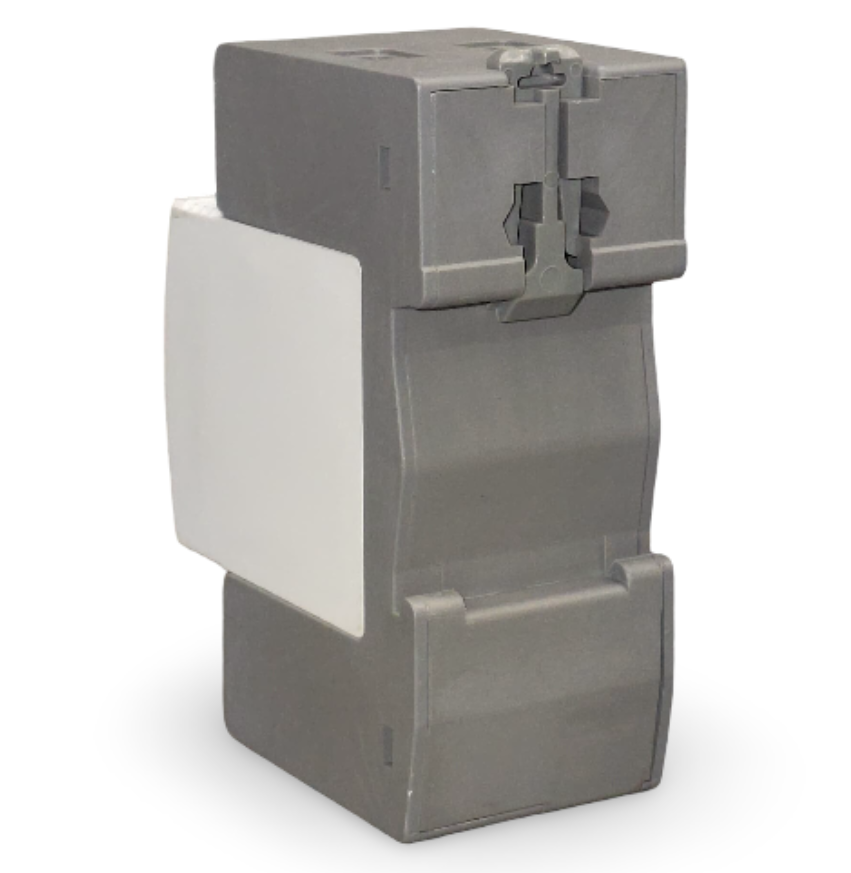

Mounting: 35mm DIN rail

Material: Flame-retardant thermoplastic

Operating Temp: -40°C ~ +80°C

Standards Compliance: IEC 61643-31 / EN 50539-11

Key Features:

Suitable for 1000V DC PV systems

High surge current handling capacity

Fast response time (<25ns)

Thermal disconnector with status indicator

Compact and easy DIN-rail installation

Maintenance-friendly design with replaceable cartridge

Applications:

Solar PV installations (residential & commercial)

Solar combiner boxes

Inverter DC input protection

Solar charge controllers

Battery energy storage systems (BESS)
