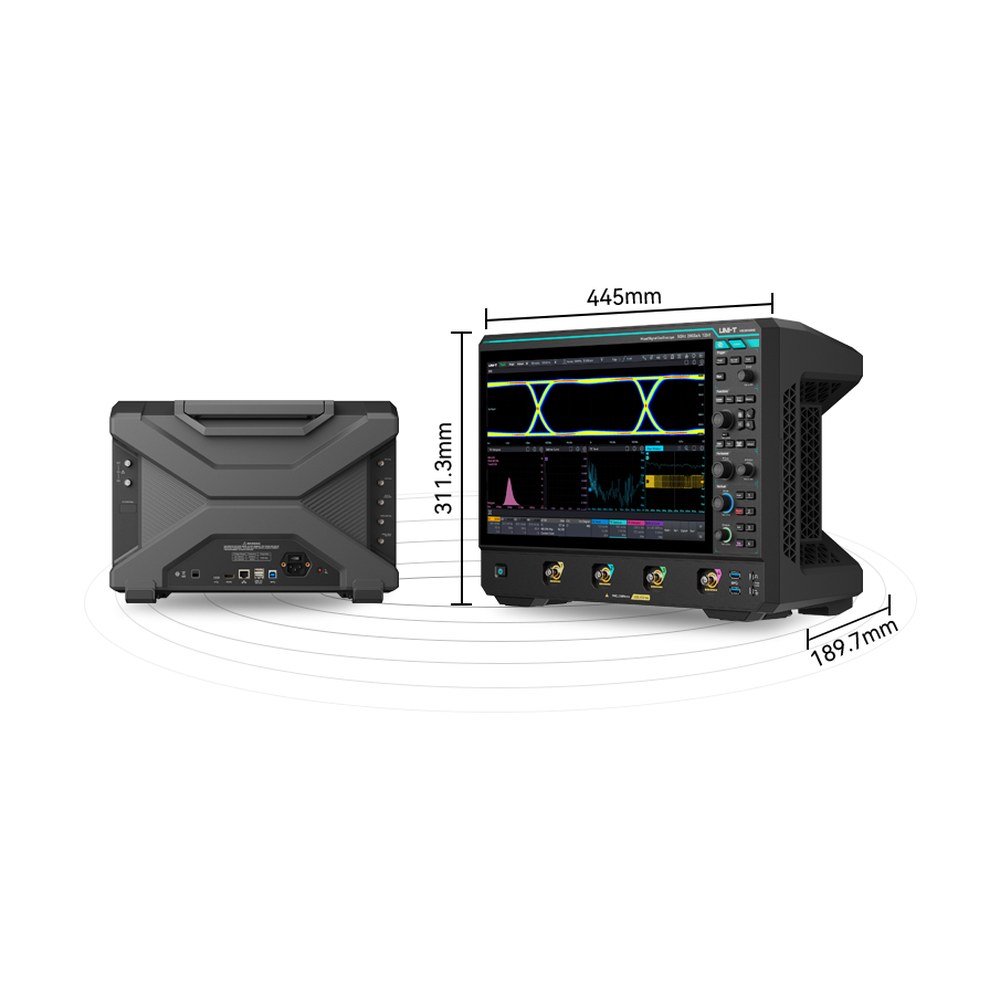

UNI-T MSO8000HD Mixed Signal Oscilloscope (8 GHz, 12-bit)
UNI-T MSO8000HD series high-resolution mixed-signal oscilloscope — 8 GHz / 5 GHz bandwidth, 20 GSa/s, 12-bit ADC, 4 analog + 16 digital channels, up to 2 Gpts memory. Price on request.
The UNI-T MSO8000HD series is UNI-T's flagship high-resolution mixed-signal oscilloscope. Two models — MSO8504HD (5 GHz) and MSO8804HD (8 GHz) — each with a standard 20 GSa/s sampling rate, 12-bit vertical resolution, 4 analog channels and 16 digital channels, with memory depth of 1 Gpts or 2 Gpts.
- 12-bit ADC with ENOB above 7 bits at full system bandwidth for finer detail and weak-signal discrimination
- Waveform capture rate up to 1,000,000 wfm/s; standard 500 Mpts per channel (1 Gpts using half the channels)
- 15.6-inch HD touchscreen with dynamic multi-window display; over 22 advanced trigger types plus zone triggering
- Hardware-accelerated analysis: power analysis, serial protocol decode, jitter and eye diagram, PAM-N analysis, limit-template and conformance testing
- Active single-ended and differential probes, current probes and high-voltage differential probes available
Shown at Electronica India 2026. Price on request — send us the model and options you need and we will quote with the current UNI-T India price and delivery.
Models: MSO8504HD (5 GHz), MSO8804HD (8 GHz) | Sampling rate: 20 GSa/s | Vertical resolution: 12-bit | Channels: 4 analog + 16 digital | Memory depth: 1 Gpts / 2 Gpts | Waveform capture rate: up to 1,000,000 wfm/s | Display: 15.6-inch HD touchscreen | Options: logic analyser, AWG, jitter, USB 2.0 compliance, power analysis, bundles
Brand: UNI-T. Sold and supported by Arjun Trading Company, Ludhiana — authorised UNI-T importer & distributor in India. GST invoice with every order. Price on request: message us on WhatsApp +91 99887 74490 with the model and options you need for the current UNI-T India price and delivery.
Genuine stock from our Ludhiana counter (trading since 1993). We are UNI-T's authorised importer & distributor for India, with Indian warranty and service support. GST invoice on every order, courier anywhere in India.
