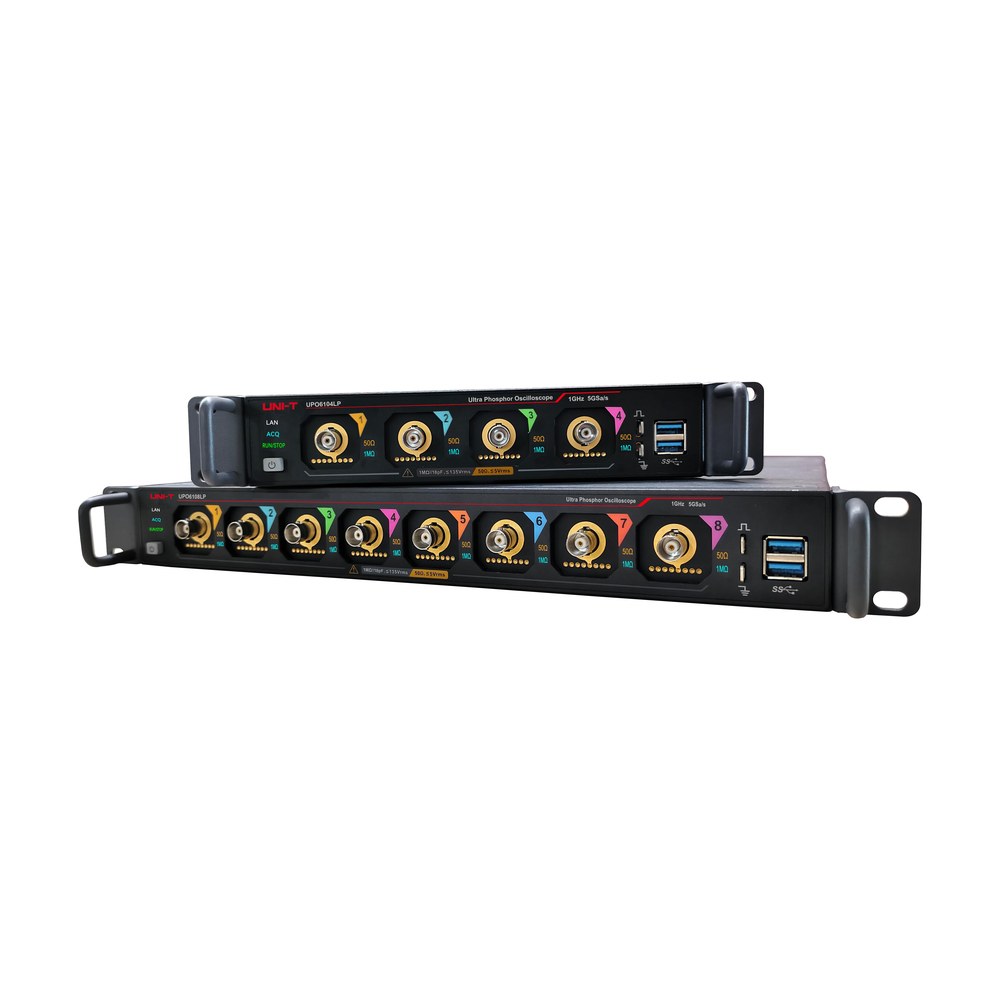

UNI-T UPO6000LP High-Resolution Oscilloscope (1U Rack, up to 1 GHz)
UNI-T UPO6000LP series 1U rack-mount high-resolution oscilloscope — 1 GHz / 500 MHz / 350 MHz, 5 GSa/s, 4 or 8 analog channels, 500 Mpts/CH, multi-instrument sync up to 128 units. Price on request.
The UNI-T UPO6000LP series is a compact, 1U rack-mountable high-resolution oscilloscope built for multi-instrument systems, high-density rack installations and remote control. Six models cover 350 MHz, 500 MHz and 1 GHz bandwidth with 4 or 8 analog channels: UPO6034LP, UPO6038LP, UPO6054LP, UPO6058LP, UPO6104LP, UPO6108LP.
- Maximum sampling rate 5 GSa/s; memory depth up to 500 Mpts per channel
- Ultra Phosphor 3.0 technology with a waveform capture rate up to 1,000,000 waveforms/s
- Advanced digital trigger system with serial-bus triggering and decoding (CAN, LIN, CAN-FD, FlexRay, SENT, audio, MIL-1553, ARINC 429 options)
- Spectrum, power, three-phase power and histogram analysis, waveform recording, ERES, hardware mask testing, search and navigate
- One external trigger input and one built-in function / arbitrary waveform generator output; synchronous triggering across up to 128 oscilloscopes; works with an external touch display and rack-mount kit
Shown at Electronica India 2026. Price on request — tell us the bandwidth and channel count you need.

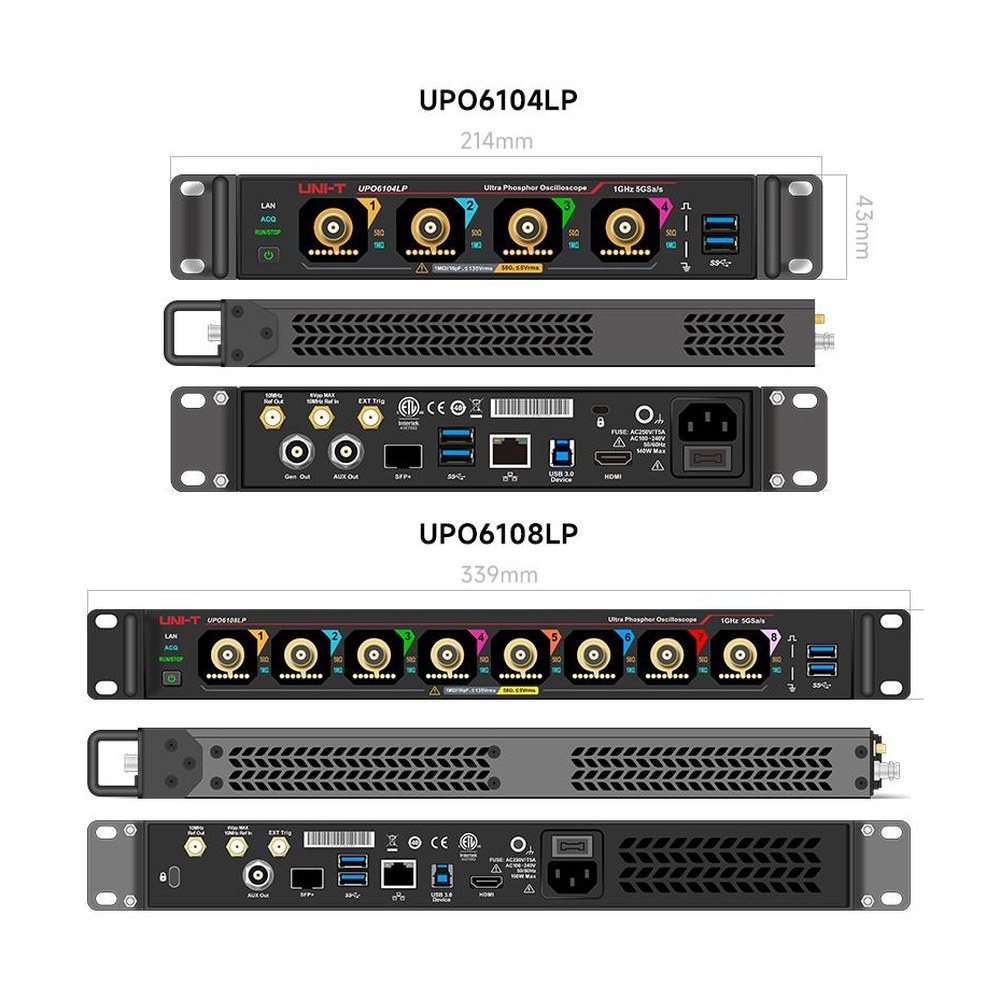

Models: UPO6034LP / UPO6038LP (350 MHz), UPO6054LP / UPO6058LP (500 MHz), UPO6104LP / UPO6108LP (1 GHz) | Channels: 4 or 8 analog + EXT trigger + AWG output | Sampling rate: 5 GSa/s | Memory depth: 500 Mpts/CH | Capture rate: 1,000,000 wfm/s | Form factor: 1U rack, stackable, multi-instrument sync up to 128 units
Brand: UNI-T. Sold and supported by Arjun Trading Company, Ludhiana — authorised UNI-T importer & distributor in India. GST invoice with every order. Price on request: message us on WhatsApp +91 99887 74490 with the model and options you need for the current UNI-T India price and delivery.
Genuine stock from our Ludhiana counter (trading since 1993). We are UNI-T's authorised importer & distributor for India, with Indian warranty and service support. GST invoice on every order, courier anywhere in India.
