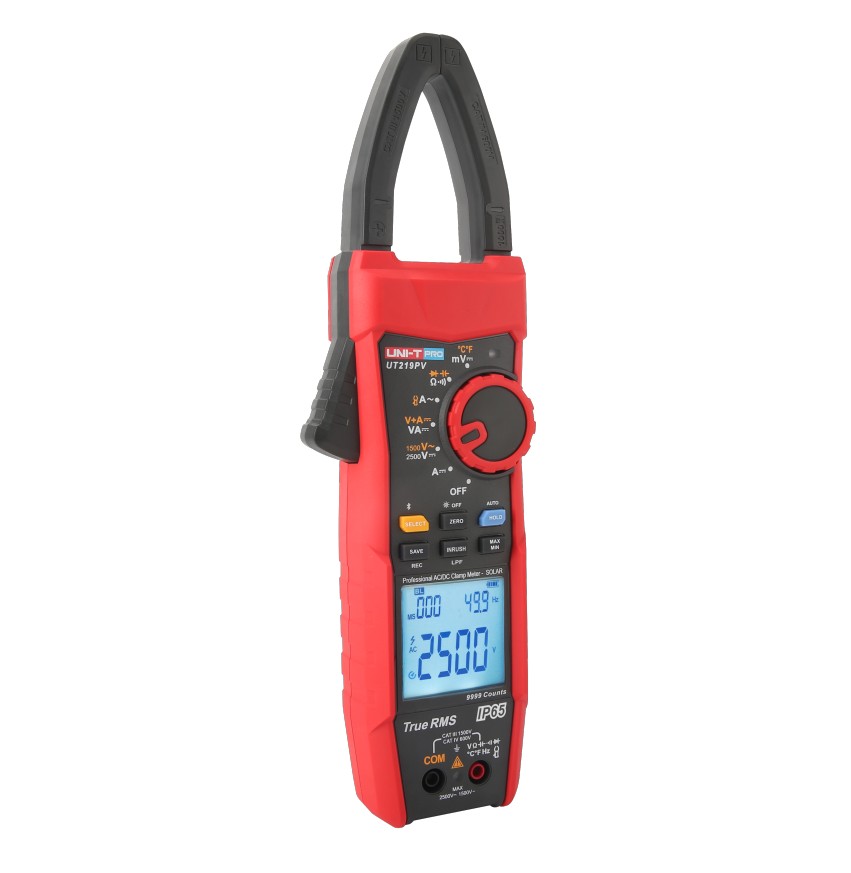

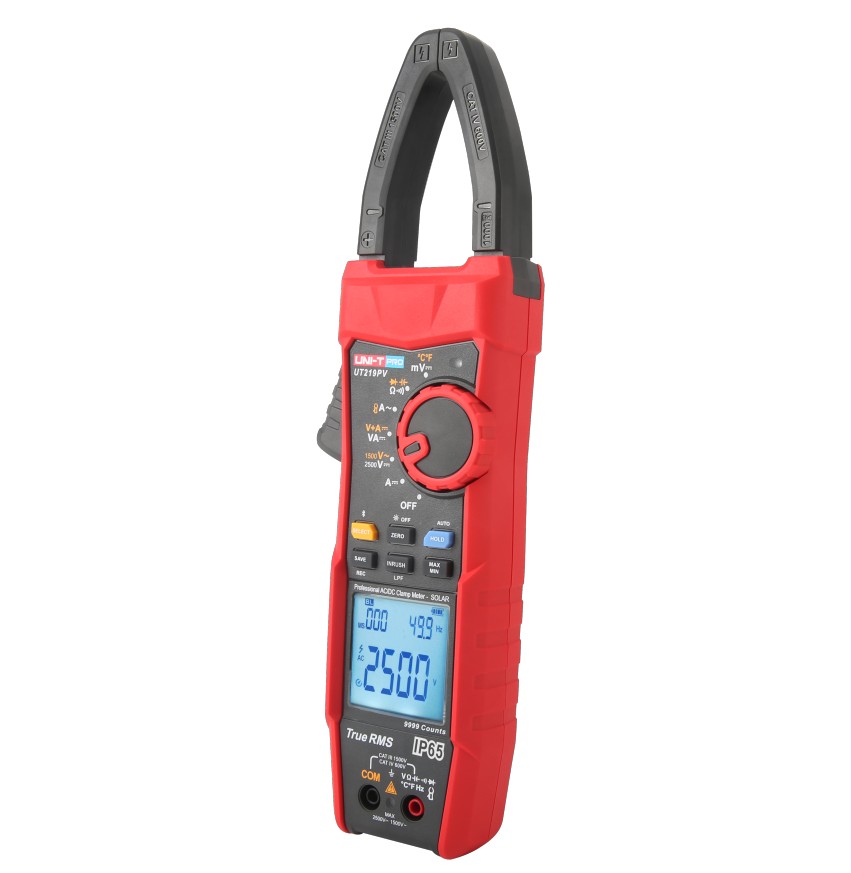

UT-219PV
- Category: Clamp Meters
- Brand: UNI-T
- Minimum quantity: 1
- Price: ₹ 19800
The UT219PV is an advanced AC/DC clamp meter specially designed for high-voltage photovoltaic environments. It offers exceptional accuracy and performance, with a wide range of features. With its automatic range selection and a clear display capable of showing up to 9999 digits, this clamp meter allows for precise measurements of AC/DC voltage, current, low-pass filtered voltage/current, surge current, peak current, DC power (using an external flexible clamp head), resistance, circuit continuity, diodes, capacitance, and temperature
Features of UT219PV Professional AC/DC Clamp Meter
Certifications (UT219PV only): CE, RoHS, cETLus
● 35mm Ultra-thin Jaw: suitable for inverter or combiner box
● Voltage measurement: AC1500V/DC2500V
● Current measurement: AC/DC 1000A
● Power DC: 2500KVA
● External clamp sensor: UT-CS09D(AC 3000A)
● Solar panel polarity indication: when <-10 DCV, Audible & Visual alarm
● Bluetooth APP
● Auto backlight & Auto power off
● Certificates：CE (EMC, LVD), cETLus, RoHS
● Safety rating：CAT III 1500V/ CAT IV 600V
● IP65
| Technical Specifications | ||
| Current (ACA) | 999.9 A | 40Hz~100Hz: ±(2.0%+5) 100Hz~1000Hz: ±(2.5%+5) |
| Current (DCA) | 999.9 A | ±(2.0%+5) |
| Voltage (ACV) | 999.9V/1500V | 40Hz~1000Hz: ±(1.0%+5) |
| Voltage (DCV) | 999.9V/2500V | ±(1.0%+5) |
| Voltage (DC mV) | 999.9 mV | ±(1.0%+5) |
| ACV(with LPF) | 999.9V | ±(2.0％＋9) |
| ACA(with LPF) | 999.9A | ±(2.5％＋9) |
| ACA(with LPF): flex clamp sensor | 30.00A/300.0A/3000A | ±(4.0%+9)(center area) |
| ACA;with flex clamp sensor | 30.00A/300.0A/3000A | ±(3.0%+5) (center area) |
| Power (DC) | 999.9 kVA/2500 kVA | ±(2.0%+20) |
| Frequency (A&V) | 5.0 Hz to 999.9Hz | ±(0.5%+5) |
| Resistance (Ω) | 999.9Ω/9.999KΩ/99.99kΩ | ±(1.0％+5） |
| Cpacitance（F） | 100.0μF/1000 μF | ±(1.0％+5） |
| Temperature | -40℃~400℃/-40℉~752℉ | ±(1.0%+30); ±(1.0%+60) |
| Features: | ||
| True RMS | √ | |
| Display count | 9999 | |
| Display | LCD: Dual display (V+A) | |
| Jaw (Max conductor dia.) | 35mm | |
| Diode | √ | |
| Solar panel polarity indication | when <-10 DCV, Audible & Visual alarm | |
| High voltage alarm | √ | |
| Over range indication | √ | |
| AUTO HOLD | √ | |
| Inrush current | √ | |
| PEAK | √ | |
| Bluetooth app | BT 5.0 | |
| Auto backlight | √ | |
| Low battery indication | √ | |
| Flexiable clamp compatible | UT-CS09D (optional) | |
| IP rating | IP65 | |
| Overvoltage category | CAT III 1500V; CAT IV 600V | |
| Certificates | CE, cETLus, RoHS | |
| General Characteristics | ||
| Power supply | 2 * AA | |
| Product dimension | 295mm x 73mm x 50mm | |
| Product color | Grey + Red | |
| Accessories | test probe, temperature probe, batteries, manual | |
