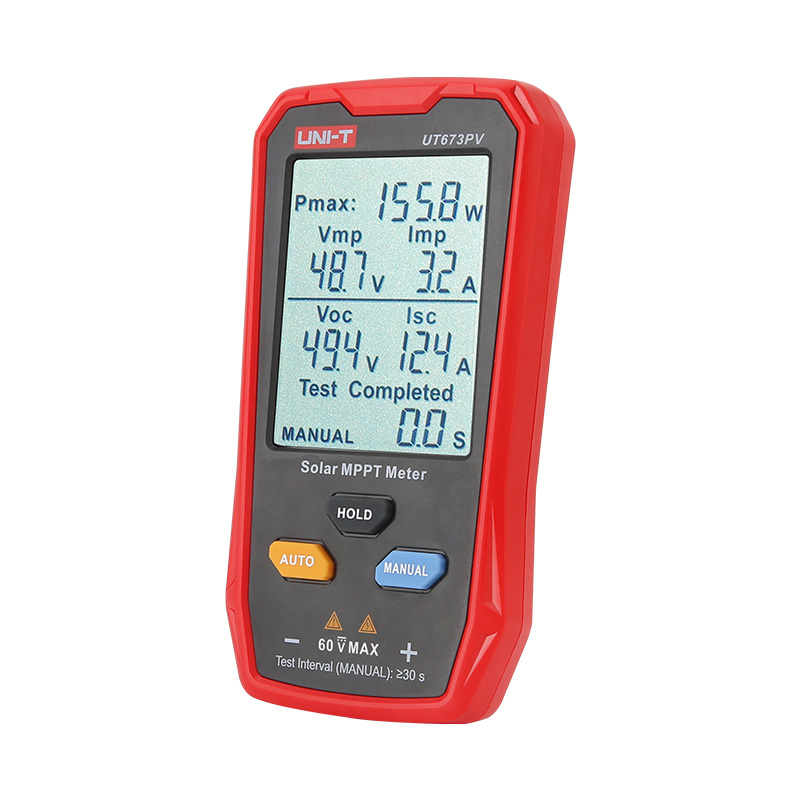

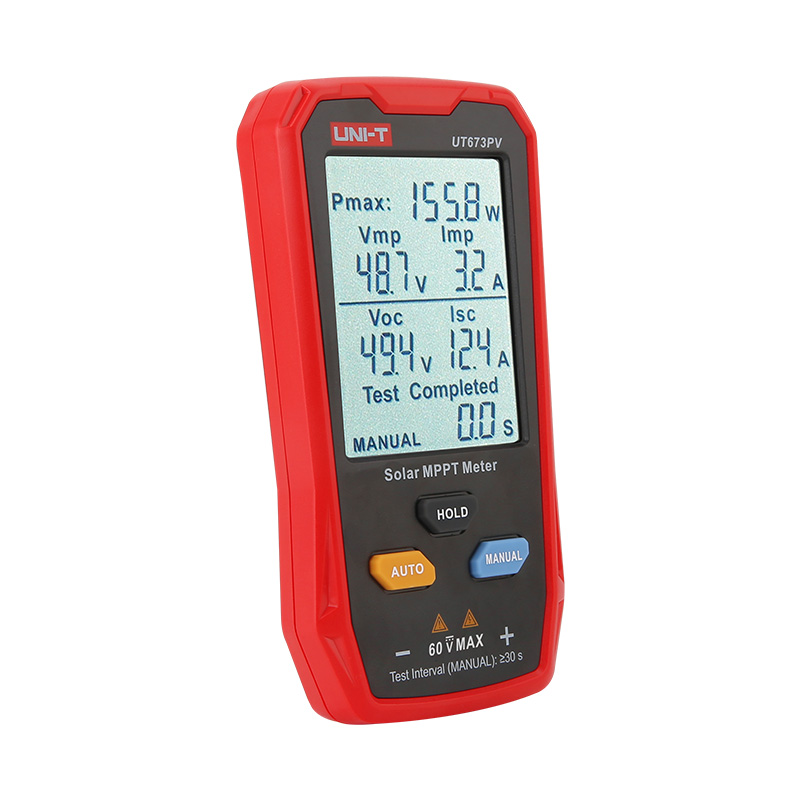

UT-673PV Solar MPPT Meter
- Category: SOLAR ENERGY TOOLS
- Brand: UNI-T
- Minimum quantity: 1
- Price: ₹ 3610
UT673PV solar MPPT meter can effectively identify any abnormalities in solar panels by testing their maximum power, peak power voltage, peak power current, open circuit voltage, and short circuit current.
Enquire on WhatsAppDownload
Features of UT673PV Solar MPPT Meter
Certifications (UT673PV series only): CE, cETLus, RoHS
● Maximum power test (Pmax) 5～800W
● Peak power voltage (Vmp) 12～60V
● Peak power current (Imp) 0～35A
● Open circuit voltage (Voc) 12～60V
● Short circuit current (Isc) 0～35A
● Large screen and multiple result display
● No batteries needed, powered by the solar panel

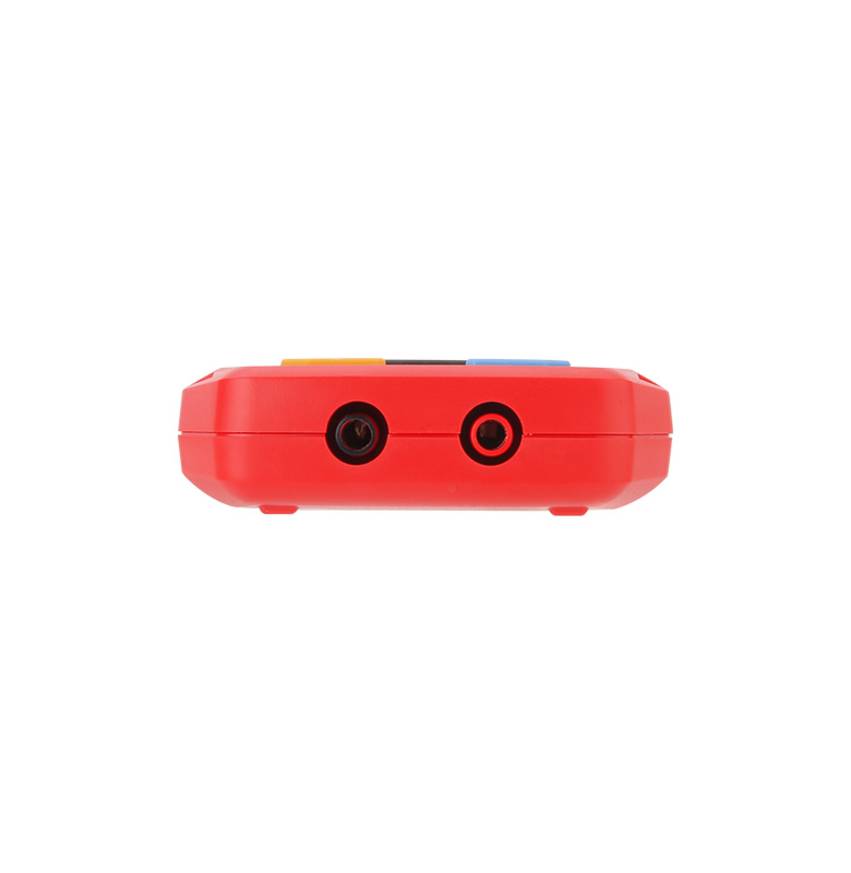

● Equipped with MC4 test lead
● Portable and convenient
Specifications of UT673PV Solar MPPT Meter
| Specification | ||
| Max power measurement | 5～800W | ±(1.0%＋10) |
| Max power current(DC) | 0～35A | ±(1.5%＋5) |
| Max power voltage(DC) | 12～60V | ±(1.5%＋5) |
| Open circuit current(DC) | 12～60V | ±(1.5%＋5) |
| Short circuit current(DC) | 0～35A | ±(1.5%＋5) |
| General Features | ||
| Display | Large LCD (52 * 66mm) | |
| Reverse polarity connect Protection | √ | |
| Over voltage protection | √ | |
| Over current protection | √ | |
| Over temperature protection | √ | |
| Over power protection | √ | |
| Manual/Auto MPPT test | √ | |
| Data hold | √ | |
| Power supply | No battery needed, powered by solar panel | |
| Ovecategory | CAT 0 60V | |
| Certificate | CE, cETLus, RoHS | |
