UT196
- Category: Multi Meters
- Brand: UNI-T
- Minimum quantity: 1
- Price: βΉ 14300

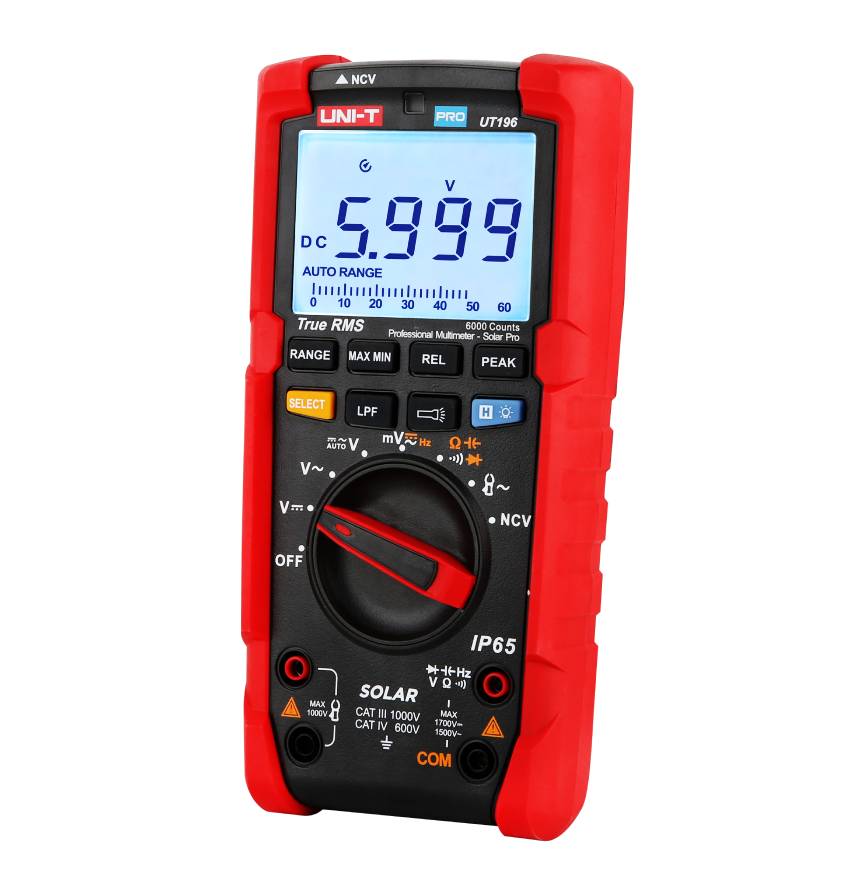

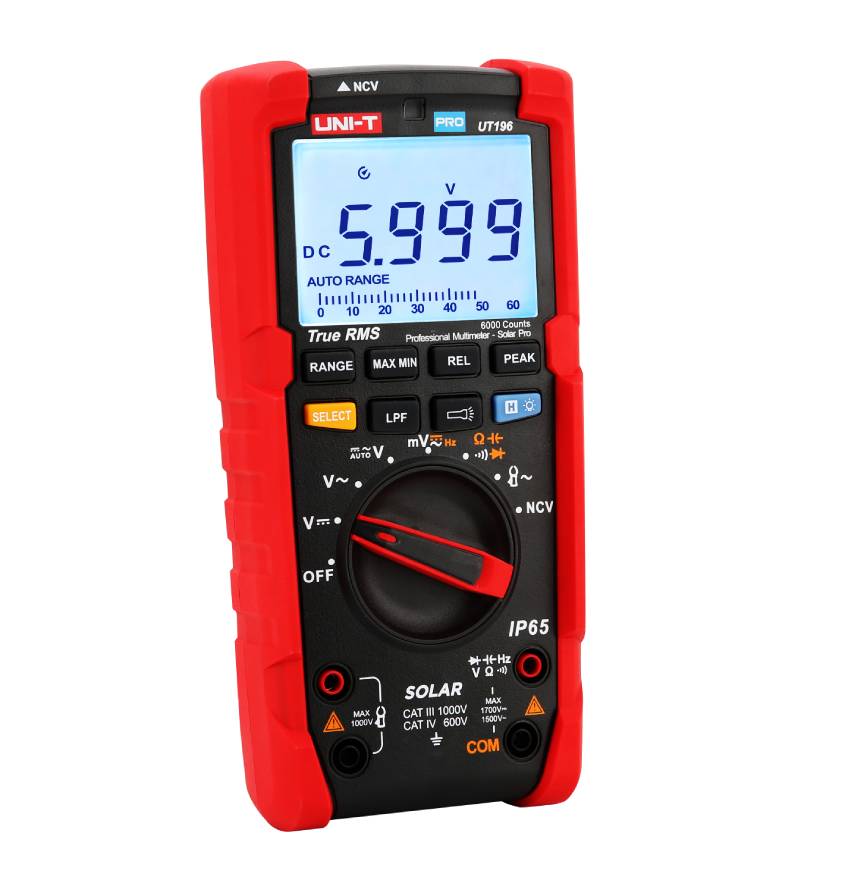

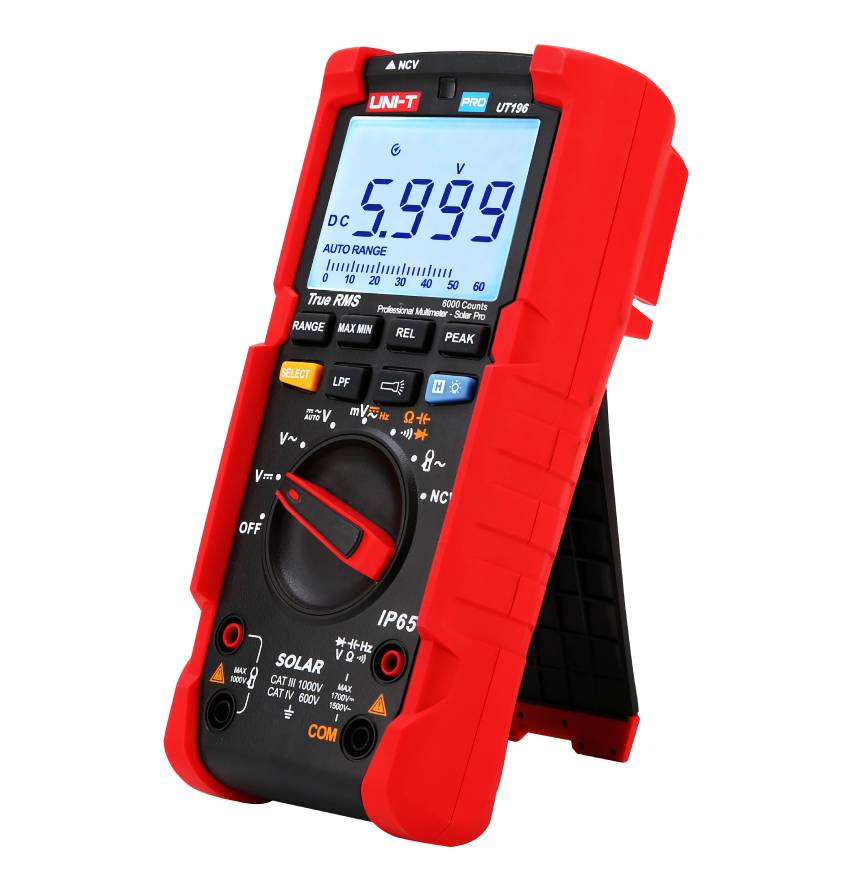

UT196 True RMS solar digital multimeter is an ideal tool for solar power system maintenance. This rugged meter is designed for technicians who work in rugged outdoor environments. UT196 can measure up to 1700V DC and 1500V AC voltages, and 3000A AC current with an external current clamp sensor. This solar meter offers IP65 protection and able to withstand 2m drop as well.
UT196 solar digital multimeter is designed with 1700V DC, 1500Vrms AC overload protection and tested for safe usage in CAT III 1000V, CAT IV 600V environments.
Features of UT196 1700V DC True RMS Professional Multimeter β Solar Pro
β True RMS
β Measure up to 1700V DC and 1500V AC for high voltage applications e.g. solar array, wind
β IP65 protection
β CAT III 1000V, CAT IV 600V
β Analog bar
β Frequency responseοΌ45Hz~1kHz
β Low-pass filter function
β Low impedance mode

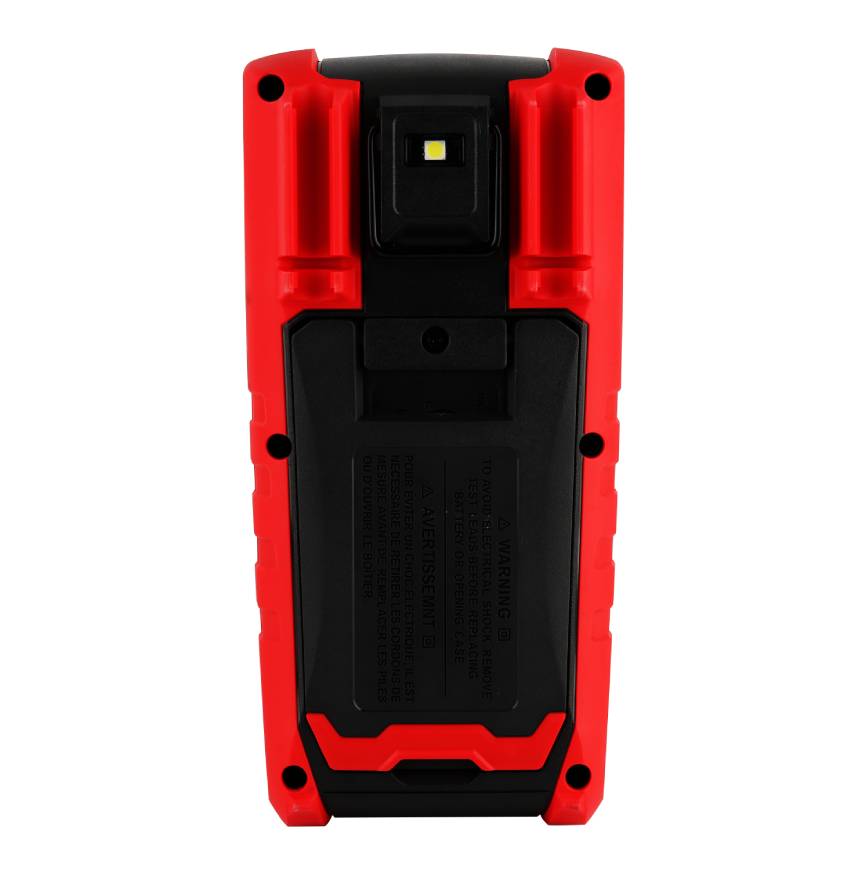

β Built-in flashlight, bright backlight and visual alarm
Specifications of UT196 1700V DC True RMS Professional Multimeter β Solar Pro
| Specifications | Range | UT196 |
| DC voltage(V) | 1700V | Β±(0.2%οΌ5) |
| AC voltage(V) | 1500V | Β±(0.8%οΌ3) |
| Frequency (Hz) | 1MHz | Β±(0.08%+4) |
| Resistance(Ξ©) | 60MΞ© | Β±(0.8%οΌ2) |
| Capacitance (F) | 60mF | Β±(1.9%+5) |
| Features | ||
| Display count | 6000 | |
| True RMS | β | |
| Dual display | β | |
| Auto range | β | |
| NCV | β | |
| Diode test | β | |
| Continuity | β | |
| Relative mode | β | |
| Max/Min | β | |
| Peak hold | β | |
| Low pass filter(LPF) | β | |
| Audible visual indication | β | |
| Low battery indication | οΌ7.5V approximately | β |
| Data hold | β | |
| Analog bar graph | β | |
| Auto power off | Approximately 15 minutes | β |
| Flashlight | β | |
| IP rating | IP65 | |
| Drop test | 2m | |
| Safety rating | CAT III 1000V, CAT IV 600V | |
| General Characteristics | |
| Power | 9V battery |
| Product color | Red+Gray |
| Product net weight | 485g |
| Product size | 195 x 95 x 58mm |
| Standard accessories | English manual, test leads, battery. |
| Standard individual packing | Gift box,carrying bag. |
| Standard quantity per carton | 10 pcs |
| Standard carton measurement | 480Γ370Γ195mm |
