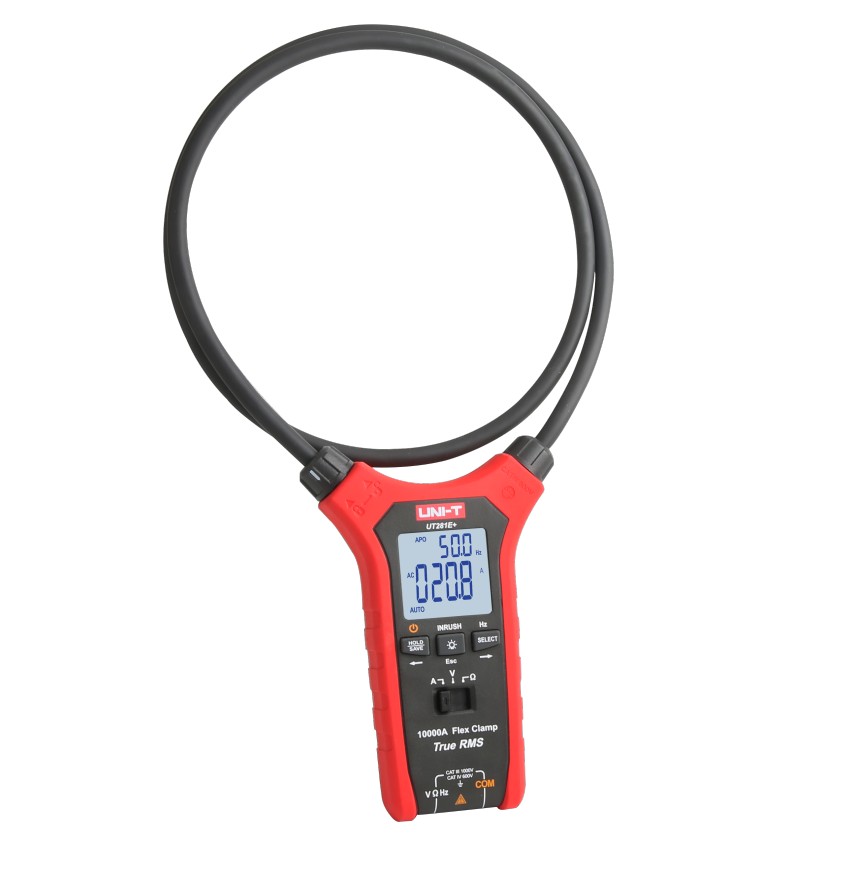

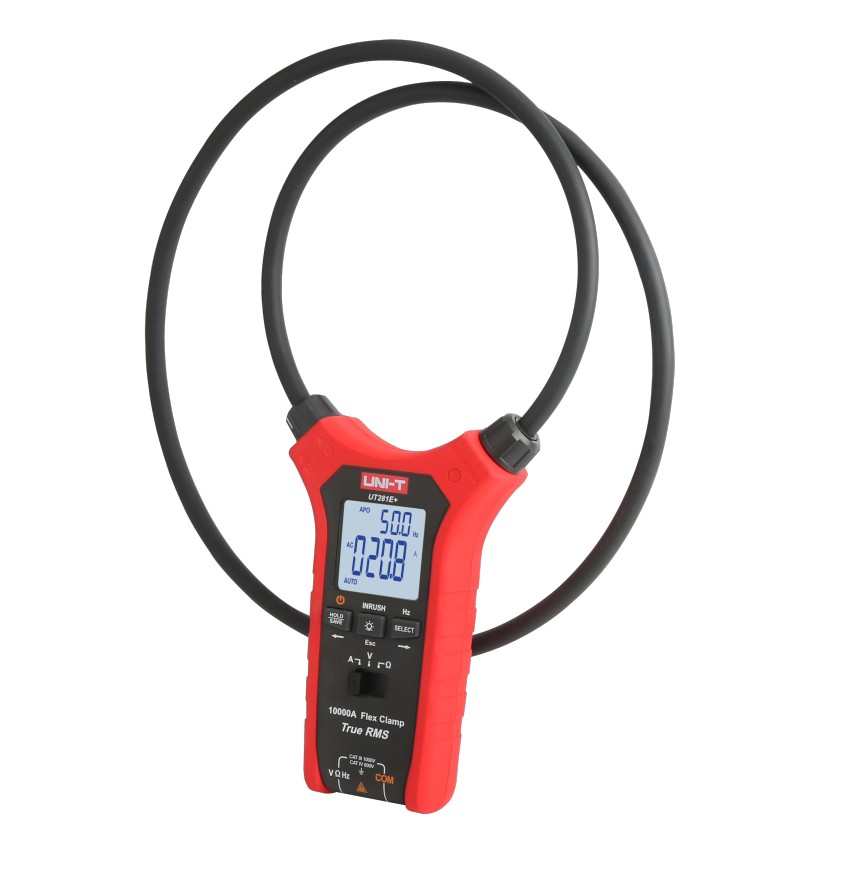

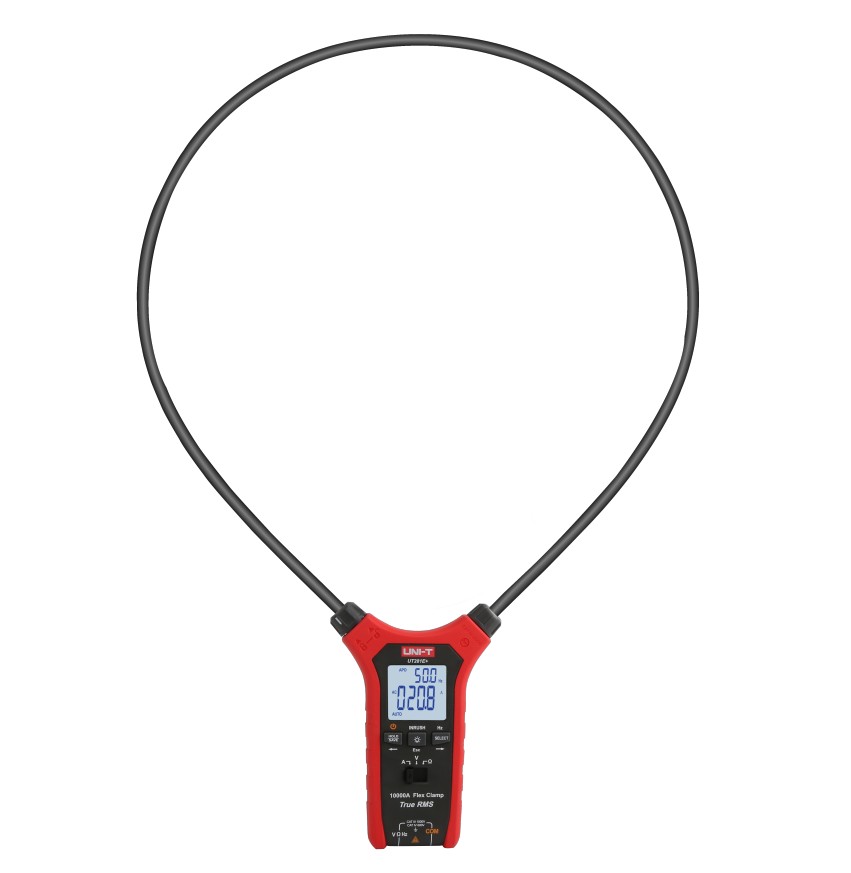

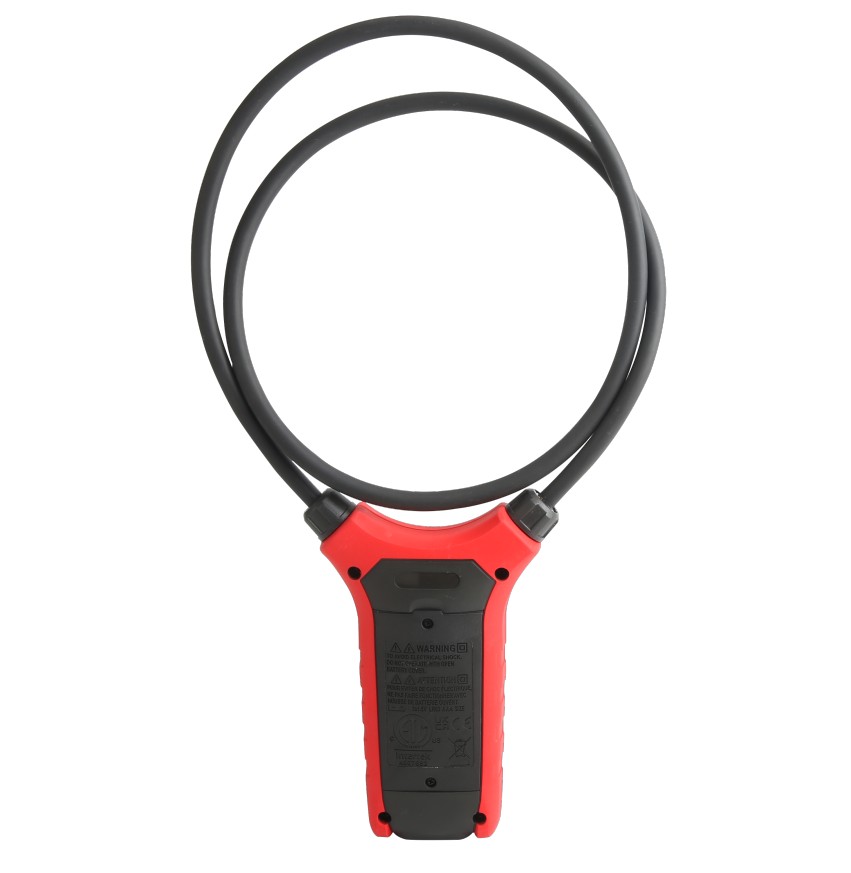

UT-281E+ Digital Clamp Meter
The UT281E+ True RMS Flexible Clamp Meter is a high – precision and multi – functional electrical measuring tool. It offers a current measurement range up to 10,000A, comes with a 1.1m – long flexible coil, has an overload protection circuit across the full range, and features a unique appearance design, making it suitable for a variety of application scenarios.
Features of UT281E+ Flex clamp
Certifications: CE, cETLus, RoHS
1. 6000 count true RMS measurement
2. Current range of 10000A (auto ranging for each level)
3. 6000A inrush current measurement
4. A flexible coil with a length of 1100mm (about 43 inches)
5. Frequency response: 45Hz – 500Hz
6. AC/DC voltage test up to 1000V
7. Resistance: 60MΩ
8. LCD dual – display: AC V & Hz; ACA & Hz
9. Capable of withstanding an energy impact of up to 1000V (30KVA)
10. Alarm prompts; Safety standards: IEC 61010 – 1
11. CAT III 1000V / CAT IV 600V
Specifications
| Specifications | |
| Current(ACA) | 60.0A/600.0A/6000A/10000A |
| Frequency response(ACA) | 45~400Hz |
| Resolution & Accuracy | 0.01A; ±(2%+5) |
| Inrush current | 6000A |
| Voltage(ACV) | 1000V |
| Accuracy (ACV) | ±(1.2%+3) |
| Voltage(DCV) | 1000V |
| Accuracy (DCV) | ±(1.2%+3) |
| Resistance | 60.00MΩ: ±(1.0%+5) |
| Frequency | 10.00Hz~30.00kHz: ±(0.5%+3) |
| Active power | / |
| Apparent power | / |
| Reactive power | / |
| Power factor | / |
| Electric energy | / |
| Phase sequence | / |
| Features | |
| True RMS | √ |
| Display count | 6000 |
| Sampling rate | 3times/s |
| Data storage | / |
| Data hold | √ |
| Backlight | √ |
| Power supply | 1.5V AAA×3 |
| Data communication | / |
| Meter’s Dimension | 145 x 58 x 33mm |
| Length flexible coil | 43.30″(1100mm) |
| Coil inner dia. | radius: 6.26″ (15.92cm) |
| Coil dia. | Φ8mm |
| Dimension(LCD) | 35mm*32mm |
| Warning indication | High voltage & OL |
| 2m drop test | / |
| Overvoltage rating | CAT III 1000V & CATⅣ 600V |
| Certificates | CE/ETL/ROHS |
Genuine stock from our Ludhiana counter (trading since 1993). We are UNI-T's authorised importer & distributor for India, with Indian warranty and service support. GST invoice on every order, courier anywhere in India.
