UNI-T Authorised importer Insulation & Cable Tester In stock · Ludhiana
UT582+ Insulation Resistance Tester
₹10,550list price · GST invoice · dealer rates on WhatsApp
UT582+ is mainly used to detect whether the RCD in the circuit can be triggered normally. It is only suitable for single-phase circuits with the supply voltage range of 195V~253V. Its voltage measurement range is 30V~600V, 45Hz ~65Hz.
Delivery2–5 days pan-India courier
PayUPI · cards · bank transfer
Bulk / dealer10+ pcs — WhatsApp for rate
Features of UT582+ Digital RCD (ELCB) Tester
● Power off gear
● LCD backlight
● Data hold
● AUTO RAMP
● Disconnect buzzer
● Over-range display: OL
● With protect fuses
● Mis-operation buzzer
● Power off buzzer
● Full icon display
Specifications of UT582+ Digital RCD (ELCB) Tester
| Specifications | Range | UT582+ | ||
| RCD measurement | Range setting | Rated operating current | Trip time | |
| X 1/2 | 10mA/20mA/30mA/100mA/300mA/500mA | 2000ms | -10%~0% | |
| X 1 | 10mA/20mA/30mA/100mA/300mA | 1000ms | 0%~10% | |
| 500mA | 300ms | 0%~10% | ||
| X 5 | 10mA/20mA/30mA | 40ms | 0%~10% | |
| AUTO RAMP | 10mA/20mA/30mA/100mA/300mA/500mA | 300ms | -10%~10% | |
| Trip time accuracy | ±(2%+2) | |||
| Operating voltage (Freq.) | 195V~253V | |||
| Voltage measurement | Voltage range | 30~600V | ||
| Frequency | 45Hz~65Hz | |||
| Resolution | 1V | |||
| Accuracy | ±(3%+3) | |||
| Features | ||||
| Display count | 999 | |||
| Power off gear | √ | |||
| Low battery indication | <7.2V | |||
| APO | Auto power off fuction | |||
| LCD backlight | √ | |||
| Data hold | √ | |||
| Phase angle selection | 0° and 180° | |||
| Connections check | Simultaneously test the trip time and trip current | |||
| AUTO RAMP | √ | |||
| Disconnect buzzer | √ | |||
| Over-range display | OL | |||
| Fused | √ | |||
| Mis-operation buzzer | √ | |||
| Power off buzzer | √ | |||
| Full icon display | √ | |||
| Compliance standard | IEC 61010-1, IEC 61010-2-030, IEC 61010-2-033, IEC 61557-1:2007;IEC 61557-6:2007, EN61326-1, EN61326-2-2 | |||
| Lead sequence check | LCD | |||
| General Characteristics | |

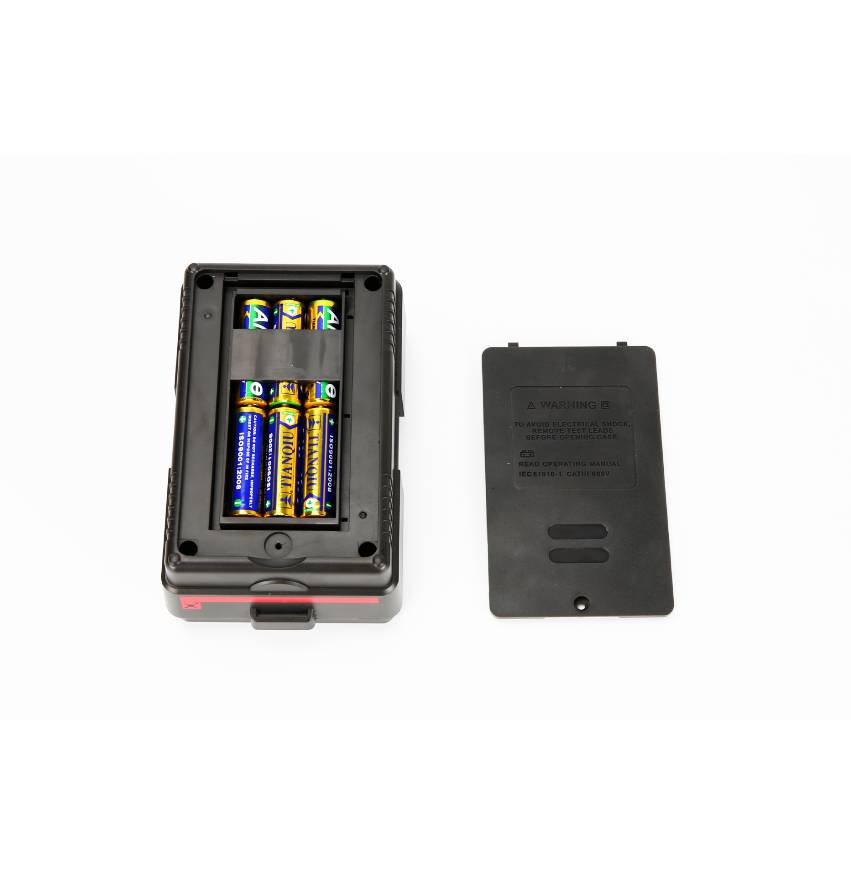

| Power | 1.5V battery (LR6) x 6 |
| Display | 71mm x 34mm |
| Product color | Red and grey |
| Product net weight | 400g |
| Product size | 160mm x 100mm x 71mm |

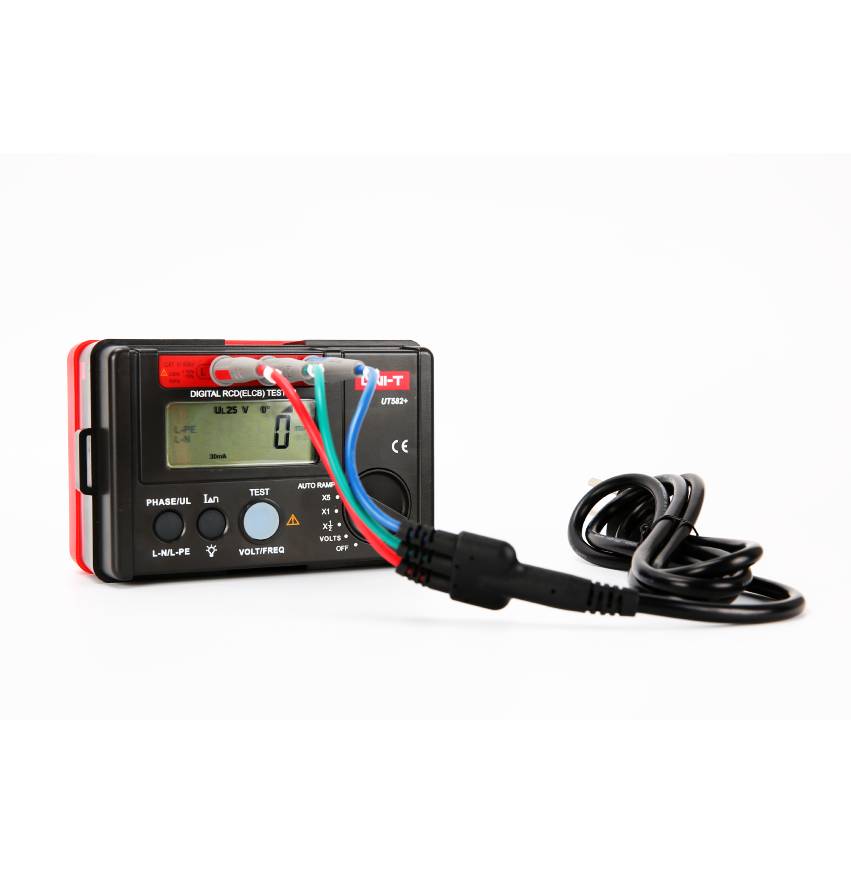

| Standard accessories | Test line, carrying bag, elastic strap |
| Standard individual packing | Gift box, English manual |
| Standard quantity per carton | 5pcs |
| Standard carton easurement | 425mm x 280mm x 180mm |
| Standard carton gross weight | 4.9kg |
