UT681L
- Category: INSULATION & CABLE TESTER
- Brand: UNI-T
- Minimum quantity: 1
- Price: ₹ 1050

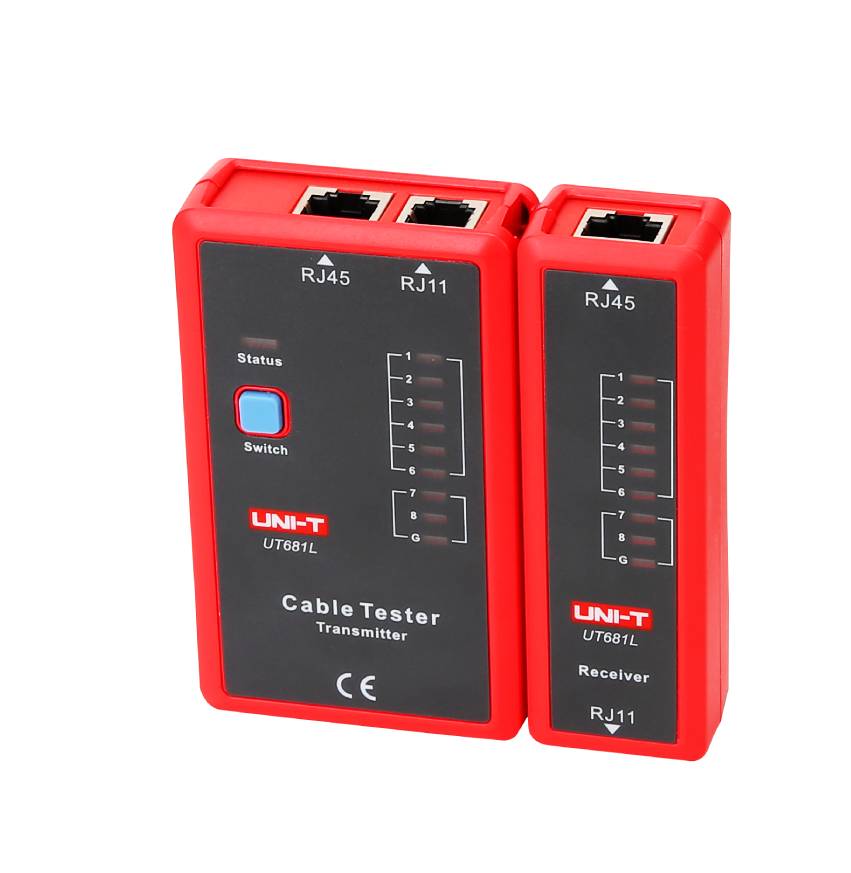

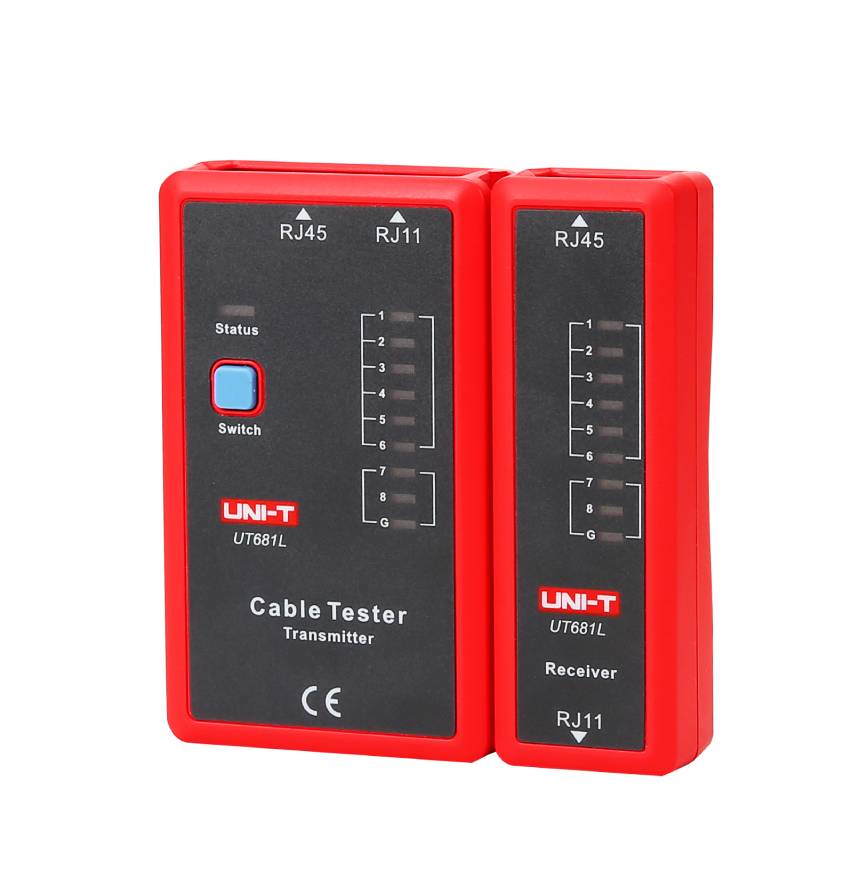

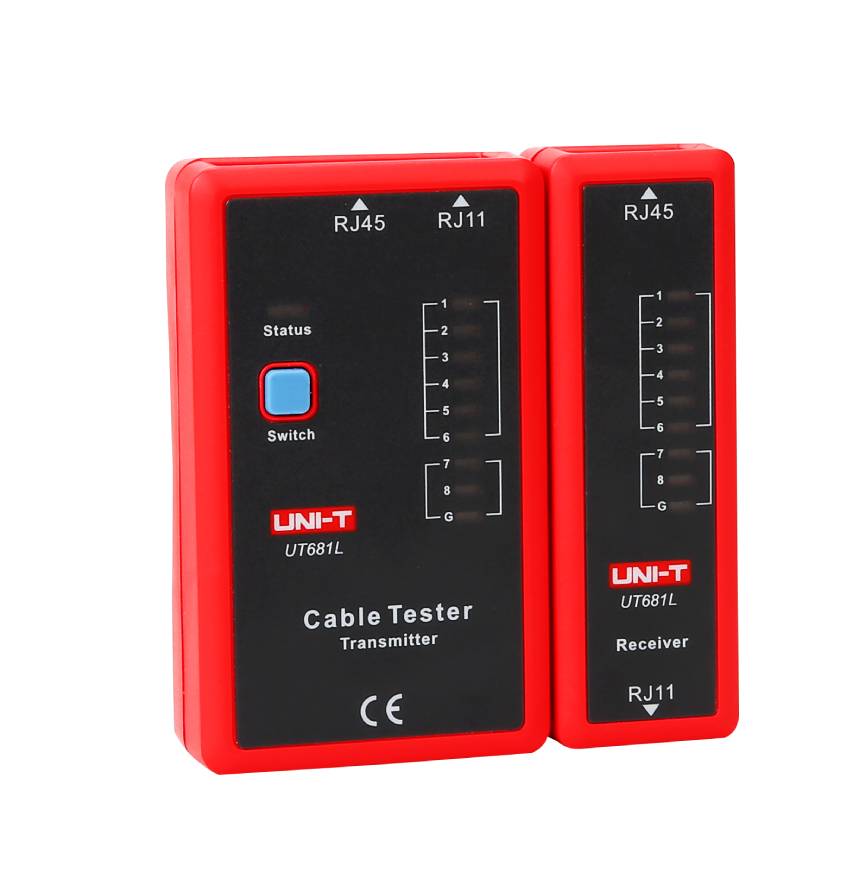

UT681L handheld cable testers can be used to fast check if Ethernet/telephone/BNC/HDMI cables are conducting, short-circuit, crossed or open-circuit. They are ideal tools for technicians to install, maintain and inspect week current system circuit.
Features of UT681L Cable Testers
● LED status display
● Auto check of open/short/crossovercircuit
● Single key operation
● Manual/auto power off (after10-minute inactivity)
● Low battery indication
● Power supplied by 9V battery
Specifications of UT681L Cable Testers
| Specifications | Range | UT681L | Description |
| Test function | To test for: RJ45/RJ11 | √ | |
| To test for: RJ45/RJ11/BNC | Need to use RJ45 to BNC adaptor | ||
| To test for: HDMI/MINI-HDMI | |||
| Fast test mode | √ | LED1~LED8, LED_G | |
| Slow test mode | √ | LED1~LED8, LED_G | |
| Scan test mode | LED1~LED19, LED_S | ||
| Full display test mode | LED1~LED19, LED_S | ||
| To test for the case of short circuit, crossover, open circuit, etc. | √ | ||
| Ethernet cable: shielded/ unshielded test | √ | ||
| Manual shutdown function | √ | ||
| Auto shutdown function | √ | No operation within 10 minutes, the device will shut down automatically | |
| Single key operation | √ | ||
| Power supply: 9V battery | √ | ||
| Low battery detection | √ | Less than 7.2V | |
| Application environment | Operating temperature: 0~40℃ | √ | |
| Storage temperature: -10~50℃ | √ | ||
| Operating humidity: 20~80%RH | √ | ||
| Storage humidity: 10~90%RH | √ | ||
| Altitude: ≤2000 meters | √ | ||
| Safety standard | CE EN61326-1: 2013; EN61326-2-2: 2013 | √ |
| General Characterisitics | |
| Product color | Red and grey |
| Product net weight | Transmitter: 87g; receiver: 51g |
| Product size | Transmitter: 102mm x 62mm x 28mm; receiver: 102mm x 37mm x 28mm |
| Standard accessories | 9V battery, BNC to RJ45 adaptor (UT681C) |
| Standard individual packing | Gift box, English manual |
| Standard quantity per carton | 40pcs |
| Standard carton measurement | 455mm x 410mm x 225mm |
| Standard carton gross weight | UT681L: 6.4kg; UT681C: 8.7kg; UT681HDMI: 9.5kg |
