HARMONY INDICATOR AD-16-22DS RED
- Category: Led Indicators
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 100

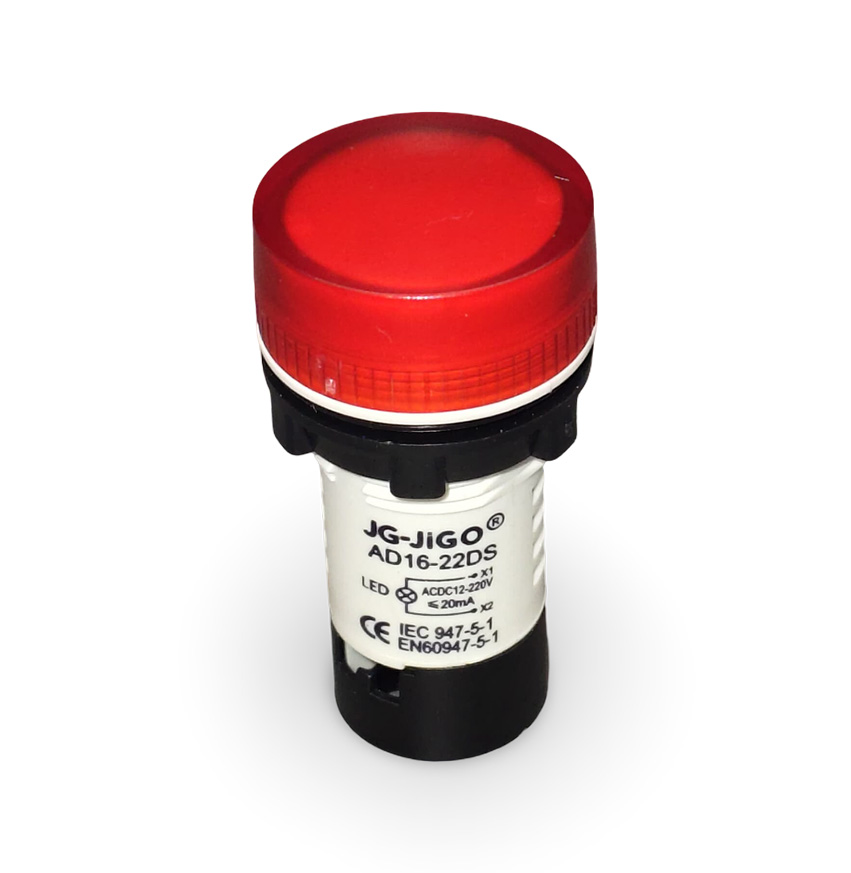

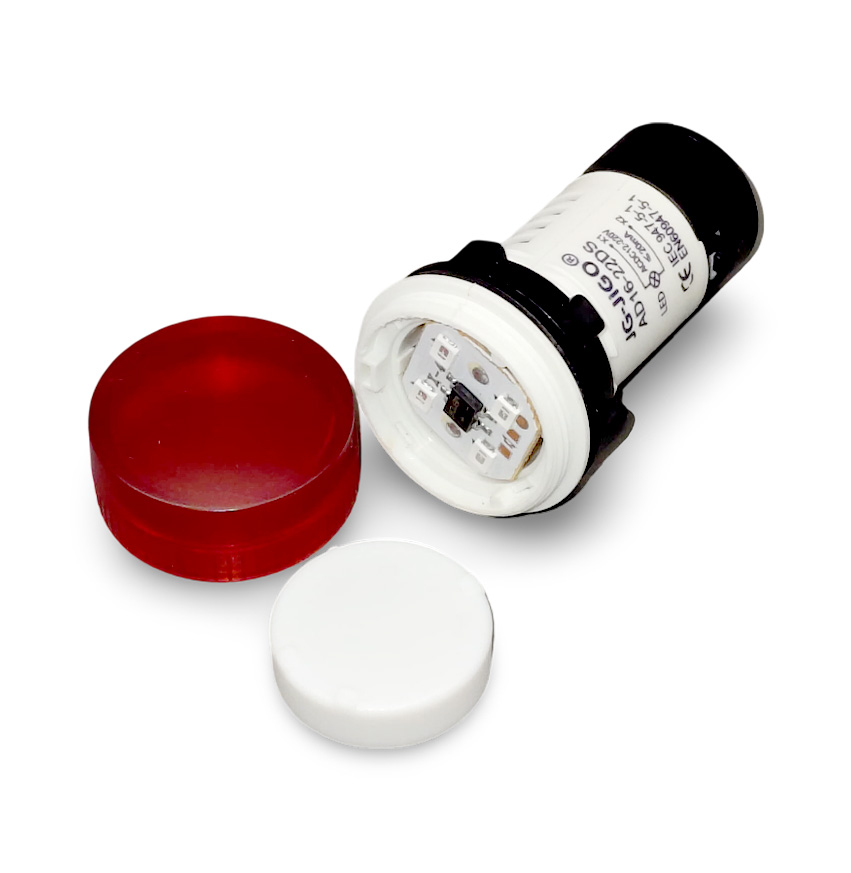

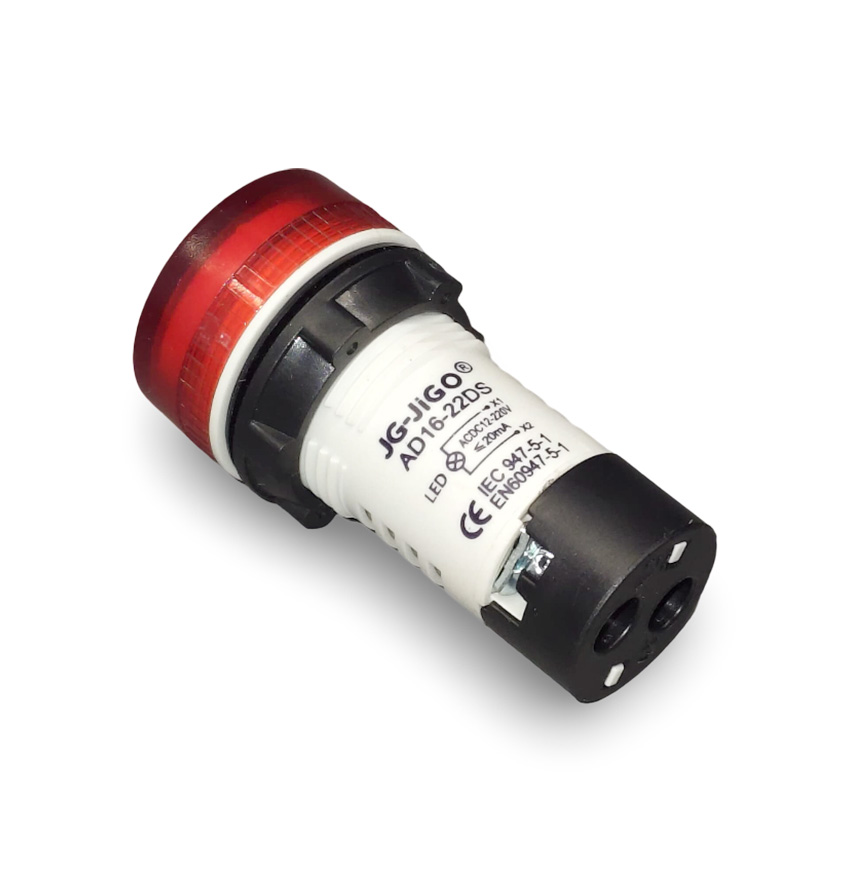

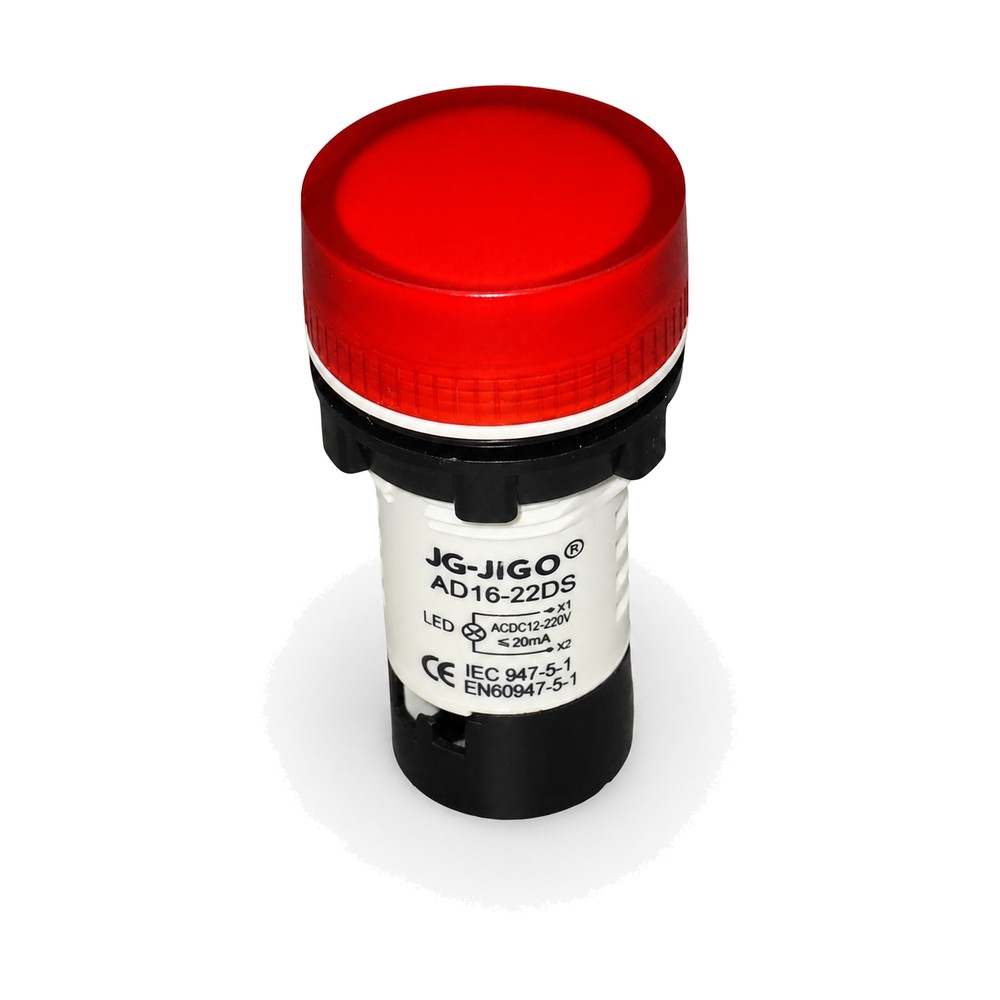

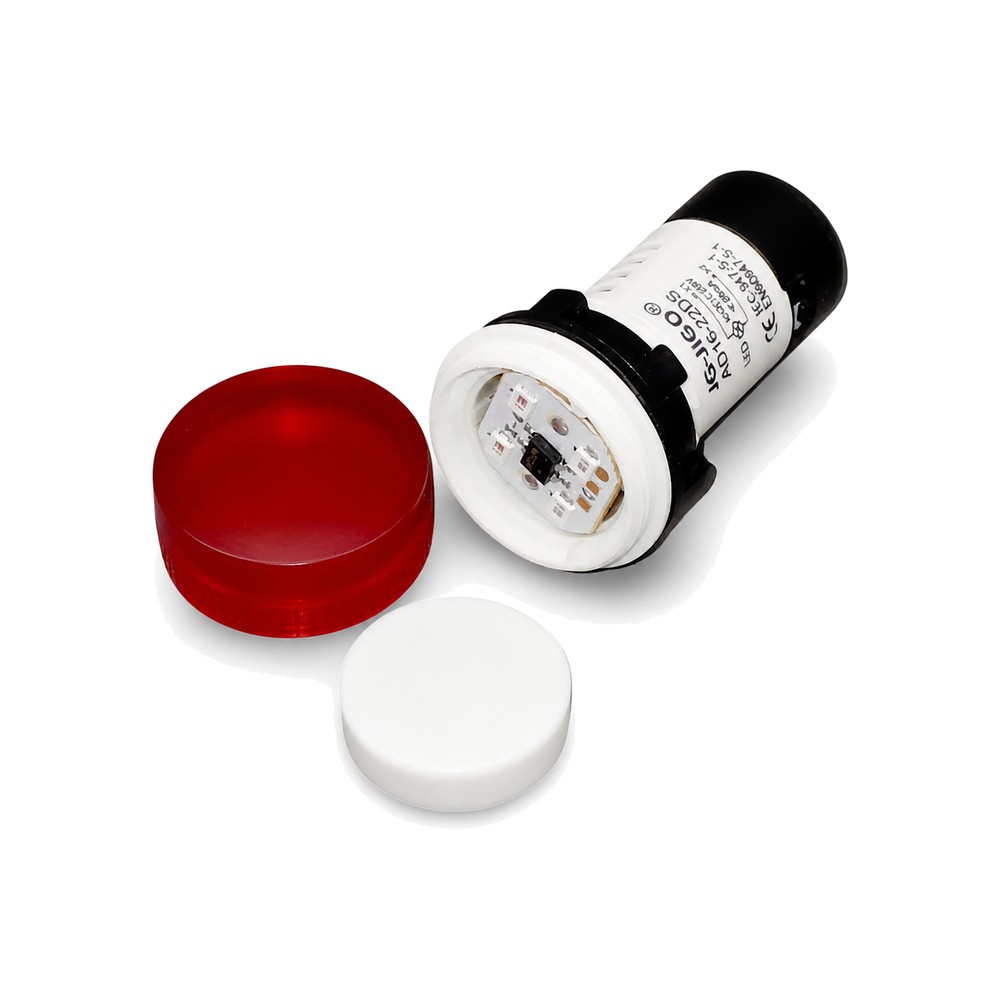

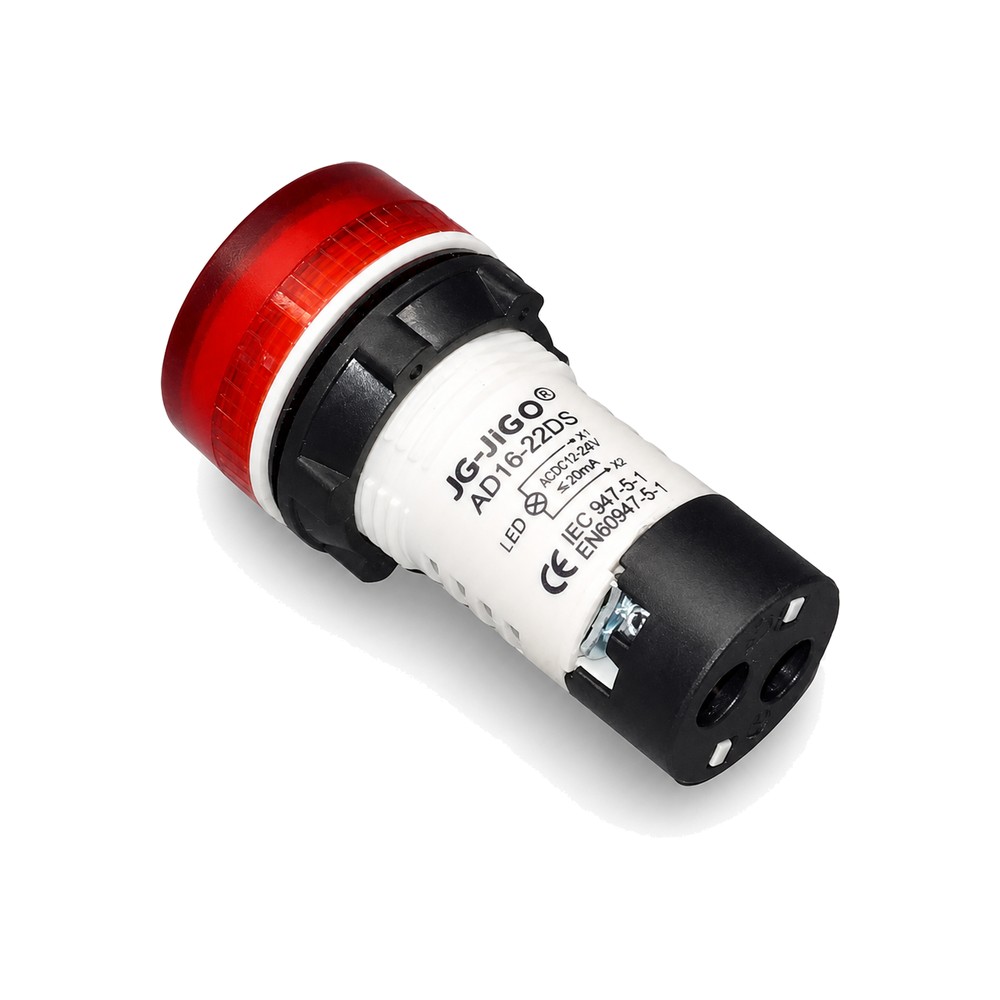

AD16‑22DS Red Indicator is a compact 22 mm panel-mounted LED pilot lamp that provides a bright red signal for industrial panels and control systems, suitable for electrical status indication.
Product Details
Model: AD16‑22DS (red lens)
Mounting Hole: Ø 22 mm panel-mount standard
Voltage Support: AC/DC 3 V to 220 V (some extend to 380 V); typically operates at 12V, 24V, 110V, or 220V selection.
Rated Current: Approximately 15 mA (≤20 mA per bulb) depending on voltage and color.
Color: Red LED with polycarbonate lens + flame-retardant plastic body.
Brightness: ≥ 100 cd/m², offering clear visibility.
LED Life: ≥ 30,000 hours continuous operation.
Insulation Resistance: ≥ 50 MΩ; dielectric strength ≥ 2.5 kV AC for 1 minute.
Protection Rating: Standard IP54; optionally IP65/IP67 with enhanced variant.
Operating Temperature Range: –25 °C to +55 °C (humidity ≤ 98%).
Operating Frequency (for AC models): 50–60 Hz; voltage fluctuation ±20% allowed.
Wiring & Mounting: Built with screw-type terminals and snap-in front mounting.
Key Features
Ultra-low power consumption via LED (<20 mA)
Compact and lightweight with polycarbonate lens
High visibility red signal for status and fault indication
Designed to IEC/EN/ UL/CCC standards through equivalent product lines
Durable LED lifespan and environmental resistance
Easy front-mount installation in 22 mm cutouts
Optional enhanced protection enclosures available (IP65/IP67)
Applications
Power ON indication and system status signaling
Fault or alarm condition display in machinery
Control and monitoring panels in automation systems
HVAC, switchgear, MCC systems, and elevator panels
Industrial equipment status and power indicator
