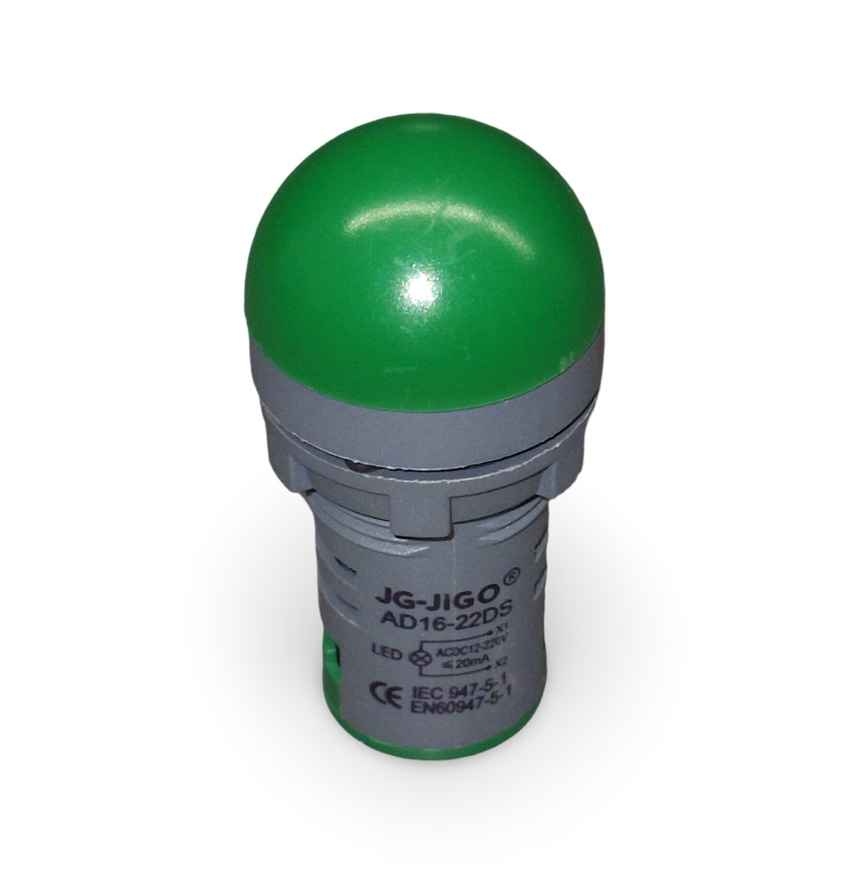

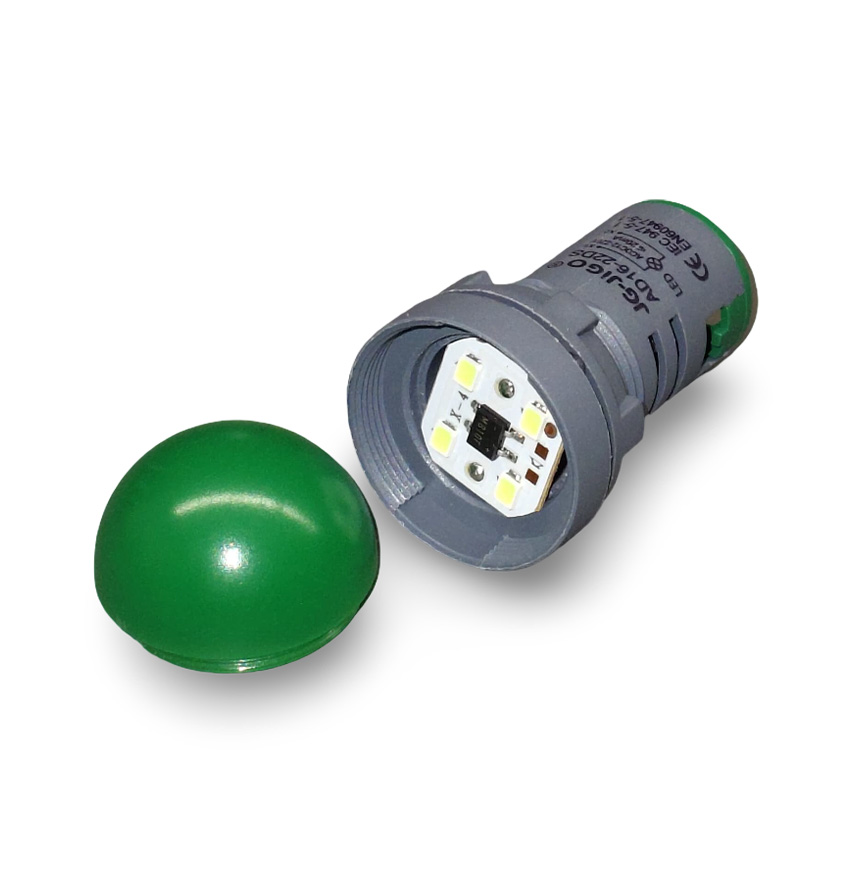

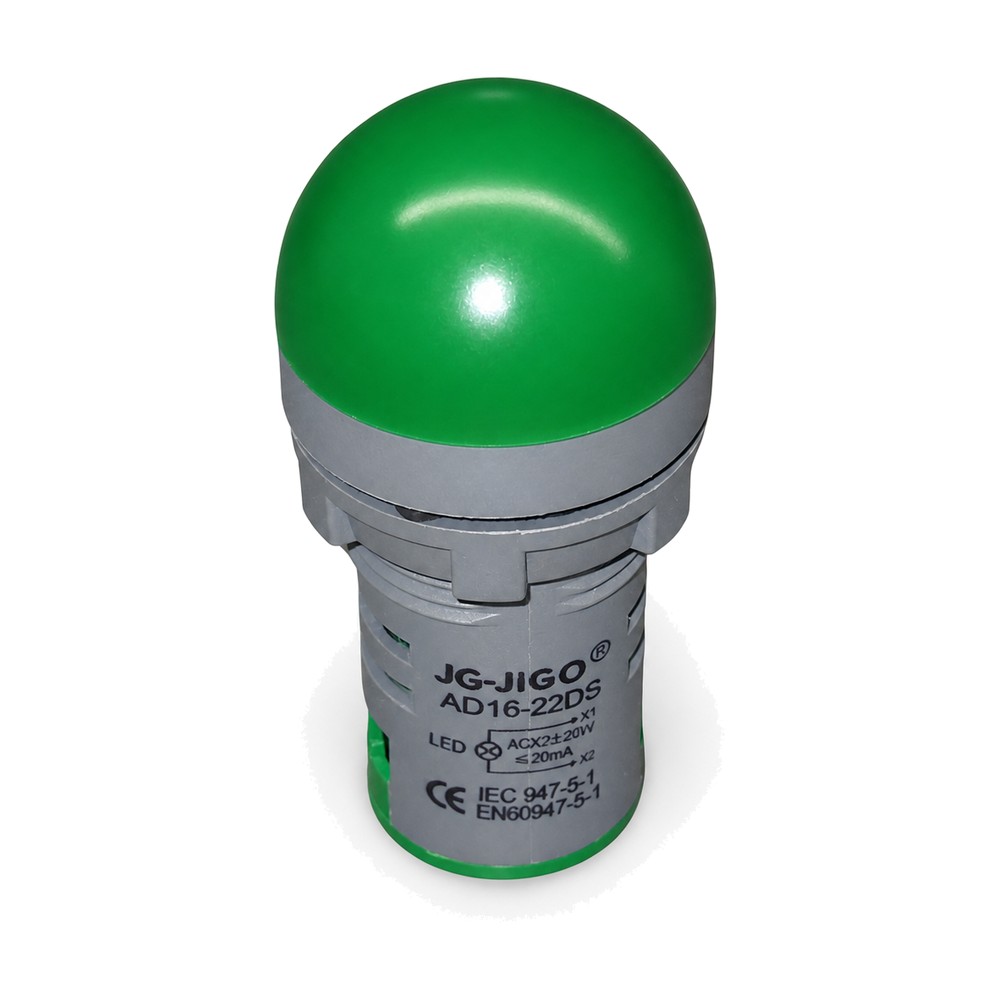

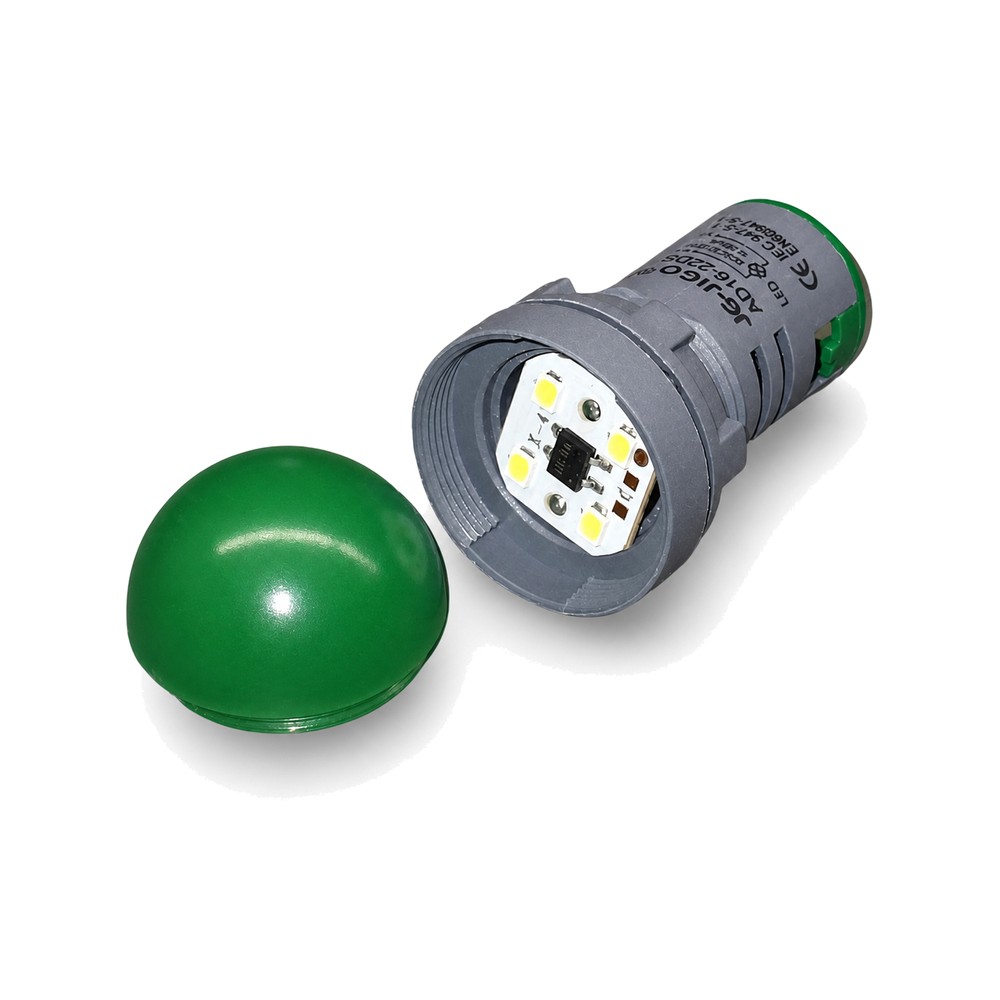

ROUND AD16-22DS GREEN LED Indicator Light
The AD16‑22DS Green Pilot Light is a compact, round LED indicator (22 mm panel mount) that provides bright green visual signaling for industrial control panels and electrical systems.
Product Details
Model: AD16‑22DS (Green variant)
Panel Cutout: Ø 22 mm standard size
Voltage Options: AC/DC 3V–220V (common variants include 6V, 12V, 24V, 110V, 220V ±20%)
Rated Current: ~15–20 mA depending on voltage
Brightness: ≥ 100 cd/m² from high‑intensity green LED
Lifespan: ≥ 30,000 hours typical for LED operation

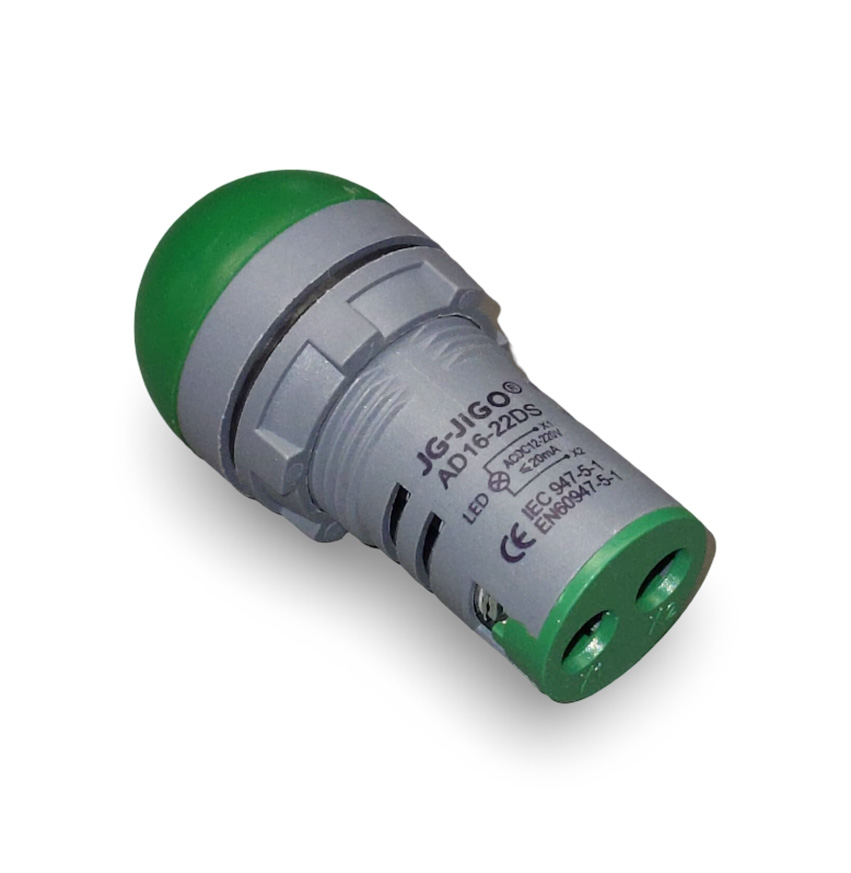

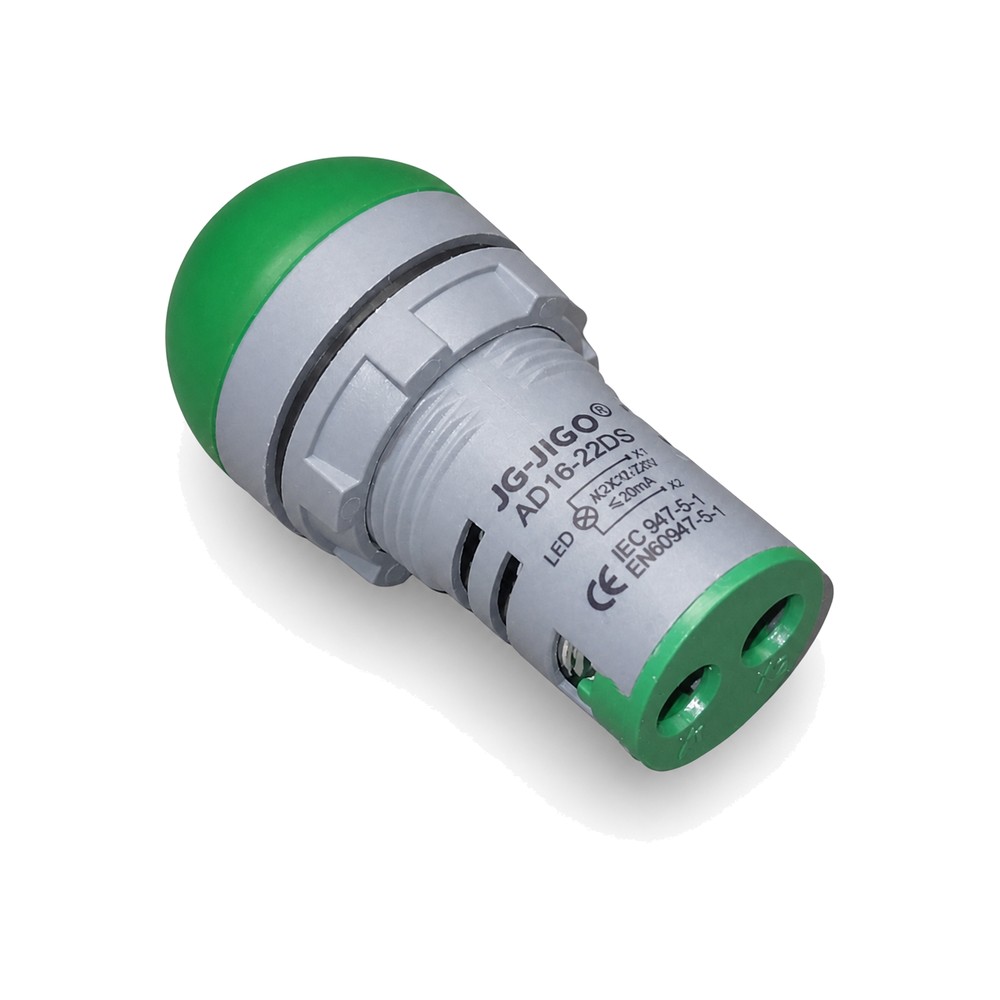

Mounting & Wiring: Snap-in front mounting with screw-type terminal or solder pins
Insulation & Dielectric Strength: ≥ 50 MΩ insulation resistance, ≥ 2.5 kV AC dielectric withstand for 1 minute
Protection Rating: IP54 standard; higher protection levels (IP65/IP67) optional in rugged versions
Operating Temperature: –25 °C to +55 °C, humidity ≤98% RH; vibration rated to 2–80 Hz, ≤0.7 g
Key Features
Bright and highly visible green LED indicator with low energy consumption (<20 mA)
Compact and easy to install in standard 22 mm panels
Flame-retardant polycarbonate lens with robust plastic housing
Wide voltage compatibility for AC or DC systems
Meets international standards (CE/UL/CCC/ROHS via equivalent series)
Optional waterproof housing available for harsh industrial use
Applications
Power ON/supply-ready status indication in control panels
System ready or running state signaling in machine automation
Signal/status indication in HVAC units, switchgear, and MCC panels
Equipment status, fault alerts, or readiness indicators in industrial settings
