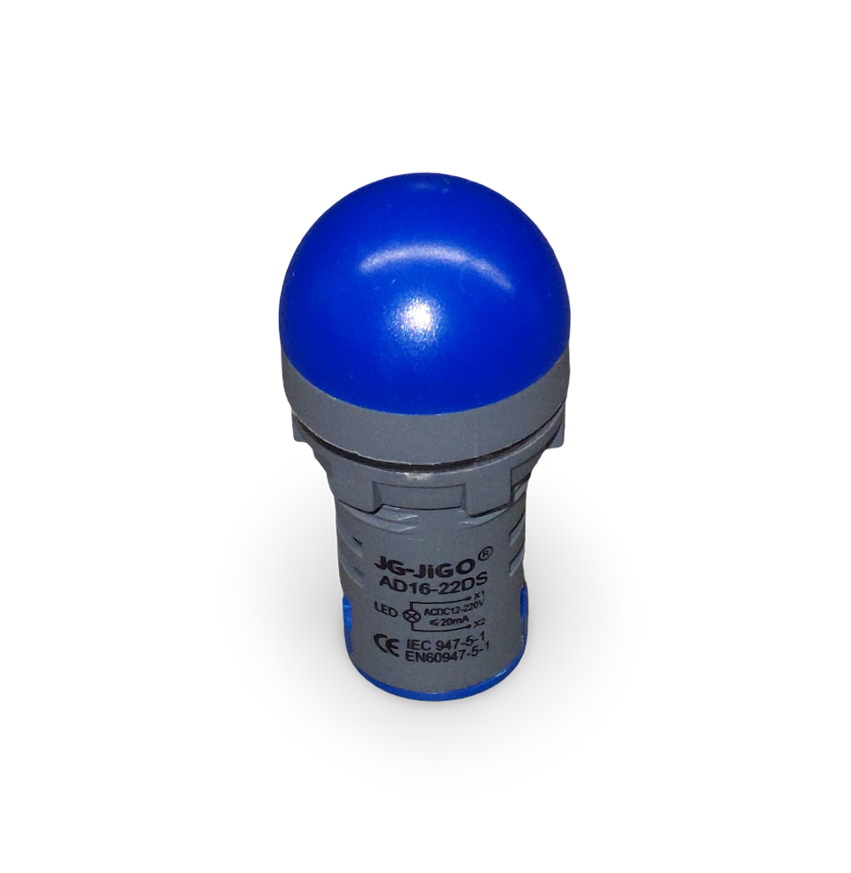

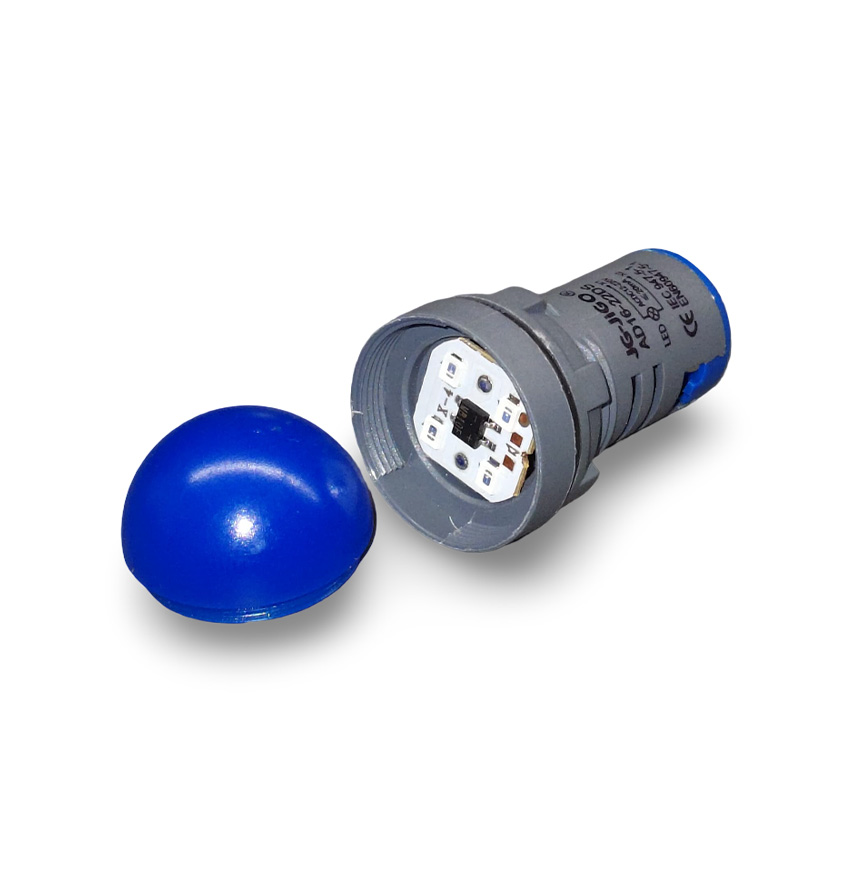

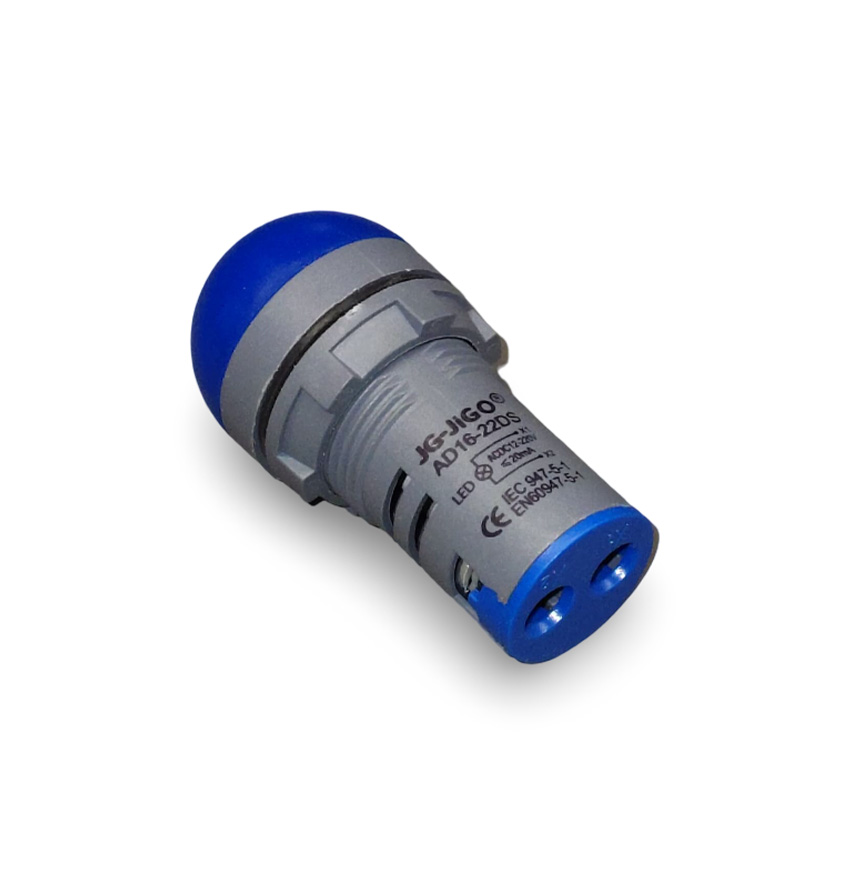

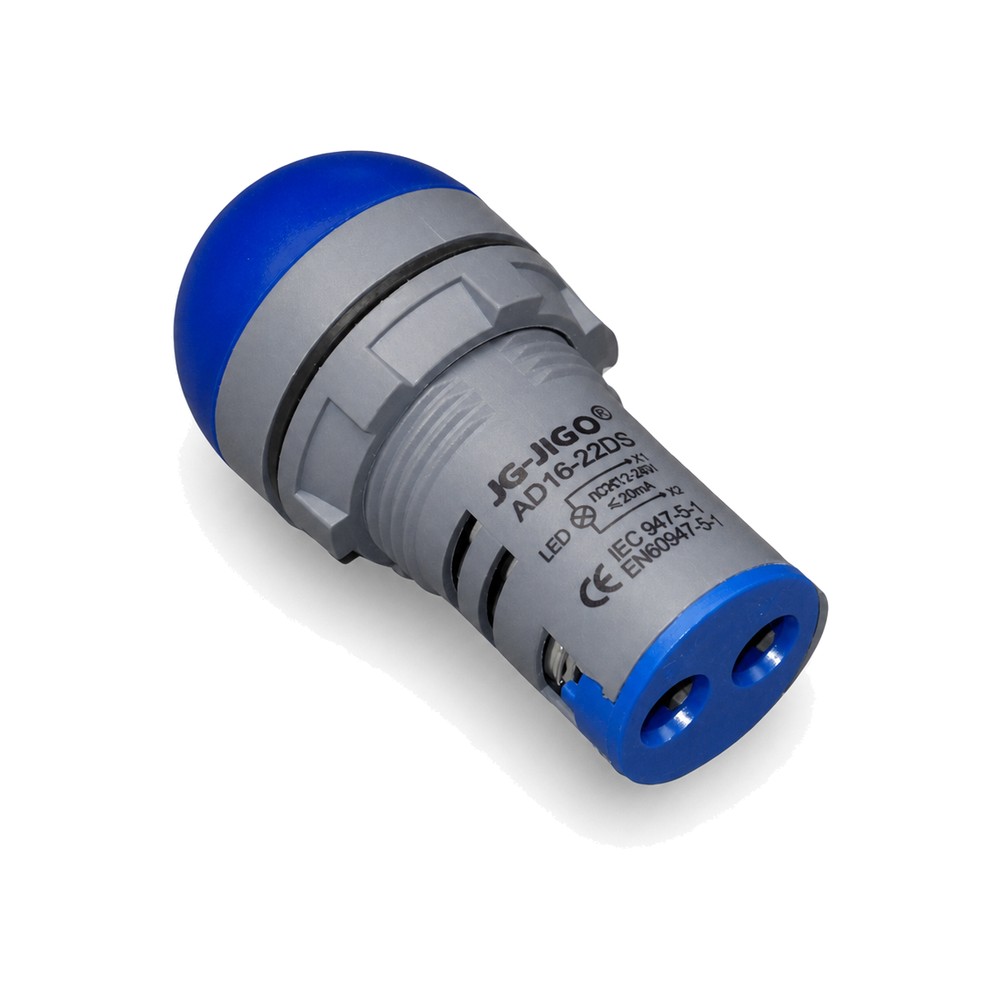

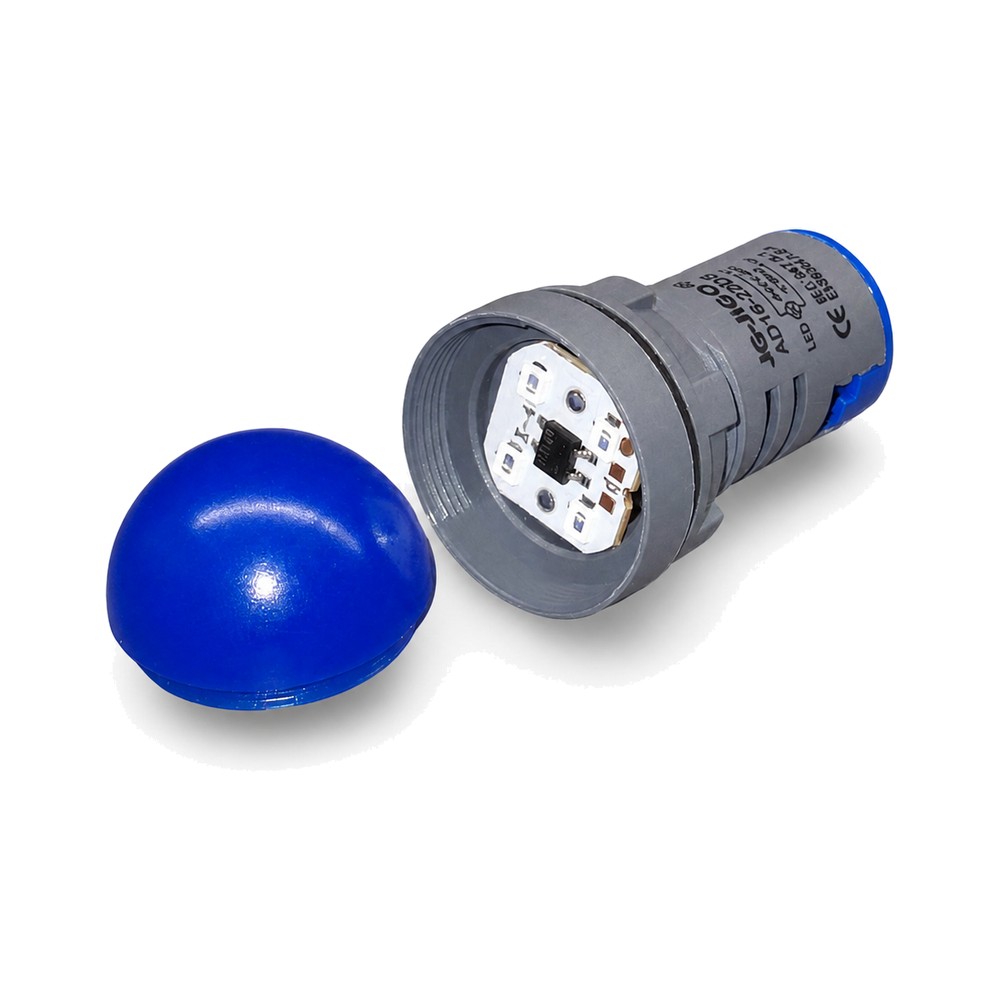

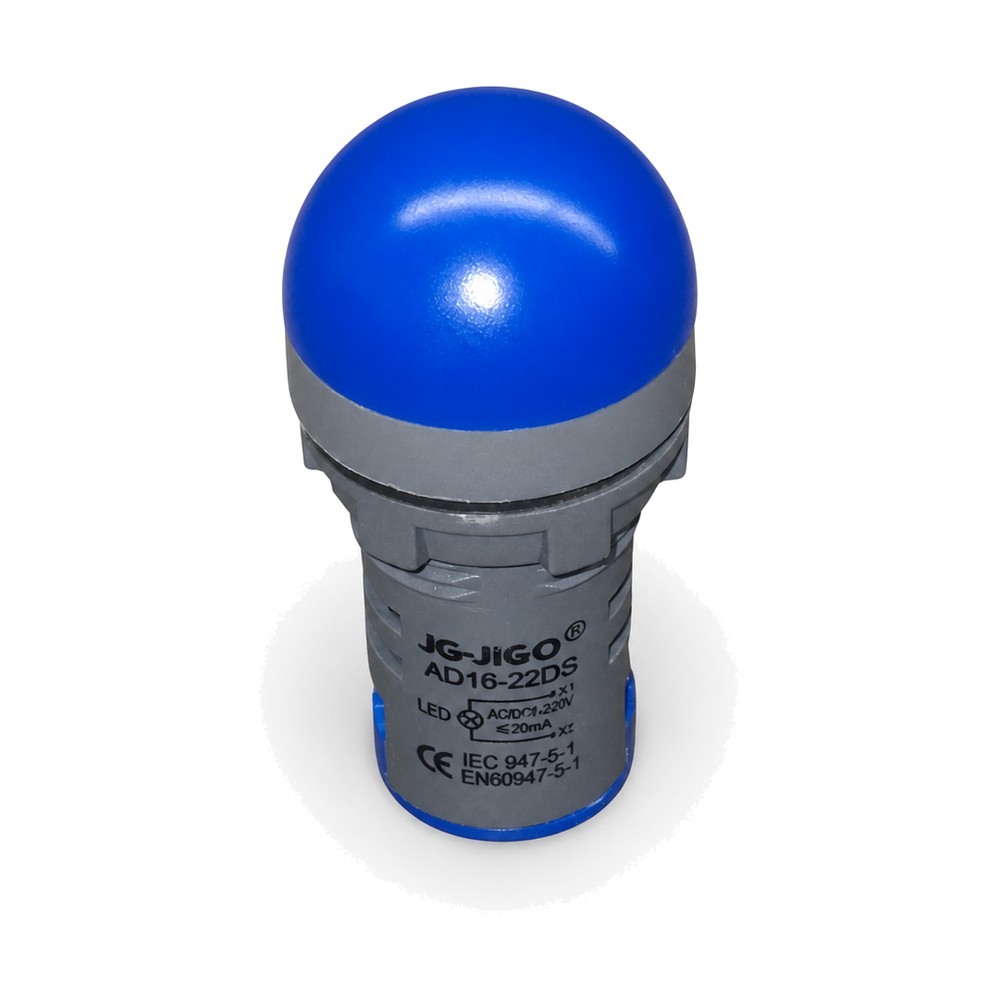

ROUND INDICATOR AD16-22DS BLUE
The AD16‑22DS Blue Pilot Light is a 22 mm round panel-mount LED indicator offering high visibility with low power consumption—ideal for panel status signaling and machinery control in industrial environments.
Product Details
Model: AD16‑22DS (Blue variant)
Mounting Hole: Ø 22 mm standard panel cutout
Voltage Range: AC/DC 3 V–220 V (±20%) – typical variants include 6 V, 12 V, 24 V, 110 V, 220 V
Rated Current: ≤ 20 mA (usually around 15–20 mA)
Brightness: >100 cd/m² using high-intensity pure-color LED
Lifespan: ≥ 30,000 hours of continuous operation
Insulation Resistance: ≥ 50 MΩ (Ui up to 660 V); Dielectric Strength: ≥ 2.5 kV AC @ 1 min
Protection Rating: IP54 standard; IP65/IP67 optional in extended variants
Operating Conditions: –25 °C to +55 °C, ≤ 98% RH; withstands vibration (2–80 Hz, ≤0.7 g)
Mounting/Wiring: Snap-in installation with built-in screw terminals for fast installation
Key Features
Efficient LED indicator with very low current draw
Ideal visibility and sharp blue color for status signaling
Slim, compact design fits standard control panels
Flame-retardant and rugged polycarbonate build
Meets IEC/EN specs for visual indicators (AD16 series standard)
Flexible voltage input choice suits various systems
Optional waterproof models available for harsher environments
Applications
Power‑ON / Ready status indication in control panels
Fault or warning signals in automation and process systems
Industrial switchgear, MCC panels, HVAC displays
Conveyor lines, manufacturing dashboards, elevator controls
Electrical, marine, telecom, or machine tool status modules
