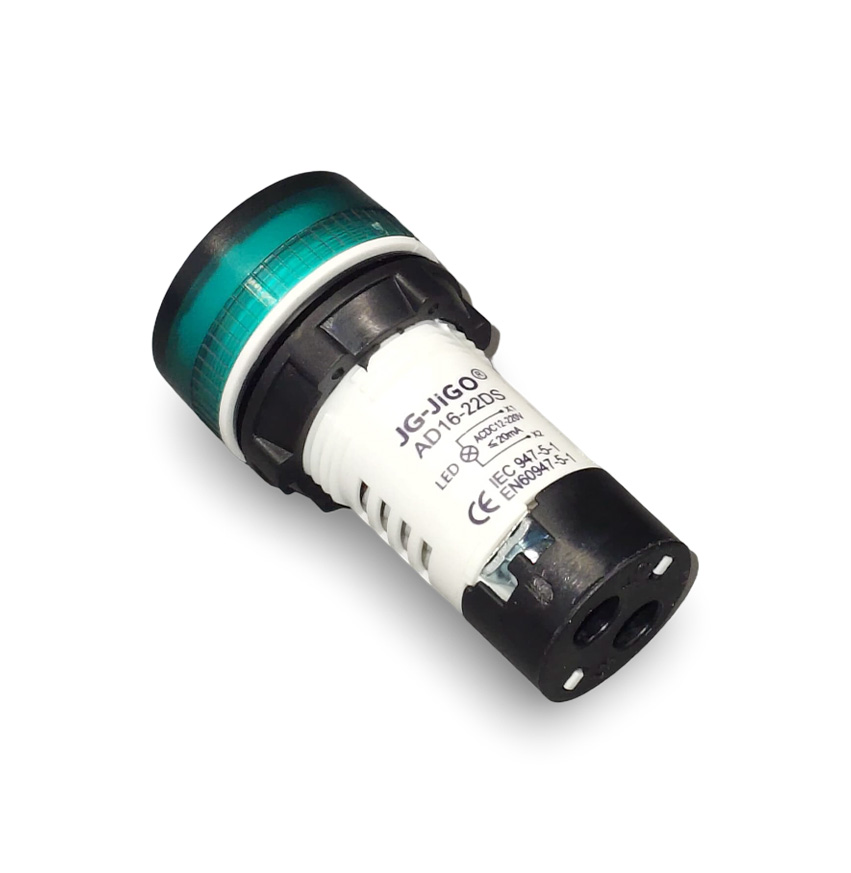

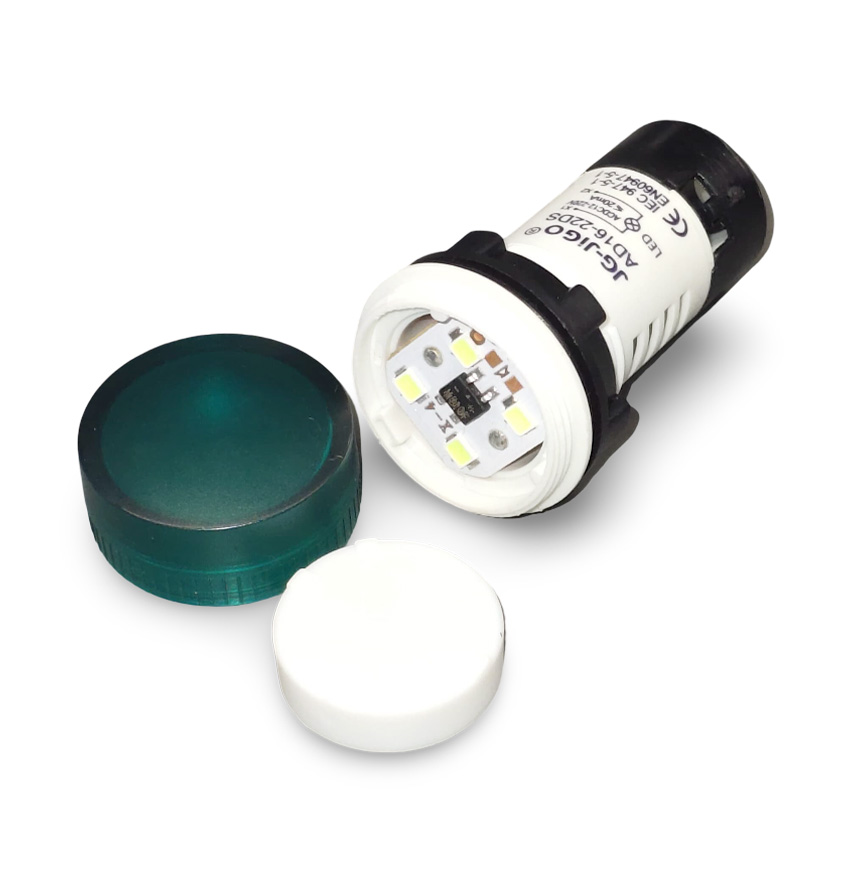

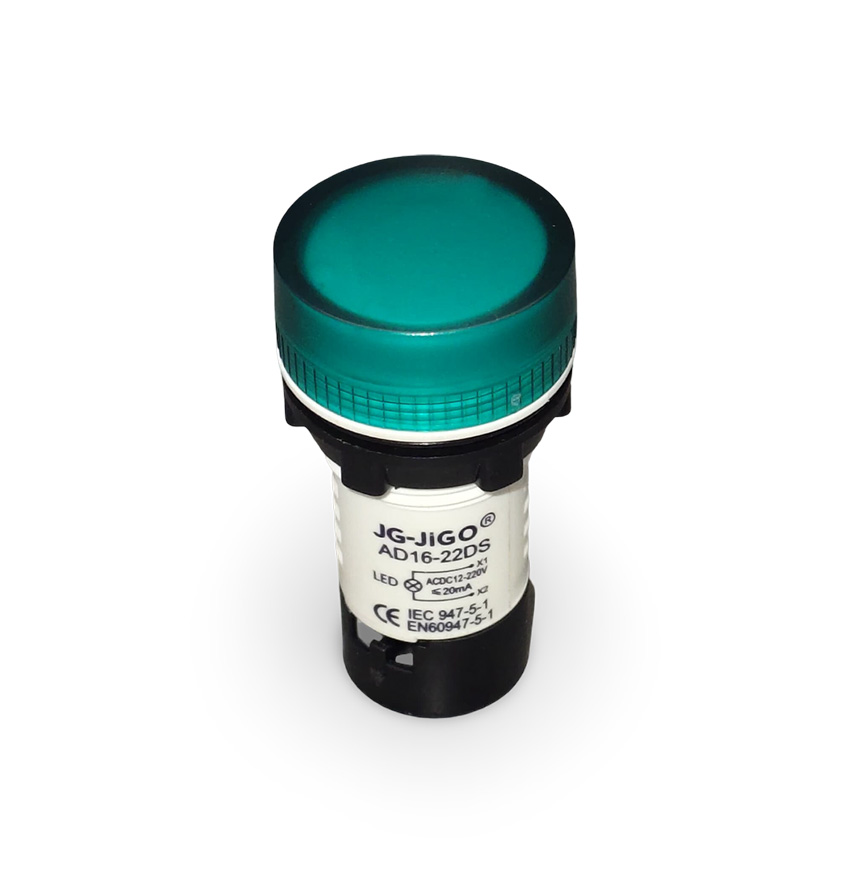

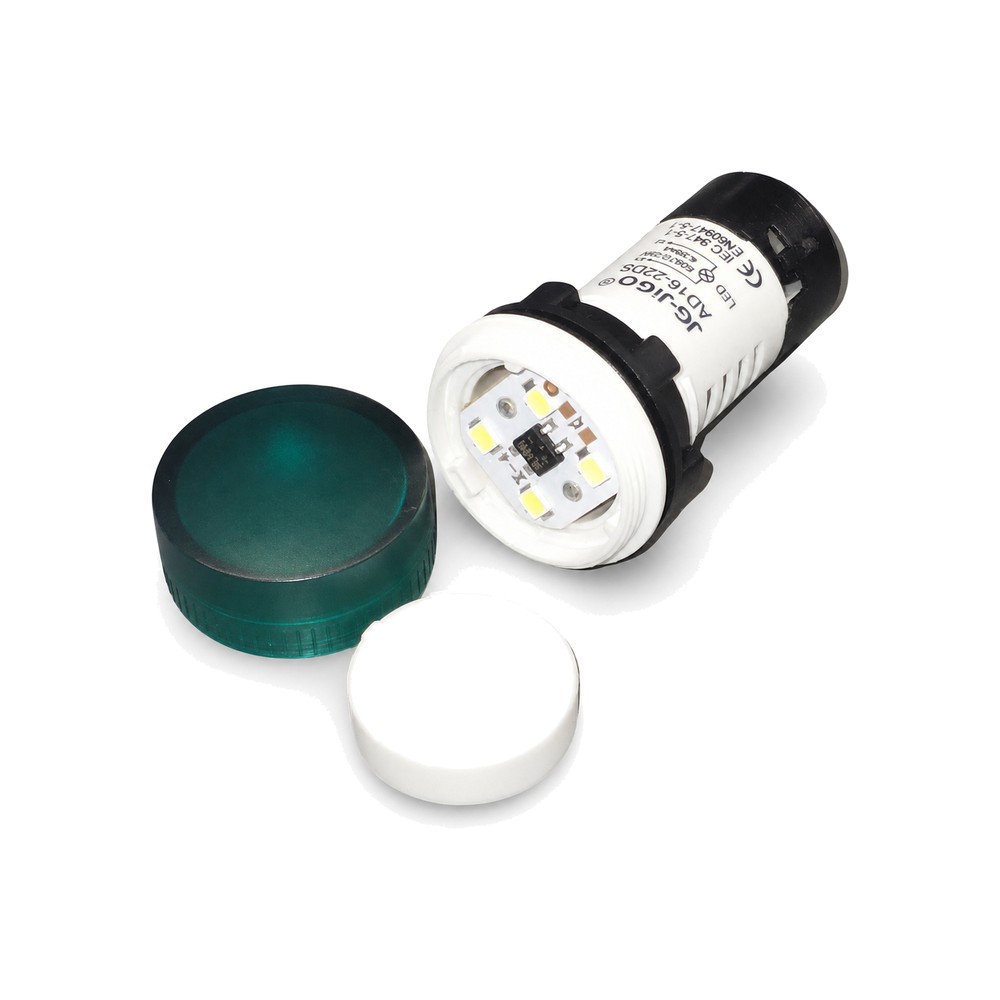

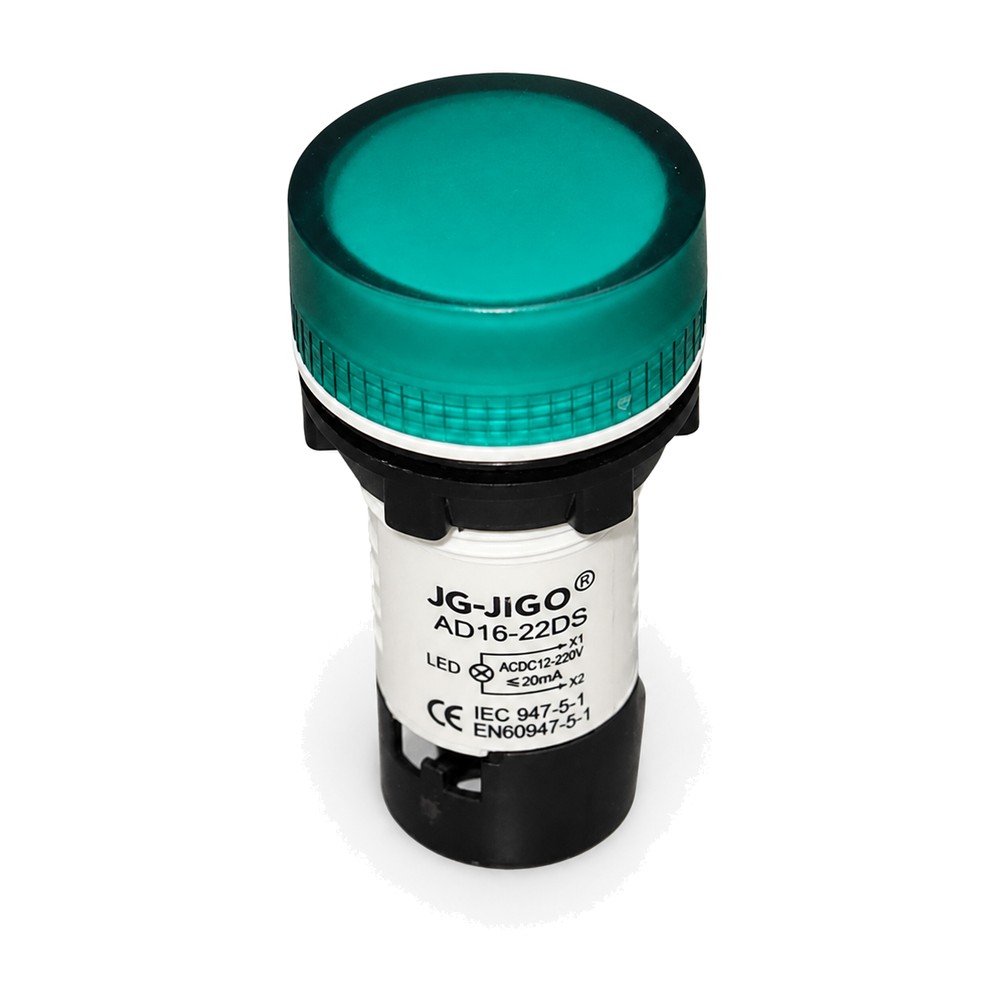

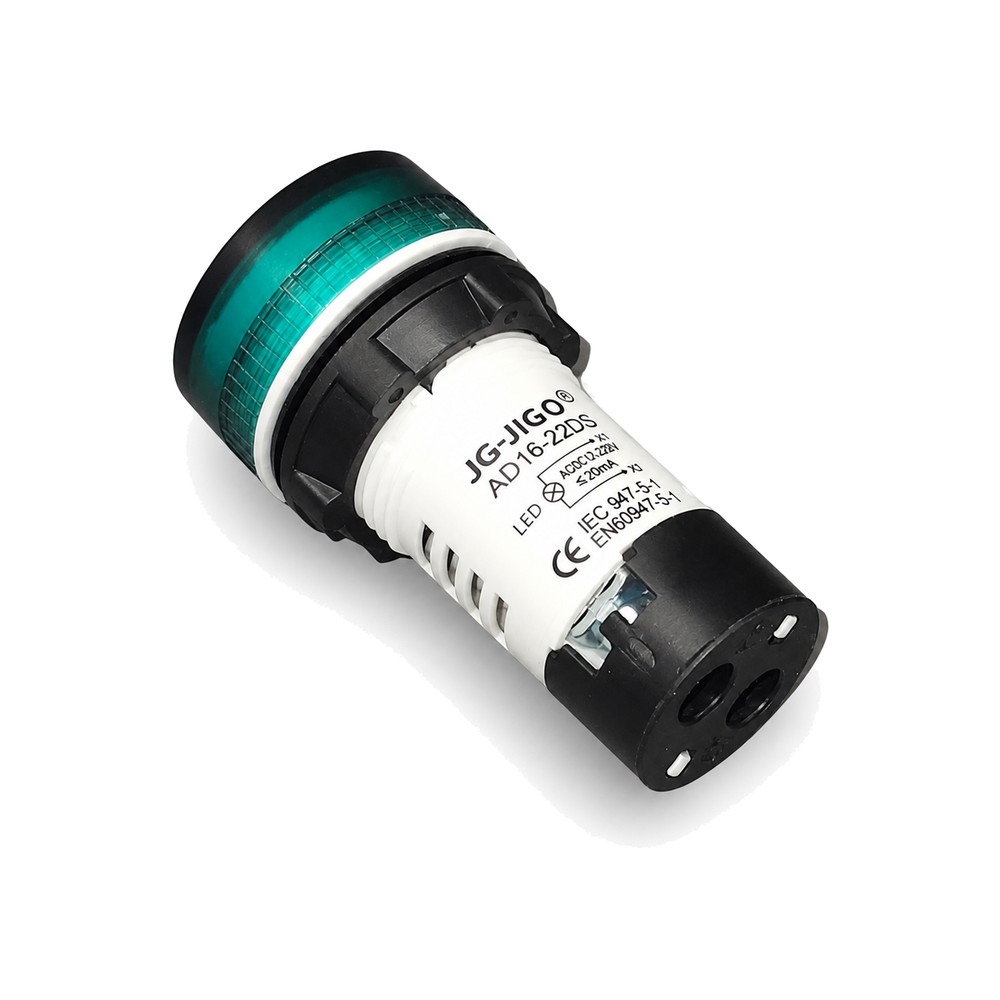

HARMONY INDICATOR AD16-22DS GREEN
AD16‑22DS Green Indicator is a 22 mm diameter LED pilot lamp providing bright, energy-efficient green signaling for industrial control and status applications.
Product Details
Model Code: AD16‑22DS (or AD16‑22D/g22S variant for panel mount)
Mounting Hole: Ø22 mm (standard 7/8″) panel mount
Voltage Options: AC/DC 3V, 6V, 12V, 24V, 36V, 48V, 110V, 220V, 380V (±20%)
Current Draw: Approx. 15–20 mA (≤20 mA typical)
Color: Green LED with polycarbonate lens and flame-retardant body
Rated Brightness: ≥100 cd/m²
LED Life Expectancy: ≥30,000 hours
Insulation Resistance: ≥50 MΩ for Uᵢ up to 660V
Dielectric Strength: ≥2.5 kV AC (1-minute test)
Wiring: Screw terminal connection inside for secure assembly
Environmental Rating: Standard IP54; custom options IP65/IP67 available
Operating Temp: –25 °C to +55 °C (humidity ≤98%)
Vibration Tolerance: Functional at 2–80 Hz with acceleration up to 0.7g
Pollution Class: Class III, Installation Category III
Key Features
High-brightness green LED suitable for status indication
Ultra low power consumption with extended service life
Durable polycarbonate housing resistant to impact
Easy installation with snap-in or screw-fit panel mount
Wide voltage compatibility supports versatile control systems
Clear wiring and modular design for quick assembly
Meets CE, UL, CCC, and RoHS standards in equivalent models
Applications
Machine and process control panels
Power and status indicator in automation systems
Equipment warning or readiness signal
Industrial switchgear, HVAC panels, and MCC systems
Elevators, manufacturing lines, marine or railway control systems
