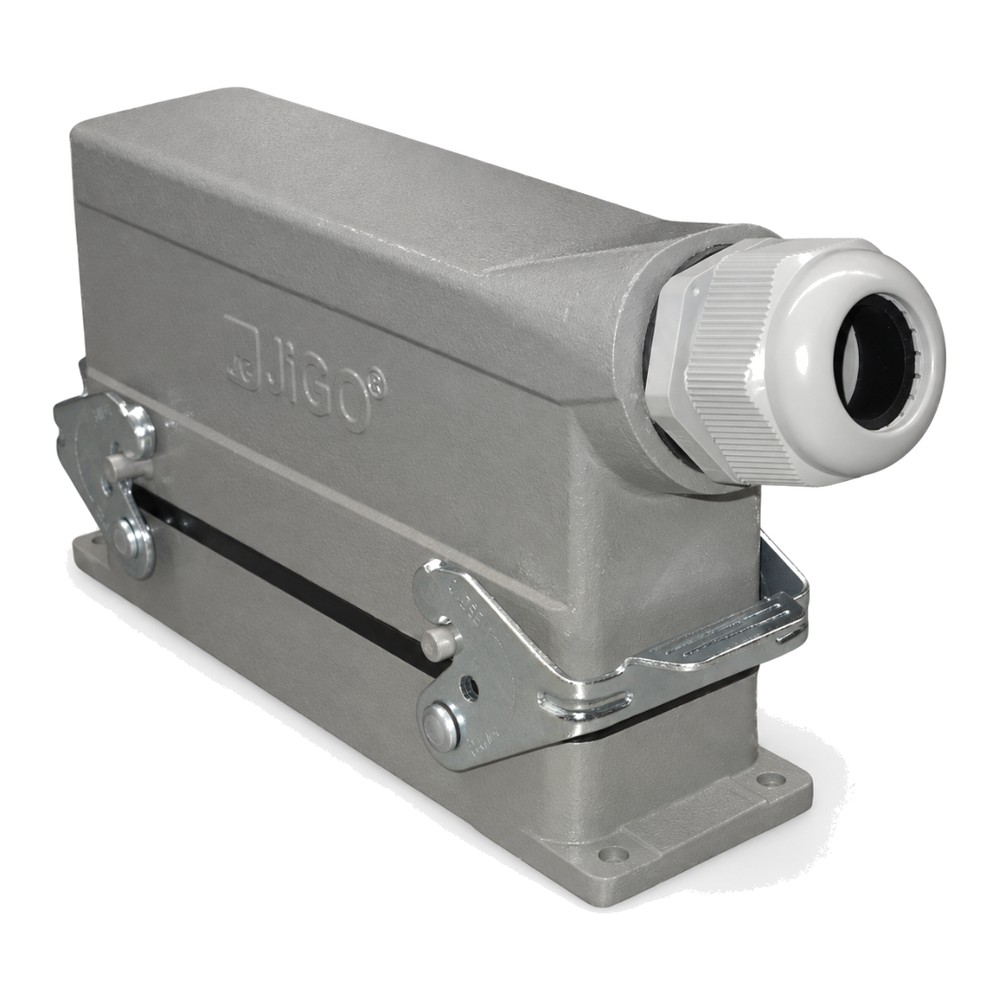

HDC-32PIN Heavy Duty Connector (Single Line)

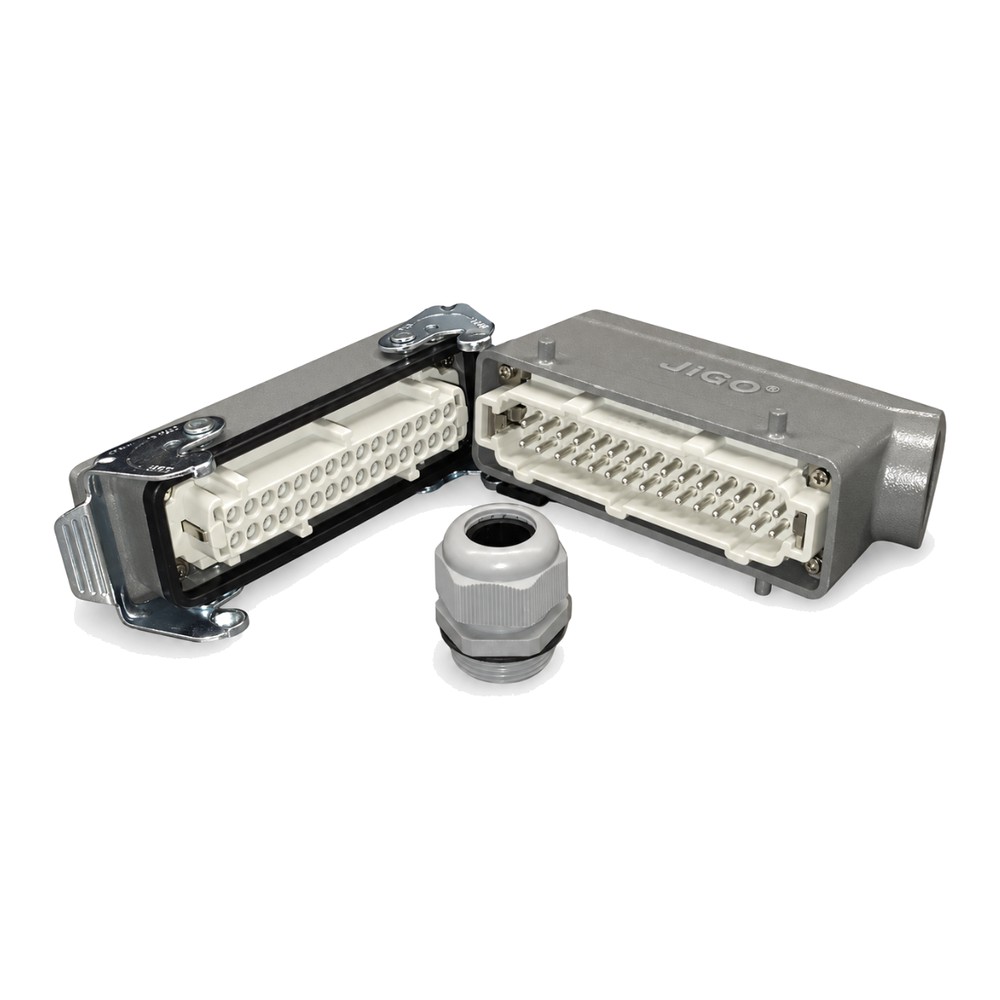

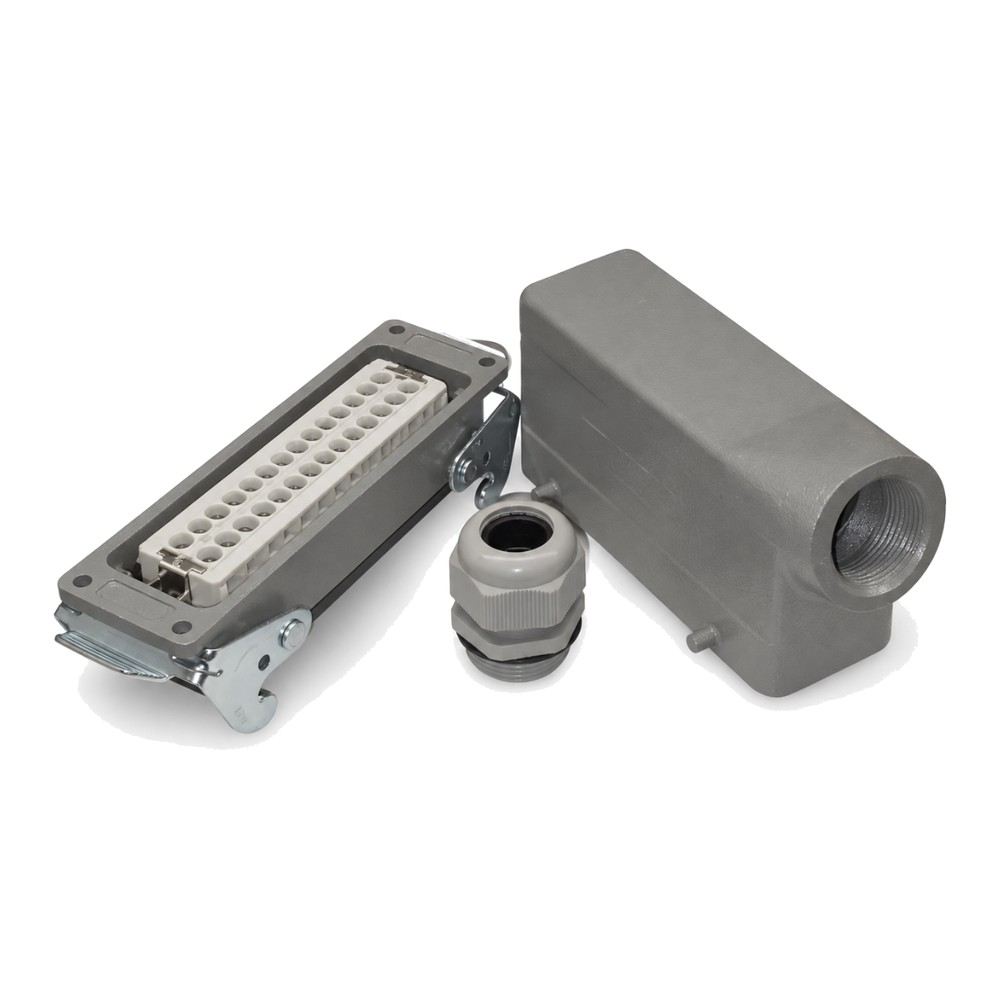

HDC-32PIN Single Line – 32-pin heavy-duty industrial connector with one long 32-contact insert in a single rectangular housing; complete set of hood, base, male and female inserts and cable gland. Also available in the double-line version (2 x 16-pin inserts).
Product Details:
Model: HDC-32PIN Single Line (one 32-pin insert, two rows of 16)
Number of Contacts: 32 + PE
Connector Type: Heavy Duty Connector – rectangular, single long housing
Insert Material: Flame-retardant thermoplastic (typically PA66)
Contact Material: Copper alloy (silver or nickel plated)
Rated Voltage: Up to 500V AC/DC
Rated Current: 10A–16A (depending on terminal type)
Mounting: Panel or surface mount with compatible hood/base
Connection Type: Screw terminals
IP Protection: IP65/IP67 when mated with proper housing
Temperature Range: -40°C to +125°C

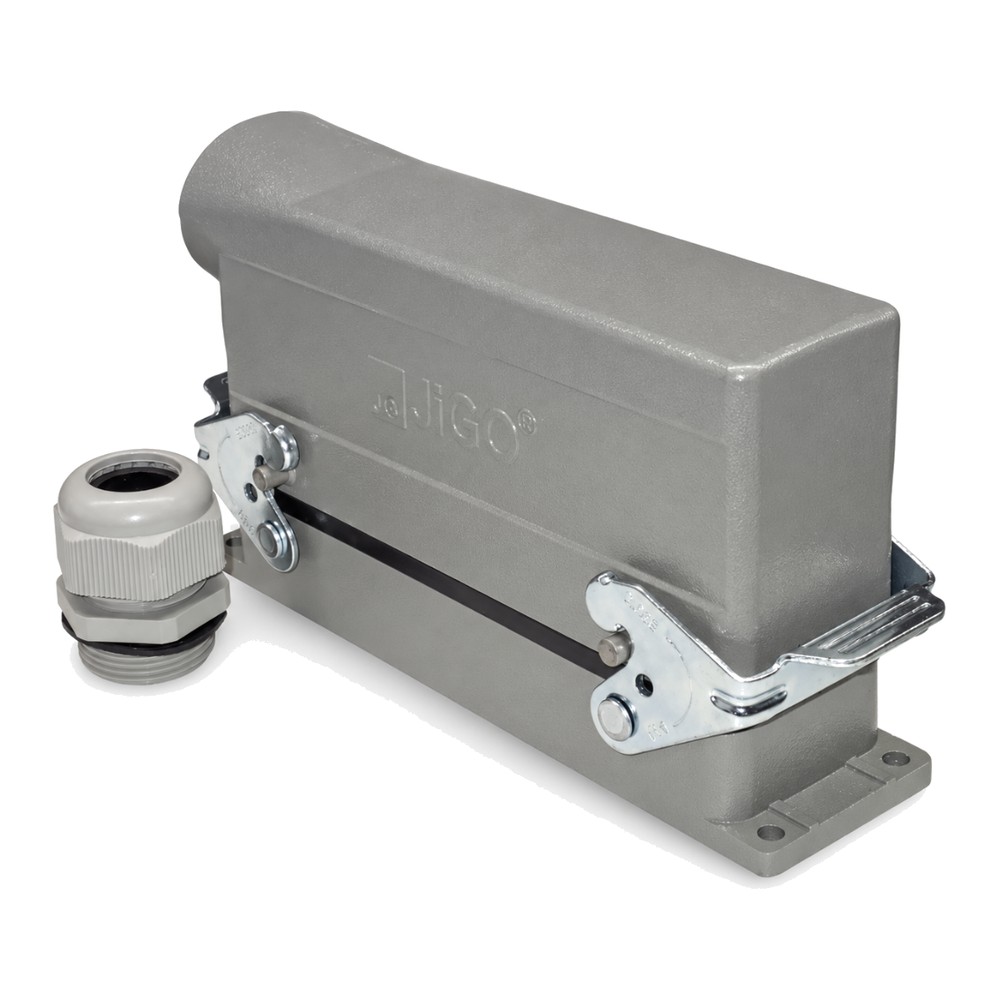

Housing: Die-cast aluminium, top-entry hood with cable gland
Locking Mechanism: Double lever locking
Key Features:
Single long 32-pin insert – narrower housing than the double-line (2 x 16) version, easier to route through a cutout
Resistant to vibration, shock, and mechanical stress
Sealed design for protection against water and dust
Modular and easy to assemble
Suitable for signal and low power transmission
UL/CE/RoHS compliant (varies by brand)
Applications:
Control panels and automation cabinets
Machinery and production lines
Robotics and industrial equipment
Renewable energy systems (e.g., solar inverters)
Railway and transport systems
Marine and offshore electrical units
