M18-PNP-NO

    Category: SENSORS
  • Brand: Jigo
  • Minimum quantity: 1
  • Price: ₹ 300

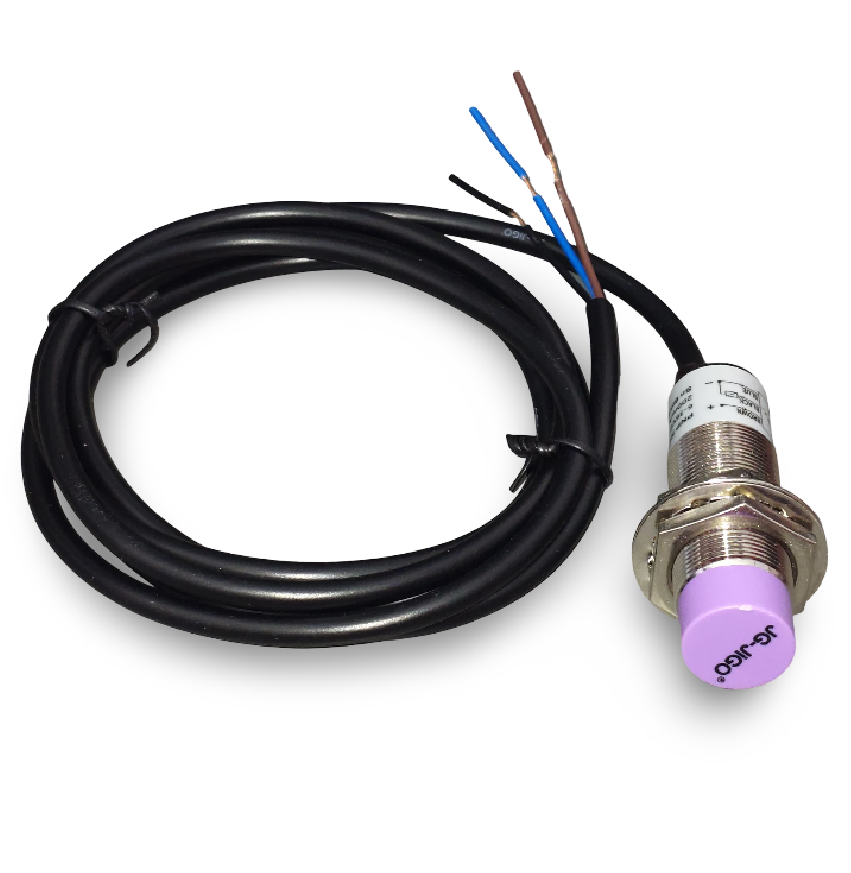

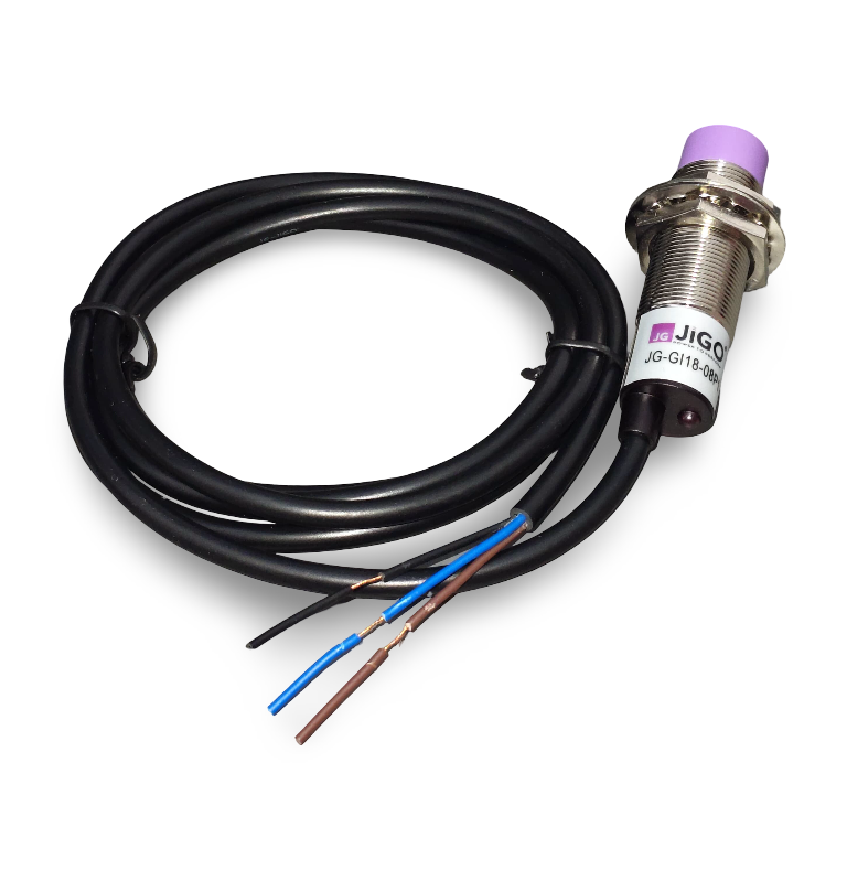

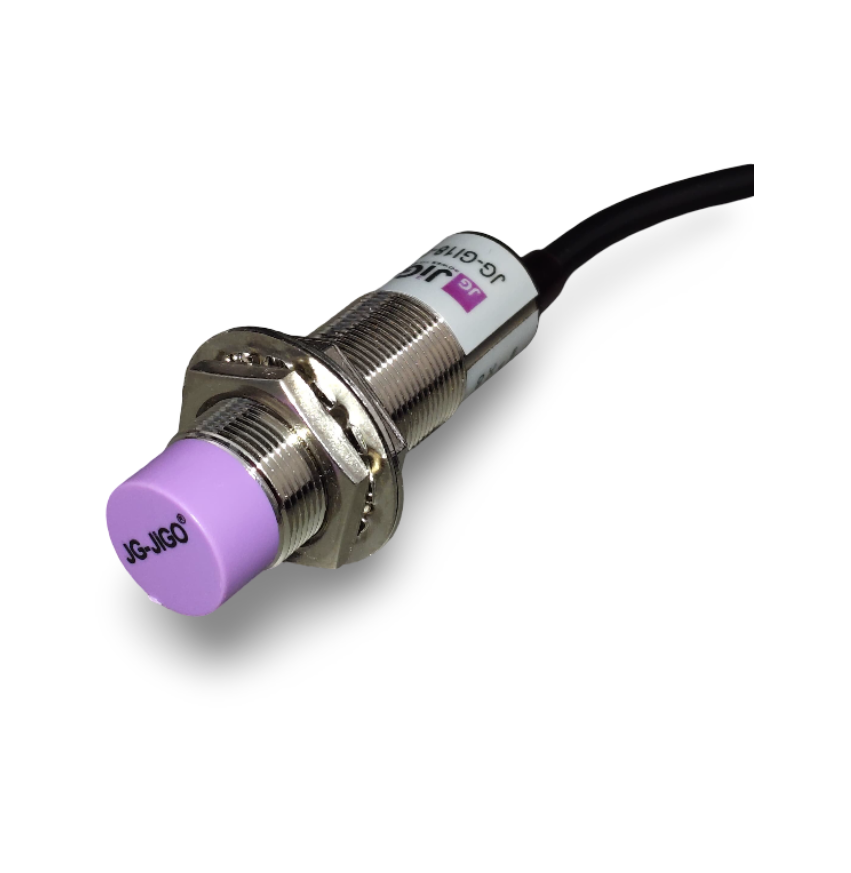

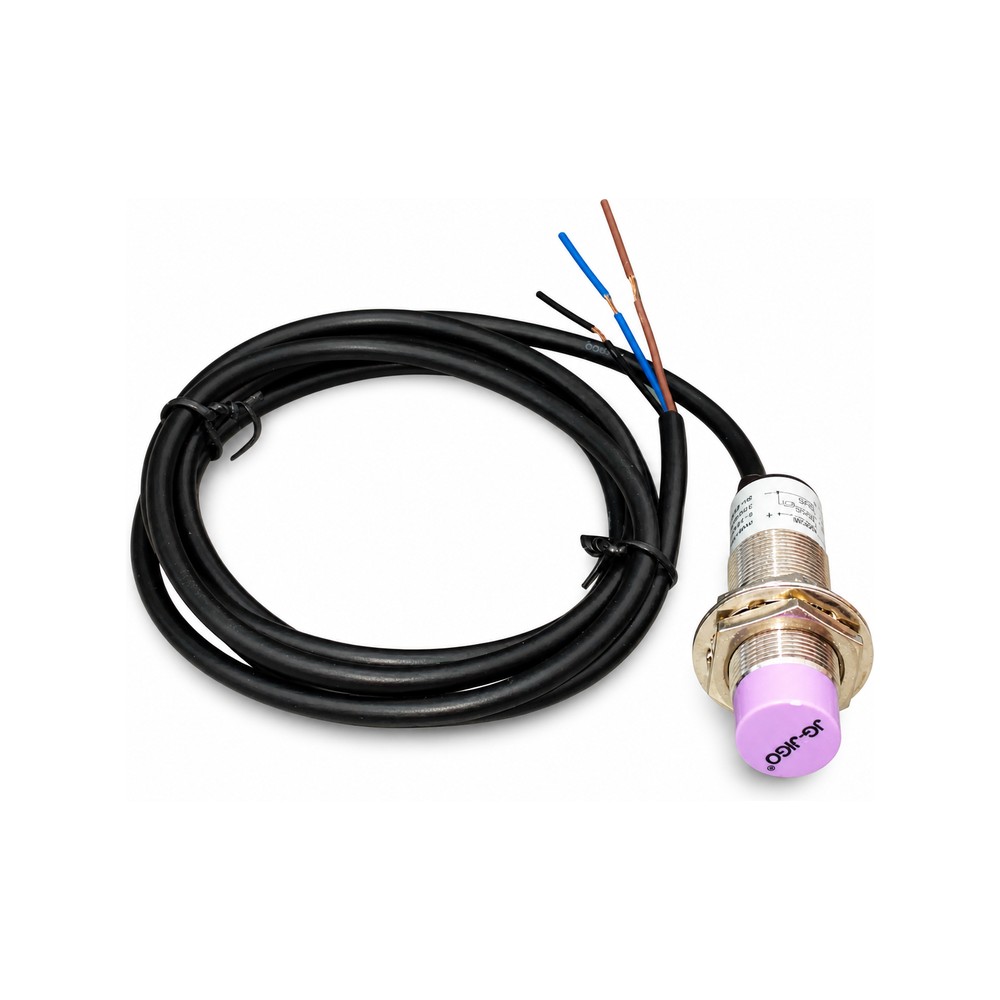

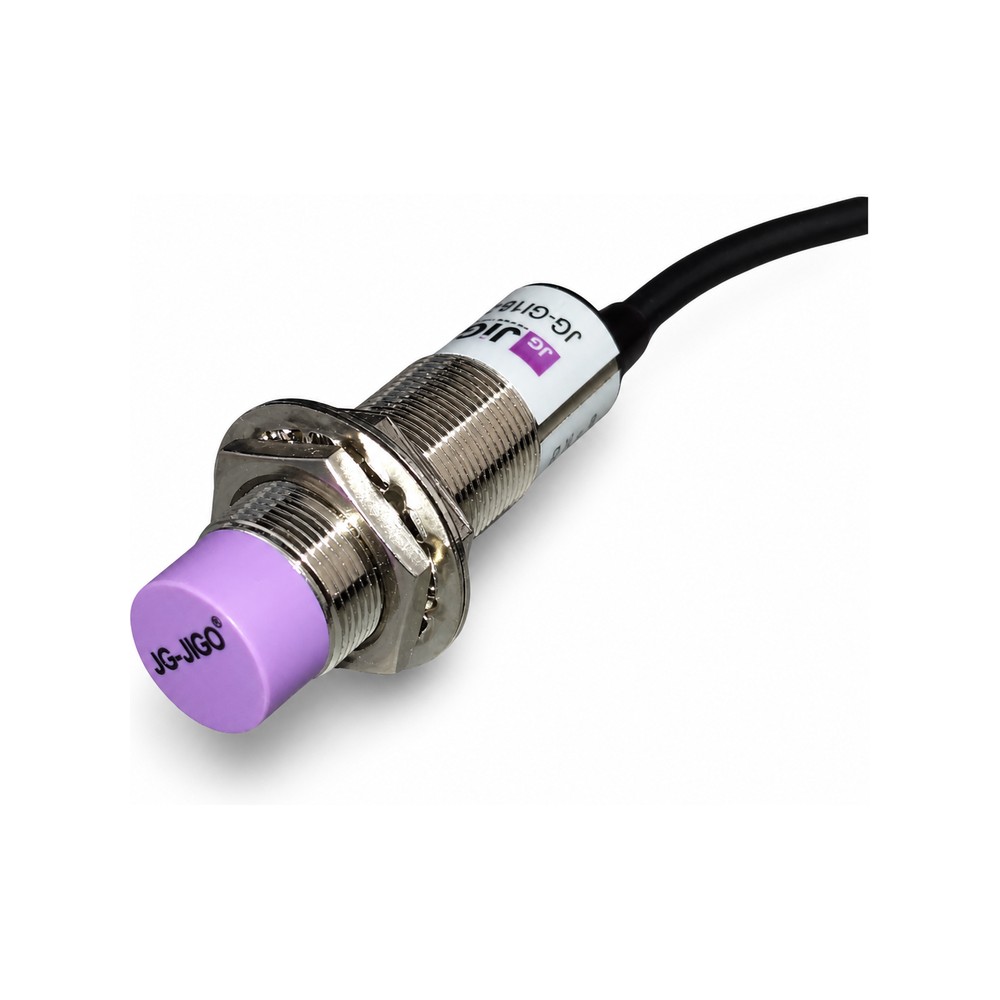

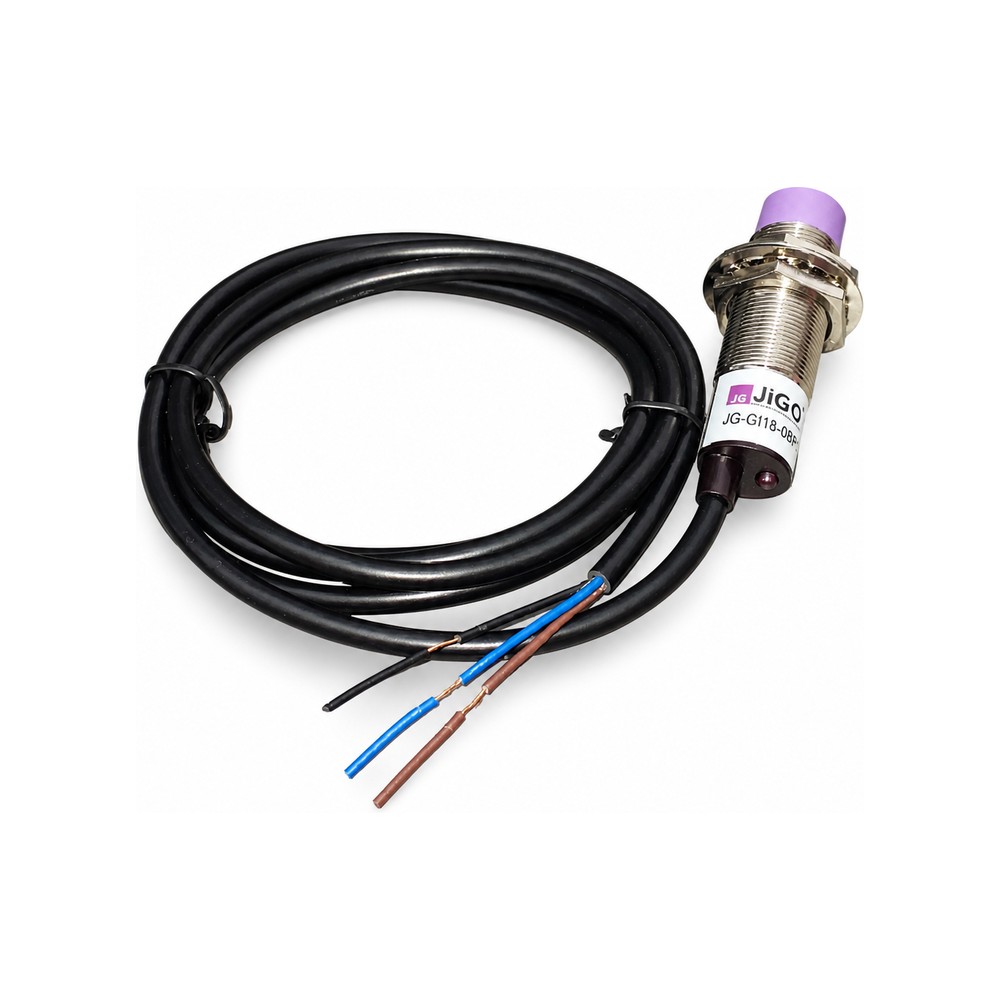

M18 cylindrical inductive proximity sensor with PNP Normally Open (NO) output, ideal for accurate and contactless metal detection in demanding industrial automation systems.



Product Details:

Sensor Type: Inductive Proximity Sensor

Sensor Size: M18 Threaded Cylindrical Body

Output Type: PNP – Normally Open (NO)

Sensing Distance: Typically 5mm to 8mm (depending on model and mounting)

Operating Voltage: 10–30V DC

Max Output Current: 200mA

Response Frequency: Up to 300Hz

Housing Material: Nickel-plated brass or stainless steel

Connection Type: 3-wire (PVC cable or M12 connector)

Mounting Type: Flush or non-flush

Status Indicator: LED for power/output indication

Protection Features: Short-circuit, reverse polarity, and overload protection

IP Rating: IP67 – dustproof and waterproof

Key Features:

Standard M18 threaded housing for easy installation

Reliable PNP NO switching logic for positive control systems

Long sensing range and high repeatability

Built-in LED for quick status monitoring

Excellent resistance to shock, vibration, and water

Suitable for harsh and demanding industrial conditions

Long operational life and low maintenance

Applications:

Position sensing in automated machinery

Metal detection on conveyors and feeders

Robotics and material handling systems

Industrial doors and access control

CNC and injection molding machines

Packaging, sorting, and labeling equipment
