M8-AC-NC

    Category: SENSORS
  • Brand: Jigo
  • Minimum quantity: 1
  • Price: ₹ 300

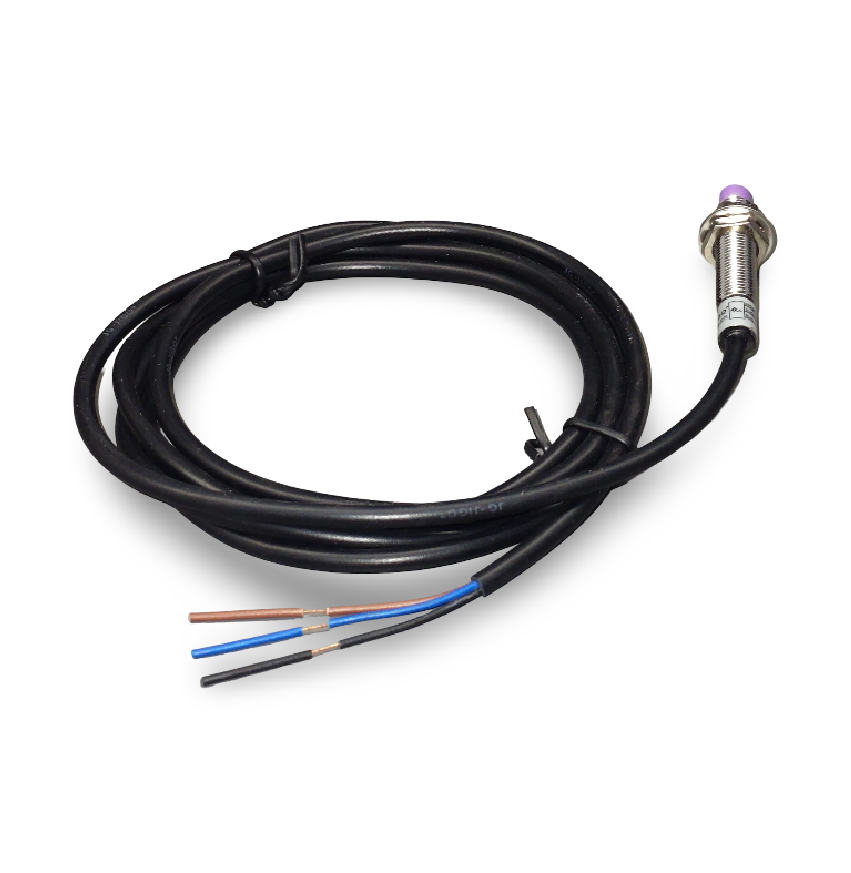

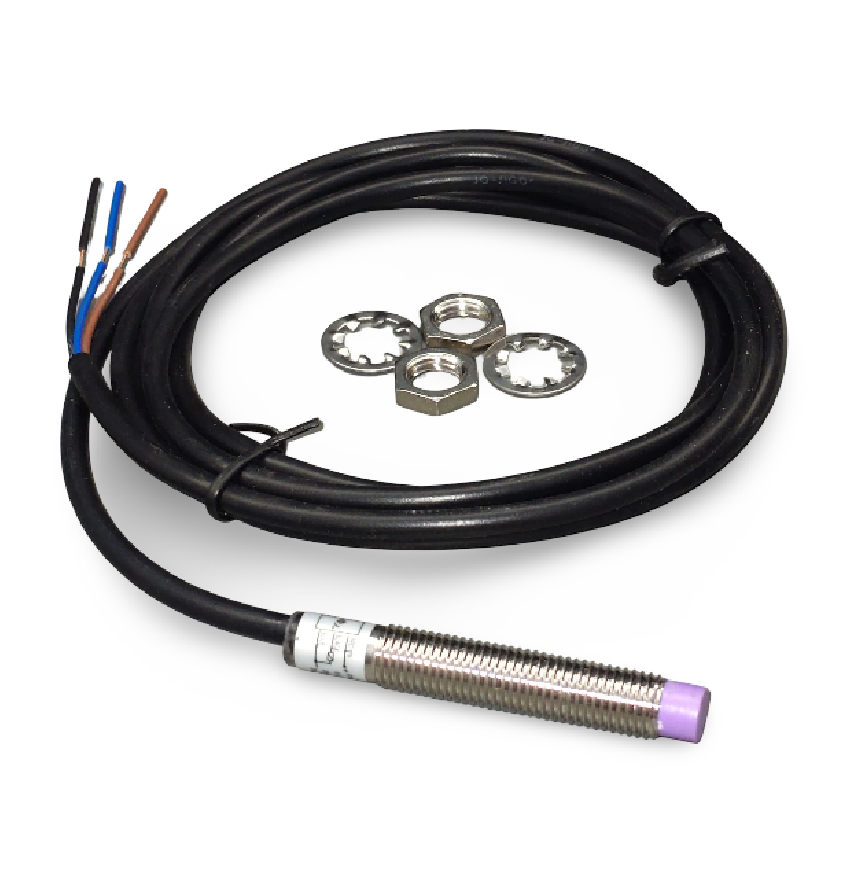

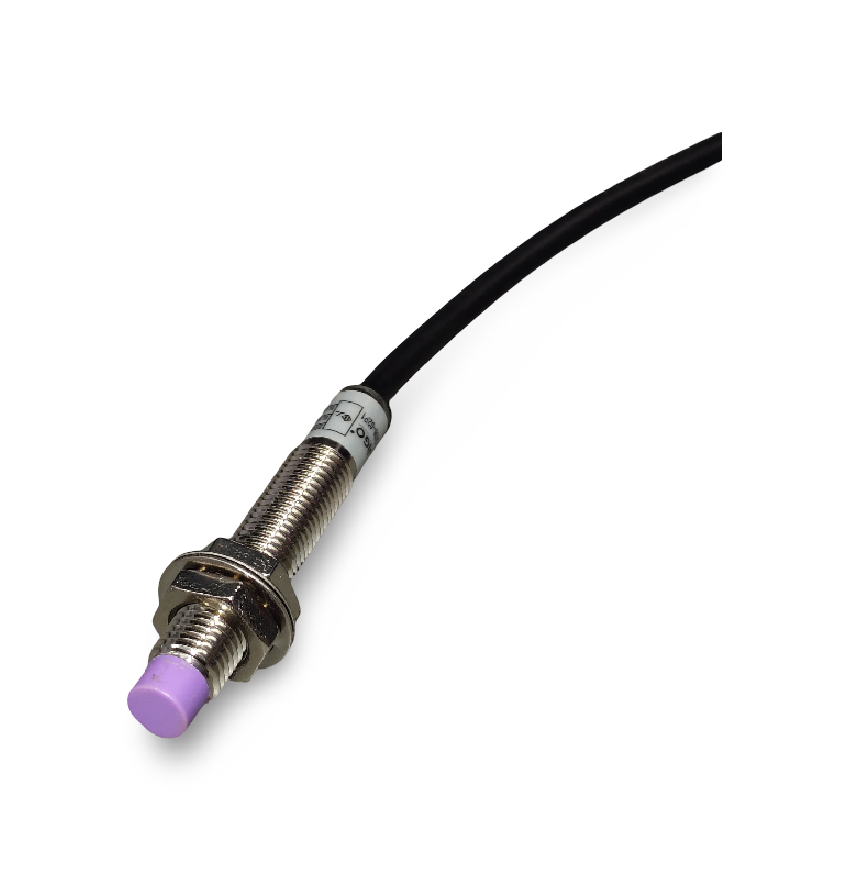

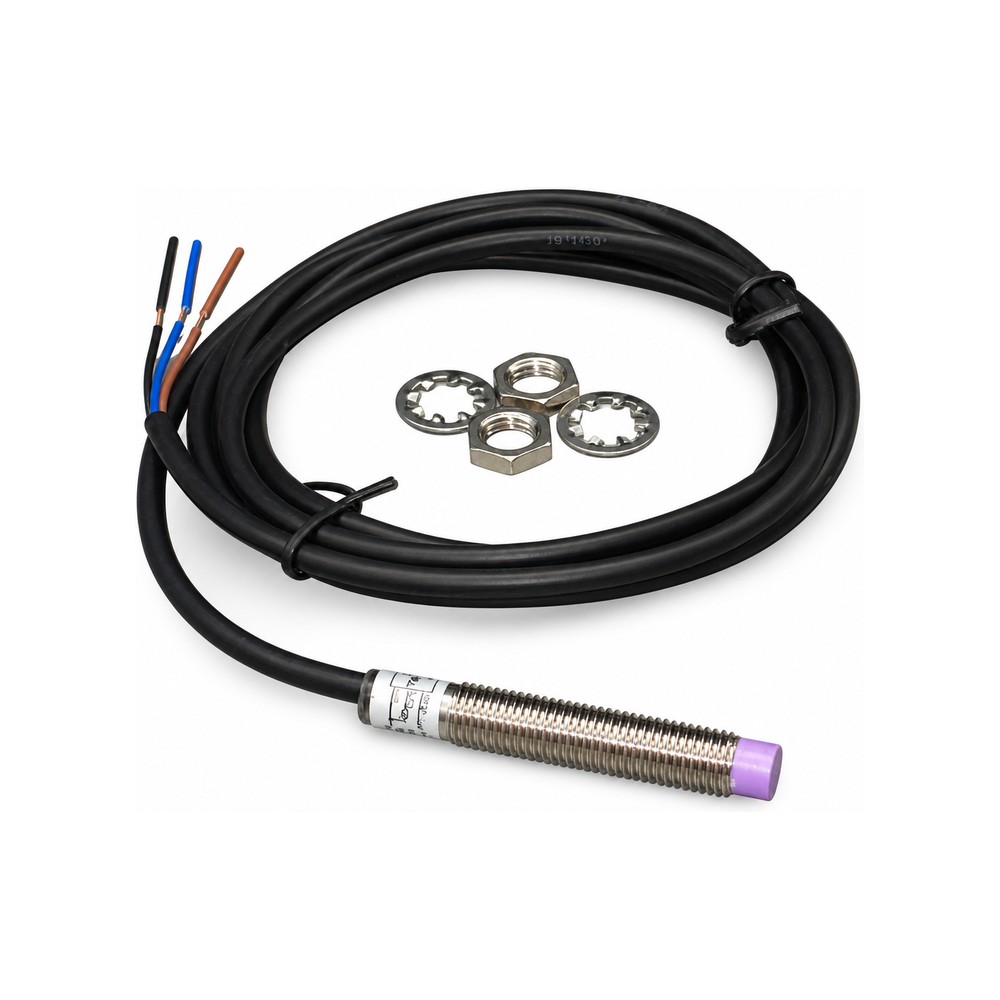

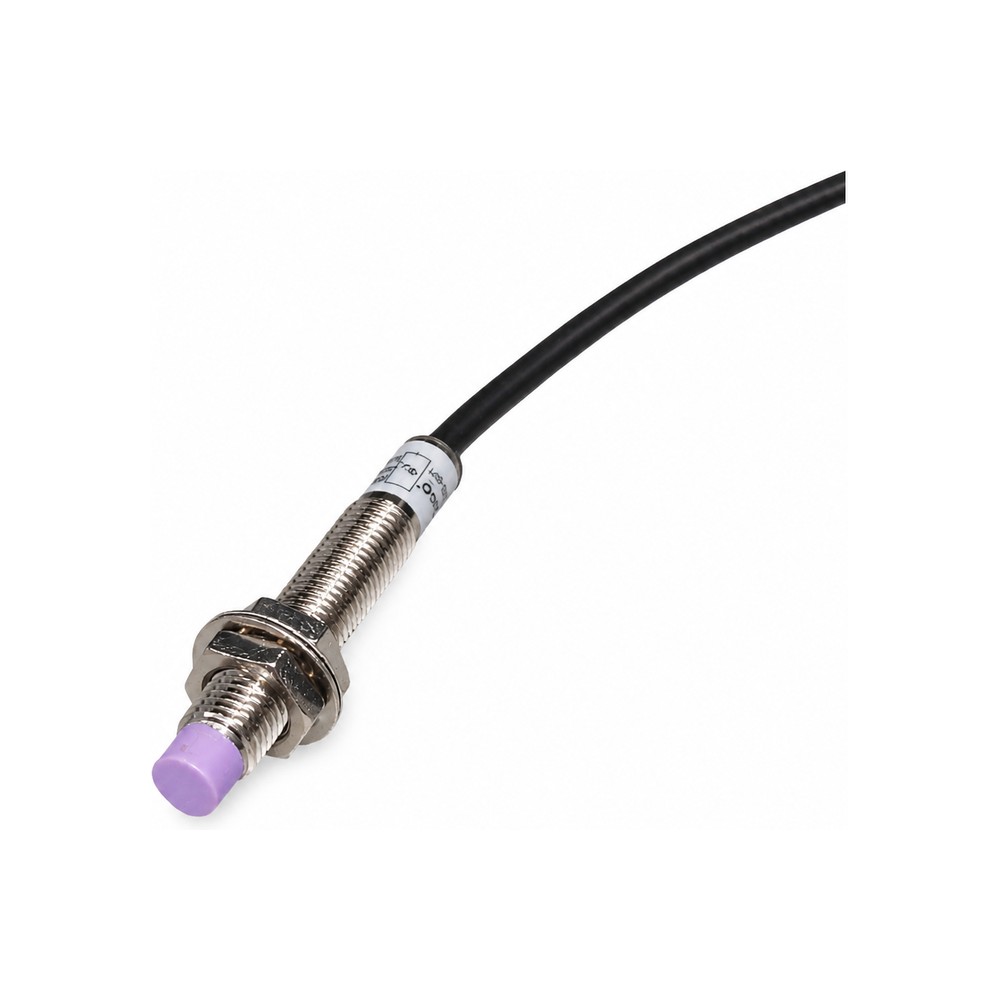

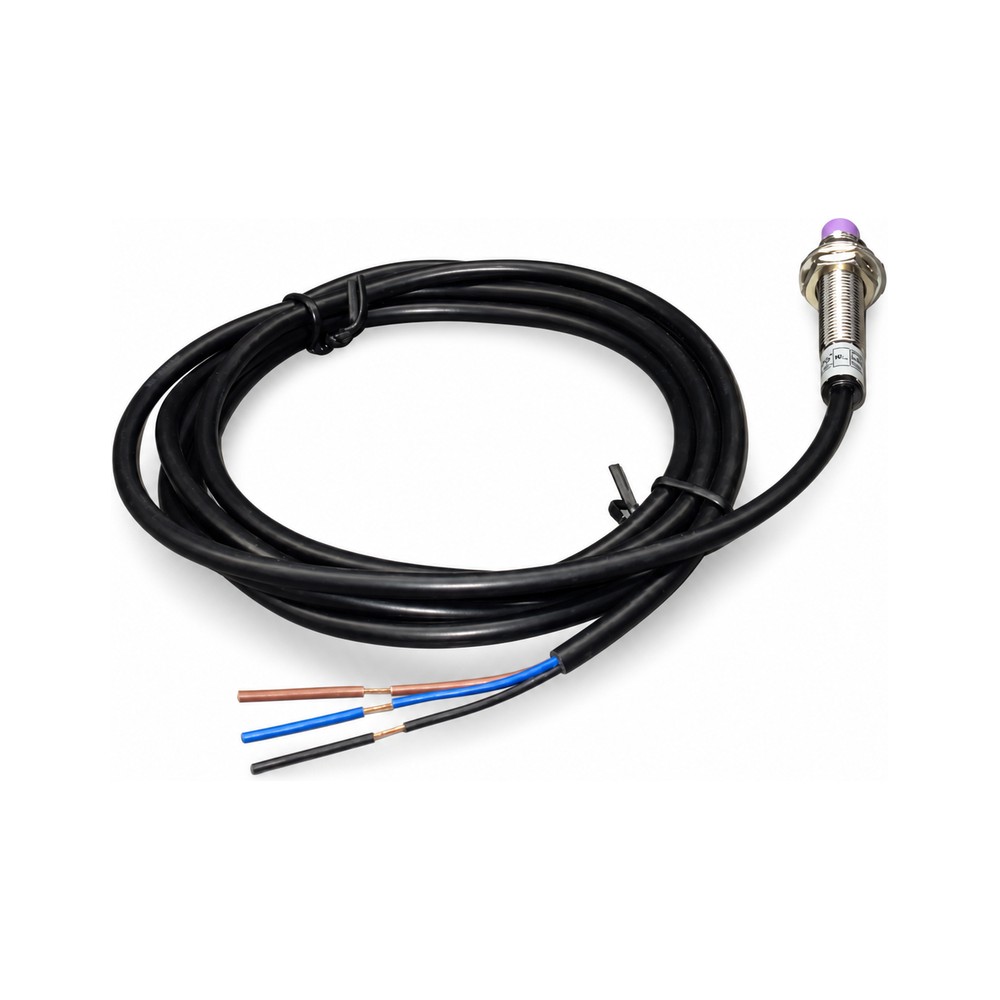

M8 cylindrical inductive proximity sensor with AC Normally Closed (NC) output, ideal for reliable non-contact metal detection in AC-powered industrial automation and control systems.



Product Details:

Sensor Type: Inductive Proximity Sensor

Model: M8-AC-NC

Sensor Size: M8 Threaded Cylindrical Body (8mm diameter)

Output Type: AC – Normally Closed (NC)

Sensing Distance: Typically 1mm to 2mm (depending on the model)

Operating Voltage: 90–250V AC

Load Current: Max 200mA

Response Time: ≤10ms

Housing Material: Nickel-plated brass or stainless steel

Connection Type: 2-wire AC cable

Mounting Type: Flush or non-flush

Indicator: LED status indicator for power/output

Protection Features: Overload, surge, and transient protection

Ingress Protection: IP67 (dustproof and waterproof)

Key Features:

AC-powered sensor with Normally Closed (fail-safe) logic

Compact M8 design for space-constrained installations

LED indicator for real-time status monitoring

Rugged and sealed construction for harsh environments

Compatible with direct AC control circuits

Long service life and reliable performance

Easy installation with standard threaded body

Applications:

Metal detection in AC-based automation systems

Safety interlocks using NC logic

Packaging and labeling machinery

Position sensing in industrial machines

Conveyor systems with AC control

Doors, gates, and access mechanisms
