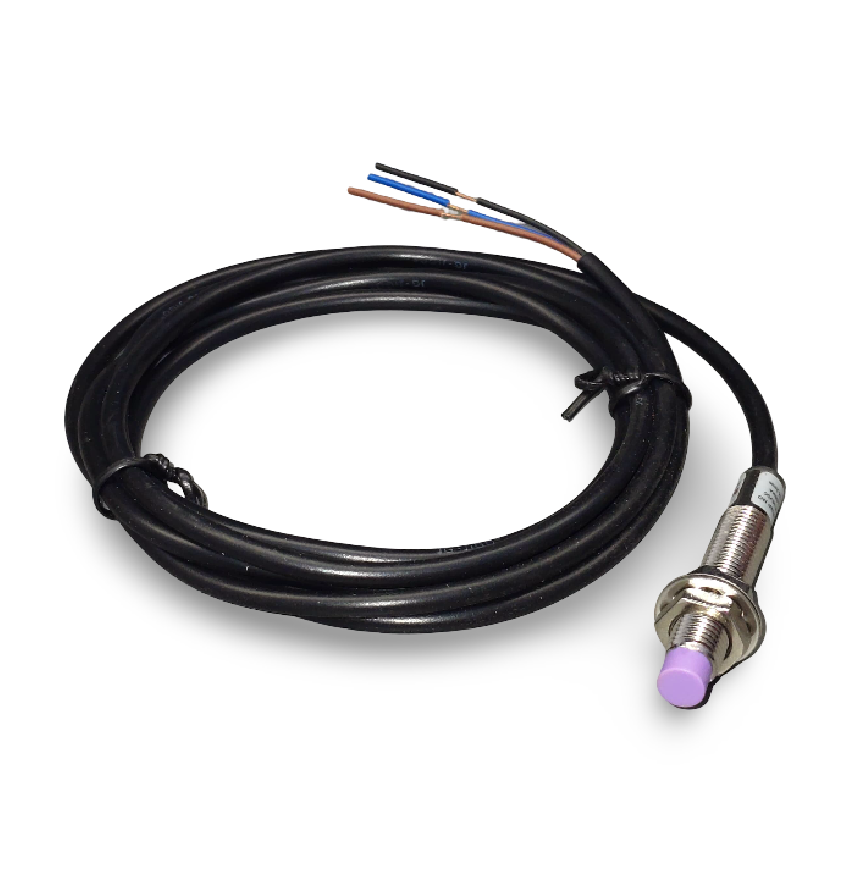

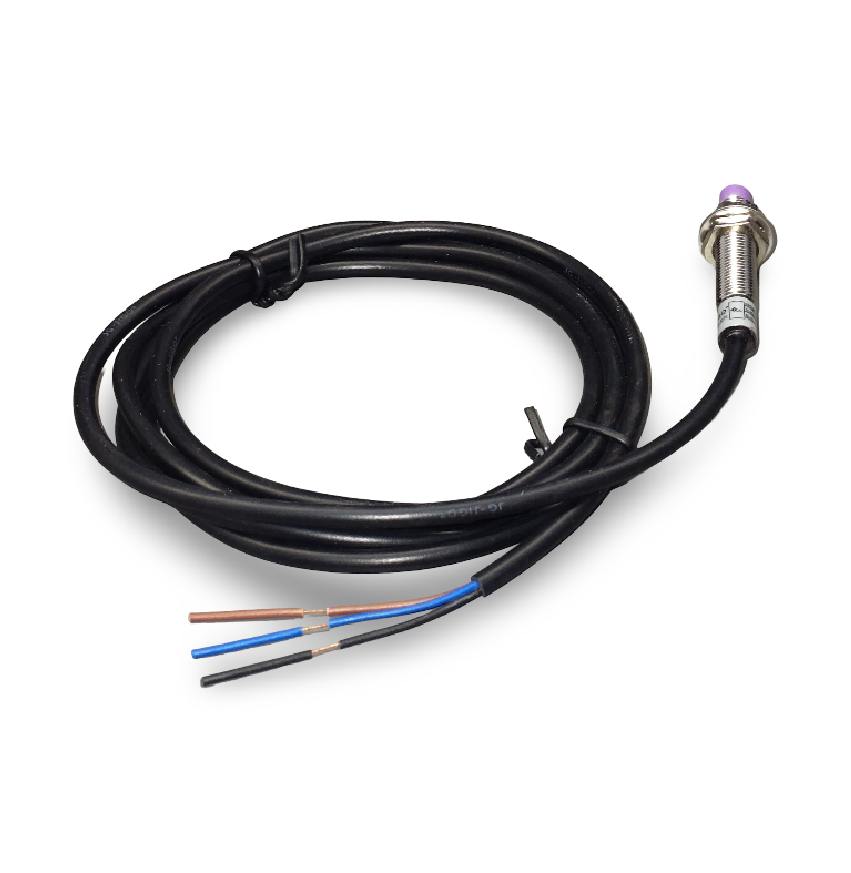

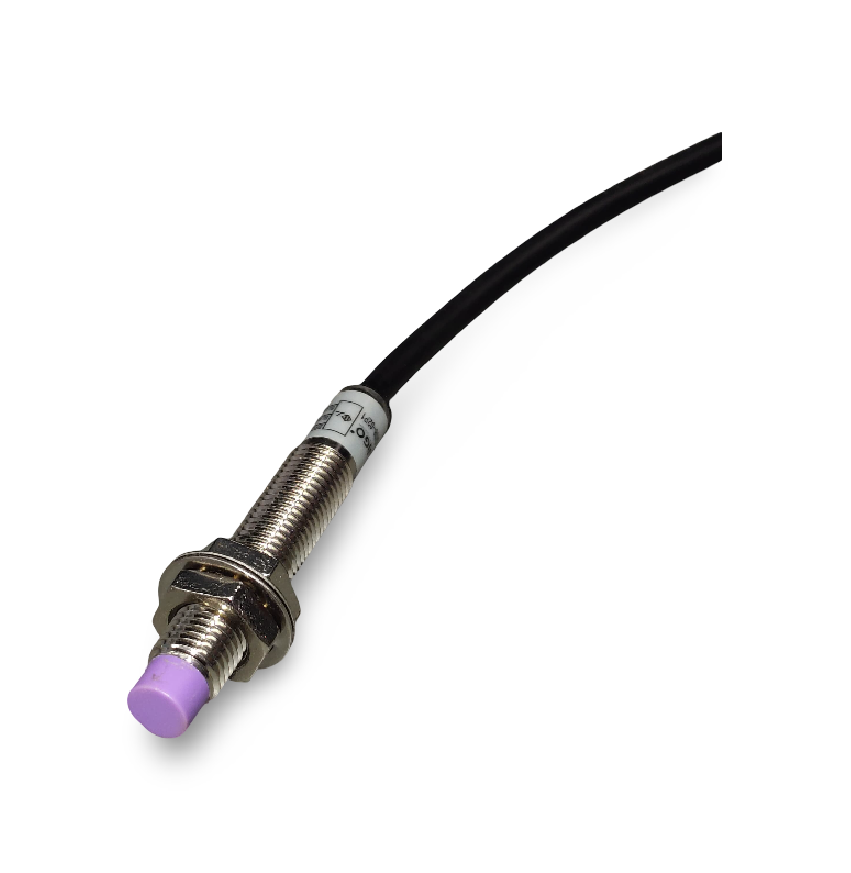

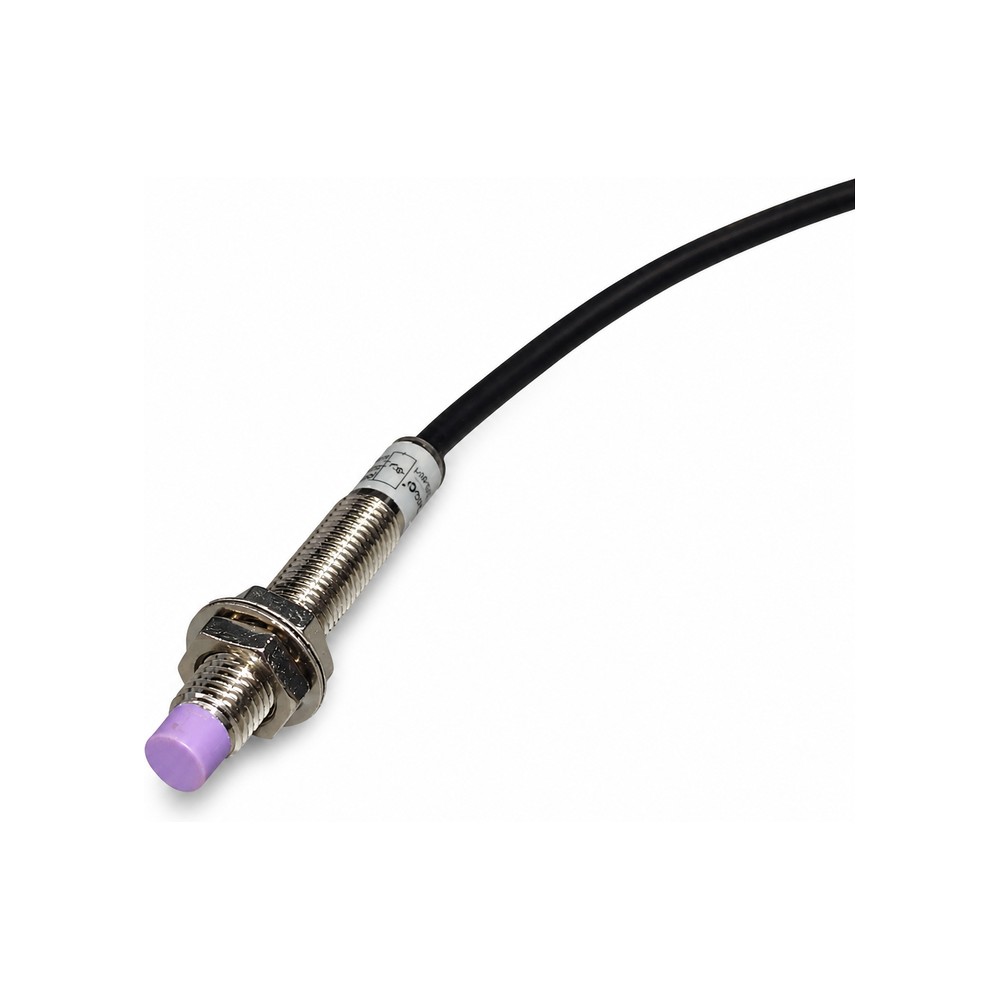

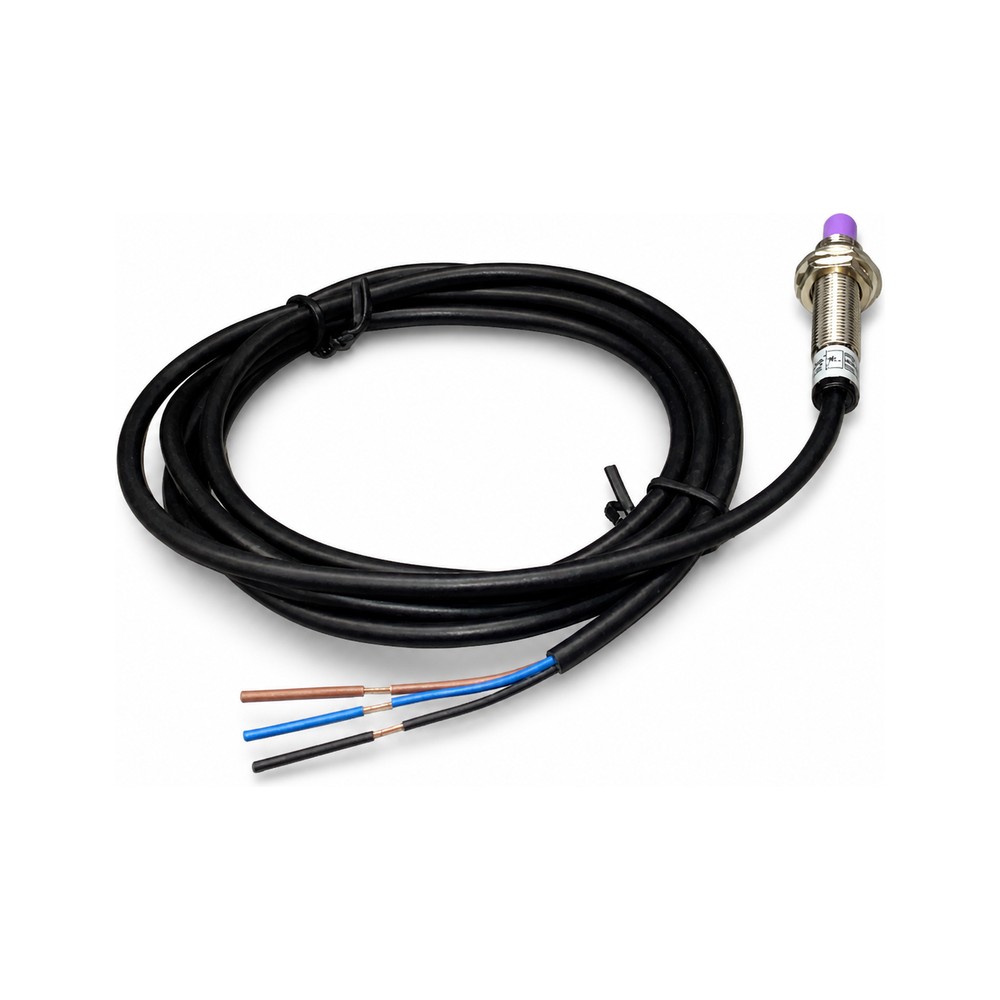

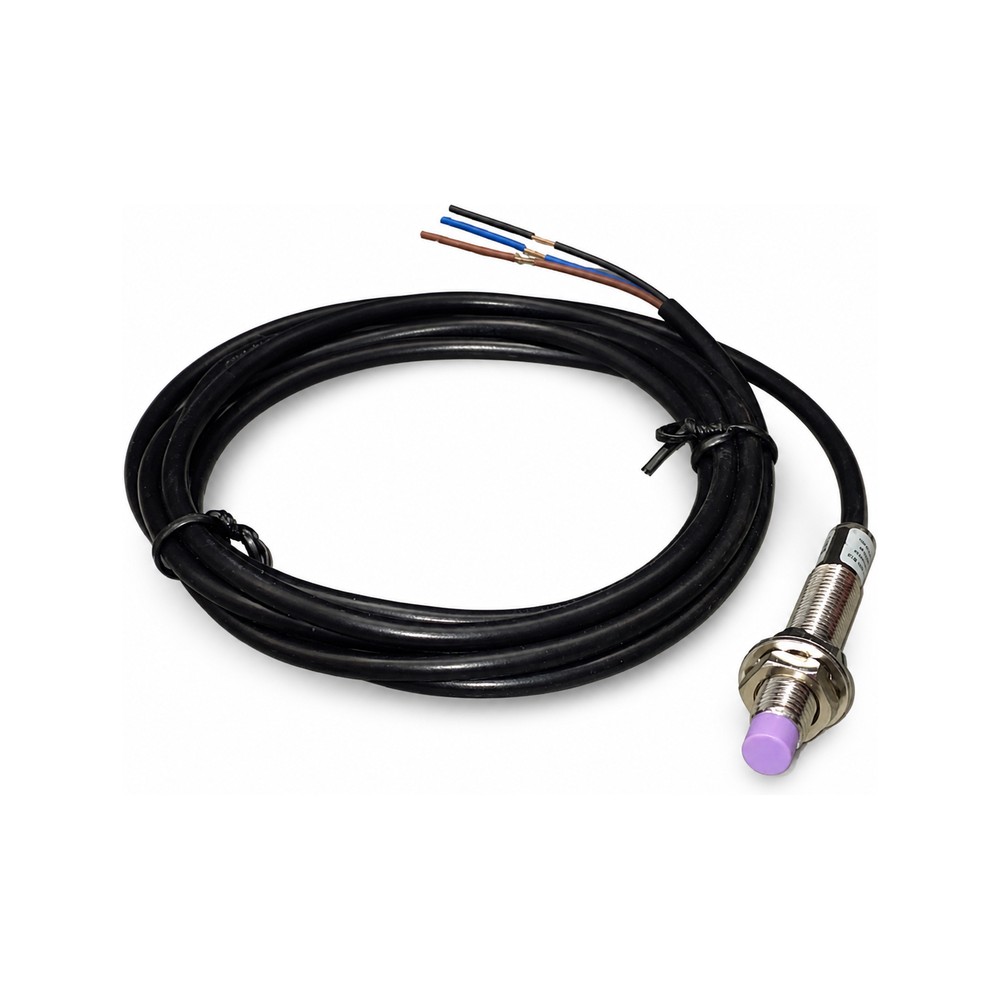

M8-NPN-NO Proximity Sensor
M8 cylindrical inductive proximity sensor with NPN Normally Open (NO) output, ideal for precise non-contact metal detection in compact automation systems.
Product Details:
Sensor Type: Inductive Proximity Sensor
Model: M8-NPN-NO
Sensor Size: M8 Threaded Cylindrical Body (8mm diameter)
Output Type: NPN – Normally Open (NO)
Sensing Distance: Typically 1mm to 3mm (depending on model)
Operating Voltage: 10–30V DC
Max Output Current: 200mA
Response Frequency: Up to 1kHz
Housing Material: Nickel-plated brass or stainless steel
Connection Type: 3-wire (PVC cable or M8 connector)
Mounting Type: Flush or non-flush
Status Indicator: LED for power/output indication
Ingress Protection: IP67 (dustproof and waterproof)
Key Features:
Compact M8 design suitable for tight spaces
Reliable NPN NO switching output
High-speed response for accurate detection
Rugged housing for industrial environments
LED indicator for easy diagnostics
Simple installation with threaded body
Long operational life, maintenance-free
Applications:
Metal detection in automated machinery
Position sensing in robotic systems
Conveyor and packaging systems
Industrial doors and gates
Assembly and pick-and-place equipment
Compact equipment and control panels
