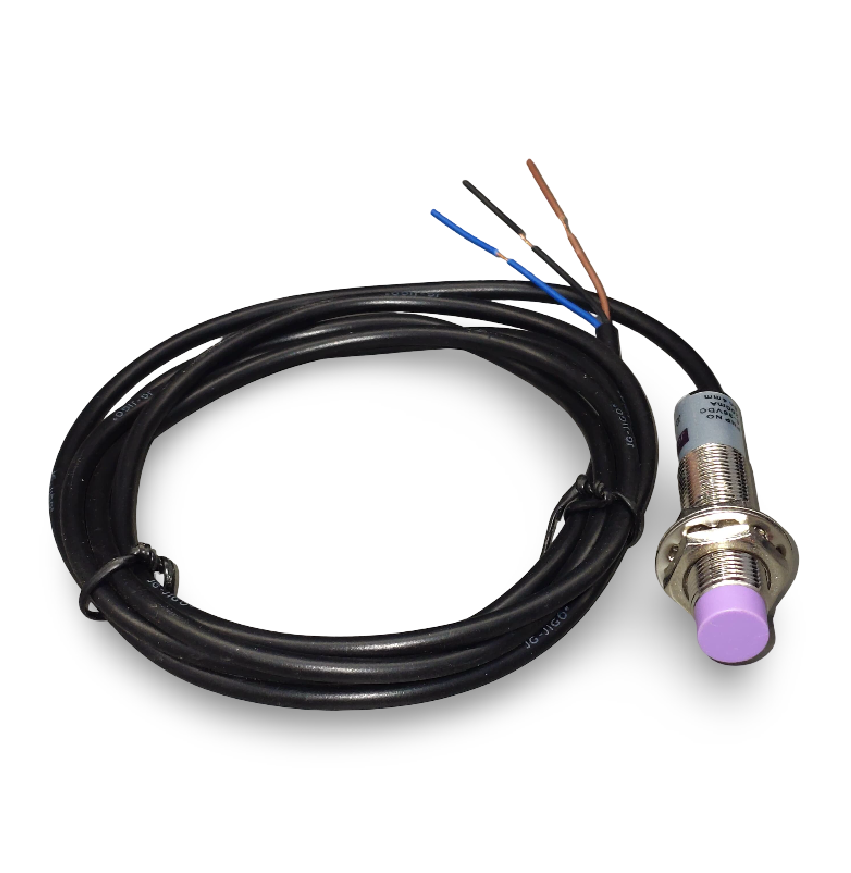

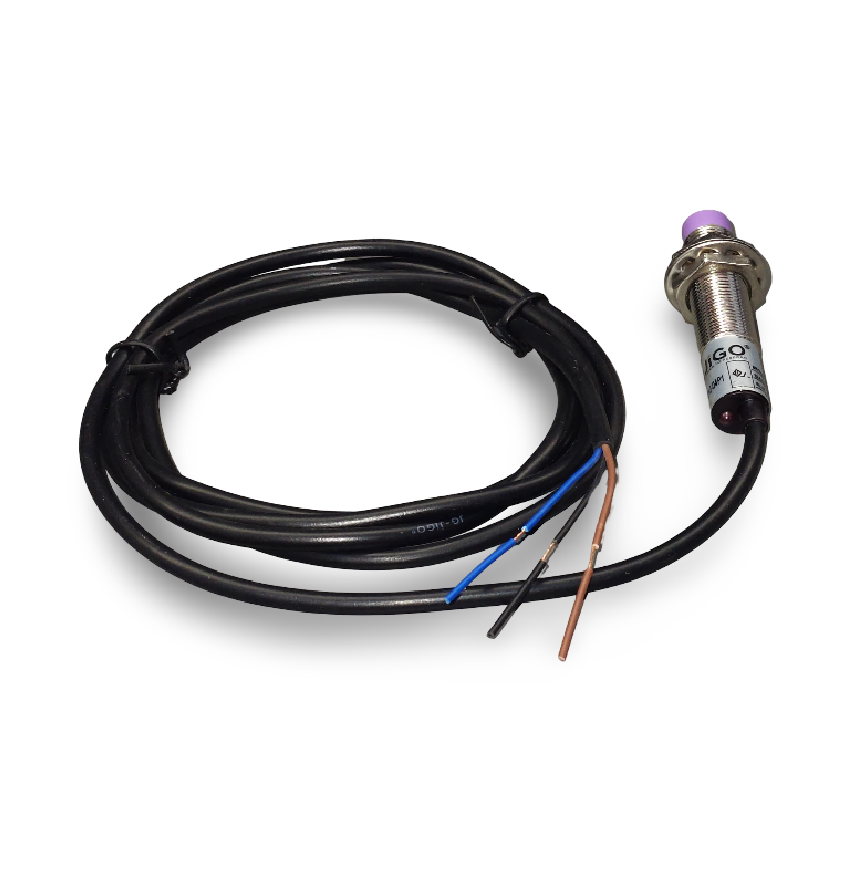

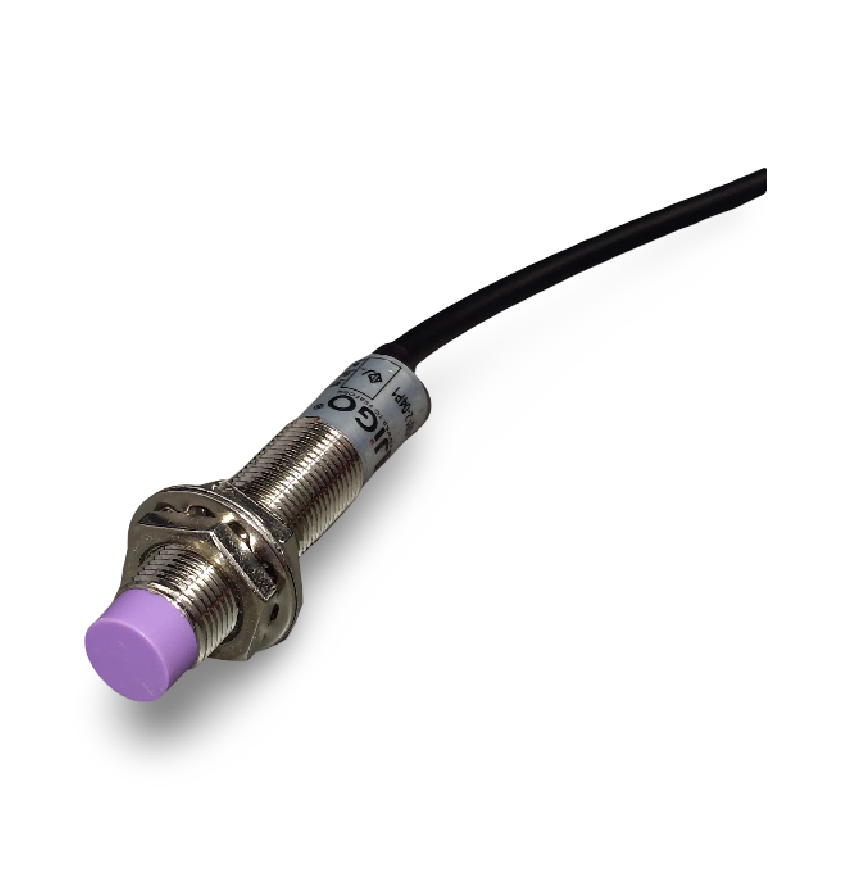

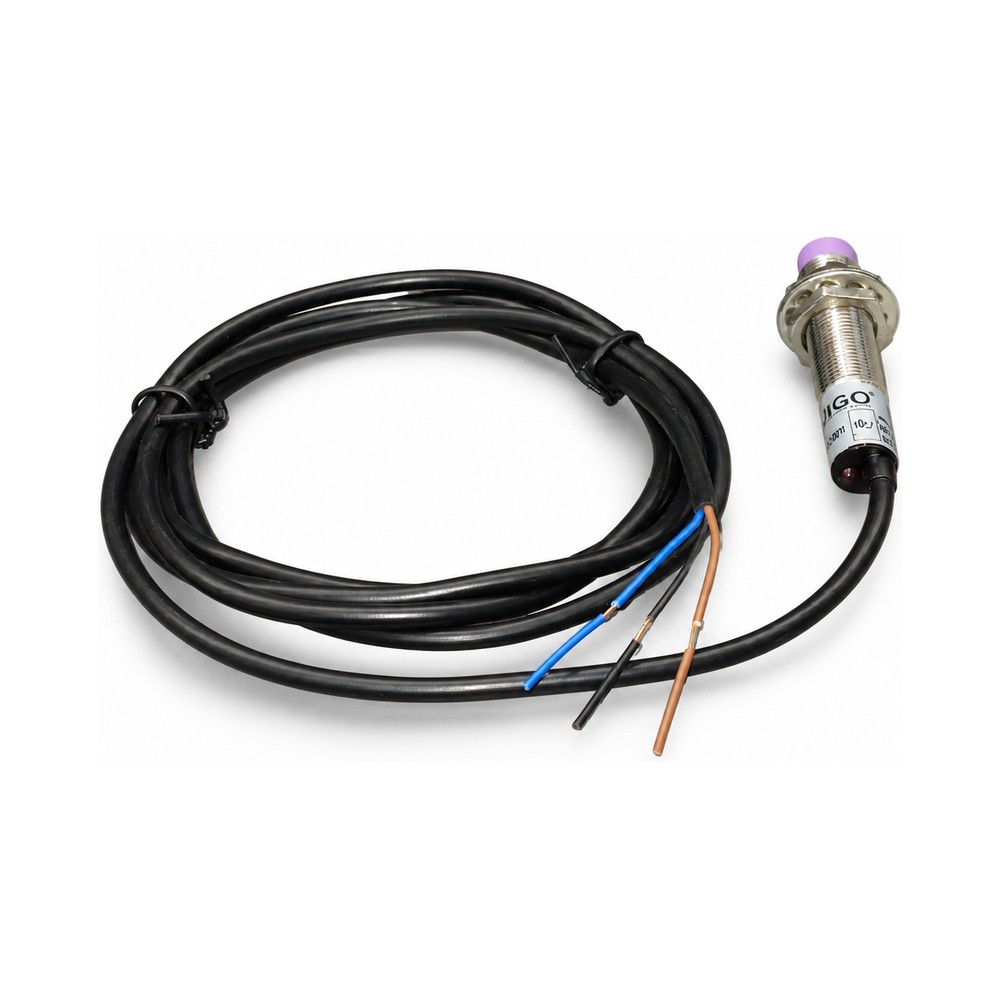

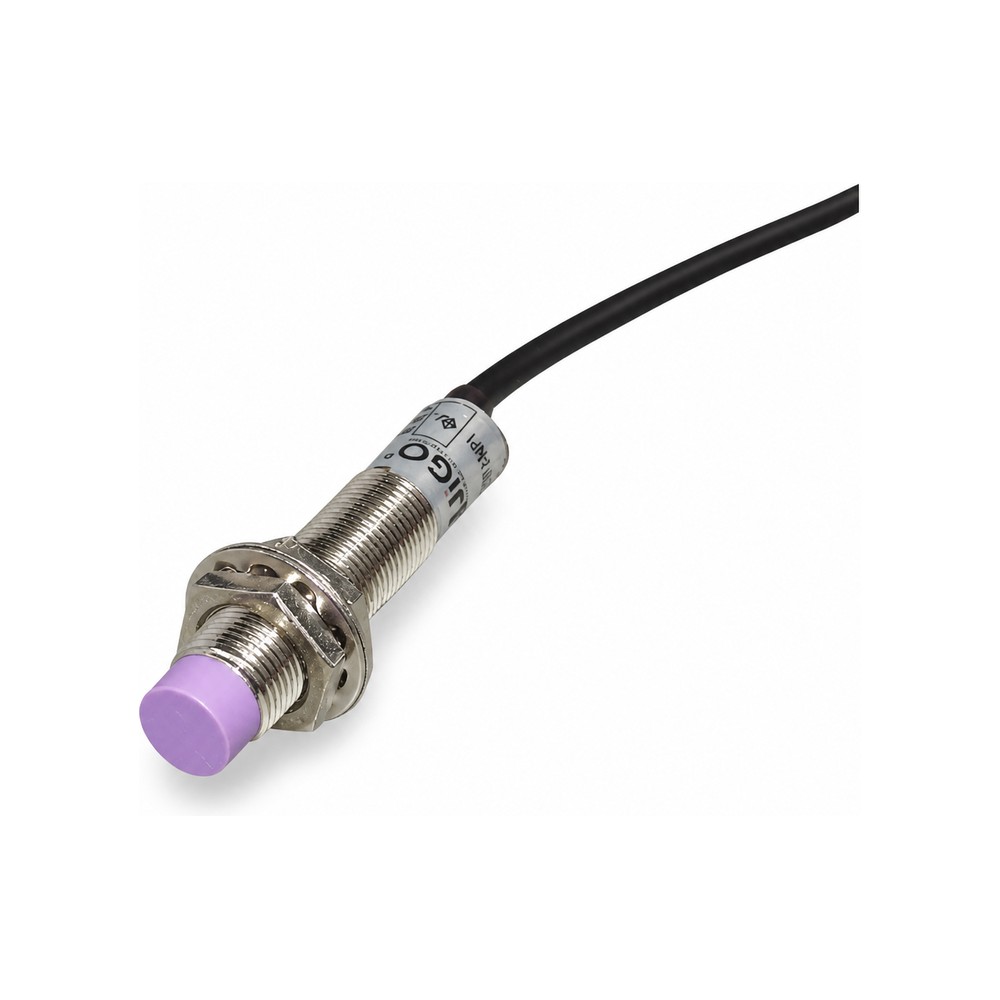

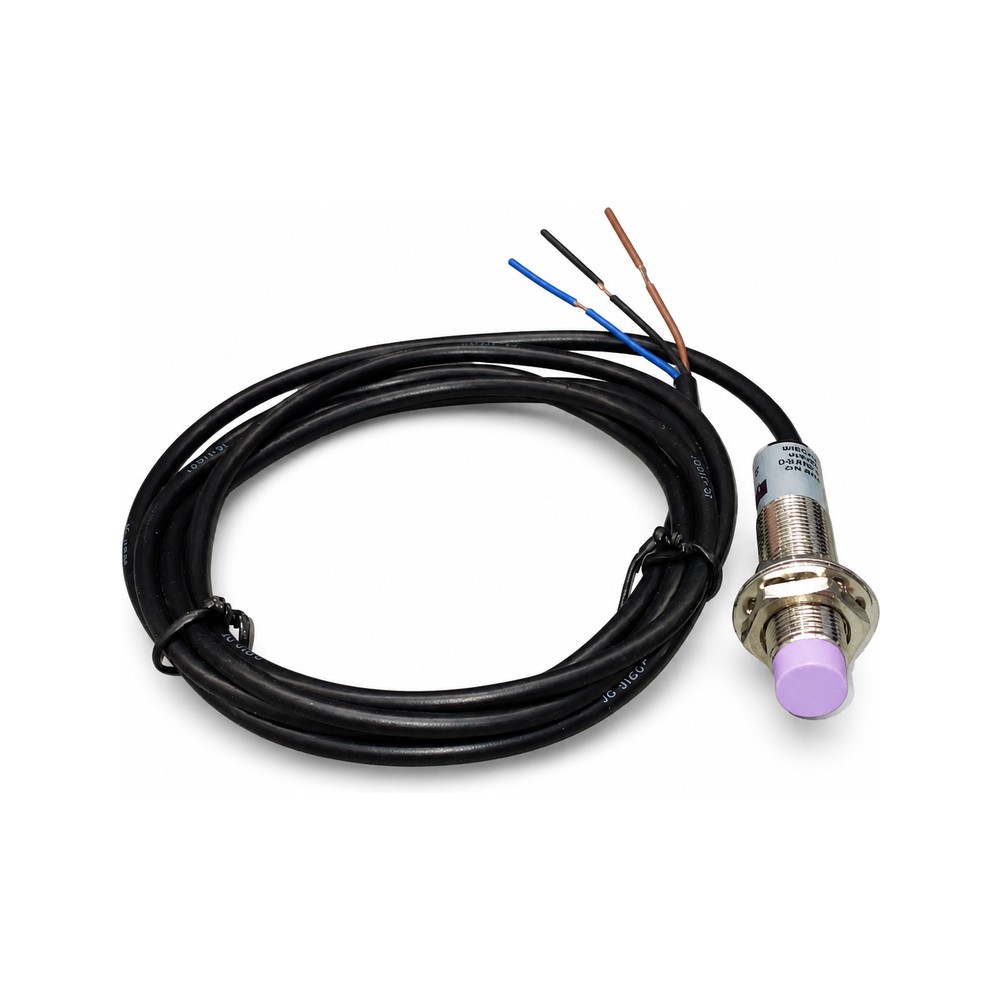

M8-PNP-NC Proximity Sensor
Compact M8 inductive proximity sensor with PNP Normally Closed (NC) output, designed for accurate non-contact detection of metal objects in industrial automation systems.
Product Details:
Sensor Type: Inductive Proximity Sensor
Model: M8-PNP-NC
Body Size: M8 Threaded Cylindrical Housing (8mm diameter)
Output Type: PNP – Normally Closed (NC)
Sensing Distance: Typically 1mm to 3mm (varies by model)
Operating Voltage: 10–30V DC
Max Output Current: 200mA
Response Frequency: Up to 1kHz
Housing Material: Nickel-plated brass or stainless steel
Connection Type: 3-wire (PVC cable or M8 connector)
Mounting: Flush or non-flush
Status Indicator: LED for power/output indication
Ingress Protection: IP67 (dustproof and waterproof)
Key Features:
Compact M8 cylindrical design for limited space installations
PNP NC output for fail-safe operation
High-speed switching and accurate sensing
LED indicator for quick visual diagnostics
Durable body for industrial environments
Easy to mount and connect
Long service life with minimal maintenance
Applications:
Presence and position sensing in automation
Metal detection in conveyor systems
Robotics and machine tools
Packaging and bottling lines
Safety interlocks in industrial panels
Compact machinery and process control
