ATC-UKK- 80 Distribution Terminal Block
- Category: DISTRIBUTION TERMINAL BLOCKS
- Brand: ATC INDIA
- Minimum quantity: 1
- Price: ₹ 250

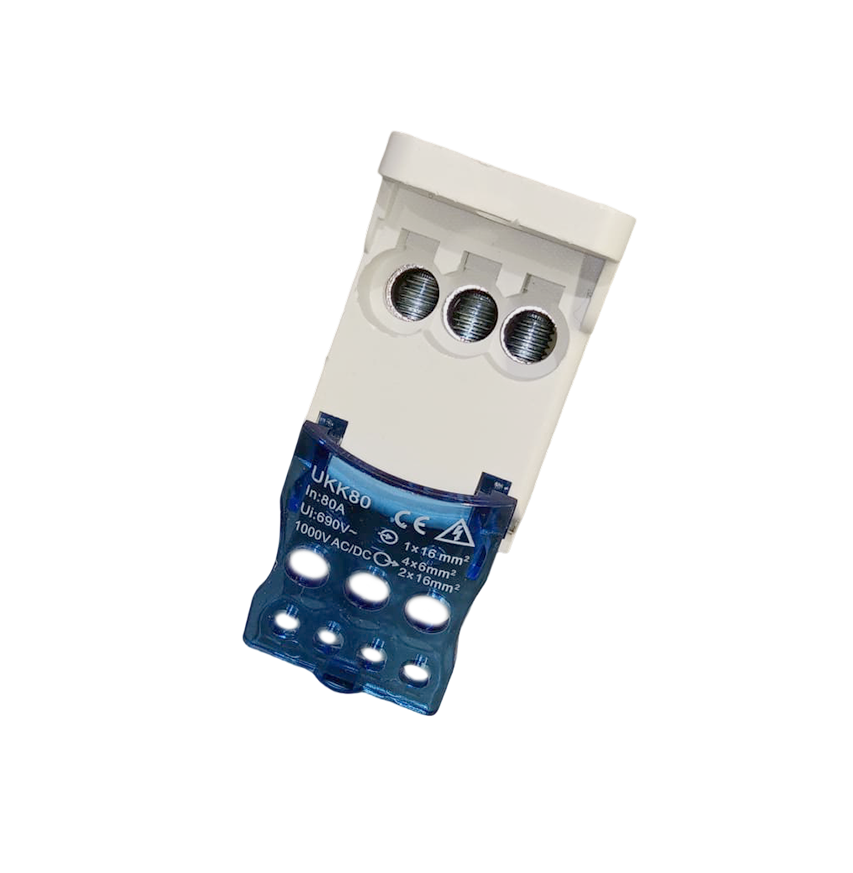

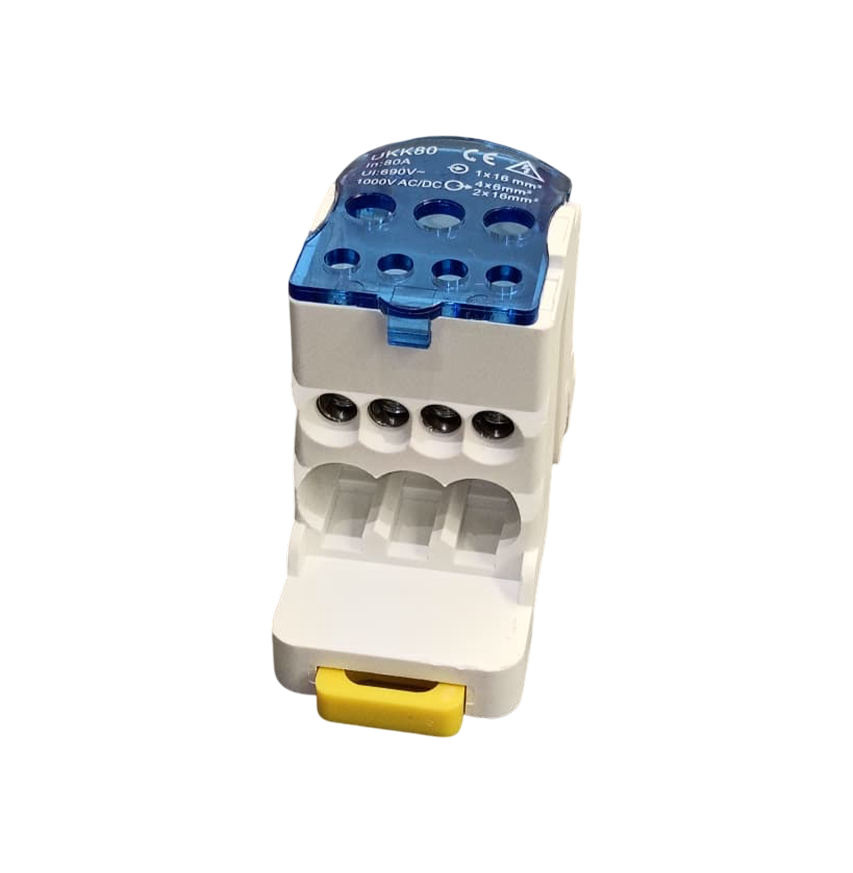

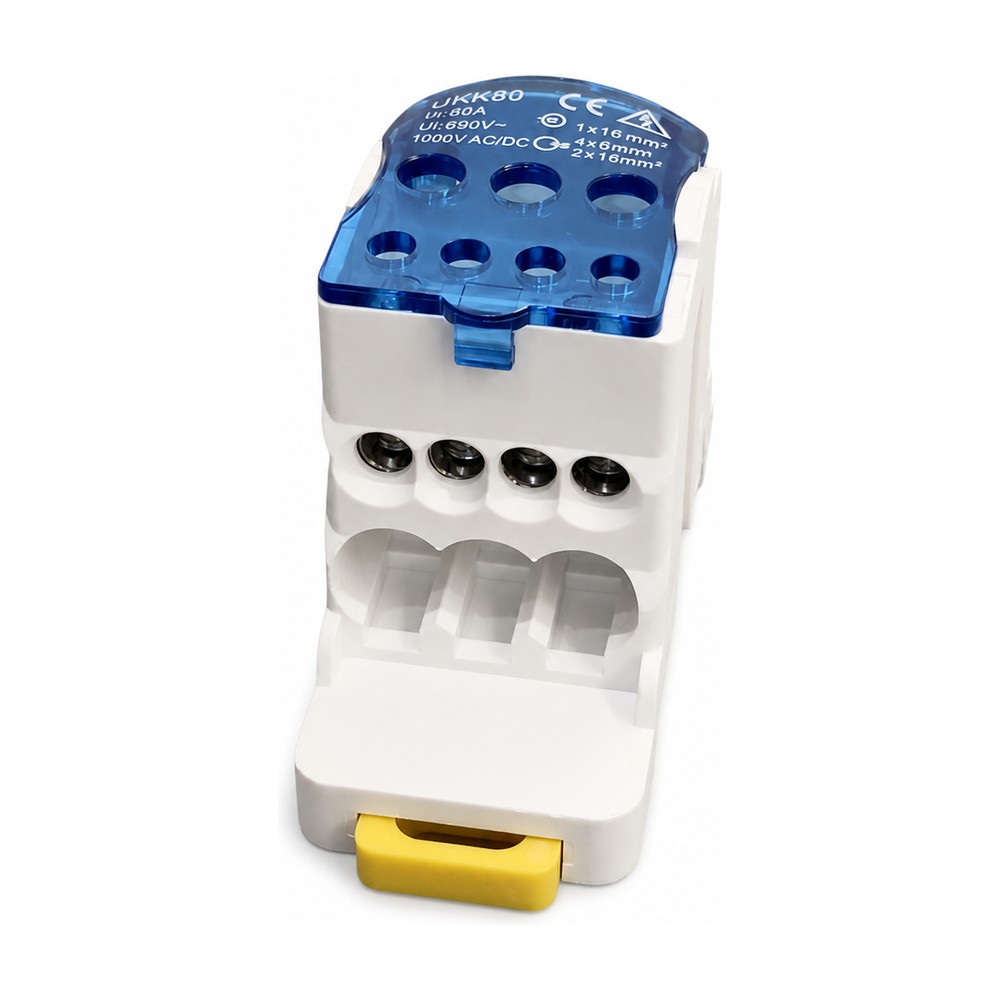

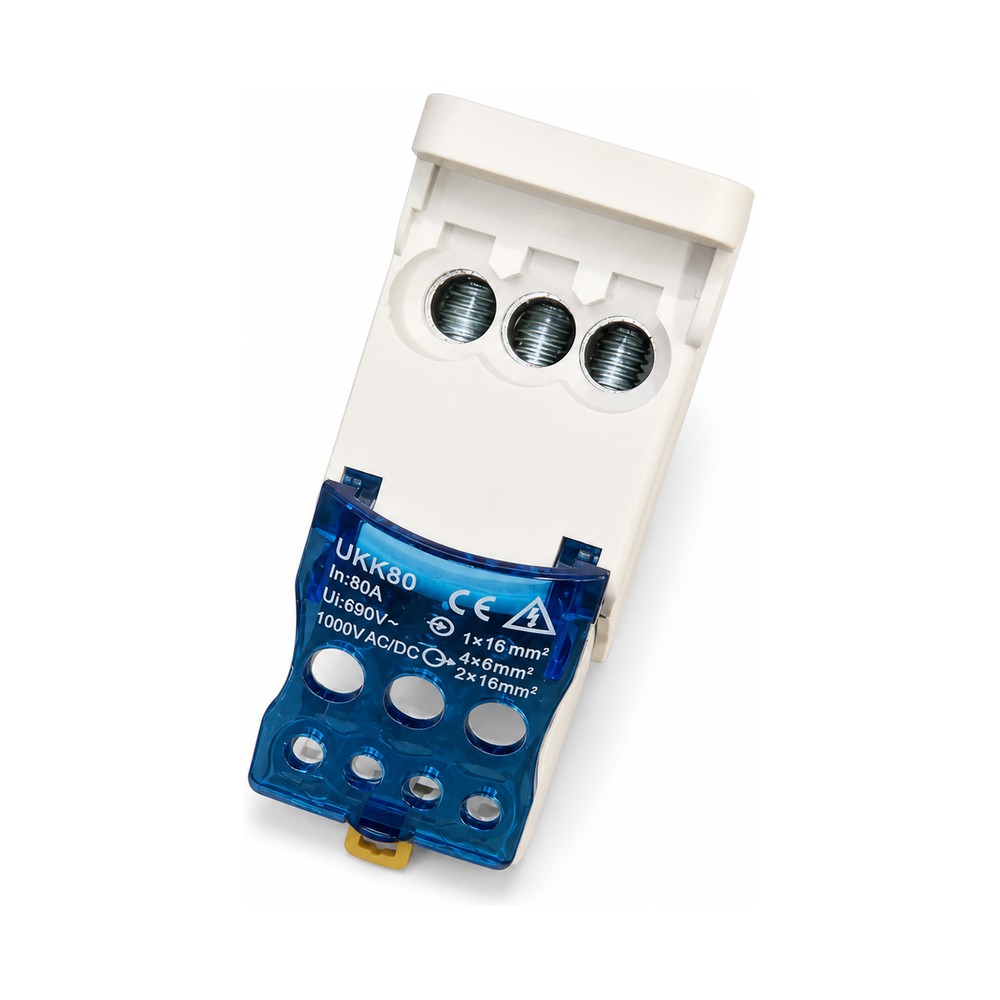

The ATC-UKK-80 is a compact, unipolar DIN-rail distribution block rated at 80A and 690V. Constructed with a flame-retardant industrial nylon shell and a high-conductivity nickel-plated brass interior, it functions as a highly secure universal power junction box that splits a single high-gauge input wire into six distinct output terminals. It features a flip-open transparent safety cover for rapid visual inspection.
Enquire on WhatsAppProduct Details
- Model Designation: ATC-UKK-80 (Alternative: UKK-80A)
- Electrical Current Rating: 80 Amperes Maximum continuous load
- Insulation Voltage Rating: 690V AC (IEC Standard)
- Terminal Node Configuration (1-In / 6-Out Layout):
- Input Terminal (x1): Accommodates cable sizes from 6mm² to 16mm²
- Output Terminals (x6): Accommodates 4x (2.5mm² to 10mm²) and 2x (2.5mm² to 16mm²) cables
- Body Material: High-grade, flame-retardant PA66 Nylon (UL94V-0 Rated)
- Internal Contact Material: Tinned/Nickel-plated Brass alloy crimping block
- Fastener Design: Metric thread zinc-coated steel clamping screws
- Ingress Protection (Internal Only): IP20 (Finger-safe protection when the shield cover is clipped down)
Key Features
- Efficient Wire Splitting: Replaces traditional, messy multi-wire tapping loops by allowing one heavy line source feed to branch out seamlessly into six separate lines, saving significant panel workspace.
- High Thermal & Corrosion Resistance: The heavy PA66 casing prevents melting under high thermal spikes, while the tinned/nickel-plated brass terminal block stops oxidation and lowers contact resistance over decades of deployment.

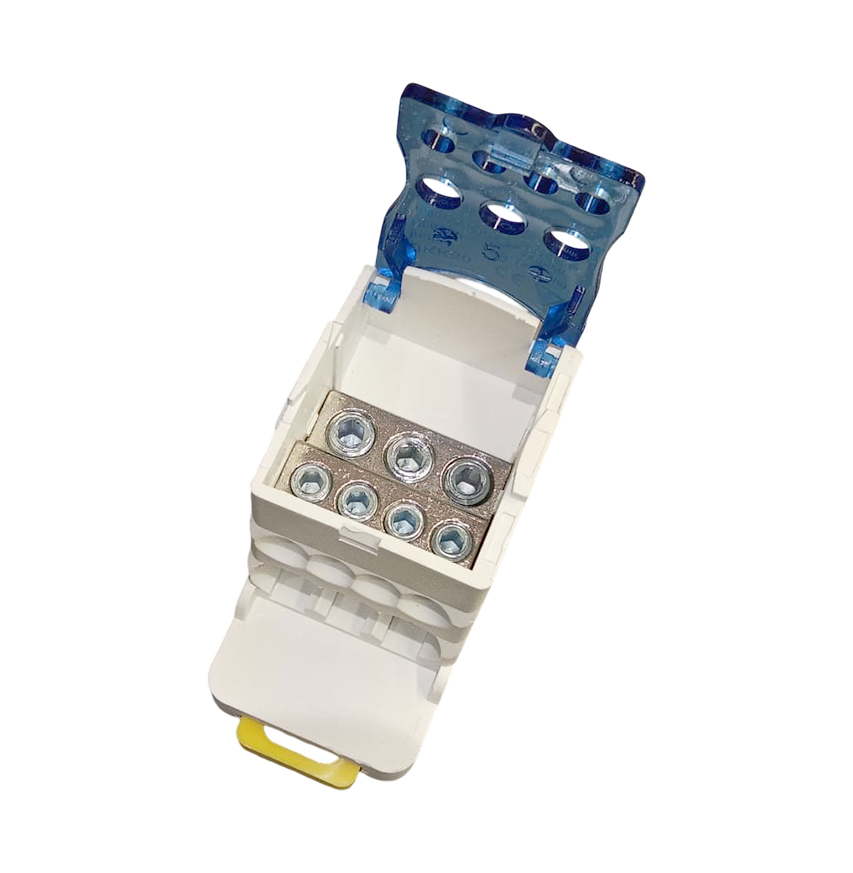

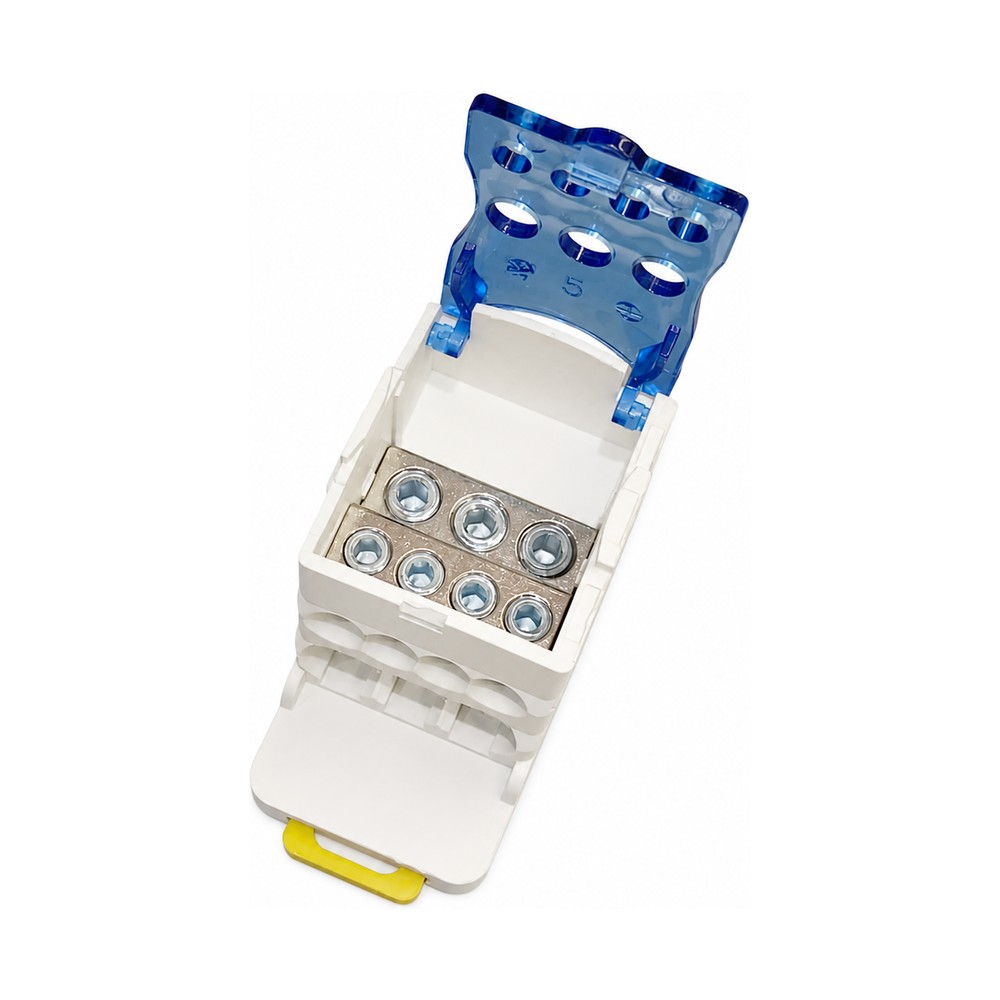

- Transparent Inspection Shroud: Built with a see-through poly-carbonate top cap. Technicians can instantly verify if a wire core has slipped out or if carbon build-up is occurring without turning off the system or dismantling hardware.
- Dual Mounting Capability: Snaps straight onto standard 35mm top-hat DIN rails or can be screwed flat down against an internal backplate chassis via integrated mounting feet.
- Modular Stackability: The side ridges enable multiple single-phase units to slide and lock together side-by-side to build out structured 3-Phase or 4-Pole distribution arrays.
Applications
- Industrial Control Panels: Installed inside primary automation boards, motor control centers (MCCs), and CNC machine cabinets to manage power feeds.
- Main Distribution Boards (MDB): Employed in factory and commercial building breaker enclosures to safely bridge lines down to individual sub-breaker rows.
- Renewable Energy Integration: Used inside solar combiner boxes and inverter panels to aggregate or branch high-amp DC/AC lines safely.
- HVAC and Heavy Machinery: Distributing electrical phases out to independent compressor pumps, fans, heating elements, and secondary controller transformers.
