CGT 6N Earthing Terminal Block
- Category: Terminal Blocks
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 95
JiGO CGT-6N green/yellow earthing terminal block for 6 sq mm conductors. Screw clamp connection, snaps onto standard 35 mm DIN rail and earths directly through the rail foot.
Enquire on WhatsAppJiGO CGT-6N Earthing Terminal Block

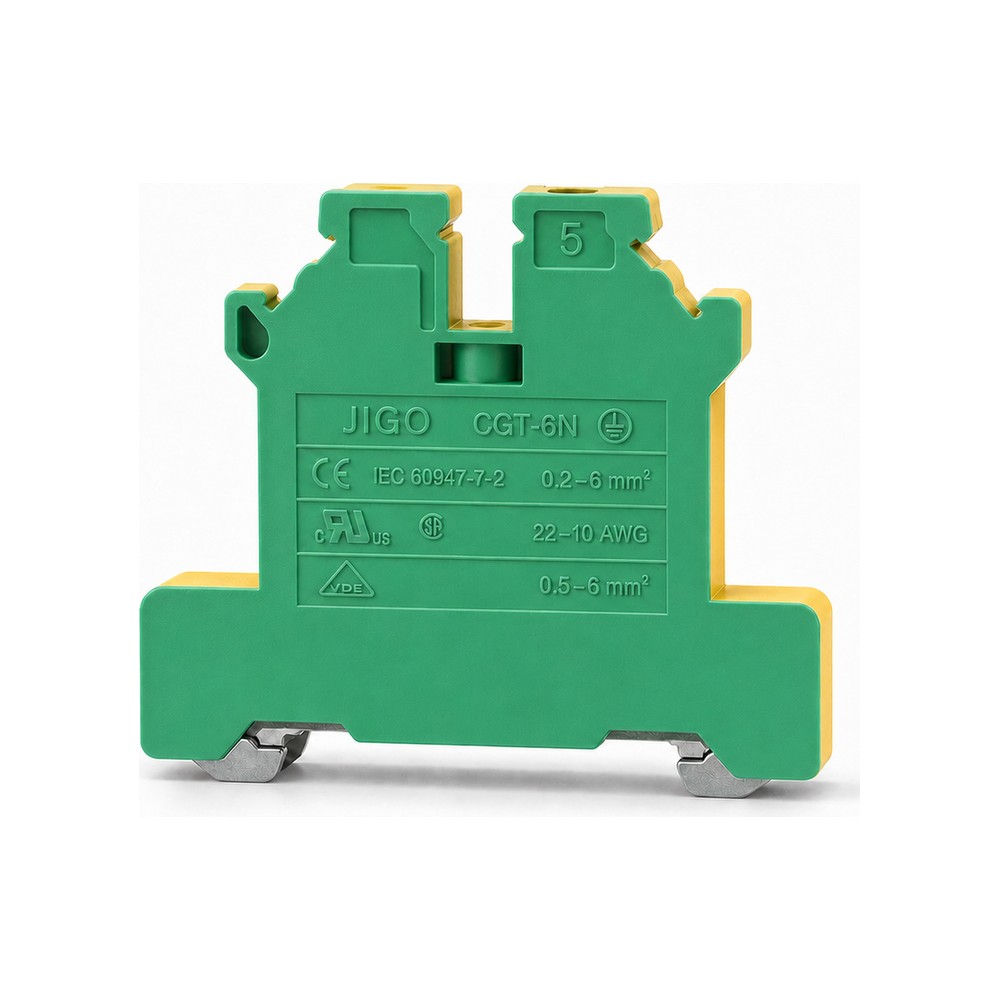

The CGT-6N is a protective earth (PE) terminal block in the standard green and yellow earthing colours. It clips onto 35 mm DIN rail and makes its earth connection through a metal foot that grips the rail itself, so no separate earthing wire is needed between the block and the rail.

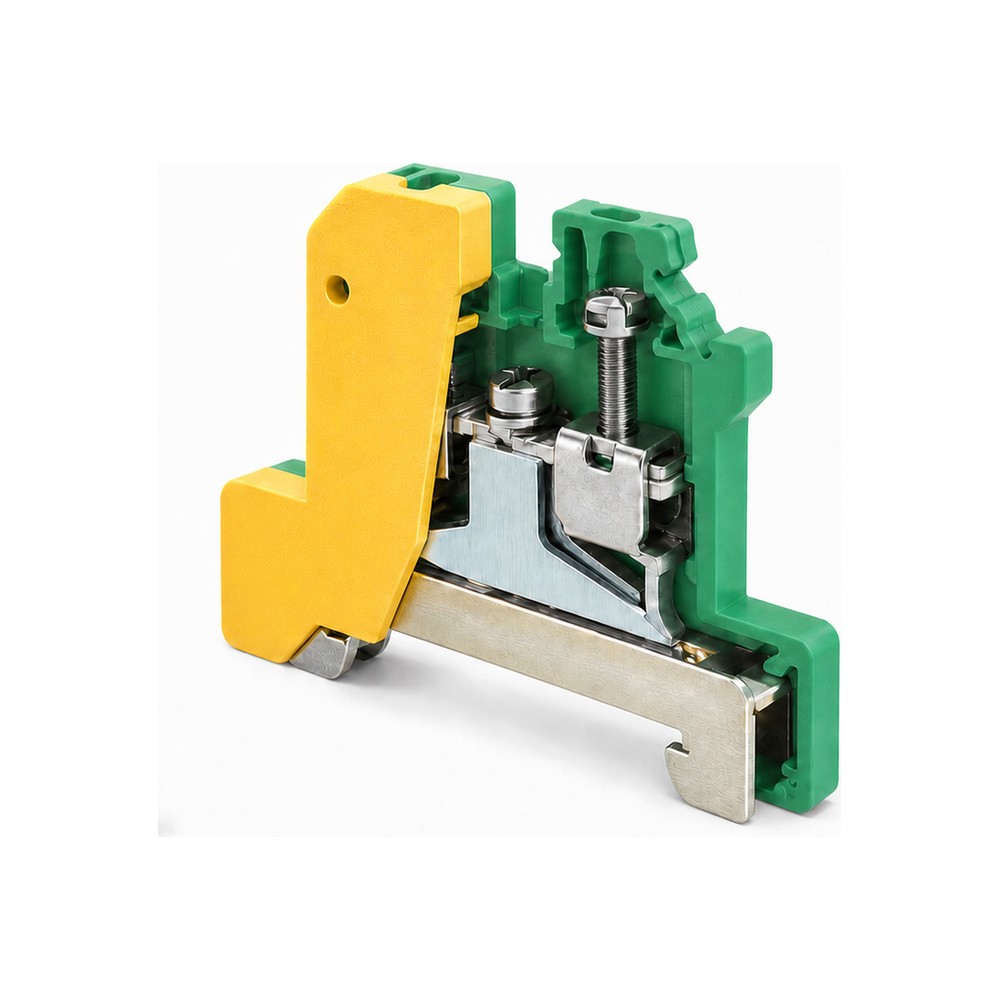

The screw clamp accepts both rigid and flexible conductors and holds the wire against a serrated current bar for a secure, vibration-resistant joint. The body is self-extinguishing polyamide, and the same footprint and 5-position marker slot as the rest of the CGT range means it lines up neatly beside feed-through blocks in the same panel.
Features
- Protective earth terminal block, green/yellow
- Earths directly to the DIN rail - no separate PE wire
- Screw clamp for rigid and flexible conductors
- Mounts on 35 mm DIN rail (NS 35/7.5 and NS 35/15)
- Self-extinguishing polyamide body
- Marker slot for terminal numbering
- Conforms to IEC 60947-7-2
Technical specifications
- Model: CGT-6N
- Brand: JiGO
- Type: Protective earth (PE) terminal block
- Nominal cross section: 6 sq mm
- Rigid conductor: 0.2 - 6 mm²
- Flexible conductor: 0.5 - 6 mm²
- Conductor range (AWG): 22 - 10 AWG
- Connection method: Screw clamp
- Number of connections: 2
- Mounting: 35 mm DIN rail
- Colour: Green / Yellow
- Standard: IEC 60947-7-2
- Approvals and markings: CE, cURus, CSA, VDE, IEC 60947-7-2
Brand: JiGO. Sold and supported by Arjun Trading Company, Ludhiana.
Also available in this range: CGT 4N (4 sq mm), CGT 6N (6 sq mm) and CGT 10N (10 sq mm). End plates, marker strips and DIN rail available separately.
Enquire on WhatsApp for bulk pricing and stock availability.
