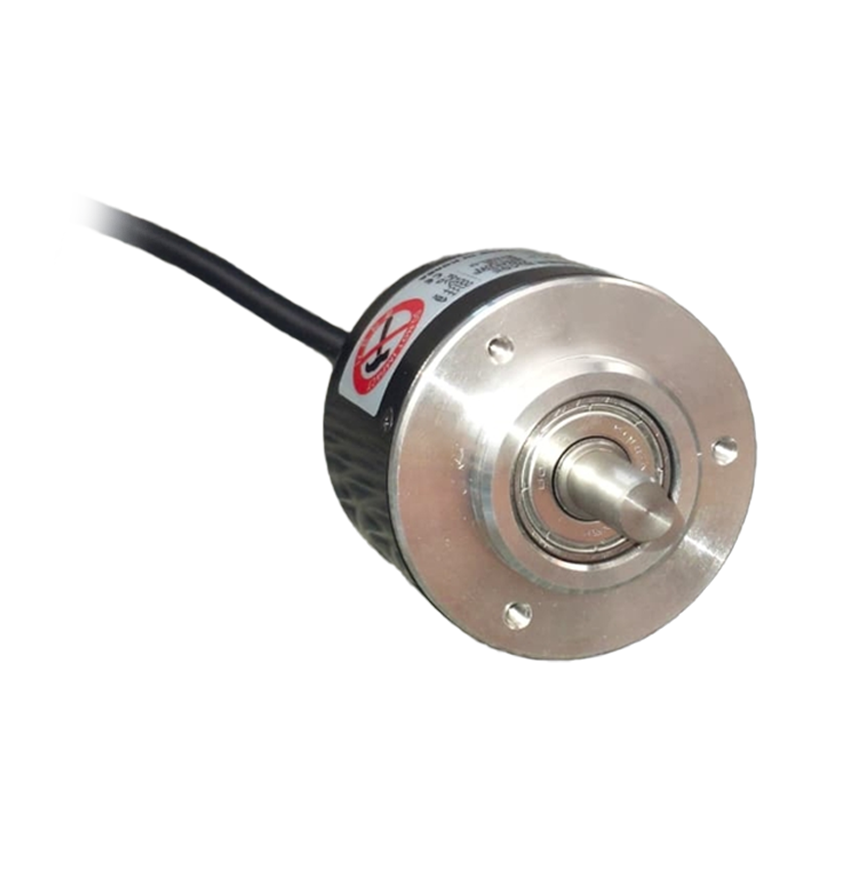

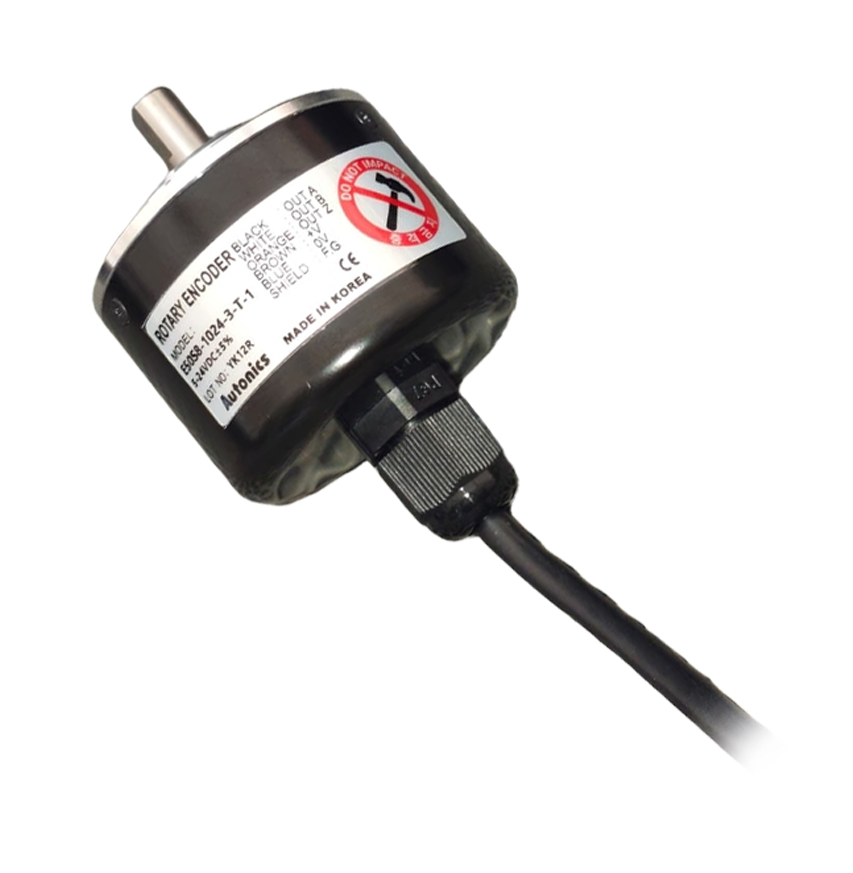

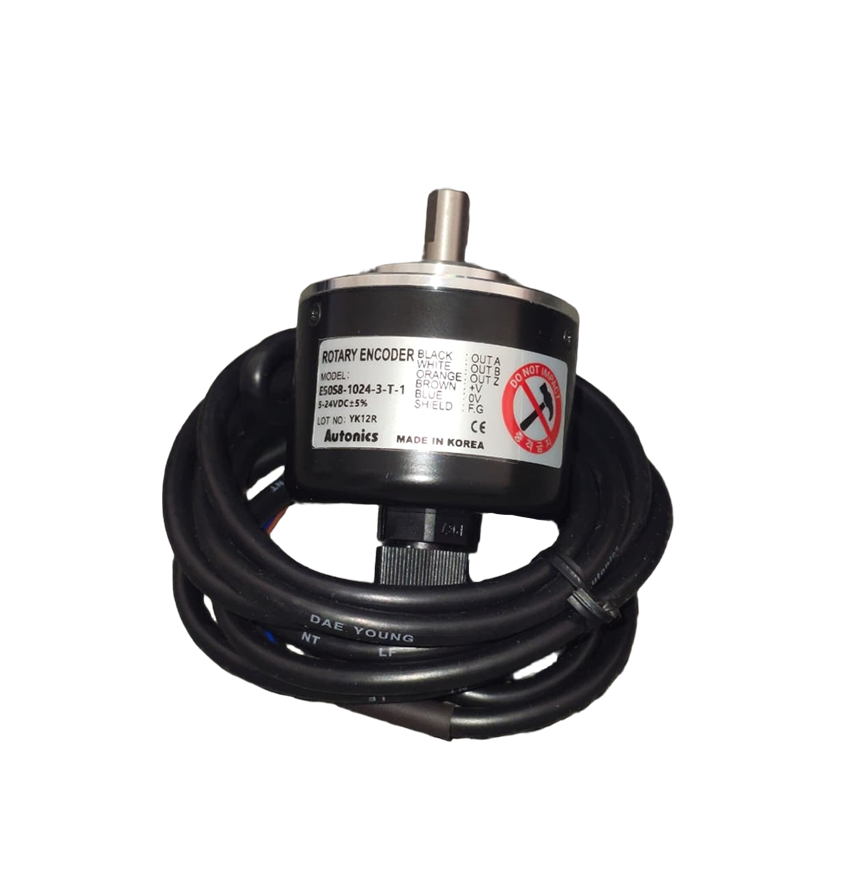

E50S8-1024-3-T-1 Rotary Encoder
The E50S8-1024-3-T-1 is a high-precision incremental rotary encoder designed to deliver accurate rotary position and speed feedback in industrial automation and motor control systems. With a resolution of 1024 PPR, it ensures superior accuracy and stable performance even in demanding environments.
Product Details
Model: E50S8-1024-3-T-1
Type: Incremental Rotary Encoder
Resolution: 1024 PPR (Pulses Per Revolution)
Output Phase: A, B, Z (3-phase output)
Output Type: Transistor output (NPN/PNP depending on variant)
Shaft Diameter: 8 mm
Body Size: 50 mm diameter
Power Supply: 5–24V DC
Output Form: Cable lead-out
Housing Material: Aluminum alloy
Bearing Type: High-precision ball bearings
Protection Rating: IP50–IP64 (model dependent)
Operating Temperature: -10°C to +70°C
Mounting Style: Flange mounting
Key Features
High 1024-pulse resolution for enhanced accuracy
Rugged aluminum structure ideal for industrial conditions
Stable 3-phase incremental output for reliable signal feedback
Wide voltage range supports multiple system integrations
Compact and lightweight design for easy installation
Vibration-resistant and designed for long operational life
Excellent for precise speed and positioning control
Applications
CNC machinery and automated systems
Stepper and servo motor position feedback
Conveyor and packaging machine control
Robotics, automation, and assembly systems
Printing, cutting, and textile machinery
Elevators, hoists, and industrial motion control
