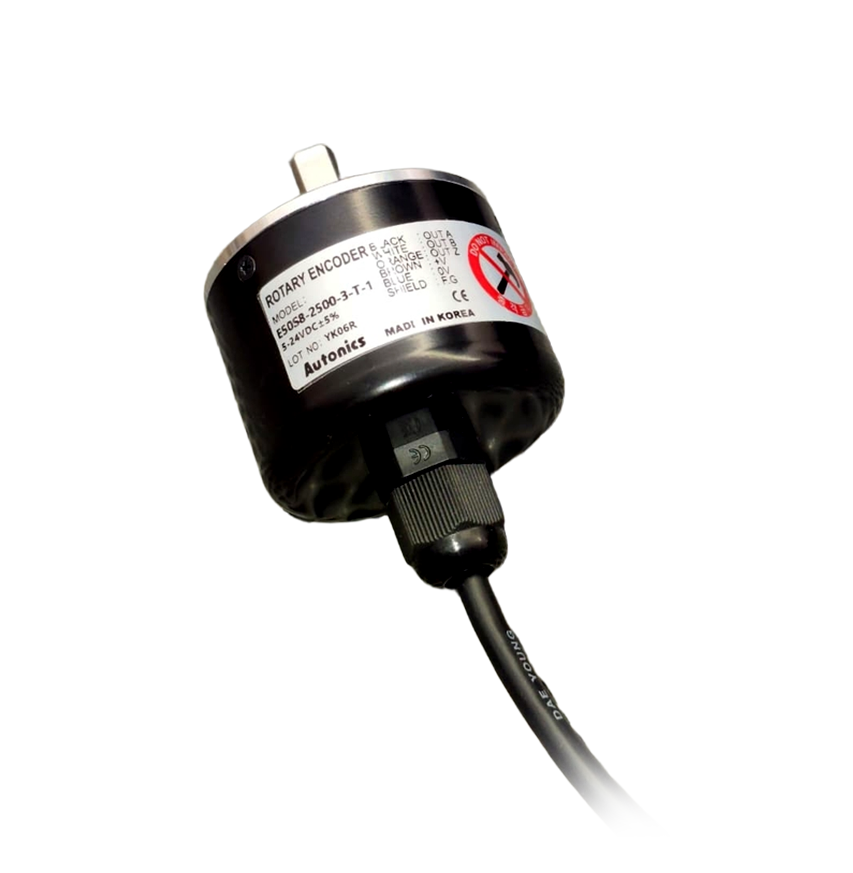

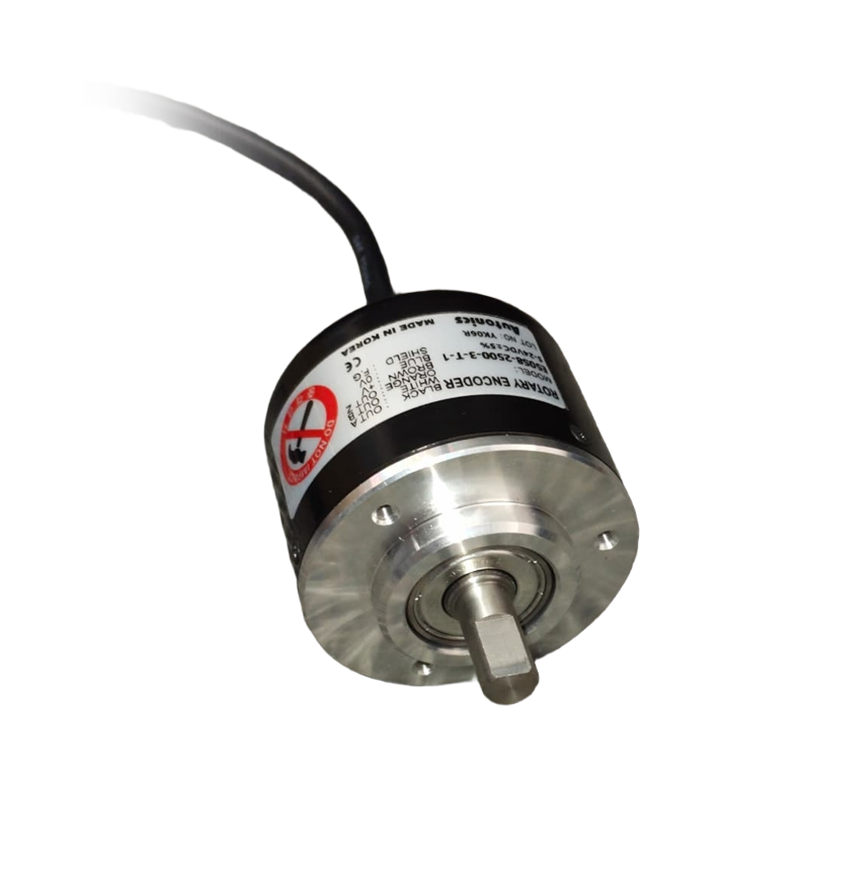

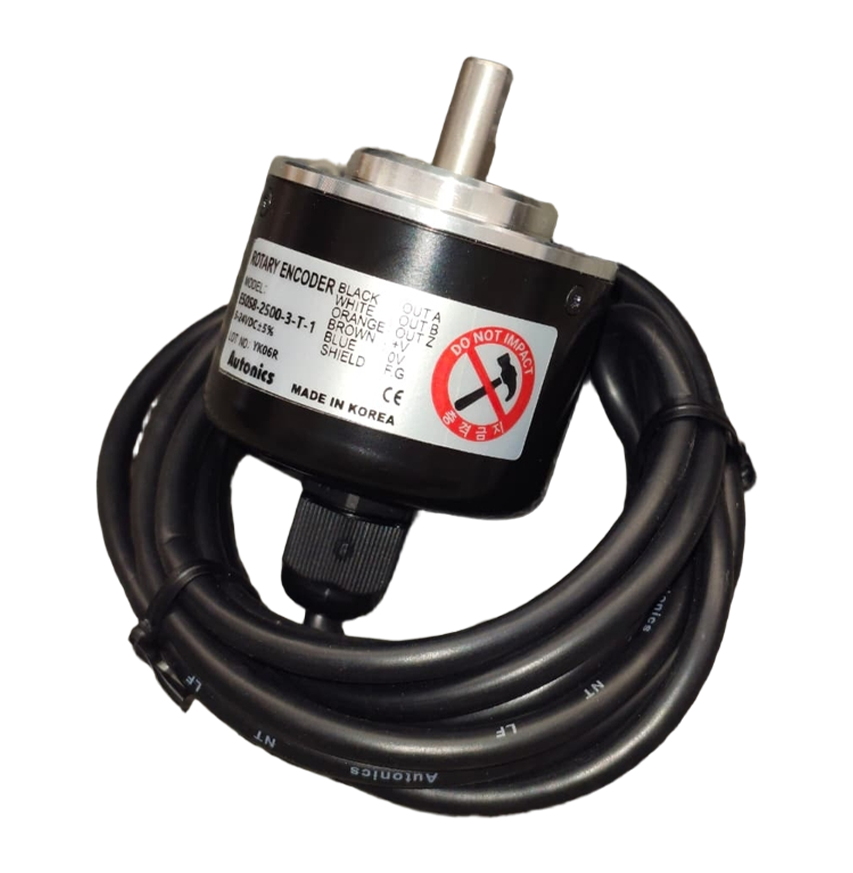

E50S8-2500-3-T-1 Rotary Encoder
The E50S8-2500-3-T-1 is a high-resolution incremental rotary encoder engineered for precision motion control applications. With 2500 pulses per revolution (PPR), it delivers superior accuracy, stable signal output, and dependable feedback for advanced industrial automation systems.
Product Details
Model: E50S8-2500-3-T-1
Type: Incremental Rotary Encoder
Resolution: 2500 PPR
Output Phase: A, B, Z (3-phase incremental output)
Output Type: Transistor output (NPN/PNP depending on variant)
Shaft Diameter: 8 mm
Body Size: 50 mm diameter housing
Power Supply: 5–24V DC
Output Form: Cable lead-out connection
Material: Durable aluminum alloy enclosure
Bearing Type: High-precision ball bearings
Protection Rating: IP50–IP64 (varies by sub-model)
Operating Temperature: -10°C to +70°C
Mounting Method: Standard flange mounting
Key Features
High-resolution 2500-pulse output for enhanced measurement precision
Reliable 3-phase (A, B, Z) incremental signal for accurate positioning
Rugged aluminum build suitable for industrial environments
Compact 50 mm housing for flexible installation
Long operating life with shock and vibration resistance
Wide DC voltage range for universal compatibility
Suitable for high-speed motor feedback applications
Applications
CNC Machines & Precision Automation
Servo & Stepper Motor Feedback Systems
High-speed Conveyor & Packaging Machinery
Robotics & Industrial Motion Control
Printing, Textile, and Cutting Machines
Elevator & Hoist Position Monitoring
Advanced speed and rotation measurement applications
