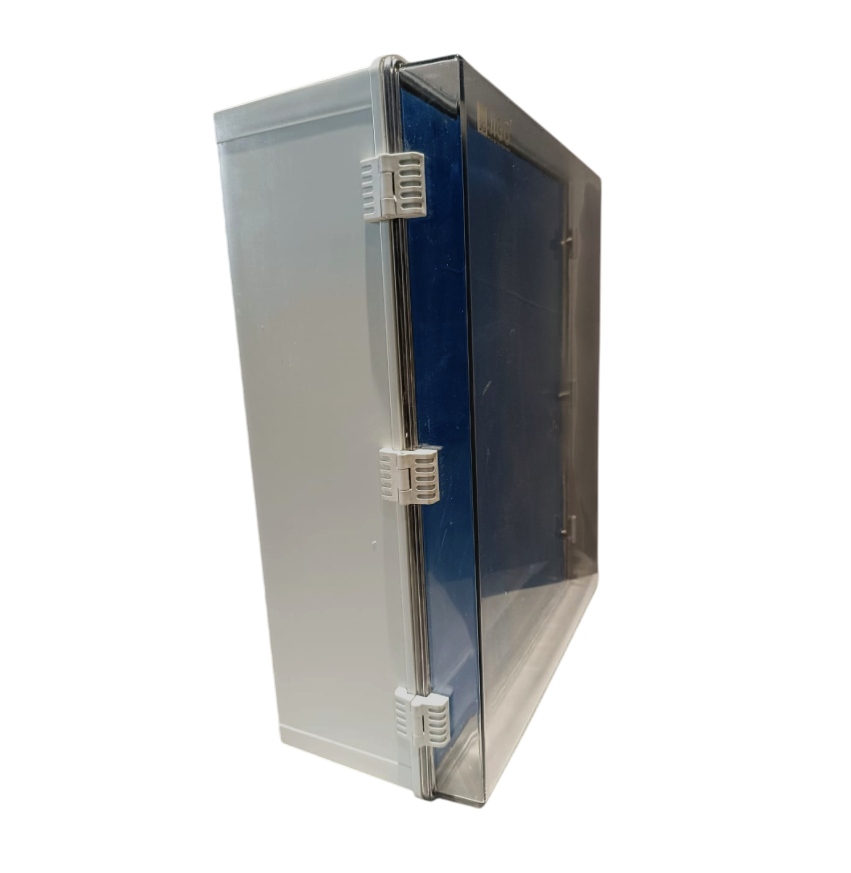

KG-600X500X220 TPP Waterproof Junction Box
- Category: KG SERIES BOX
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 2000
The KG-600X500X220 TPP is a robust, weatherproof plastic enclosure designed for housing electrical and electronic equipment. With its IP-rated construction and durable ABS body, it ensures safe operation in harsh indoor and outdoor environments.
Enquire on WhatsAppProduct Details
Model: KG-600X500X220 TPP
External Dimensions: 600 mm (W) x 500 mm (H) x 220 mm (D)
Material: High-impact ABS plastic (or optional Polycarbonate in some variants)
Color: Typically light grey (RAL 7035)

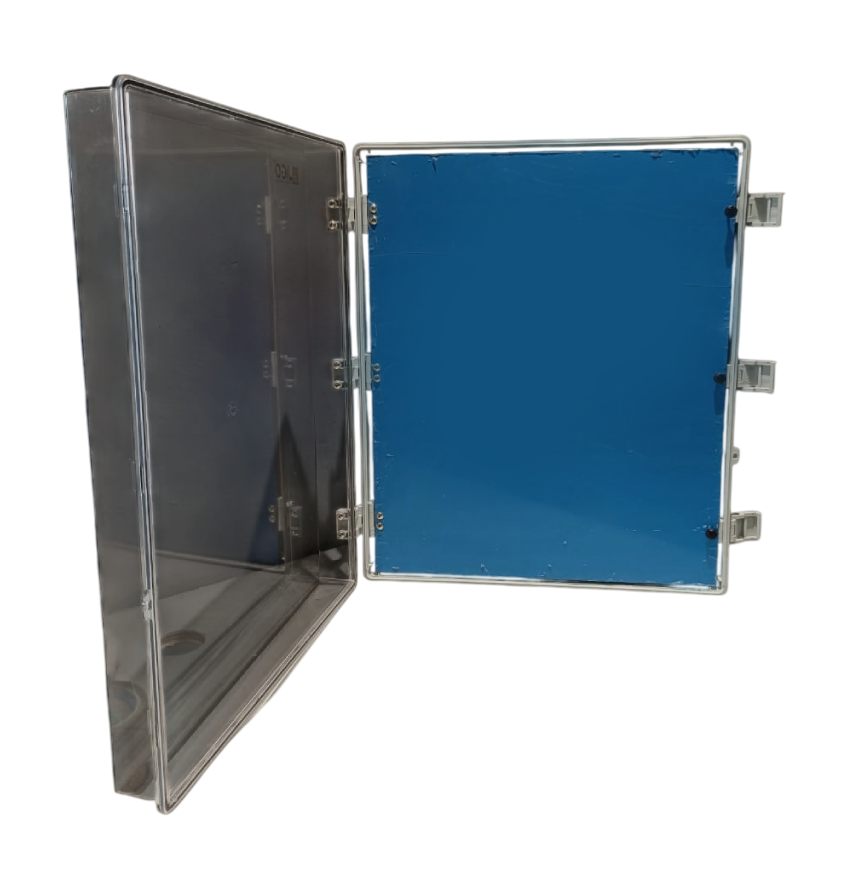

Door Type: Hinged, lockable front door

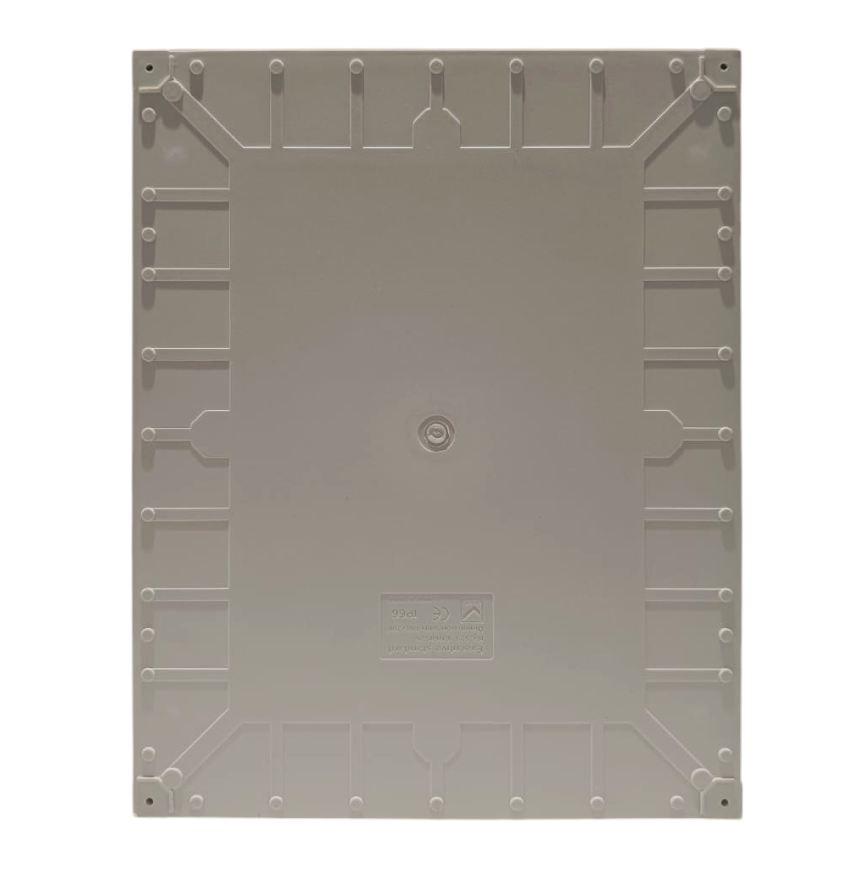

Mounting: Includes internal mounting plate and wall mounting brackets
Ingress Protection: IP65/IP66 (dust-tight and protected against water jets)
Operating Temperature: Typically -20°C to +80°C
UV Resistance: Yes (suitable for outdoor use)
Key Features
High-strength ABS plastic body with excellent impact resistance
IP65/IP66 protection for dust and water resistance
Corrosion-proof and UV-stable for outdoor applications
Easy installation with pre-drilled wall mounting brackets
Lockable door for added security
Customization options available for cut-outs, colors, or internal layouts
Applications
Electrical control panels
Industrial automation enclosures
Outdoor junction boxes
Solar power system housings
Communication and network device enclosures
Marine and offshore installations
Metering and instrumentation protection
