MK-5000
- Category: Ferrule Printing Machine
- Brand: Canon
- Minimum quantity: 1
- Price: ₹ 75000

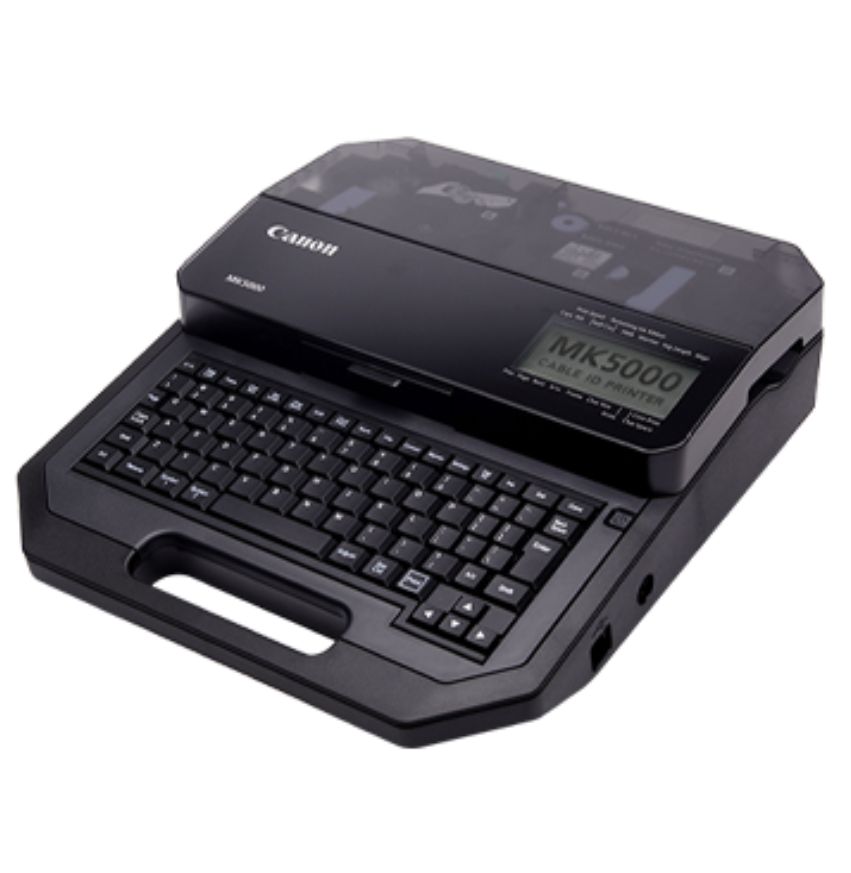

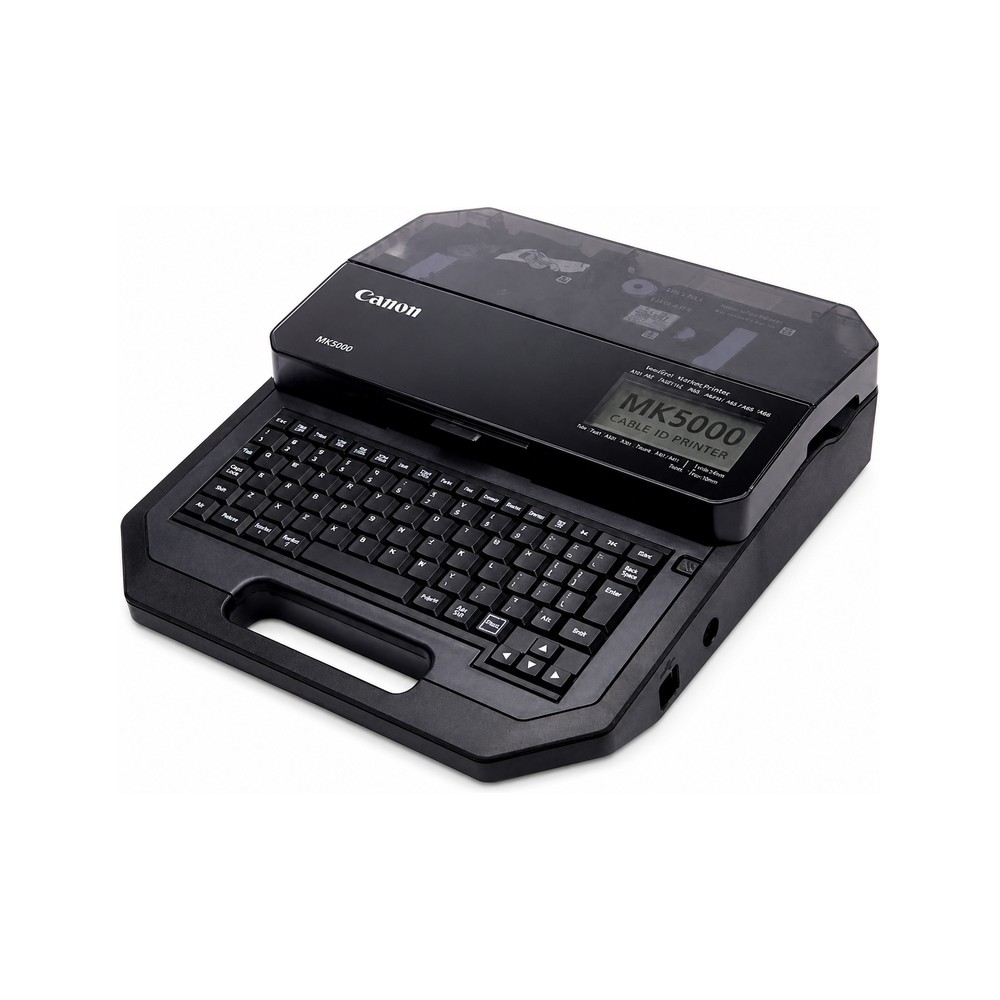

MK5000
High productivity, versatility and mobility in one printer for printing on label and tube sleeves
Designed for portability with fast print speeds, PC connectivity, and distributed printing to multiple printers. Highly-tactile keyboard increases comfort, while dual power supply (AC or optional AA batteries*) support increases flexibility for use in the office or at work sites.
- Fast print speed up to 40mm/s + 3 lines of print
- Automatic Full-cut, Half-cut
- Supports various media and sizes
- Intuitive and easy to operate
- Compatible with external rechargeable batteries*
*Batteries are not included with the printer. Only Panasonic eneloop 1.2V AA rechargeable batteries (model: BK-3MCCE) should be used to avoid printer safety and warranty issues.
"Panasonic" and "eneloop" are registered trademark of Panasonic Group.
SPECIFICATION
| Printing Method | Thermal Transfer |
| Resolution | 300 dpi |
| Printing Speed*1 | |
| High Speed | 40mm/s |
| Middle Speed | 25mm/s |
| Low Speed | 18.5mm/s |
| Output Rate | |
| High Speed | 55 pcs/min (ø 1.5 - 6.5mm) 45 pcs/min (ø 7 - 10mm) |
| Middle Speed | 35 pcs/min |
| Low Speed | 30 pcs/min |
| Ink Ribbons | |

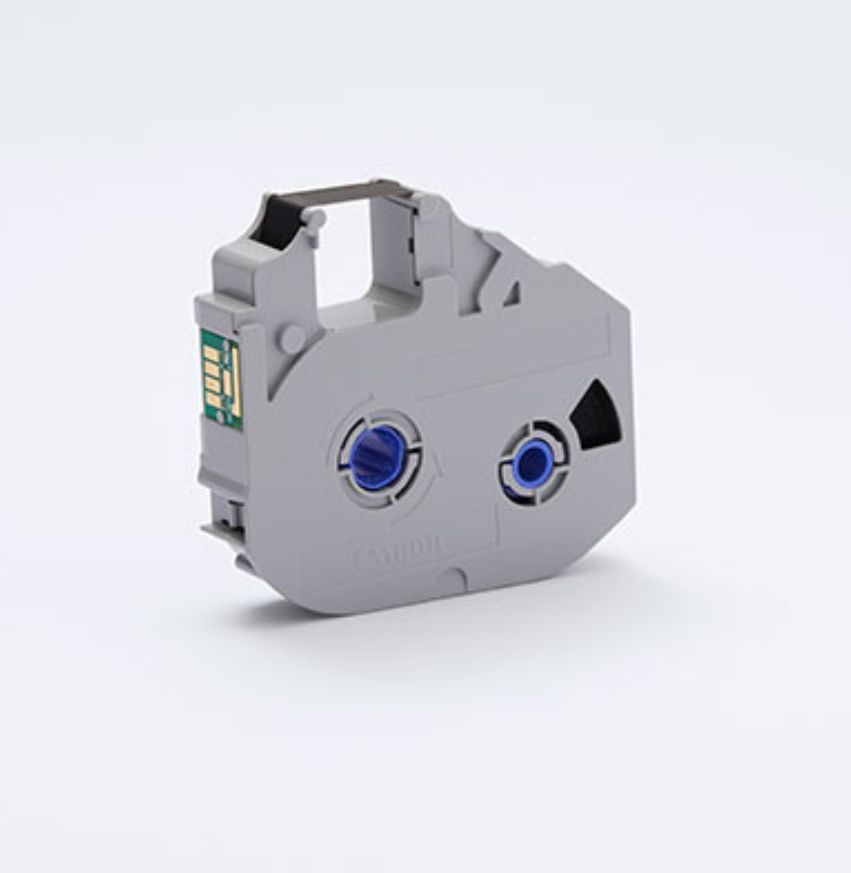

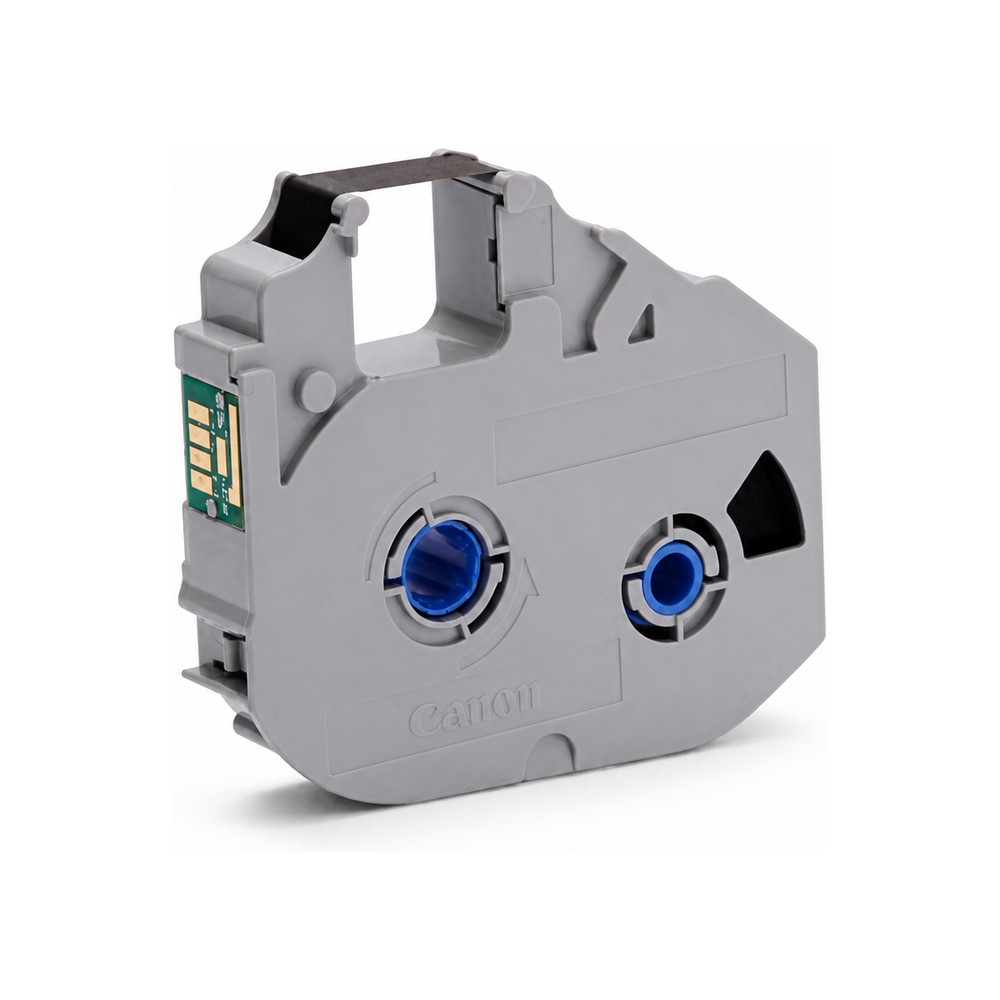

| Type | Ribbon Cassette |
| For Tube and Label | Black: 150m, 40m White: 85m |
| For Plate | Black: 40m |
| Character Size | 1.3mm (only full-width available), 2mm, 2.6mm, 3mm, 4mm, 6mm (full-width, half-width available for each) |
| Input Modes | Alphanumeric, Symbol input |
| Display | |
| Type | LCD (160 x 64 dots) with backlight |
| Capacity | 10 characters/line x 2 lines (full-width) |
| Built-In Memory | |
| Print Data (approx.) | 5 000 characters |
| Files (approx.) | 250 000 characters or 10 folders (each can save up to 99 files) |
| Media Cutting Method | Automatic Full-cut, Automatic Half-cut |
| Power Supply | |
| AC Adaptor | AC 100V - 240V, 50/60Hz, 0.74A |
| Rechargeable Batteries*2 | AA x 6 pieces |
| Power Consumption | 25W (maximum) |
| Interface | USB 2.0, PC Connection Kit (included) |
| Operating Environment | |
| Temperature | 15 - 32.5°C (5 - 18°C with optional Tube Warmer installed) |
| Humidity | 10 - 85% RH (with no condensation) |
| Storage Environment | |
| Temperature | 5 - 35°C |
| Humidity | 10 - 90% RH (with no condensation) |
| Dimensions (W x D x H) (approx.) | 272 x 318 x 97 mm |
| Weight (approx.) | 2.7 kg (not including accessories) |
PRINT MEDIA
| PVC Tube/Clear Tube*3 *5 | |
| Size | ø1.5 - 10mm (ø1.5 - 6.5 mm with the optional Tube Warmer installed) |
| Thickness | 0.4 - 0.6mm |
| Heat Shrink Tube*3 *5 | |
| Size | ø1.5 - 10mm |
| Thickness | 0.2 - 0.4mm |
| Flat Tube*4 *5 | |
| Size | ø1.5 - 6.5mm |
| Width | 11.2mm or less |
| Thickness | 0.4 - 0.6mm |
| Label Tape | |
| Type | Tape Cassette (White, Yellow, Silver) |
| Width | 6mm, 9mm, 12mm |
| Length | White, Yellow: 30m Silver: 27m |
| Plate*4 *5 | |
| Width | 8 - 10mm |
| Thickness | 0.5mm |
PRINT MEDIA
- Print speed varies depending on media used.
- Batteries are not included with the printer. Only Panasonic eneloop 1.2V AA rechargeable batteries (model: BK-3MCCE) should be used to avoid printer safety and warranty issues. "Panasonic" and "eneloop" are registered trademark of Panasonic Group.
- The Tube attachment is required. Heat shrink tube cannot be used with optional Tube Warmer.
- The optional Plate and Flat Tube attachment is required.
- Please purchase commercially available tubes and plates. Note that some commercially available tubes and plates cannot be printed by this printer. Please test the operation on the print media before use.
