PG9 Nylon Cable Gland

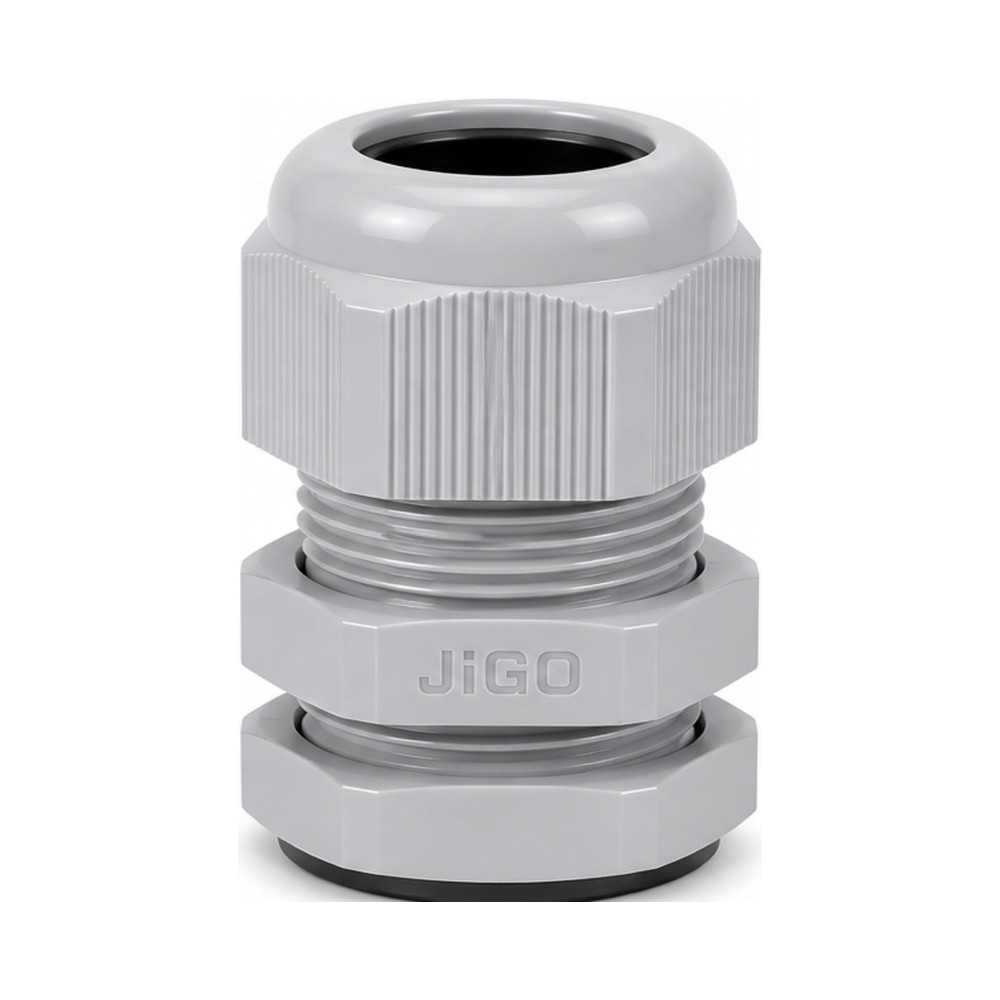

The JiGO PG9 is a PG thread nylon cable gland used to bring a cable into a panel, junction box or enclosure while keeping dust and water out. Tightening the dome nut squeezes the internal claw and seal onto the cable, so the joint is both watertight and strain-relieved — the cable cannot be pulled out or worked loose by vibration.

It suits cable of 4 – 8 mm outer diameter. Choose the gland by the outside diameter of the cable, not by the conductor size — a cable at the top of the range seals as well as one in the middle, but a cable thinner than the minimum will not grip.

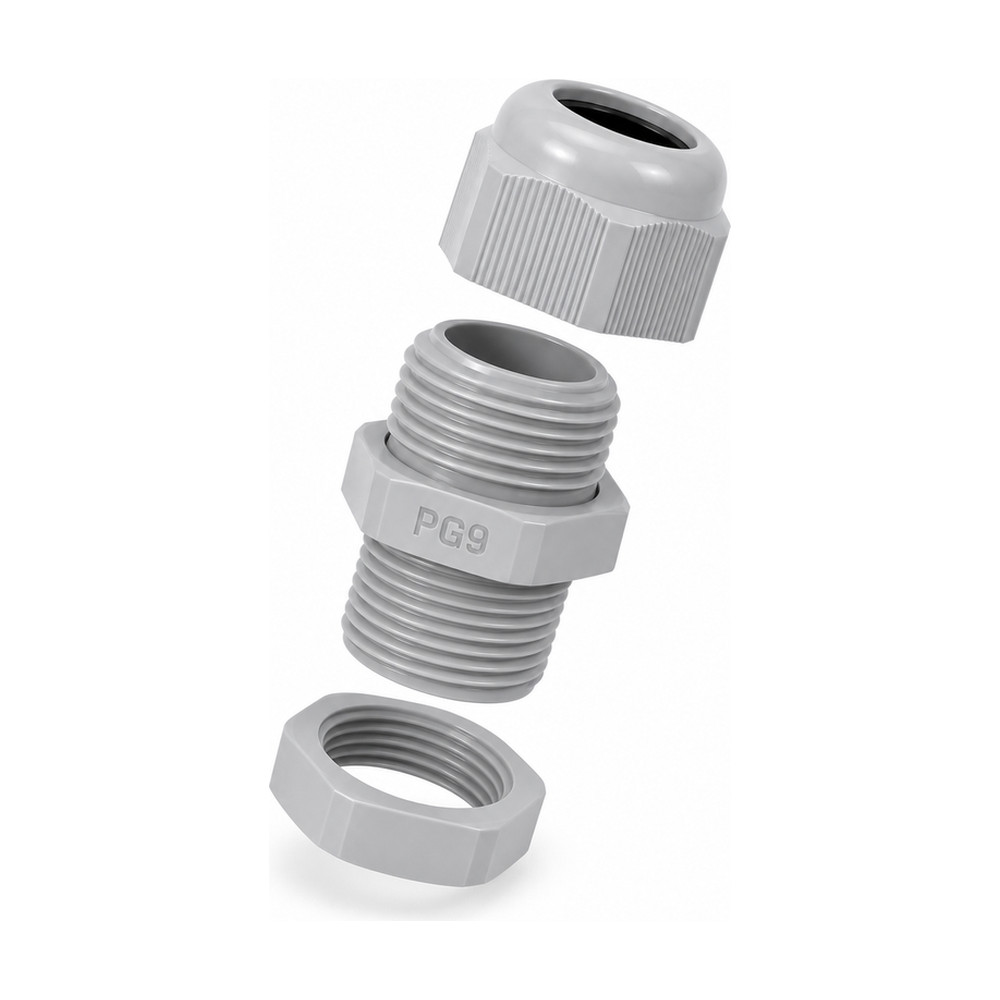

The body is moulded nylon (PA), so it will not corrode or seize like a brass gland in damp or chemically aggressive conditions, and it is light enough not to load a thin panel wall. The sealing ring and O-ring are NBR. Sealing is rated IP68. Each gland comes with its matching locknut for fixing through a panel cut-out.

Fitted by hand or with an ordinary spanner — no special tool needed. Standard colour is grey.

• Rate shown is per piece. Minimum order quantity 100 pieces (one packet).
• Packet: 100 pieces  ·  Carton: 5000 pieces. Carton rates on request.
• Select the gland by the outer diameter of the cable (4 – 8 mm for this size), not by the conductor cross-section.
• Also searched as: PG gland, cable gland, nylon gland, plastic cable gland, PG9 gland, PG thread gland, waterproof cable gland, IP68 gland.
• GST as applicable is included in the displayed rate.
• Available ex-stock at Arjun Trading Company, Ludhiana. Metal (nickel-plated brass) PG glands and M-thread glands also available.
