PS-24 6.5A
- Category: POWER SUPPLY
- Brand: Multispan
- Minimum quantity: 1
- Price: ₹ 1500

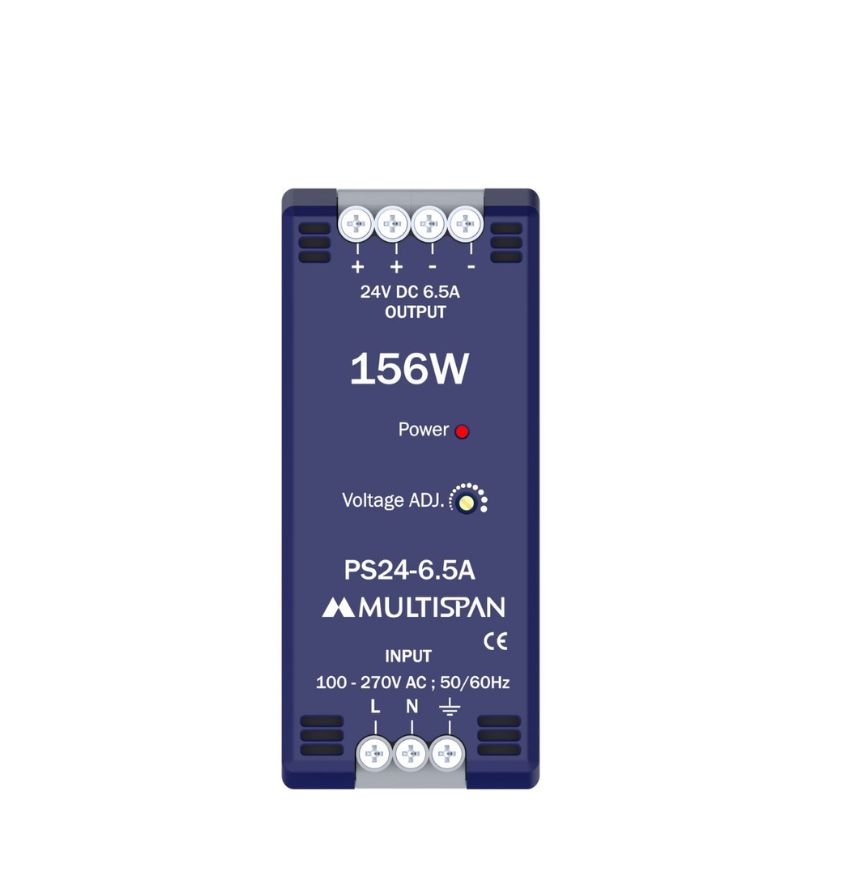

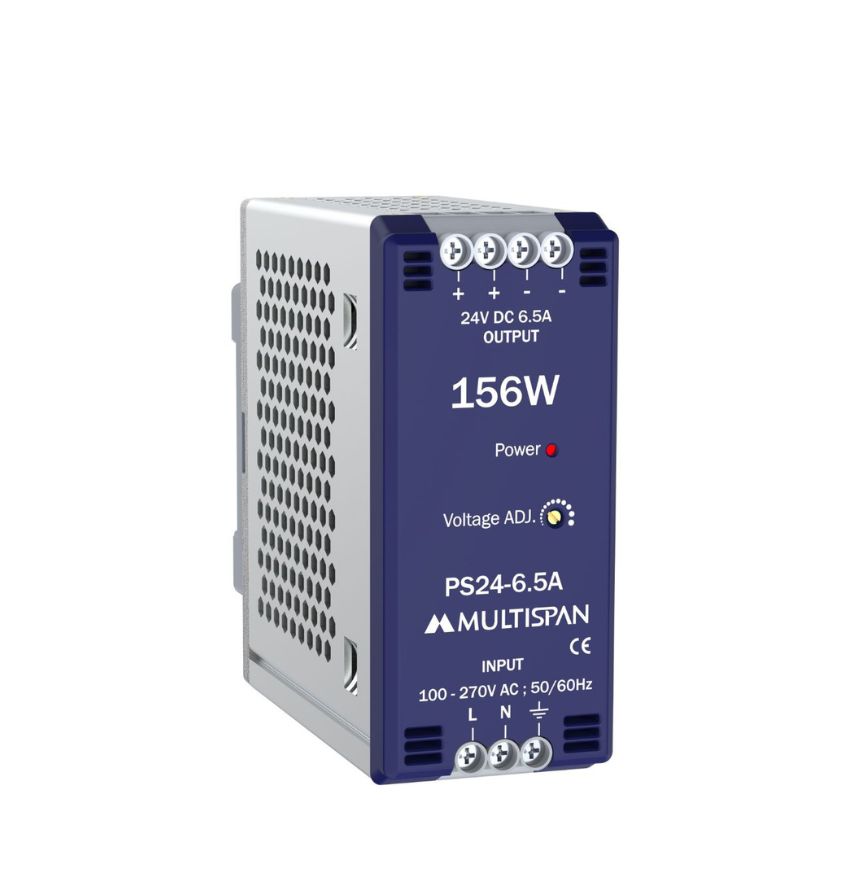

Power Supply 24V-6.5A
Product: PS24-6.5A
- Power 156W
- Input Voltage : 100-270V AC
- Output Voltage : 24V DC
- Efficiency > 90% @230V AC
- Material: Front Facia (ABS) & Enclosure (Aluminium)
- Protection Parameter : Output Overload, Output Over Voltage , Output short circuit, Over Temperature
| Input Specification : | |
| Supply Voltage | 100 to 270V AC±10%,(L-N) |
| Frequency Range | 50 / 60Hz |
| AC Current (TYP.) | 2.5A@100V AC, 1.1A@270V AC |
| Efficiency (TYP.) | >90%@230V AC |
| Start UP time | <1 sec@230V AC & |
| <3 sec@100VAC (Full Load) | |
| Output Specification : | |
| Output Voltage | 23 - 28V DC |
| Output Current | 6.5A at 24V; 5.57A at 28V |
| Ripple & noise | <1% of V out |
| Line & Load Regulation | ±1% |
| Hold UP Time | <60ms at 230V AC & |
| >15ms at 100V AC (Full Load) | |
| Protection Parameters: | |
| Input Fuse | 5A-250V AC Internal |
| Output Over Load | 110% to 120% of rated output Current protection Protection Type : hiccup mode;recover automatically after fault condition is removed |
| Output Short Circuit | Hiccup mode when output is shorted;Recovers automatically after fault condition is removed. |
| Output Over Voltage | SMPS Latches off if output voltage exceeds the specified output voltage limit. |
| Over Temperature | Power supply shuts down when the temperature goes above specified limit; |
| Turns on automatically after temperature goes back to Normal operating conditions. | |
| Isolation between Input and Output : | 2.5 KV |
| Physical Data: | |
| Mounting Type | Din Rail Mount |
| Size | 105 (H) x 45 (W) x 110 (D) |
| Material | Front - ABS |
| Enclosure - Aluminium | |
