PS24-10A

Category:

POWER SUPPLY

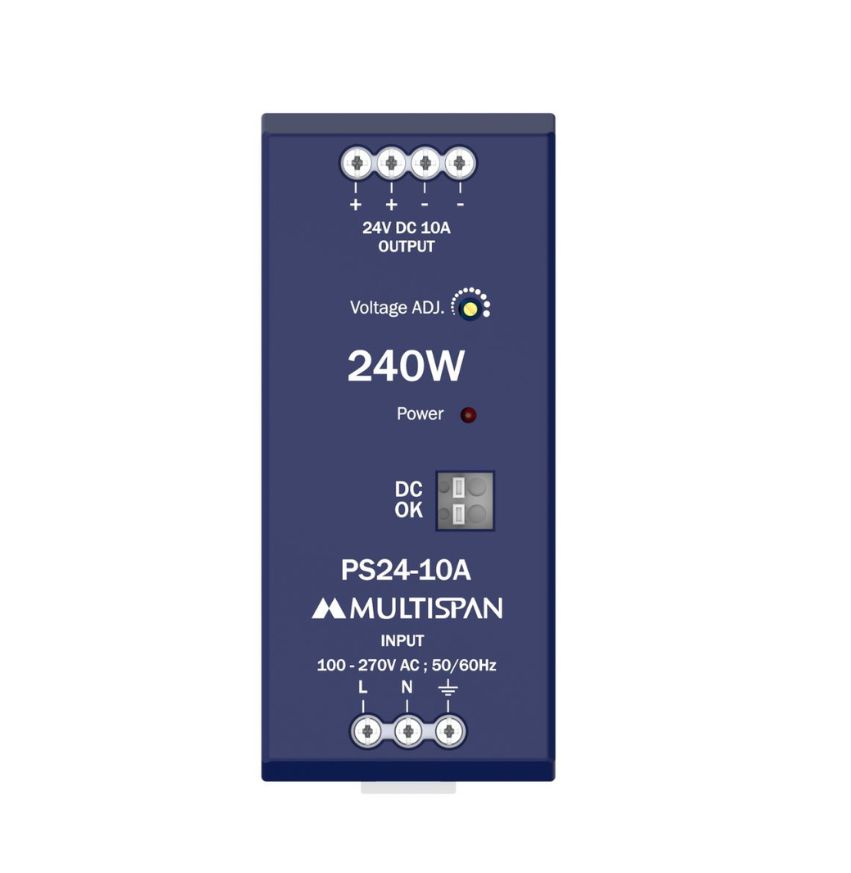

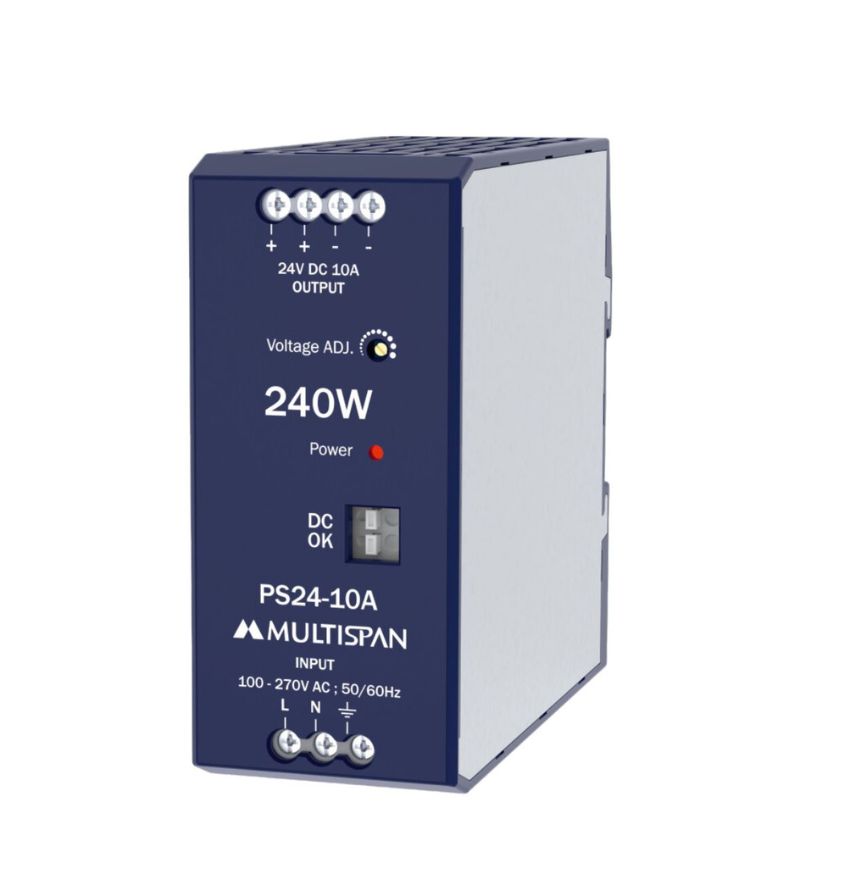

Product: PS24-10A

Power 240W
Input Voltage : 100-270V AC
Output Voltage : 24V DC
Efficiency > 93% @230V AC
Protection Parameter : Output Overload, Output Over Voltage , Output short circuit, Over Temperature

Input Specification :
Supply Voltage	100 to 270V AC (L-N)
Frequency Range	50 / 60Hz
Power Factor	> 0.95 @ Full Load
AC Current (TYP.)	2.7A@100V AC, 1.2A@230V AC
Efficiency (TYP.)	>93%@230V AC
Start UP time	<2 sec@230V AC (Full Load)
Output Specification :
Nominal DC Voltage	24V DC
Output Voltage	24 - 28V DC
Output Current	10A at 24; 8.57A at 28V
Ripple & noise	<1% of Vout*
Line & Load Regulation	±1%
Hold UP Time	>13ms at 24V @ 100 /230V AC (Full Load)
Protection Parameters:
Input Fuse	4A-250V AC Internal
Output Over Load	110% to 140% of rated output Current protection Protection Type : hiccup mode;recover automatically after fault condition is removed
Output Short Circuit	Hiccup mode when output is shorted;Recovers automatically after fault condition is removed.
Output Over Voltage	SMPS Latches off if output voltage 31V DC ± 0.5V DC
Over Temperature	Power supply shuts down when the temperature goes above specified limit;
Over Temperature	Turns on automatically after temperature goes back to Normal operating conditions.
Physical :
Mounting Type	35mm Din Rail
Size	125 (H) x 55 (W) x 135 (D)
Material	Polycarbonate
Environmental:
Working Temperature	-25°C to 50°C * De-rate output power at 3w/°C above +50°C Ambient
Storage Temperature	-40°C to 85°C
Relative Humidity	95% RH Non-condensing
