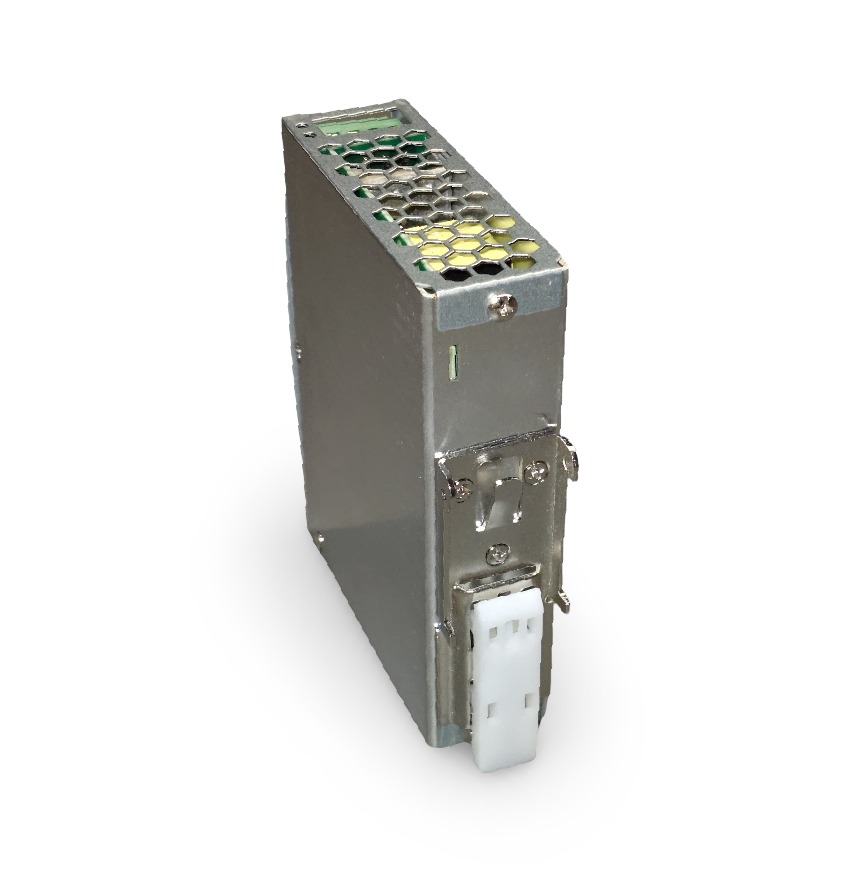

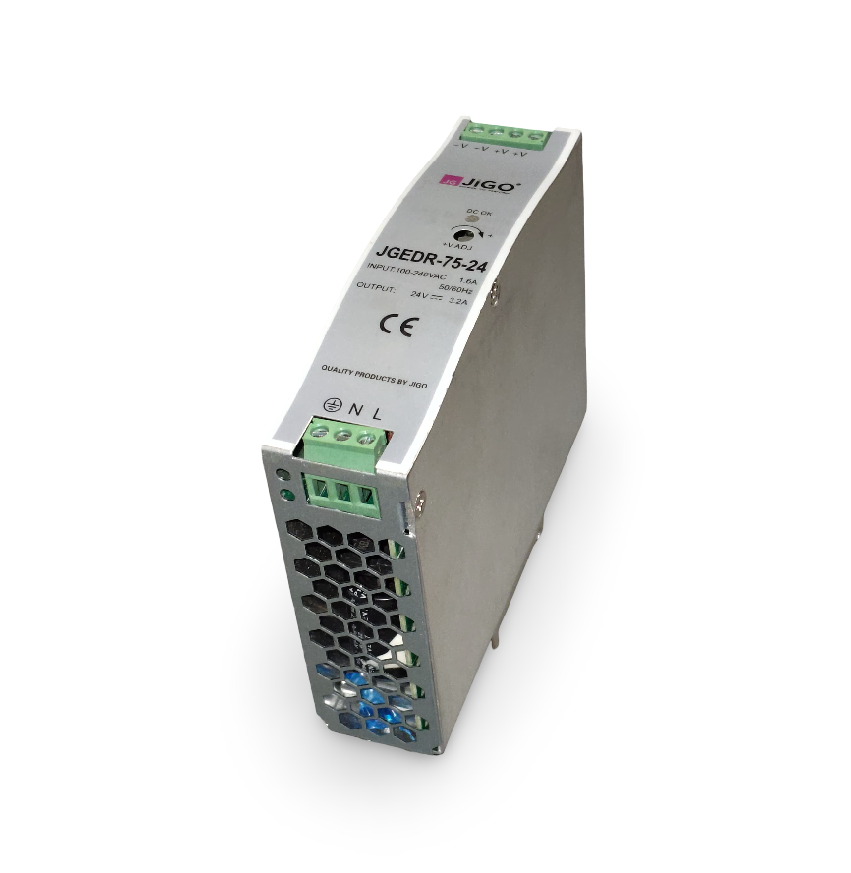

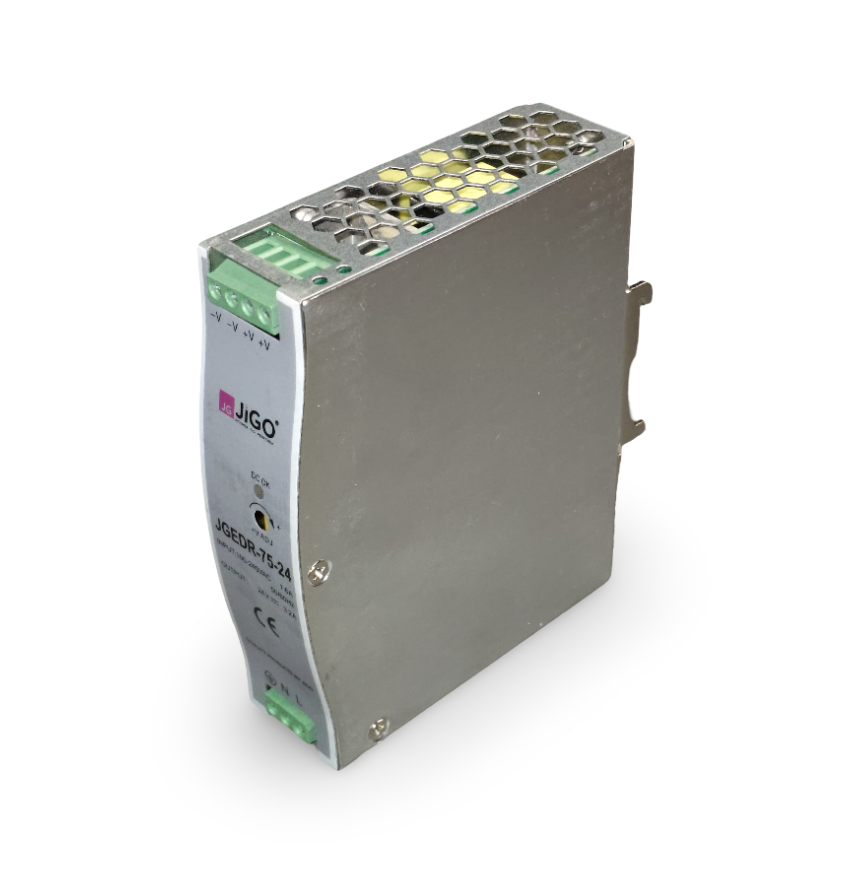

The JGEDR-75-24 is a high-performance 75W DIN Rail-mounted power supply delivering a stable 24V DC output. Designed for demanding industrial environments, it ensures reliable power for control panels, automation systems, and electronic devices.
Model: JGEDR-75-24
Input Voltage Range: 100–240V AC, 50/60Hz
Output Voltage: 24V DC
Output Current: 3.2A
Output Power: 75W
Mounting Type: DIN Rail (35mm)
Efficiency: ≥ 88%
Cooling Method: Natural air convection
Protection Features: Overload, Overvoltage, Short-circuit, Over-temperature
Housing: Flame-retardant plastic enclosure
Operating Temperature: -20°C to +60°C
Certifications: CE, RoHS compliant
Indicator: LED power status display
Stable 24V DC regulated output with low ripple
High efficiency and energy-saving design
Full protection against overload and faults
Compact, slim DIN rail housing for space-saving installation
Ideal for continuous 24/7 industrial use
Easy installation with screw terminals
Long service life with maintenance-free operation
Industrial automation and control panels
Programmable Logic Controllers (PLC)
Building management and HVAC systems
Surveillance and security systems
Sensors, relays, and actuators
Communication equipment and instrumentation
Residential and commercial automation
