PS-24 5A
- Category: POWER SUPPLY
- Brand: Multispan
- Minimum quantity: 1
- Price: ₹ 1500

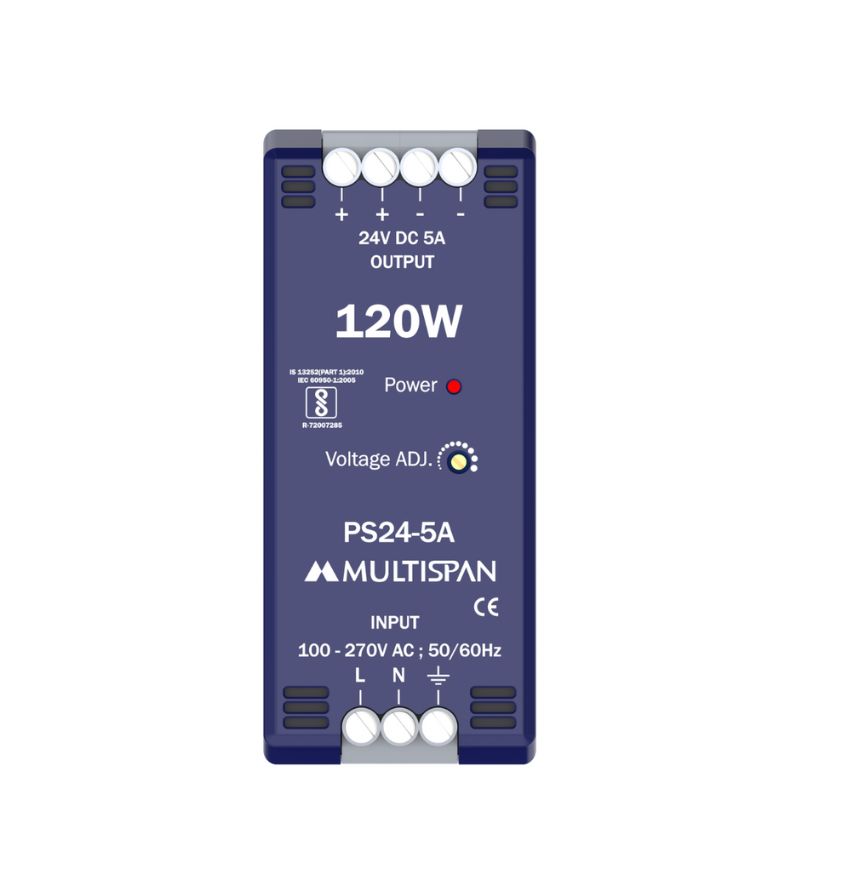

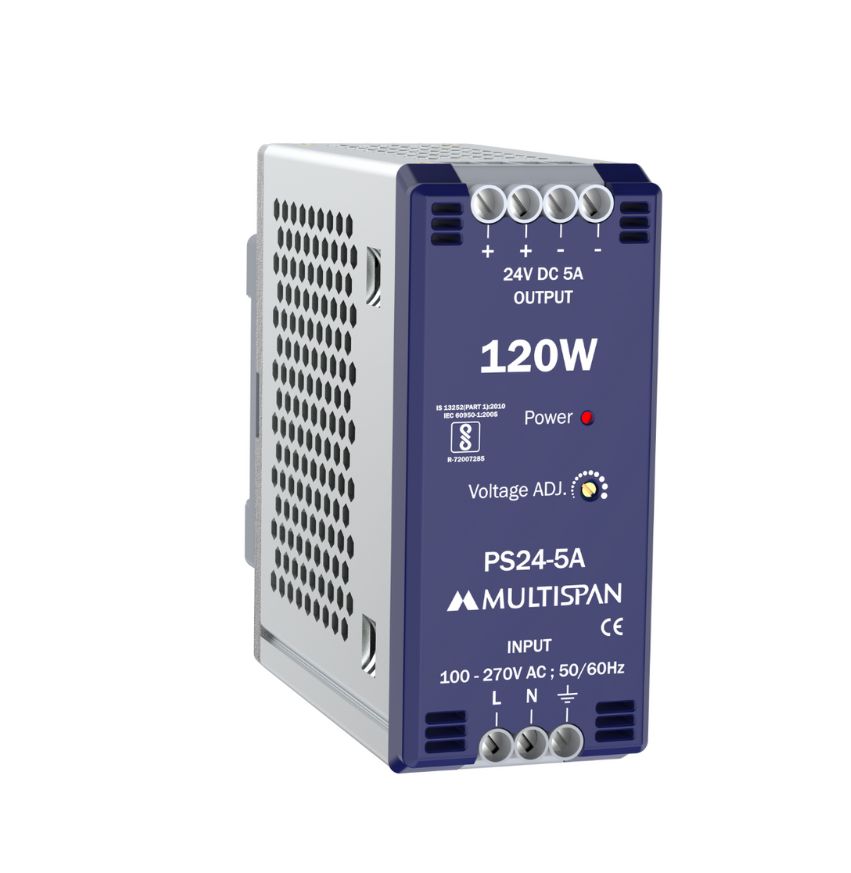

Power Supply 24V-5A
Product: PS24-5A
- Input Voltage : 100-270V AC
- Output Voltage : 24V DC,12V DC,48V DC,15V DC
- Efficiency : 89% @230V AC
- Material: Front Facia (ABS) & Enclosure (Aluminium)
- Protection parameter : Overload, Over Voltage , Output short circuit, Over Temperature
Input Specification : Supply Voltage 100 to 270V AC±10%,(L-N) Frequency Range 50 / 60Hz AC Current (TYP.) 2.1A@100V AC, 0.95A@270V AC Efficiency (TYP.) >89%@230V AC Start UP time <1 sec@230V AC & <3 sec@100VAC (Full Load) Output Specification : Output Voltage 23 - 28V DC Output Current 5A at 24; 4.29A at 28V Ripple & noise <1% of Vout* Line & Load Regulation ±1% Hold UP Time <60ms at 230V AC & >15ms at 100V AC (Full Load) Protection: Input Fused 3.15A-250V AC Internal Output Over Load 110% to 120% of rated output Current protection Protection Type : hiccup mode; recover automatically after fault condition is removed Output Short Circuit Hiccup mode when output is shorted;Recovers automatically after fault condition is removed. Output Over Voltage SMPS Latches off if output voltage Exceeds the specified output voltage Limits. Over Temperature Power supply shuts down when the temperature goes above specified limit; Turns on automatically after temperature goes back to Normal operating conditions. Physical : Mounting Type Din Rail Mount Size (H) x (W) x (D) 105 x 45 x 110 Material ABS Environmental: Working Temperature -25°C to 50°C * De-rate output power at 3w/°C above +50°C Ambient Storage Temperature -40°C to 85°C Relative Humidity 95% RH Non-condensing Warm up time 5 minutes
