RELAY 8 PIN 220V AC
- Category: GLASS RELAYS
- Brand: Phoenix Contact
- Minimum quantity: 10
- Price: ₹ 335
REL-IR-BL/L-230AC/2X21 - Single relay
1032530
Plug-in industrial relay with power contacts, 2 changeover contacts, test button, status LED, mechanical switch position indicator, input voltage: 230 V AC
Product type Single relay Operating mode 100% operating factor Mechanical service life 2x 107 cycles Date of last data management 18.01.2024
ELECTRICAL PROPERTIES -

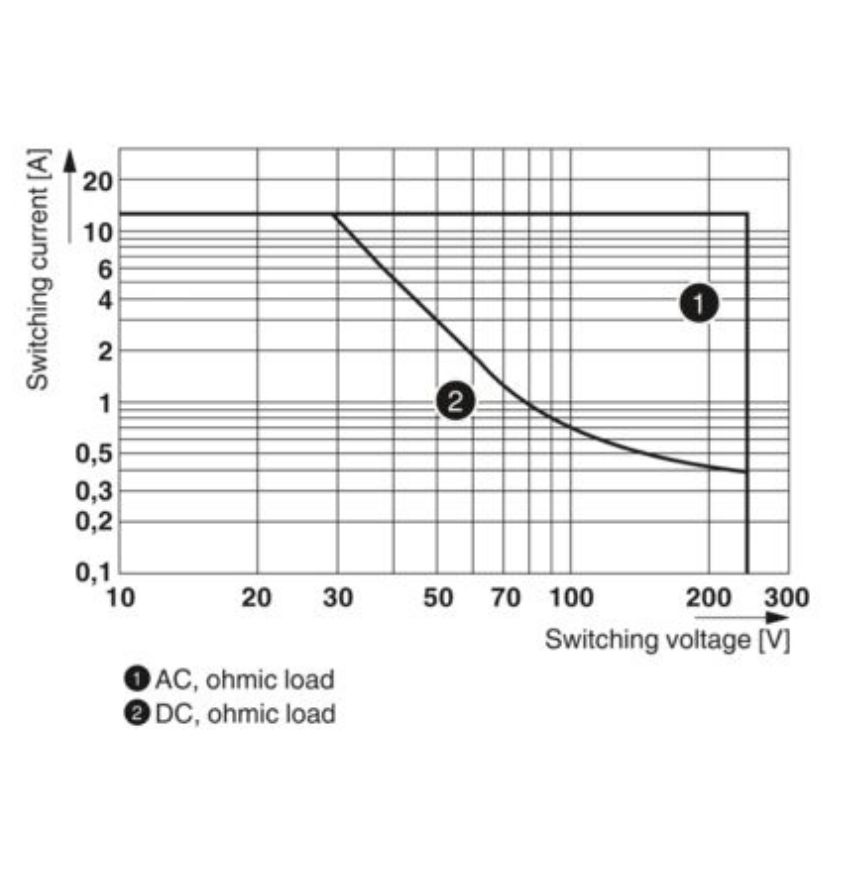

| Service life electrical | see diagram |
| Maximum power dissipation for nominal condition | 1 VA |
| Test voltage (Winding/contact) | 2.5 kVrms (50 Hz, 1 min., winding/contact) |
| Test voltage (Changeover contact/changeover contact) | 2.5 kVrms (50 Hz, 1 min., changeover contact/changeover contact) |
| Air clearances and creepage distances between coil and contact side | |
| Rated insulation voltage | 250 V AC |
| Rated surge voltage | 5 kV |
Output data
| Switching | |
| Contact switching type | 2 changeover contacts |
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 12 V (10 mA) |
| Limiting continuous current | 12 A |
| Maximum inrush current | 24 A (20 ms, N/O contacts) |
| Min. switching current | 10 mA (12 V) |
| Interrupting rating (ohmic load) max. | 288 W (24 V DC) |
| 130 W (48 V DC) | |
| 90 W (60 V DC) | |
| 66 W (110 V DC) | |
| 88 W (220 V DC) | |
| 3000 VA (250 V AC) | |
| Switching capacity min. | 120 mW |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | RT II |
| Degree of protection (Installation location) | ≥ IP54 (Installation location) |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Altitude | ≤ 2000 m |
Input data
| Coil side | |
| Nominal input voltage UN | 230 V AC |

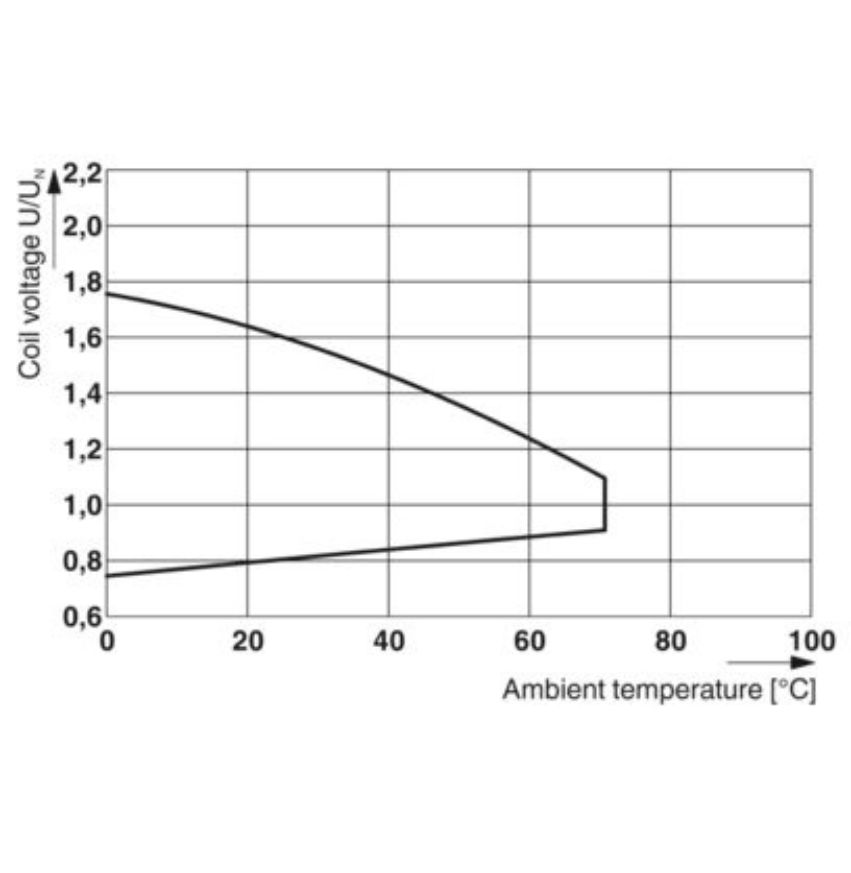

| Input voltage range | 184 V AC ... 379.5 V AC (20 °C) |
| Mains frequency | 50/60 Hz |
| Drive and function | monostable |
| Drive (polarity) | non-polarized |
| Typical input current at UN | 4.4 mA (50 Hz) |
| Typical response time | 5 ms ... 15 ms |
| Typical release time range | 5 ms ... 20 ms |
| Coil voltage | 230 V AC |
| Status display | Yellow LED |
