Multispan Timers In stock · Ludhiana

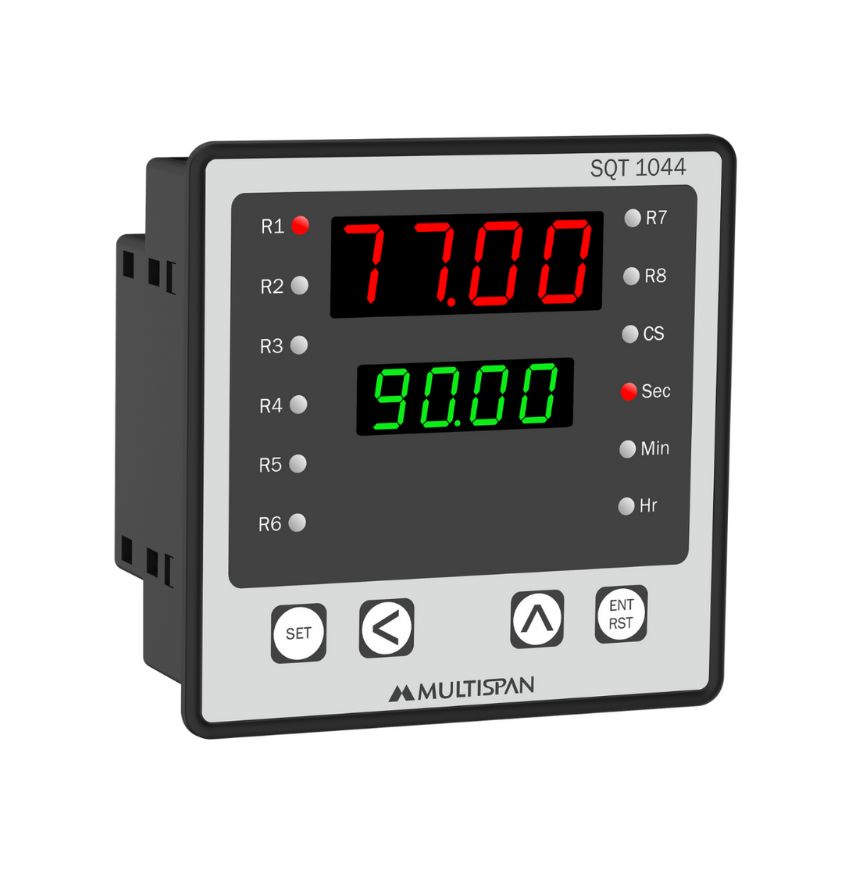

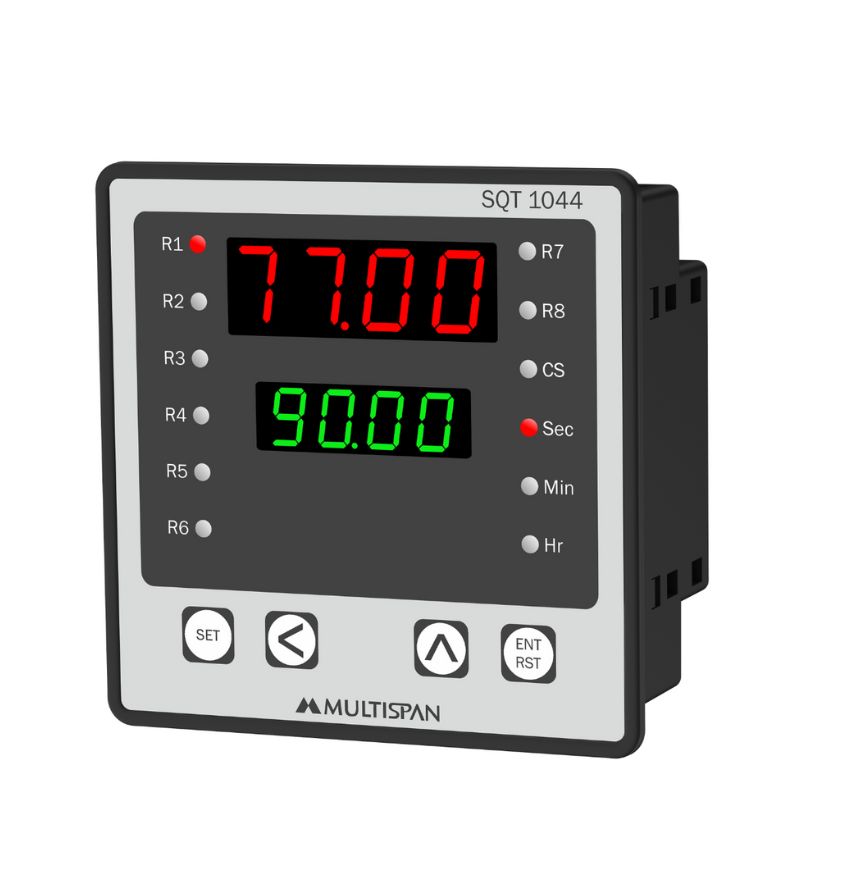

SQT-1044 Timer Relay
₹3,500list price · GST invoice · dealer rates on WhatsApp
Channel Sequential Timer
Product: SQT-1044
- 4+4 Digit Dual Display Sequential timer
- Input Micro Switch/NPN Proxy
- Delayed On/Off, Cyclic Mode
- Reset by Front Keypad and Remote
- Range Hour/Minute/Second
- With Power Fail memory
- With Cascading Facility
- Size: (H)96mm x (W)96mm x (D)54mm
- Supply Voltage: 100-270V AC
Delivery2–5 days pan-India courier
PayUPI · cards · bank transfer
Bulk / dealer10+ pcs — WhatsApp for rate
| INPUT SPECIFICATION | |
| Input | Trigger |
| Enable | |
| Power ON | |
| DISPLAY AND KEYS | |
| Display | Upper: 4-Digit, 7-Segment, 0.56” |
| Lower: 4-Digit, 7-Segment, 0.40” | |
| Keys | SET, SHIFT, INC, ENT/RST |
| DIMENSION | |
| Size (mm) | 96 (H) x 96 (W) x 54 (D) |
| Panel Cutout (mm) | 92 (H) x 92 (W) |
| Range | |
| Range | 99.99 Sec |
| 999.9 Sec | |
| 99.59 Min | |
| 99.59 Hrs | |
| 999.9 Hrs | |
| Timer Mode: | |
| Timer Mode | Delayed ON |
| Delayed OFF | |
| Cycle Timer | |
| OUTPUT SPECIFICATION: | |
| Relay Output | |
| Relay | 4/8/12- Relay + Cascade Facility (Only in 8 Relay) |
| LED Indication | 1. Relay Status |
| 2. Time Unit | |
| Rating | 5A, 230V AC |
| AUXILIARY SUPPLY: | |
| Supply voltage | 100 to 270V AC, 50-60Hz |
| Power consumption (VA RATING) | Approx 5 VA @ 230V AC MAX |
| ENVIRONMENT CONDITION: | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity | Upto 95% RH (non-condensing) |
| Protection Level (AS Per Request) | IP-65 (Front side) As per IS/IEC 60529 : 2001 |
Product Variant
| Sr.no | Model No | Output | Aux Supply |
| 1 | SQT-1022-A2-00 | 4 Relay | 100-270V AC |
| 2 | SQT-1044-A2-00 | 8 Relay | 100-270V AC |
