TB-1512 Terminal Strip
- Category: TERMINAL STRIPS
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 90

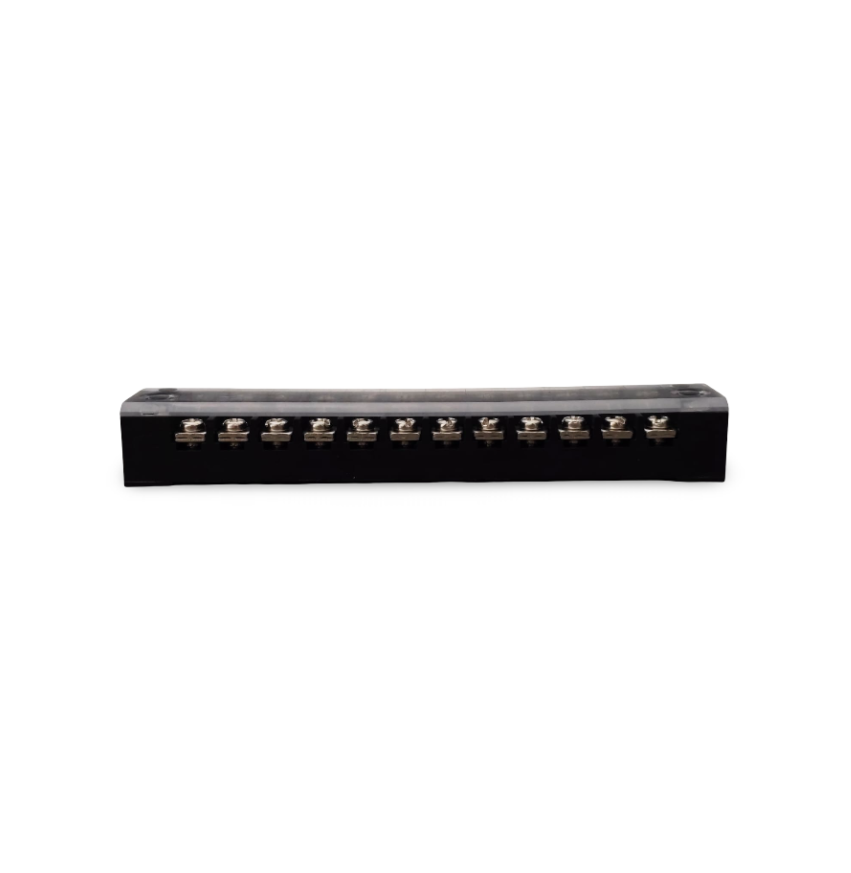

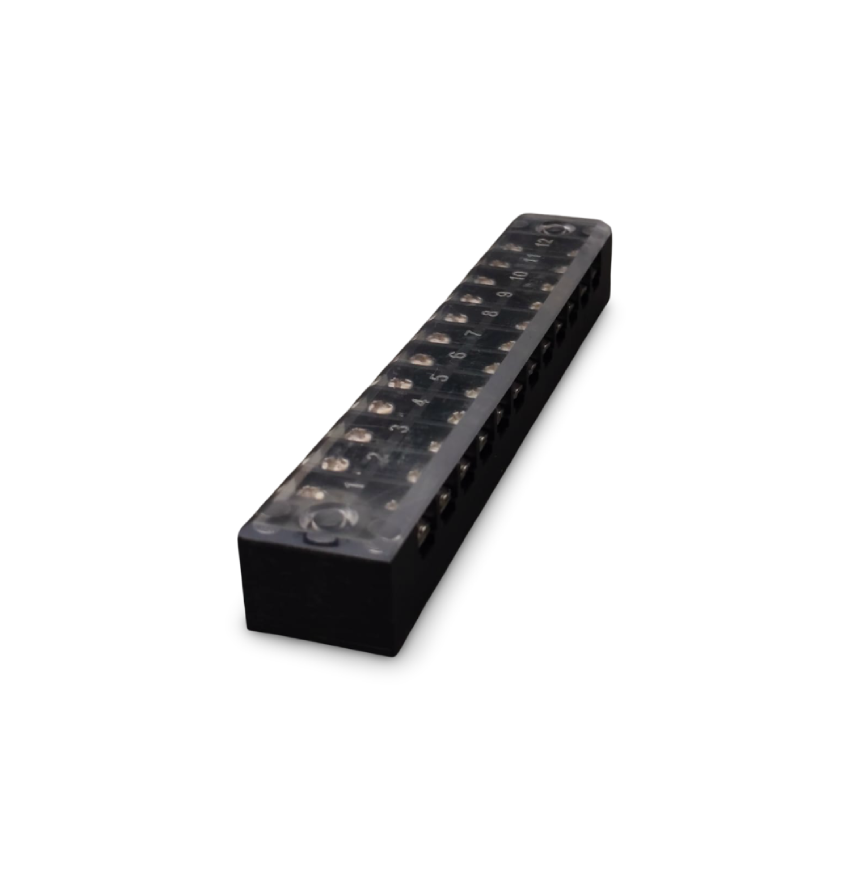

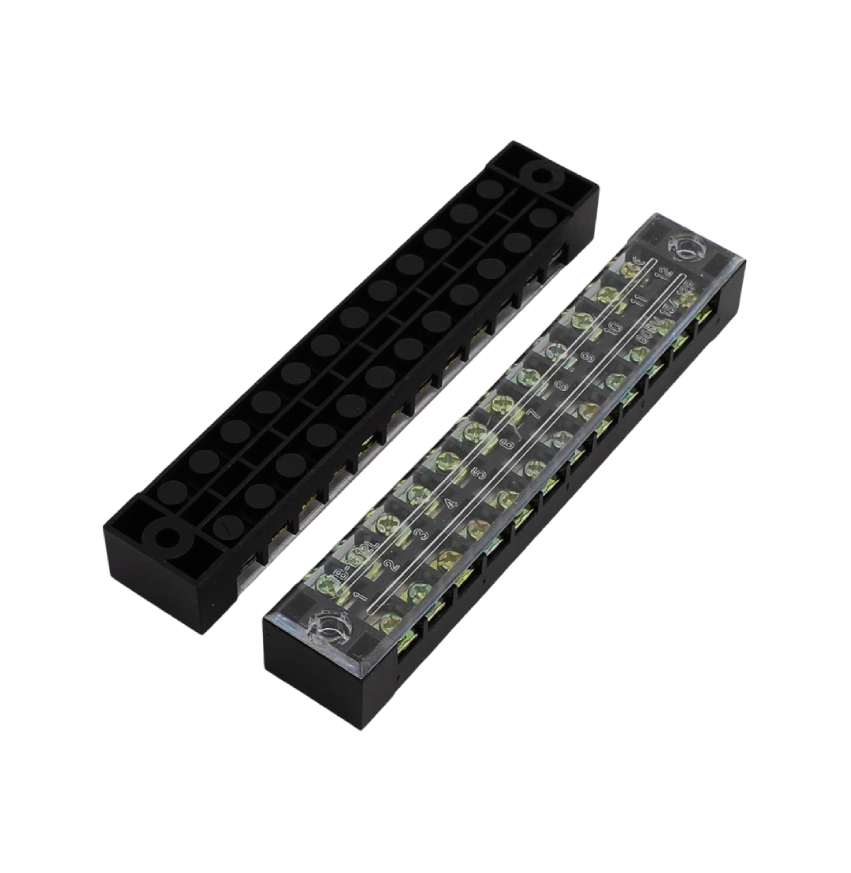

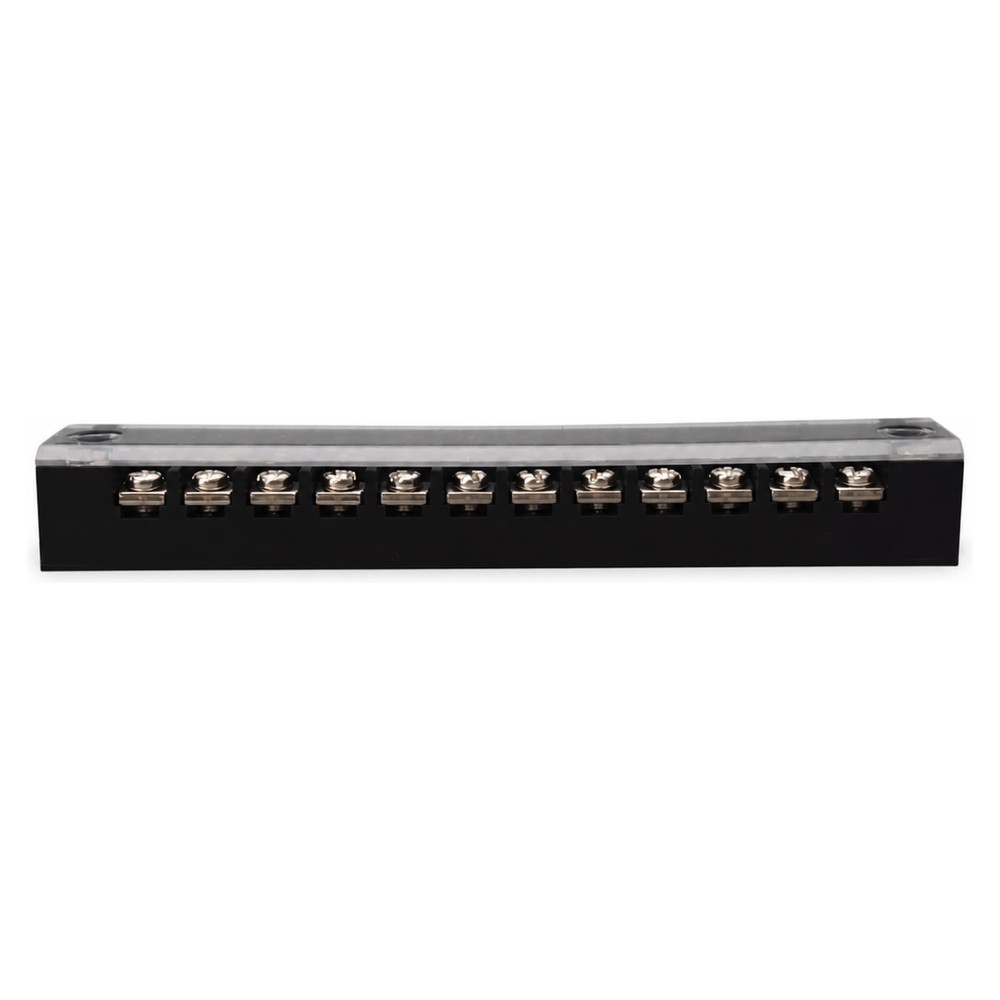

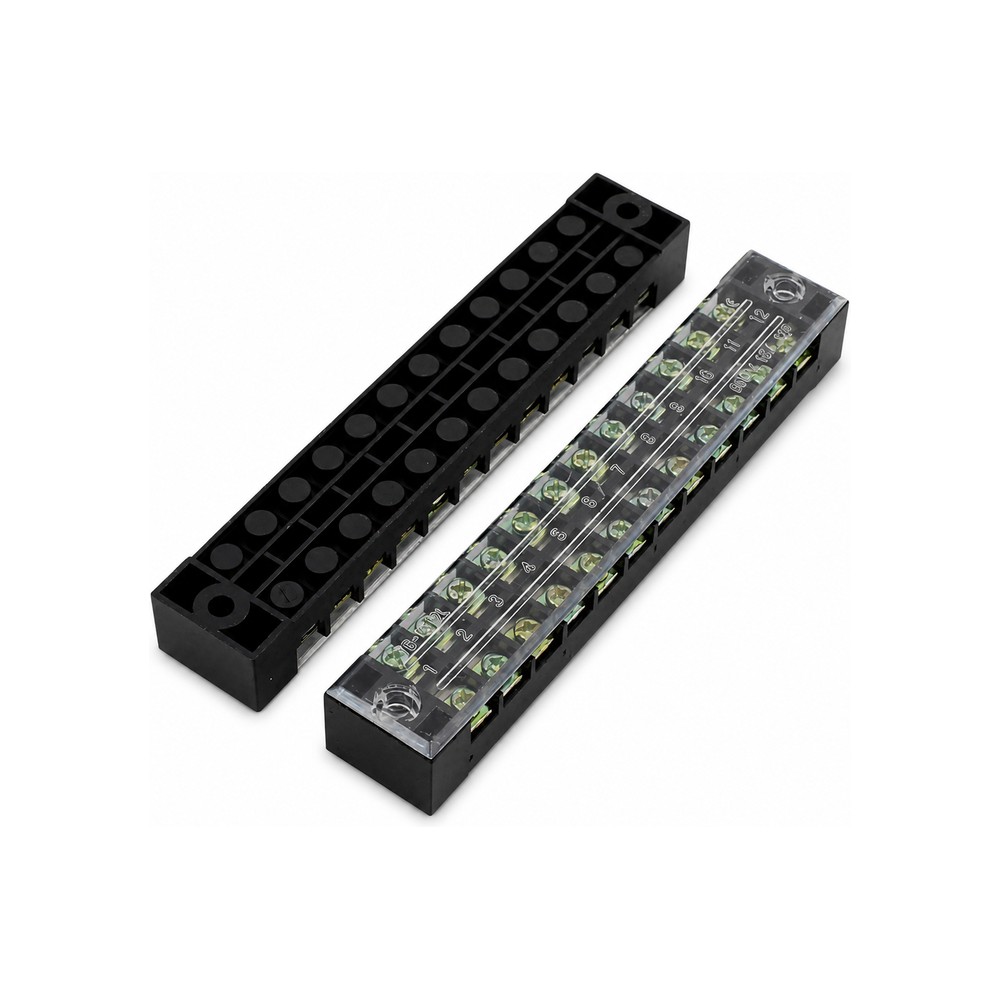

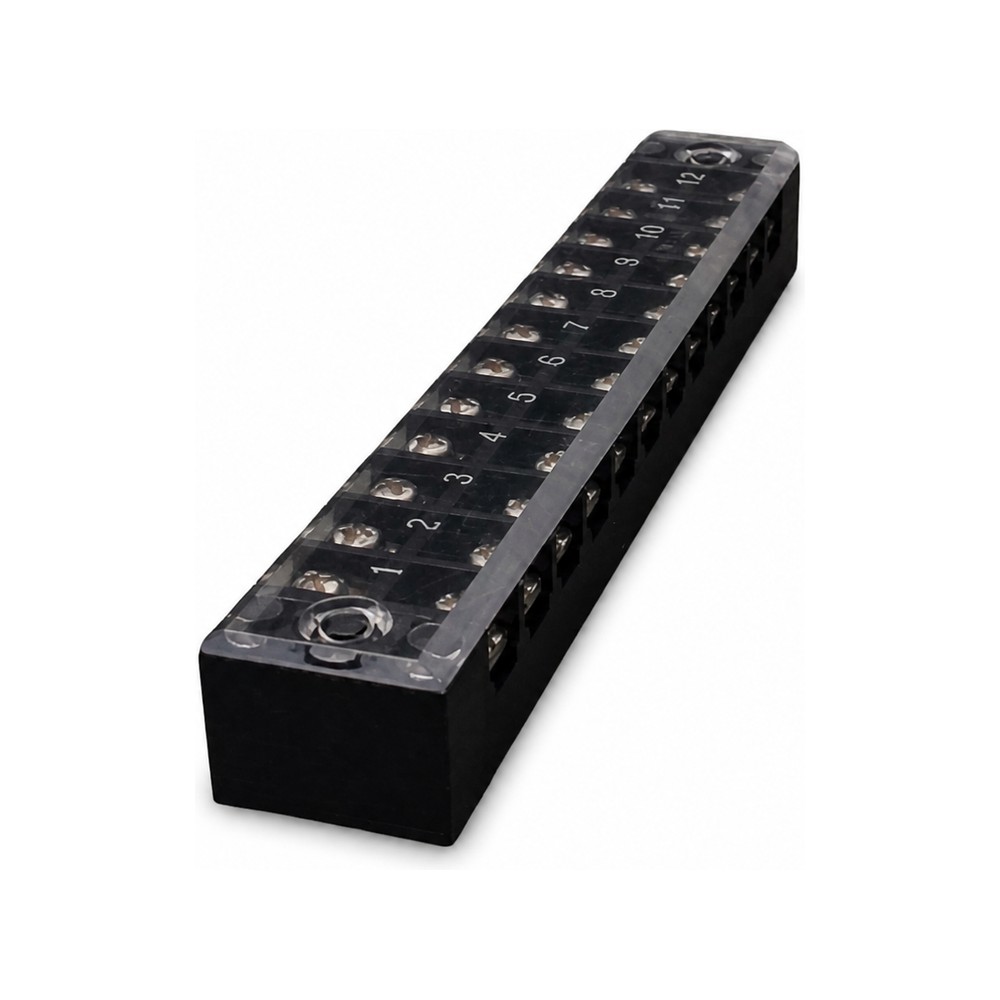

The TB-1512 is a 12-position, panel-mounted fixed barrier terminal block manufactured by JIGO, a brand known for its electrical connectivity solutions. This terminal block is designed to facilitate organized and secure wire connections in various electrical applications.
Enquire on WhatsAppProduct Details
Model: TB-1512
Brand: JIGO
Type: Panel Mounted Fixed Barrier Terminal Block
Material: Insulator made of Polycarbonate (PC); Conductors are brass, nickel-plated
Mounting: Panel mount; DIN rail not required
Protective Cover: Included; molded printed (no marker strip needed)
Key Features
Voltage Rating: 600V
Current Rating: 15A
Number of Poles: 12
Wire Size: 2.0 mm² / AWG 14
Screw Size: M3
Screw Torque: 0.5 N·m (4.4 in-lb)
Operating Temperature Range: -40°C to +110°C (up to +220°C max)
Flame Retardant Grade: UL94V-2 (UL94V-0 available)
Insulation Resistance: 100 MΩ
Color Options: Black (custom colors available)
Applications
The TB-1512 terminal block is suitable for various electrical applications, including:
Power Distribution Panels: Organizing and connecting multiple circuits.
Control Consoles: Facilitating connections in control systems.
Switchboards: Providing secure wire terminations.
Small Motors and Transformers: Ensuring reliable electrical connections.
Air Conditioners: Managing electrical connections in HVAC systems.
Industrial Electrical Systems: Serving as a junction point for wiring in various industrial setups.
