TC-221P
- Category: TEMPERATURE CONTROLLER
- Brand: Multispan
- Minimum quantity: 5
- Price: ₹ 950

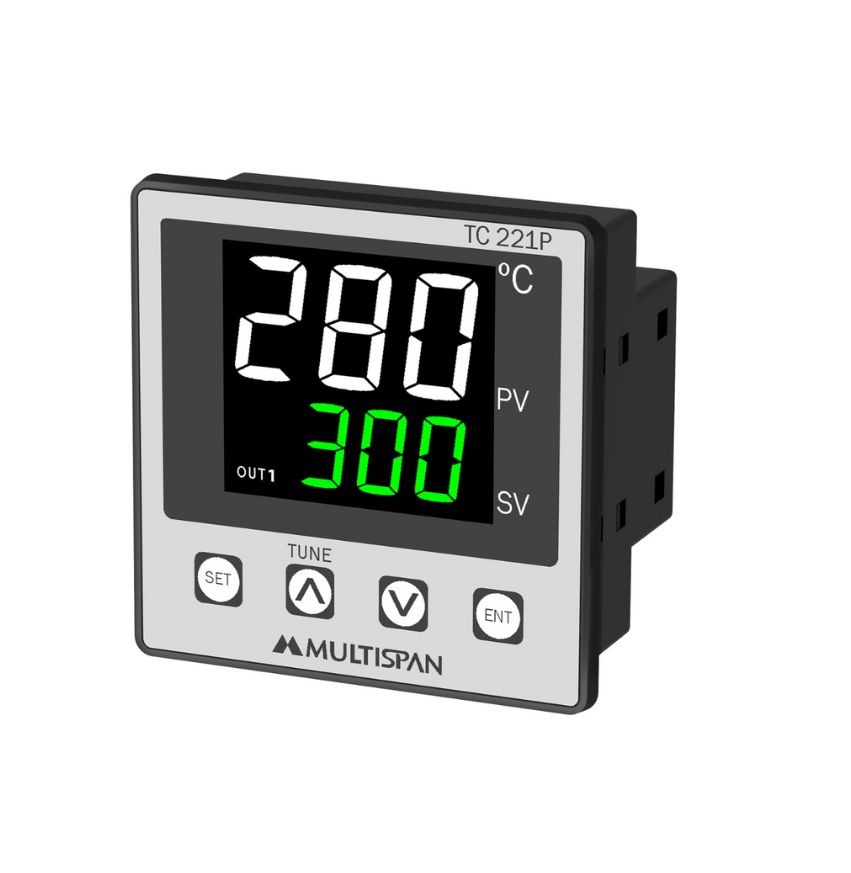

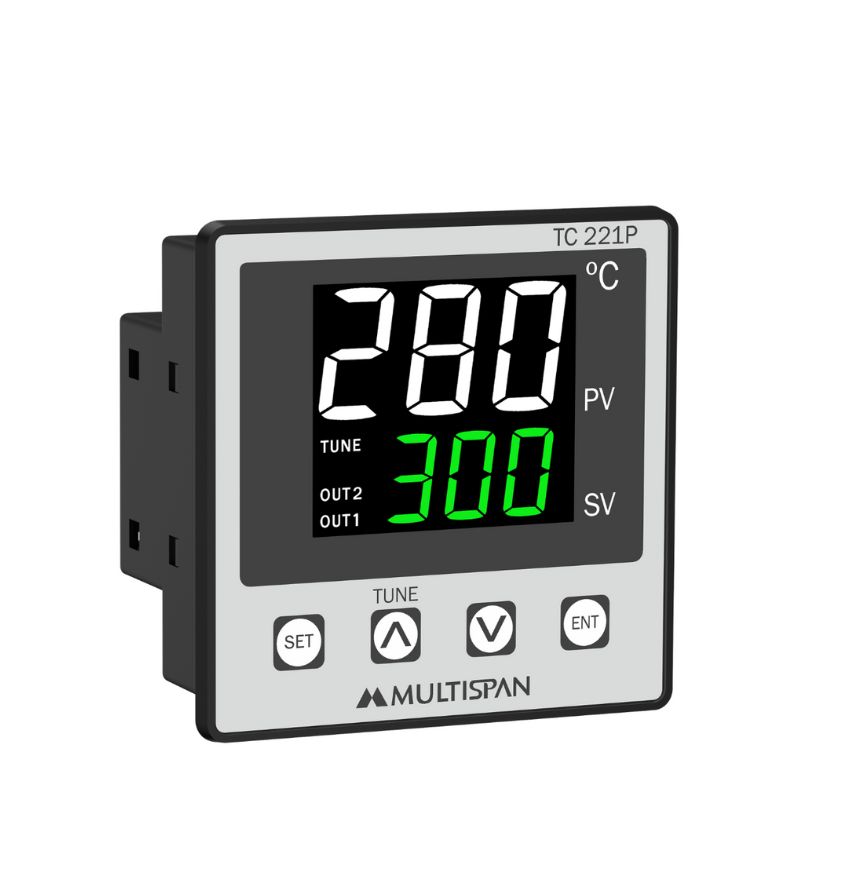

Fix Input Dual Display Temperature Controller
Product: TC-221P
- Fix Input (J/K/RTD)
- 3-Digit Dual Red/White LED Display
- PID/On-Off Controller
- Single Output (Relay || SSR) for Load Control
- Size: (H)72mm x (W)72mm x (D)45mm
- Supply Voltage: 100-270V AC
Upper: 3-Digit, 7-Segment, 0.80” Lower: 3-Digit, 7-Segment, 0.40”INPUT SPECIFICATION: Input Types Input Range J 0 to 400°C, K 0 to 500°C, Resolution J,K= 1°C Indication Accuracy ±1% of FSD (FSD:- Full Scale Deflection) DISPLAY AND KEYS: Display Keys SET, INC, DEC, ENT DIMENSION: Size (mm) 72 (H) x 72 (W) x 45 (D) Panel Cutout (mm) 68 (H) x 68 (W) CONTROL METHOD: Heating 1. PID control with Auto-Tuning 2. ON-OFF Control OUTPUT SPECIFICATION: Relay Output Relay 1 Nos Relay Type 1C/O (NO-C-NC) Rating 10A, 230V AC / 28V DC SSR Drive Output Output Signal 12V DC, 30mA DC (On-Off Condition) POWER SUPPLY: Supply Voltage 100 to 270V AC, 50-60Hz Power Consumption (VA Rating) 4VA @ 230V AC MAX ENVIRONMENT CONDITION: Operating Temp. 0°C to 55°C Relative Humidity Upto 95% RH (non-condensing) Protection Level
(As per request)IP-65 (Front side) As per IS/IEC 60529 : 2001
Product Variant
| Sr.no | Model No | Input | Output | Aux Supply | Display | Size |
|---|---|---|---|---|---|---|
| 1 | TC-221P-RG-A2-01 | J/K | Relay || SSR | 100-270V AC | Red + Green | 72x72x45(HxWxD)mm |
| 2 | TC-221P-WG-A2-01 | J/K | Relay || SSR | 100-270V AC | White + Green | 72x72x45(HxWxD)mm |
| 3 | TC-221P-WG-A2-03 | Pt-100 | Relay || SSR | 100-270V AC | White + Green | 72x72x45(HxWxD)mm |
