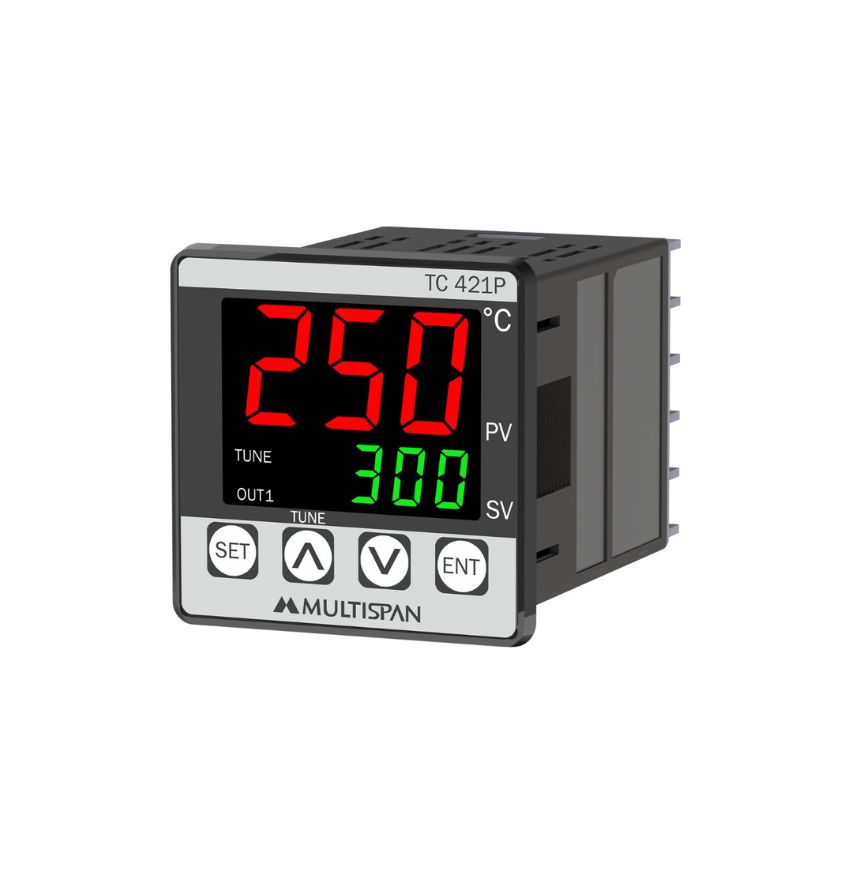

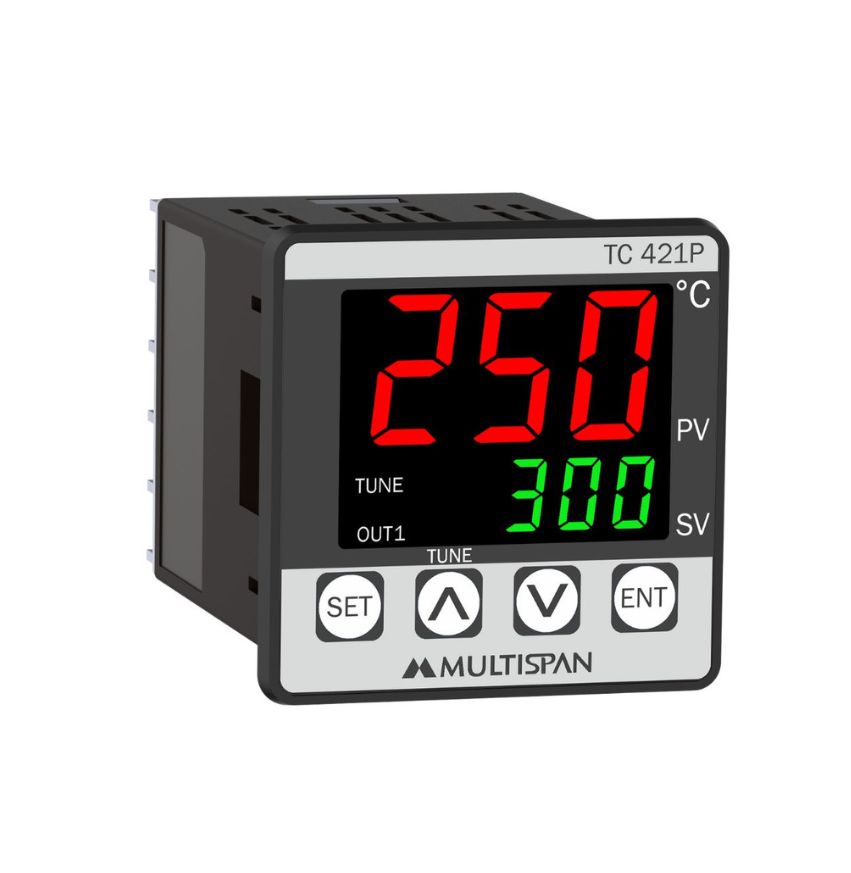

TC-421P

Category:

TEMPERATURE CONTROLLER

Product: TC-421P

INPUT SPECIFICATION:
Input Types	Input	Range
	J	0 to 600°C,
	K	0 to 999°C,
Resolution	J,K= 1°C
Indication Accuracy	±1% of FSD ± 1°C
	(FSD:- Full Scale Deflection)
DISPLAY AND KEYS:
Display	Upper: 3 digit, 7 segment, 0.63” Lower: 3 digit, 7 segment, 0.30”
Keys	SET, INC, DEC, ENT
DIMENSION:
Size (mm)	48 (H) x 48 (W) x 70 (D)
Panel Cutout (mm)	45 (H) x 45 (W)
CONTROL METHOD:
Heating	1) PID control with Auto-Tuning
	2) (TP) Time Proportional
	3) ON-OFF control
Cooling	ON-OFF control
OUTPUT SPECIFICATION:
Relay Output
Relay	1 Nos
Relay Type	1C/O (NO-C-NC)
Rating	10A, 230V AC / 28V DC
SSR Drive Output
Output Signal	12V DC, 30mA DC
	(On-Off Condition)
POWER SUPPLY:
Supply Voltage	100 to 270V AC, 50-60Hz
Power Consumption (VA Rating)	4VA @ 230V AC MAX
ENVIRONMENT CONDITION:
Operating Temp.	0°C to 55°C
Relative Humidity	Upto 95% RH
	(non-condensing)
Protection Level (As per request)	IP-65 (Front side) As per IS/IEC 60529 : 2001

Sr.no	Model No	Input	Output	Aux Supply	Display	Size
1	TC-421P-A2-N1-RS	J/K	Relay \|\| SSR	100-270V AC	Red + Green	48x48x70(HxWxD)mm
2	TC-421P-A2-N1-WS	J/K	Relay \|\| SSR	100-270V AC	White + Green	48x48x70(HxWxD)mm
