UT116C
- Category: SMD TESTERS
- Brand: UNI-T
- Minimum quantity: 1
- Price: ₹ 1400

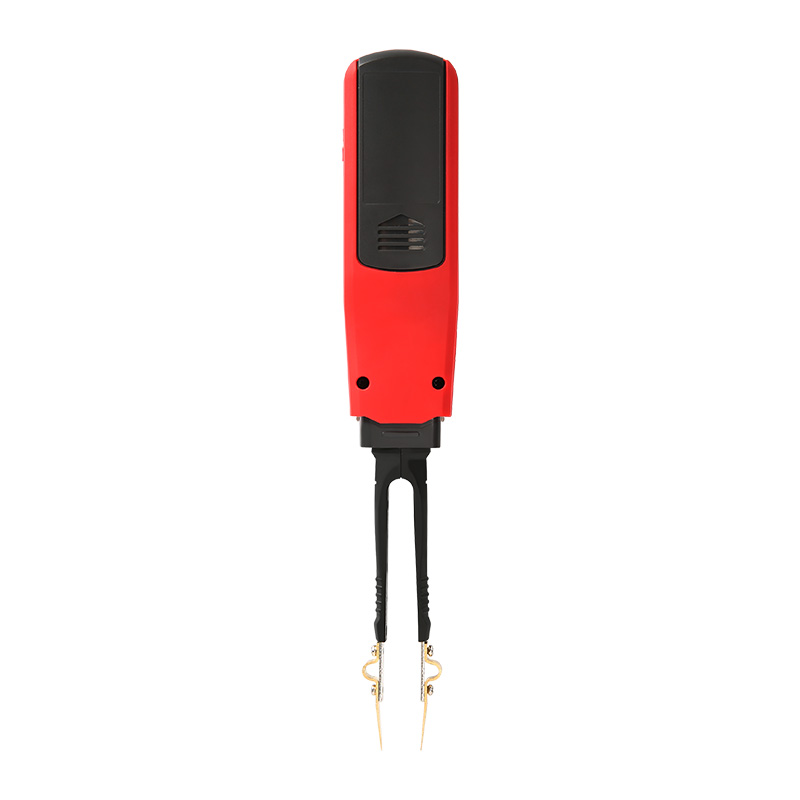

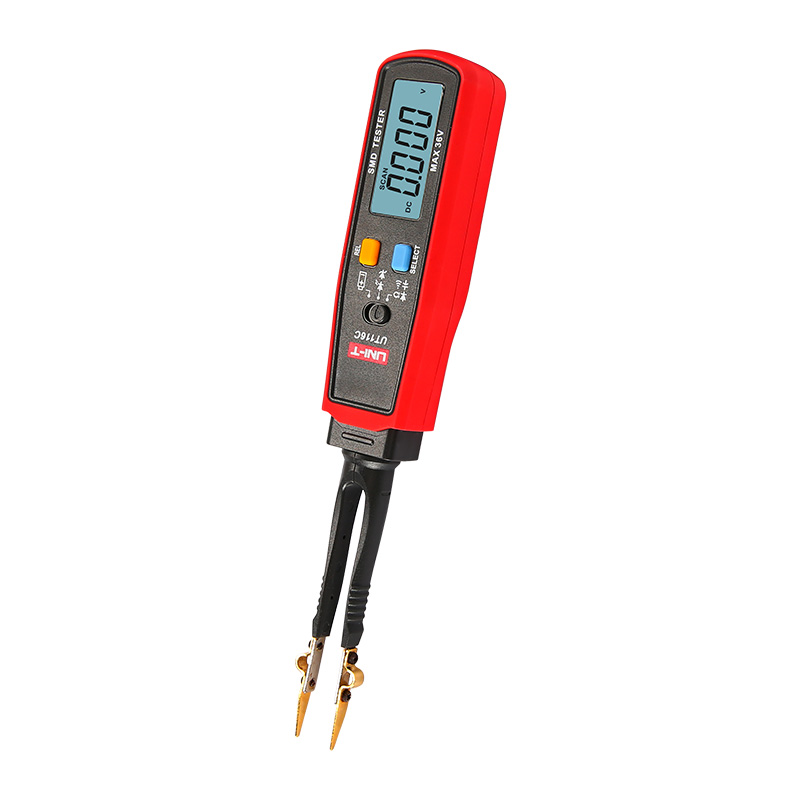

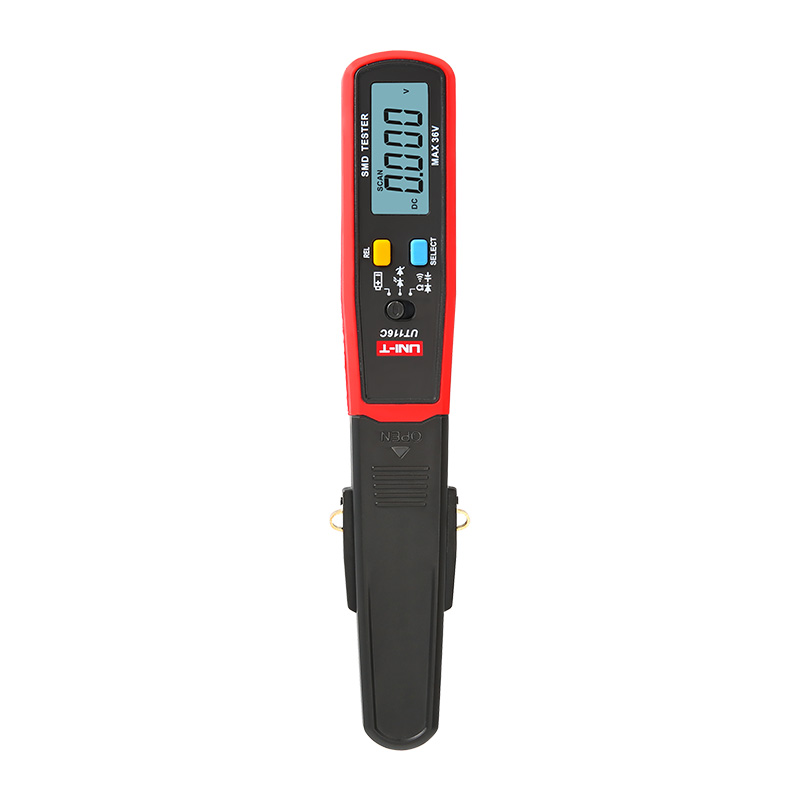

UT116 Series SMD Testers
UT116 series SMD tester is a miniaturized and integrated utility model measuring instrument, which can automatically identify components such as resistance, capacitance, diode, etc., with LED, voltage regulator, DCV, on-off and battery power measurement functions. SMD resistance, capacitance, diode (RCD) parameter measurement, is a good helper for electronics factories and electronics maintenance.
Models in UT116 Series: UT116A, UT116C
Features of UT116 Series SMD Testers
Certifications: CE, UKCA
● 36V DC voltage measurement
● Battery measurement (10mA) (UT116C)
● Zener diode polarity test
● Resistance, capacitance (UT116C: up to 100mF), continuity, diode measurement
● The pen can be rotated by 180, which is convenient for reading and diode/LED
Specifications of UT116 Series SMD Testers
| Specifications | UT116A | UT116C |
| Display count | 3000 | 6000 |
| Resistance | 30MΩ | 60MΩ |
| Capacitance | 30mF | 100mF |
| Diode test | 3V | 3.2V |
| LED/stabilivolt | About 21V/1mA | About 21V/1mA |
| Continuity test | ＜30Ω | ＜50Ω |
| DCV | 36V | |
| Battery test | Load current ≈ 10mA | |
| Auto range | √ | √ |
| Auto scan identification | √ | |
| Auto power off | √ | √ |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 39mm x 20mm | |
| Product color | Red and grey | |
| Product net weight | About 80g | |
| Product size | 204mm x 33mm x 25mm | |
| Standard accessories | Battery | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 60pcs | |
| Standard carton measurement | 440mm x 420mm x 210mm | |
| Standard carton gross weight | About 7.1kg | |
