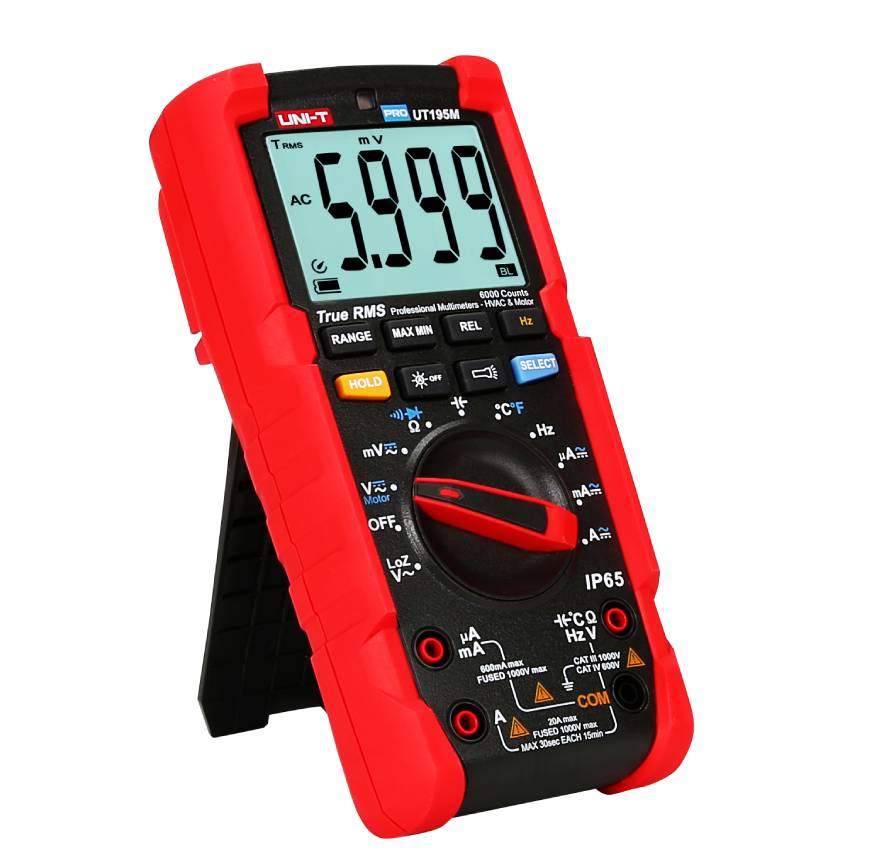

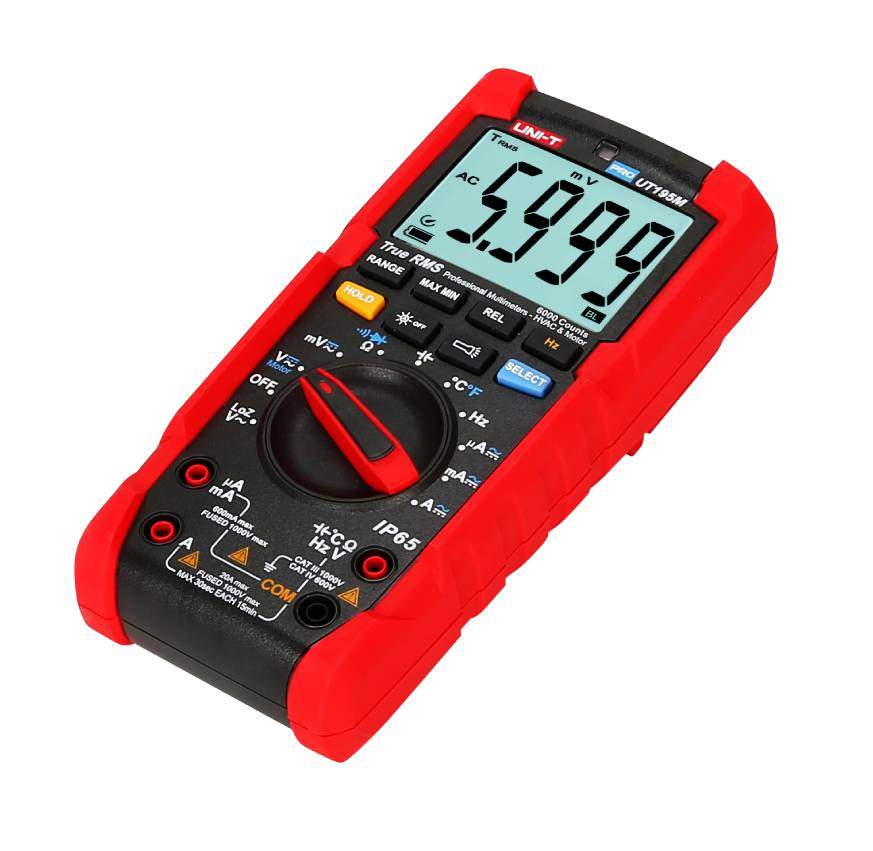

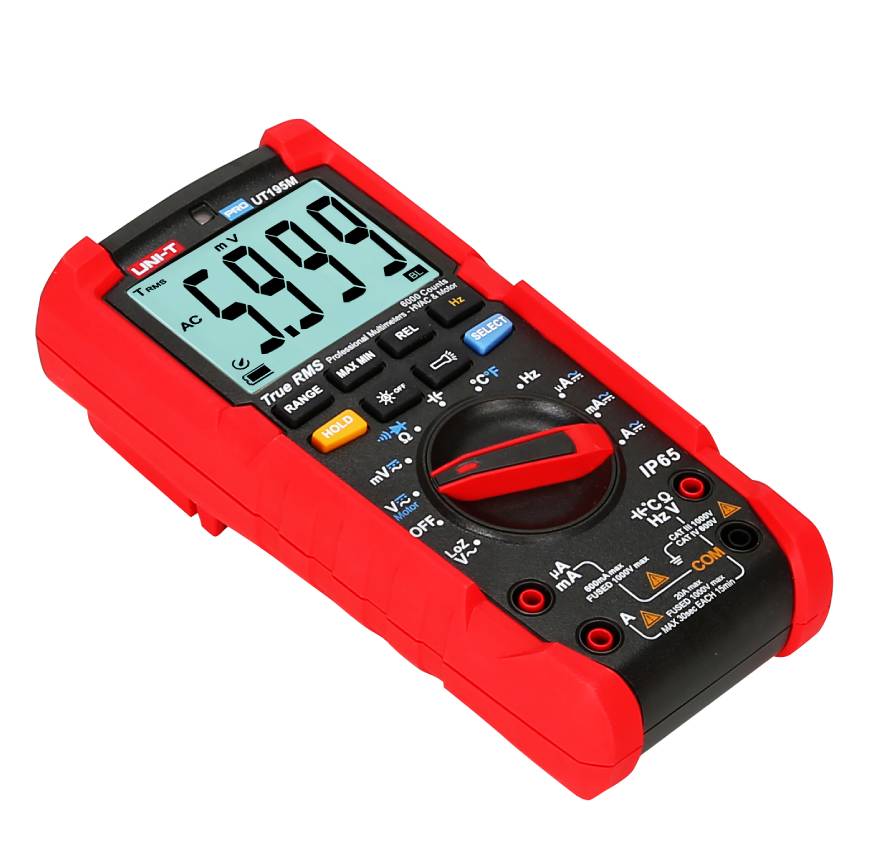

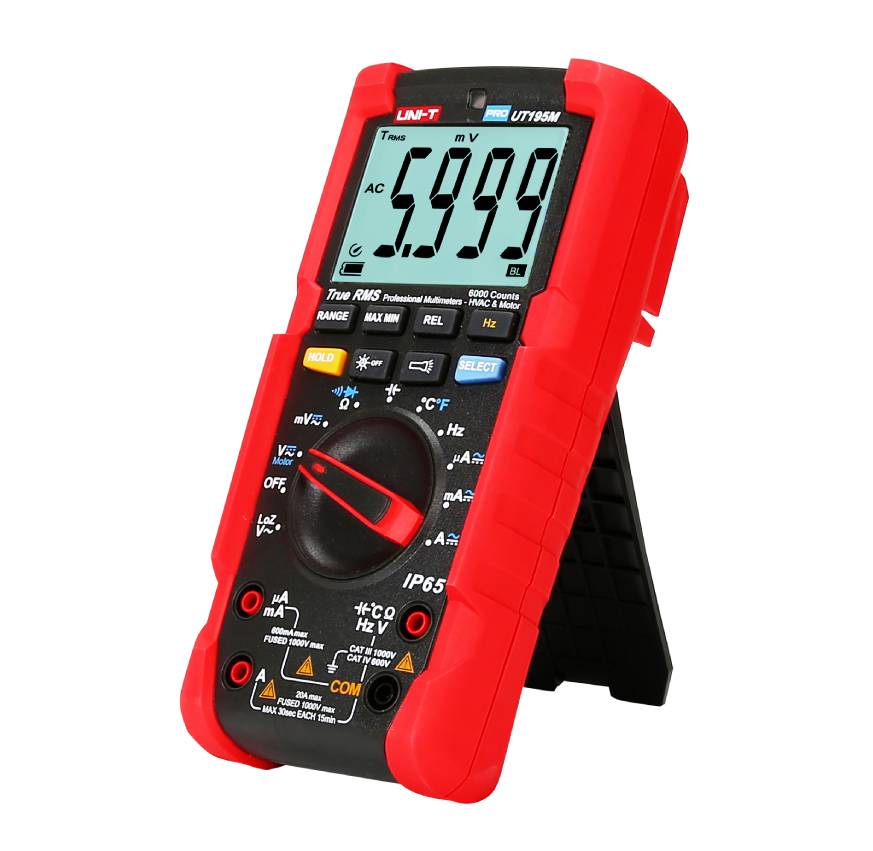

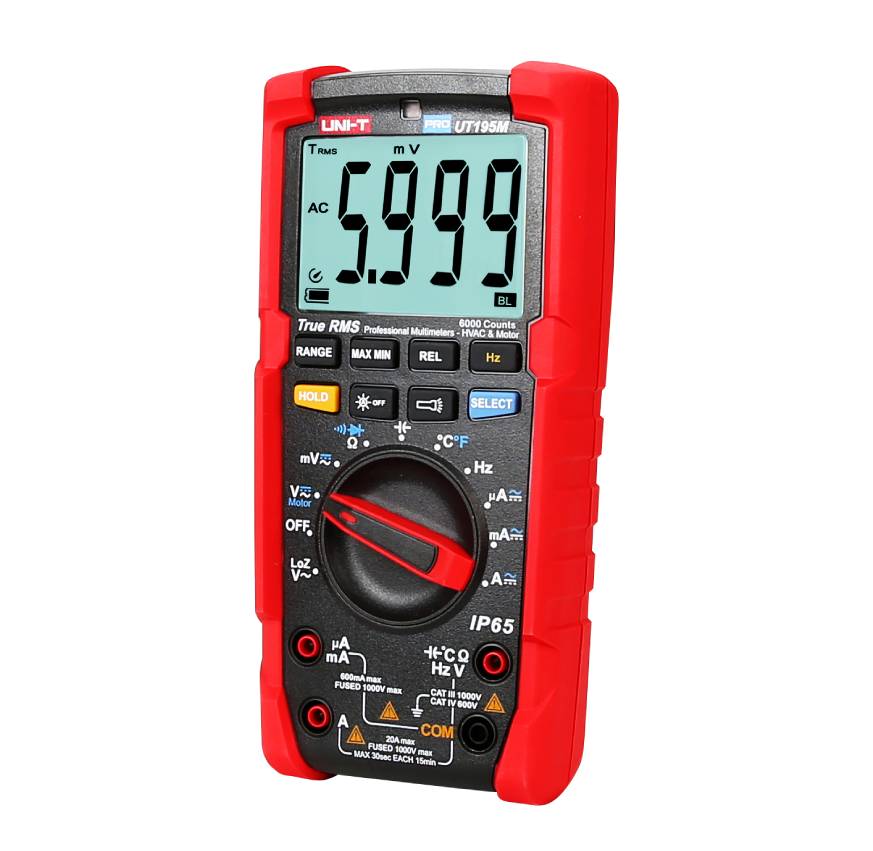

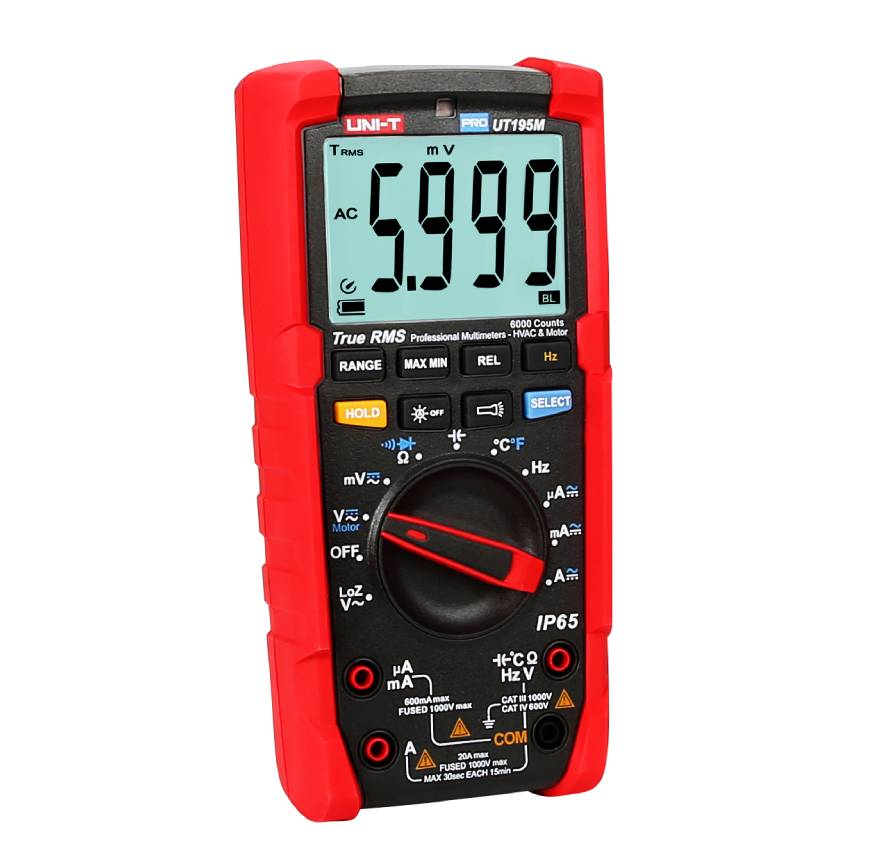

UT195M are handheld industrial digital multimeters with IP65 and 2m drop proof. Compare with traditional multimeters, UT195’s troubleshooting capability, resolution, and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution, and repair etc. It is exquisitely designed and easy to operate.
Features of UT195M Professional Multimeters
● IP65 rating, 2m drop proof, CAT III 1000V, CAT IV 600V
● Large 6000-count LCD screen
● True RMS
● ACV 750V 5kHz bandwidth
● Flashlight
● Auto LCD backlight controlled by light sensor (can be turned off)
● LoZ voltage test, for ghost voltage measurement
● 20A current measurement (max 30 seconds)
● 31 analog bar
Specifications of UT195 Series Professional Multimeters
Specifications | Range | UT195M |
DC voltage (V) | 1000V | ±(0.5%+3) |
AC+DC | 750V | ±(0.7%+3) |
AC voltage (V) | 600V | |
LoZ ACV | 600V | ±(2%+3) |
DC current (A) | 20A | ±(0.8%+3) |
AC current (A) | 20A | ±(1%+3) |
Resistance (Ω) | 60MΩ | ±(0.8%+2) |
Capacitance | 60mF | ±(3%+5) |
Frequency | 60Hz~10MHz | |
60Hz~40MHz | ±(0.1%+4) | |
Duty cycle | 0.1%~99.9% | N/A |
Temperature (°C) | -40°C~1000°C | ±(1.5%+4) |
Temperature (°F) | -40°F~1832°F | ±(2%+5) |
General Characteristics | |
Power | 9V battery |
LCD size | 66mm x 51mm |
Product color | Red and grey |
Product net weight | 437g |
Product size | 195mm x 95 mm x 58mm |

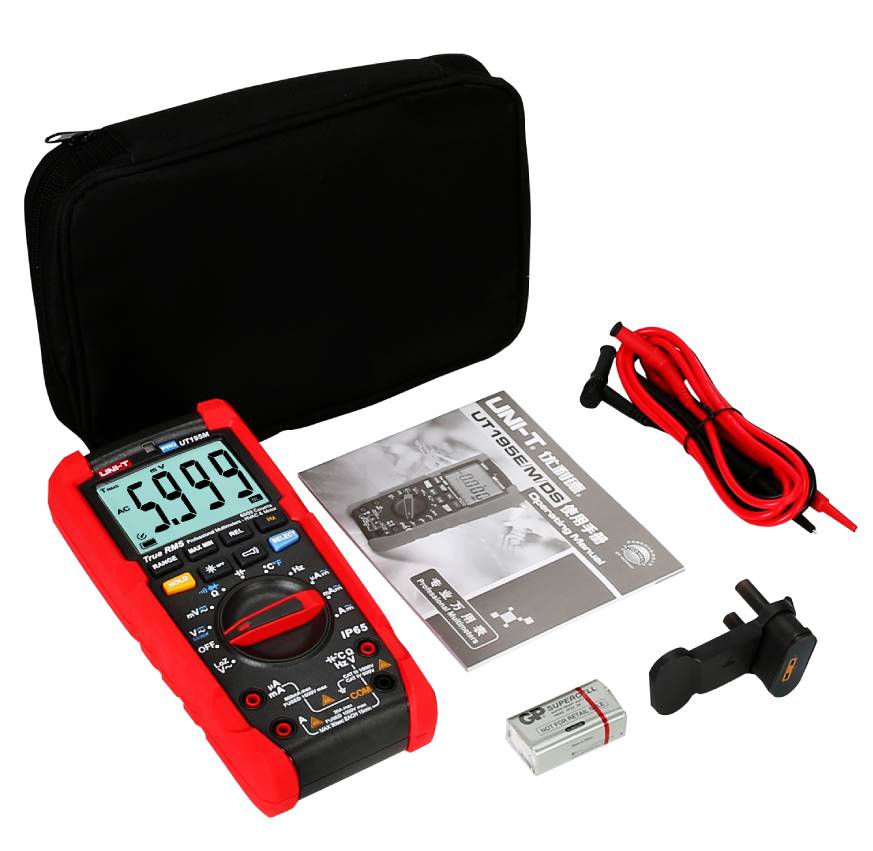

Standard accessories | Test probes, battery, carrying bag, point contact temperature probe (UT195M) |
Standard individual packing | Gift box, English manual |
Standard quantity per carton | 6pcs |
Standard carton measurement | 580mm x 375mm x 215mm |
Standard carton gross weight | 7.2kg |
