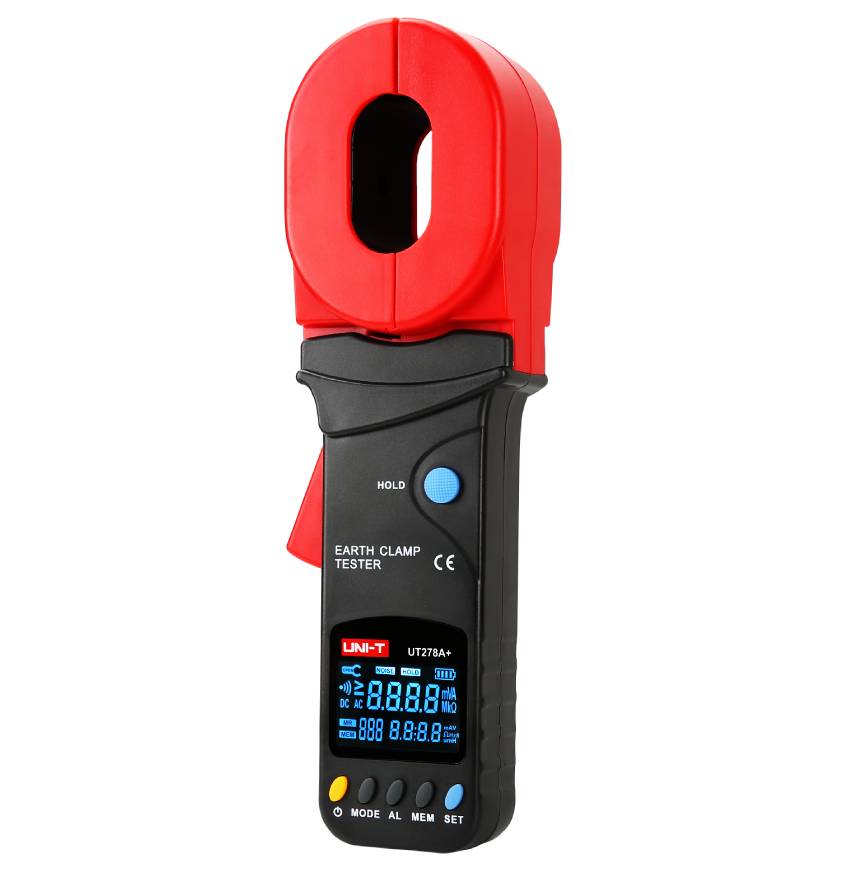

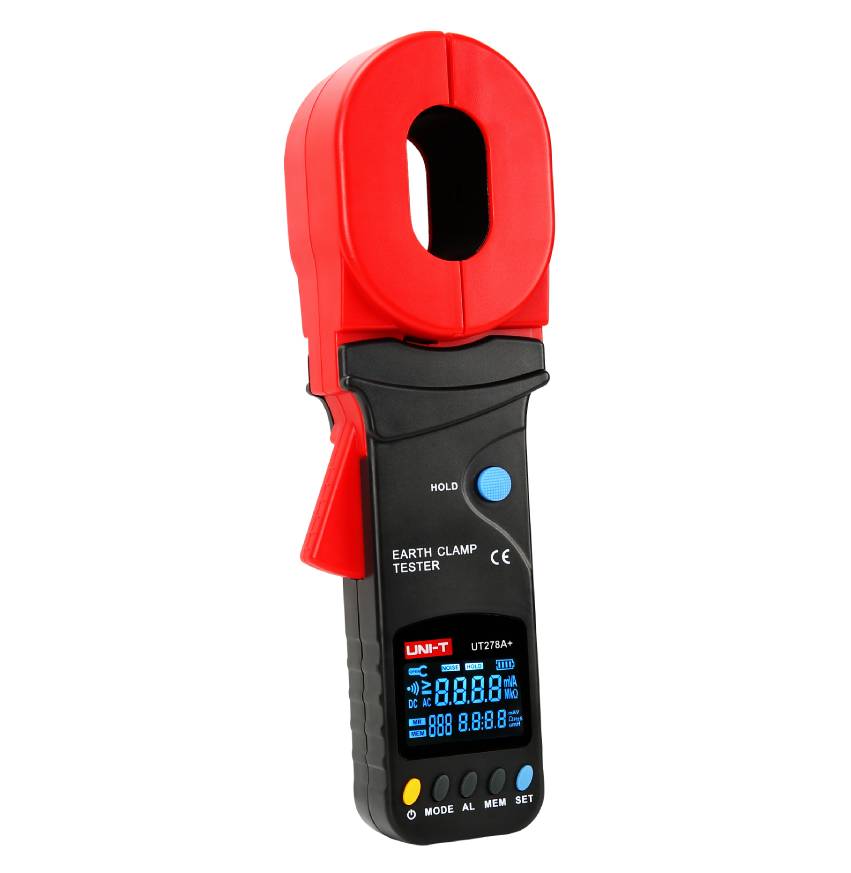

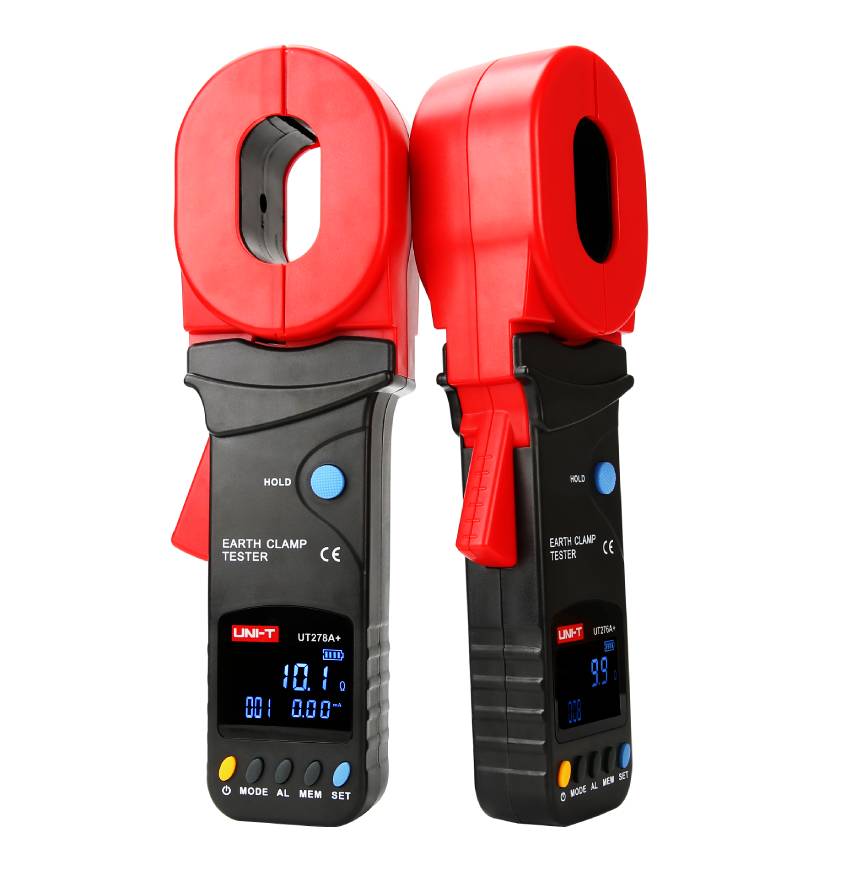

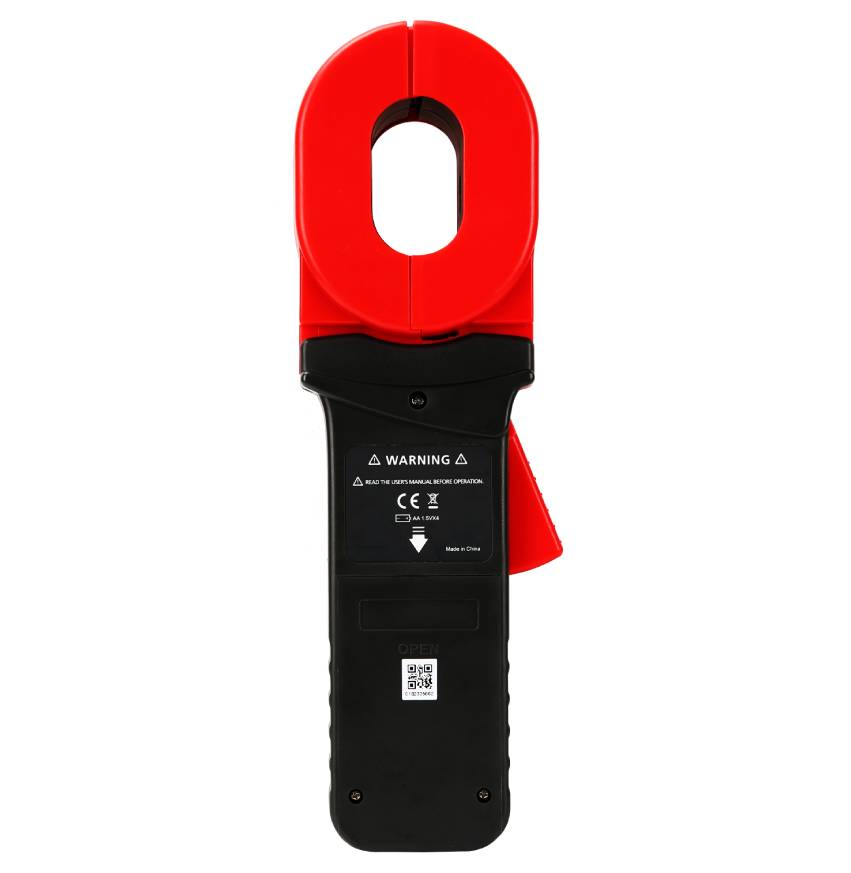

UT278A+
- Category: EARTH TESTERS
- Brand: UNI-T
- Minimum quantity: 1
- Price: ₹ 50000
UT278A+ series can quickly and safely measure the grounding system without disconnecting circuit ground lines or the need of auxiliary electrodes. It can measure resistance from 0.01Ω with a resolution of 0.001Ω. These clamps’ double insulation design makes them durable tools for outdoor work and effective in blocking interference from the environment.
Features of UT278A+ Clamp Earth Ground Testers
● Auto range
● Data hold
● Data recall
● LCD backlight
● Resistance limit alarm
● Low battery indication
● Auto calibration
Specifications of UT278A+ Clamp Earth Ground Testers
| Specifications | Range | UT278A+ |
| Earth Ground Resistance (Ω) | 0.01~0.099Ω | ±(1%+0.01) |
| 0.1~0.99Ω | ±(1%+0.01) | |
| 1~49.9Ω | ±(1%+0.1) | |
| 50~99.5Ω | ±(1.5%+0.5) | |
| 100~199Ω | ±(2%+1) | |
| 200~395Ω | ±(5%+5) | |
| 400~590Ω | ±(10%+10) | |
| 600~800Ω | ±(20%+20) | |
| 600~1000Ω | ||
| 800~1200Ω | ±(25%+30) | |
| Leakage current (A) | 0mA~9mA | ±(2.5%+1mA) |
| 10mA~99mA | ±(2.5%+5mA) | |
| 100mA~299mA | ±(2.5%+10mA) | |
| 0mA~299mA | ||
| 0.3A~2.99A | ±(2.5%+0.1A) | |
| 3A~9.9A | ±(2.5%+0.3A) | |
| 10A~20A | ±(2.5%+0.5A) | |
| 3A~30A | ||
| Display count | 4 digits LCD display | |
| Jaw opening | 32mm | |
| Visual and audible alarm | √ | |
| Auto power off | √ | |
| Jamming signal recognition | √ | |
| Over-range display | √ | |
| Data storage | 300 | |
| Display type | EBTN | |
| Ω+A display | √ |
| General Characteristics | |
| Power | 1.5V battery (LR6) x 4 |
| Display | 47mm x 28.5mm |
| Product net weight | 1.18kg |
| Product size | UT276A+/278A+: 285mm x 85mm x 56mm |
| Standard accessories | Batteries, test ring, English manual |
| Standard individual packing | Gift box, tool box |
| Standard quantity per carton | 1pcs |
| Standard carton measurement | 370mm x 110mm x 300mm |
| Standard carton gross weight | UT276A+/278A+: 2.6kg |
