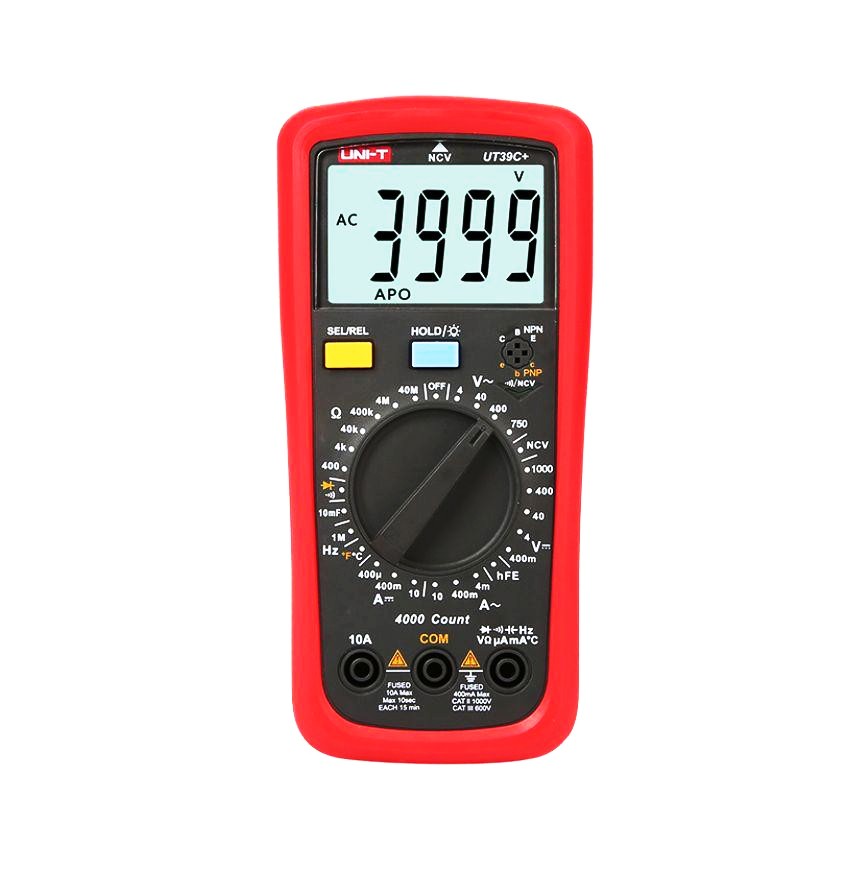

UT39C+
- Category: Multi Meters
- Brand: UNI-T
- Minimum quantity: 1
- Price: ₹ 1100

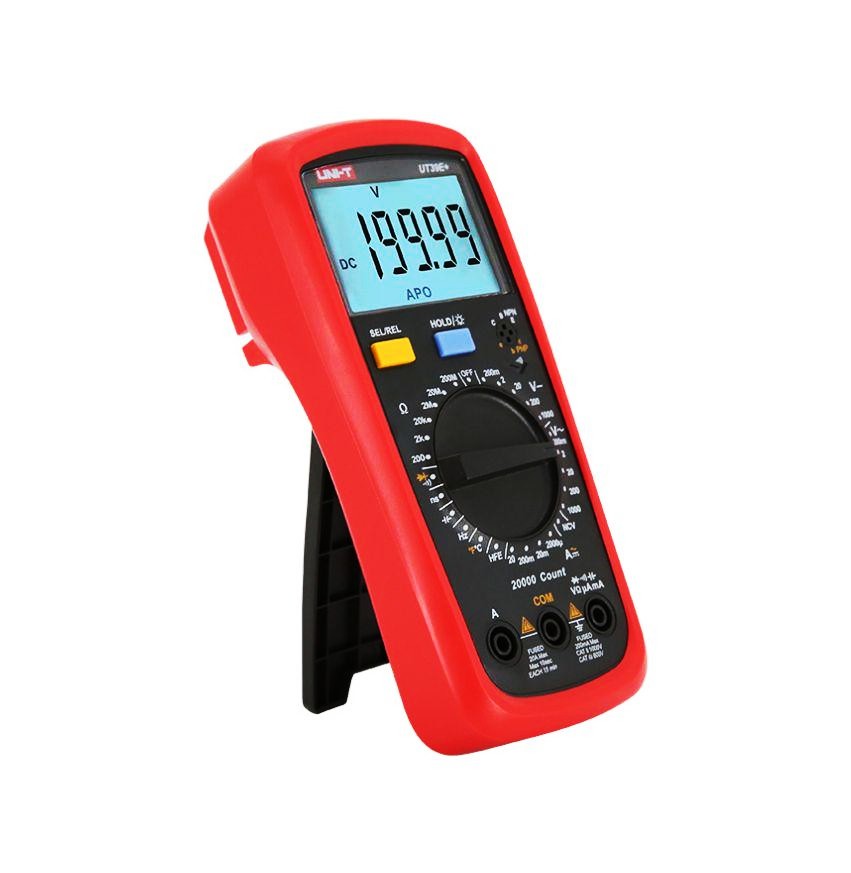

UT39+ Series Digital Multimeters
UT39+ series modern digital multimeters are portable devices designed for the electrical industry. They feature overvoltage and overcurrent alarm and high voltage protection, triggered during faulty operation. UT39C+ is suitable for HVACR maintenance with its temperature measurement feature. Designed according to CAT II 1000V/CAT III 600V safety standards.
Models in UT39+ Series: UT39A+, UT39C+, UT39E+
Features of UT39+ Series Digital Multimeters
● 1000V DC voltage measurement
● 750V AC voltage measurement
● 10A DC/AC current measurement
● Resistance/Capacitance
● hFE
● Diode/Continuity test
Specifications of UT39+ Series Digital Multimeters
| Specifications | Range | UT39A+ | UT39C+ | UT39E+ |
| Category ratings | CAT II 1000V, CAT III 600V | |||
| DC voltage (V) | 400mV/4V/40V/400V/1000V | ±(0.5%+5) | ±(0.5%+5) | |
| 200mV/2V/20V/200V/1000V | ±(0.05%+3) | |||
| AC voltage (V) | 4V/40V/400V/750V | ±(0.8%+3) | ±(0.8%+3) | |
| 200mV/2V/20V/200V/1000V | ±(0.5%+10) | |||
| DC current (A) | 40μA/400μA/4mA/40mA/400mA/10A | ±(0.8%+3) | ||
| 400μA/400mA/10A | ±(0.8%+3) | |||
| 2000uA/20mA/200mA/2A/20A | ±(0.5%+5) | |||
| AC current (A) | 40mA/400mA/10A | ±(1%+2) | ||
| 4mA/400mA/10A | ±(1%+2) | |||
| 2000uA/20mA/200mA/2A/20A | ±(0.8%+10) | |||
| Resistance (Ω) | 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/200MΩ | ±(0.8%+2) | ||
| 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ | ±(0.8%+2) | |||
| 200Ω/2kΩ/20kΩ/2MΩ/20MΩ/200MΩ | ±(0.3%+2) | |||
| Capacitance (F) | 10mF | ±(4%+5) | ±(4%+5) | |
| 2000uF | ±(4%+20) | |||
| Frequency (Hz) | 10Hz~1MHz | ±(0.1%+4) | ||
| 10Hz~2MHz | ±(0.1%+3) | |||
| Temperature | -40℃~1000℃ | ±(1%+4) | ±(1%+5) | |
| -40℉~1832℉ | ±(1.5%+5) | ±(1.5%+5) | ||
| Conductance (nS) | 0.1~100nS | ±(1%+3) | ||
| Display count | 4000 | 4000 | 20000 | |
| NCV | √ | √ | ||
| General Characteristics | ||||
| Power | 1.5V battery (R03) x 2 | |||
| Display | 56.5mm x 36mm | |||
| Product net weight | 330g | |||
| Product size | 175mm x 83mm x 53mm | |||
| Standard accessories | Test leads, temperature probe (UT39C+/E+), English manual | |||
| Standard individual packing | Gift box | |||
| Standard quantity per carton | 30pcs | |||
| Standard carton measurement | 390mm x 355mm x 340mm | |||
| Standard carton gross weight | 14.5kg | |||
