UT603
- Category: Multi Meters
- Brand: UNI-T
- Minimum quantity: 1
- Price: ₹ 4950

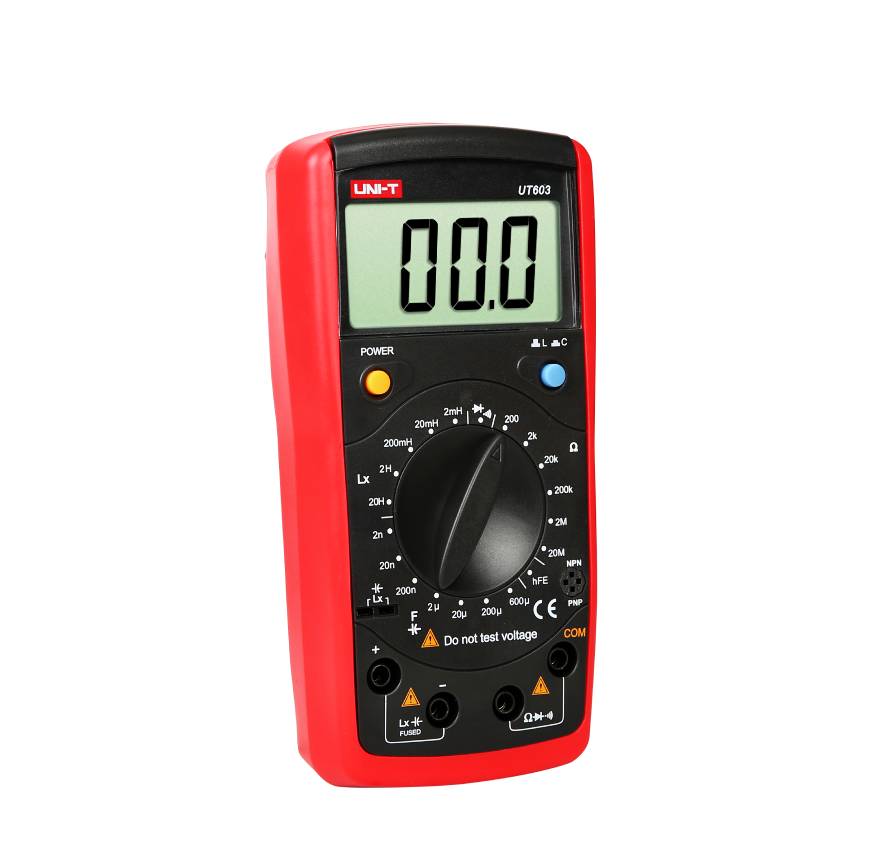

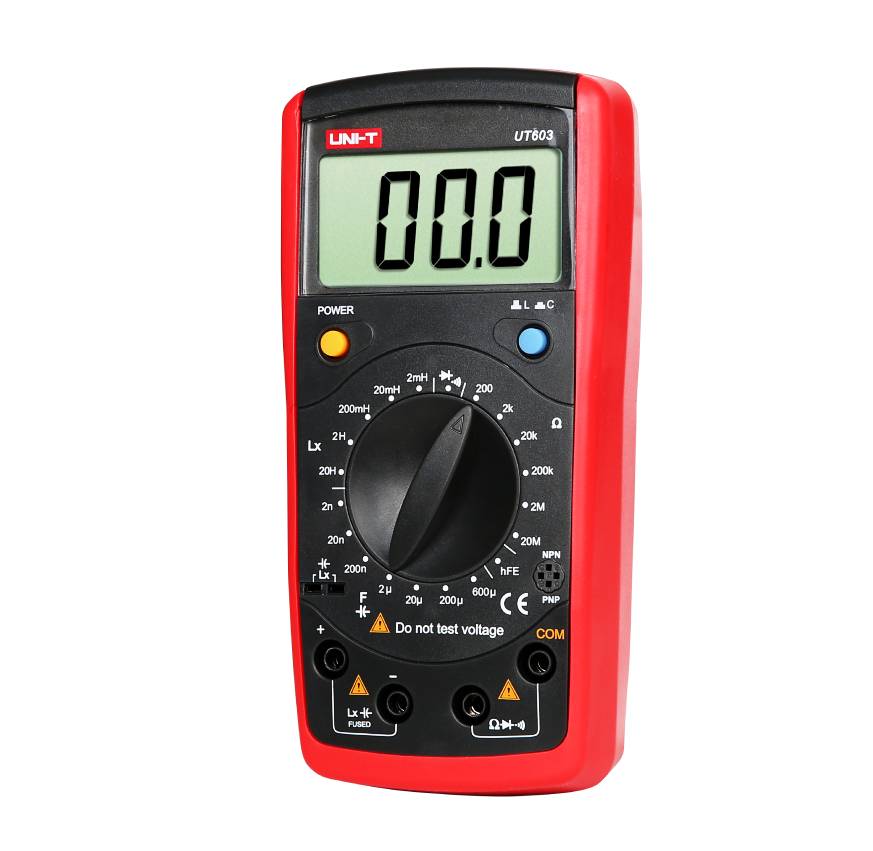

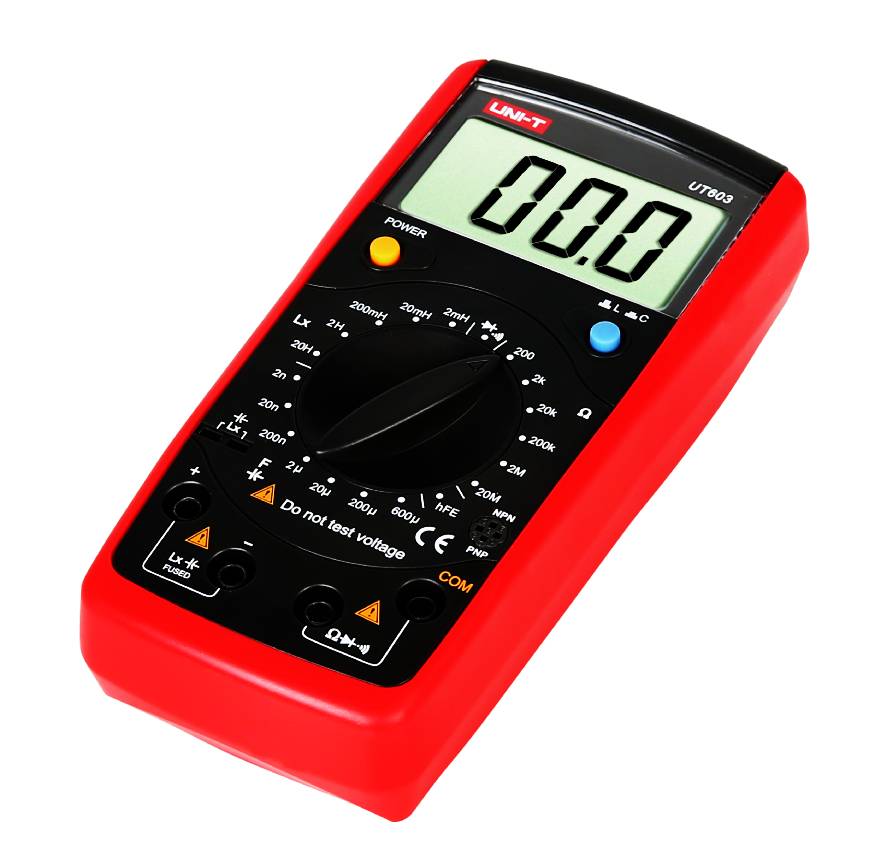

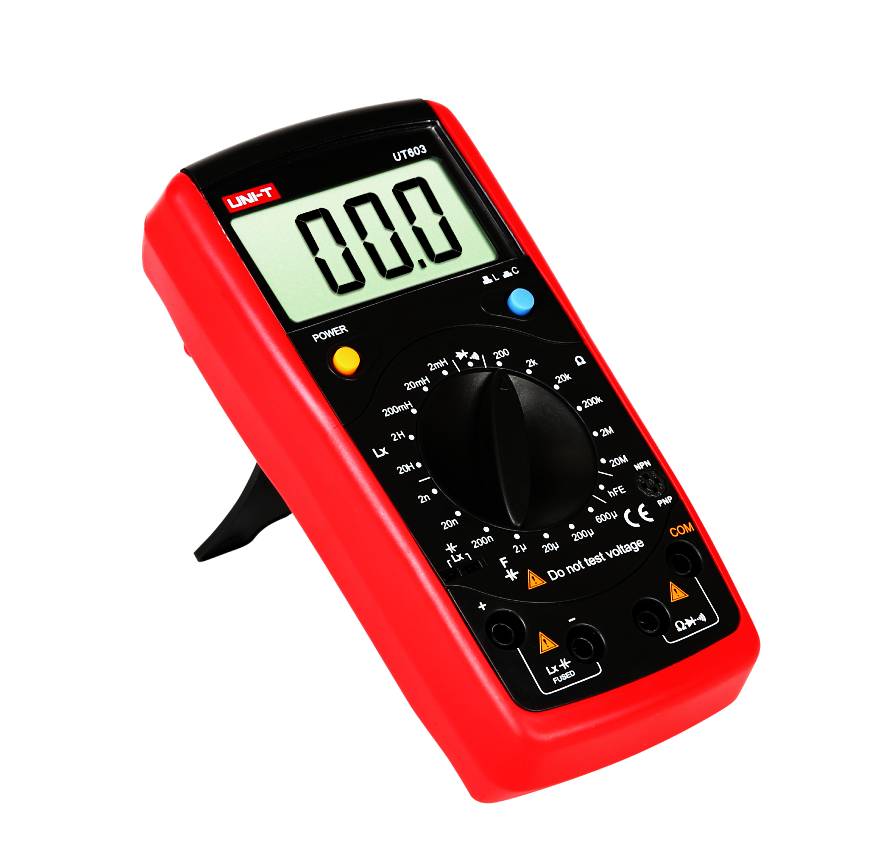

UT603 series digital inductance capacitance meters are used to test resistors, capacitors and inductors. They can also be used to measure transistor parameters.
Features of UT603 Digital Inductance Capacitance Meters
● Manual range
● Continuity buzzer
● Diode/transistor
● Low battery indication
Specifications of UT600 Series Digital Inductance Capacitance Meters
| Specifications | Range | UT603 |
| Resistance (Ω) | 20Ω/200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ/2000MΩ | |
| 20Ω/200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/2000MΩ | ||
| 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(0.8%+1) | |
| Capacitance (F) | 200pF/2nF/20nF/200nF/2uF/20uF/200uF/2mF/20mF | |
| 2nF/20nF/200nF/2uF/20uF/200uF/600uF | ±(1%+5) | |
| Inductance (H) | 2mH/20mH/200mH/2H/20H/200H | |
| 2mH/20mH/200mH/2H/20H | ±(2%+8) |
| General Characteristics | |
| Power | 9V battery (6F22) |
| Display | 61mm x 32 mm |
| Product color | Red and grey |
| Product net weight | UT601/UT602: 310g, UT603: 312g |
| Product size | 172mm x 83mm x 38mm |
| Standard accessories | Battery, test leads with alligator clips, holster |
| Standard individual packing | Gift box, English manual |
| Standard quantity per carton | 20pcs |
| Standard carton measurement | 450mm x 330mm x 340mm (0.099CBM per standard carton) |
| Standard carton gross weight | 9.6kg |
