WT-63TJ-1 VA
- Category: WI-FI METAR
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 1700

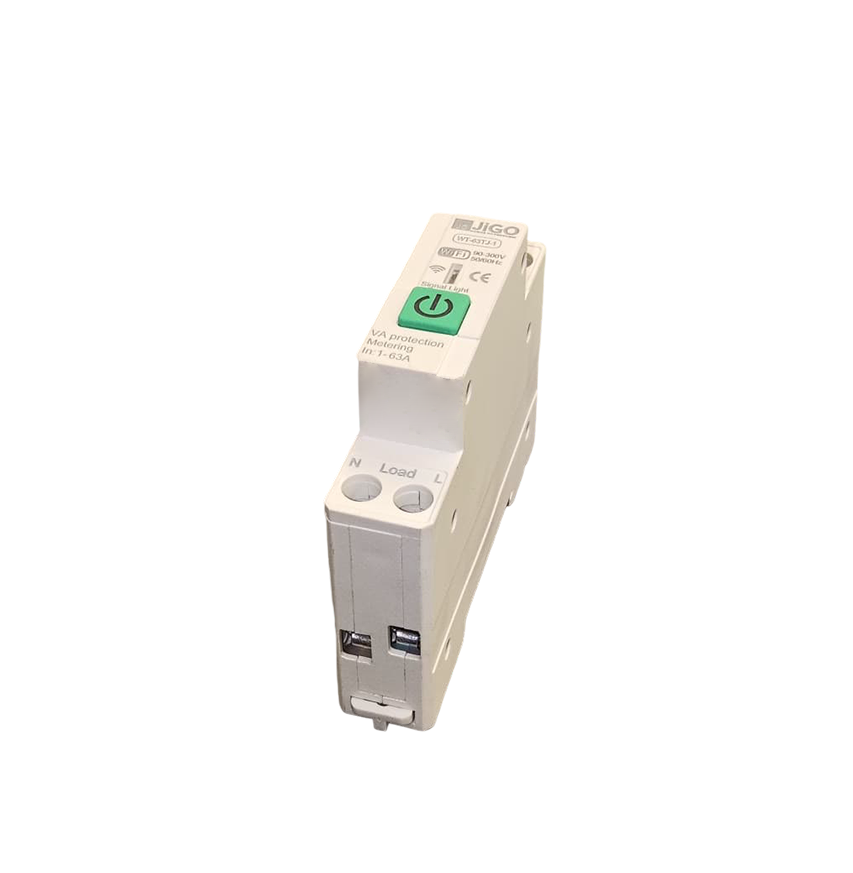

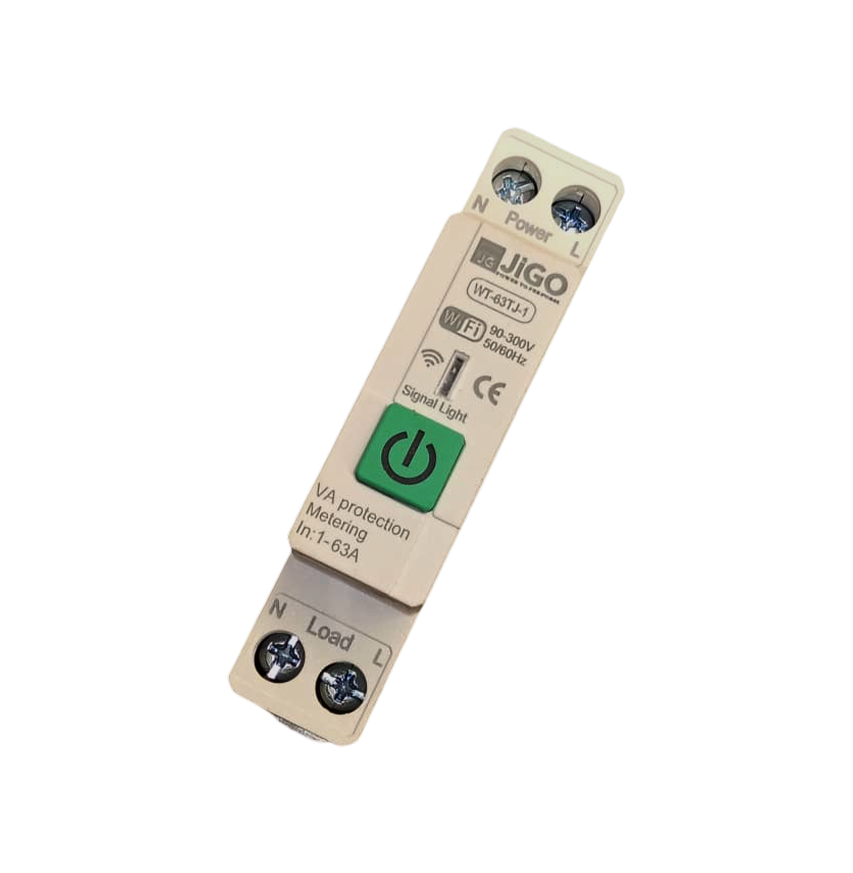

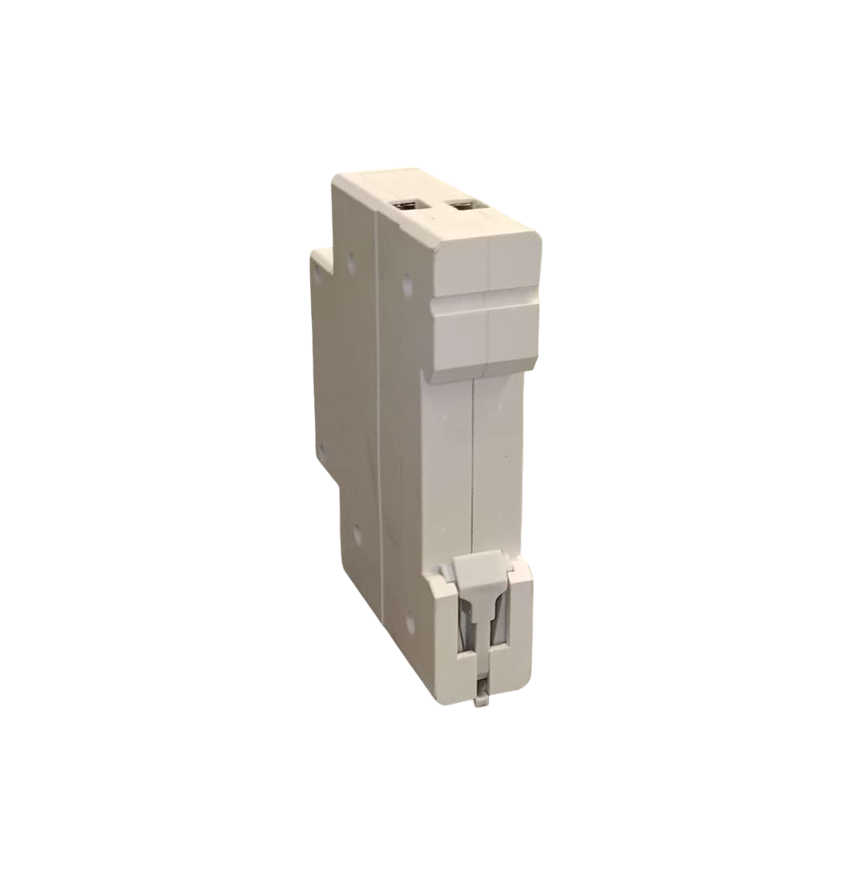

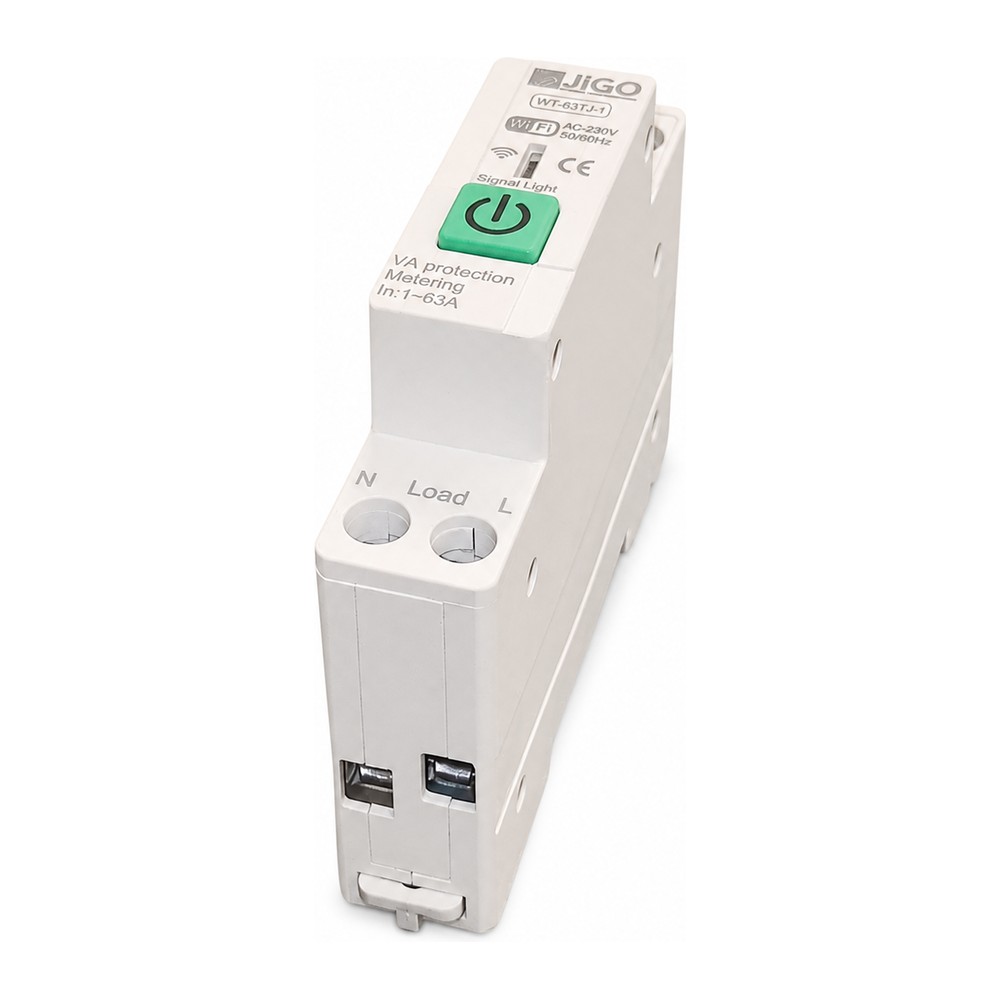

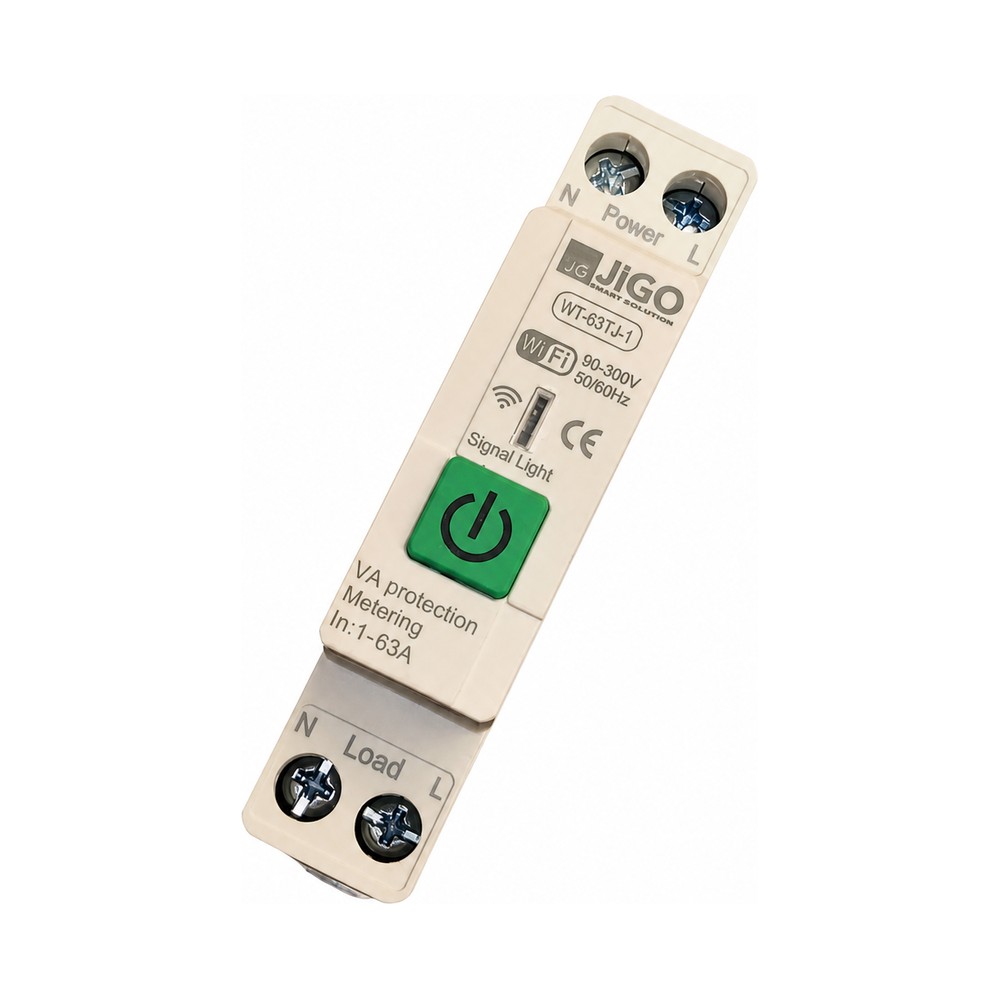

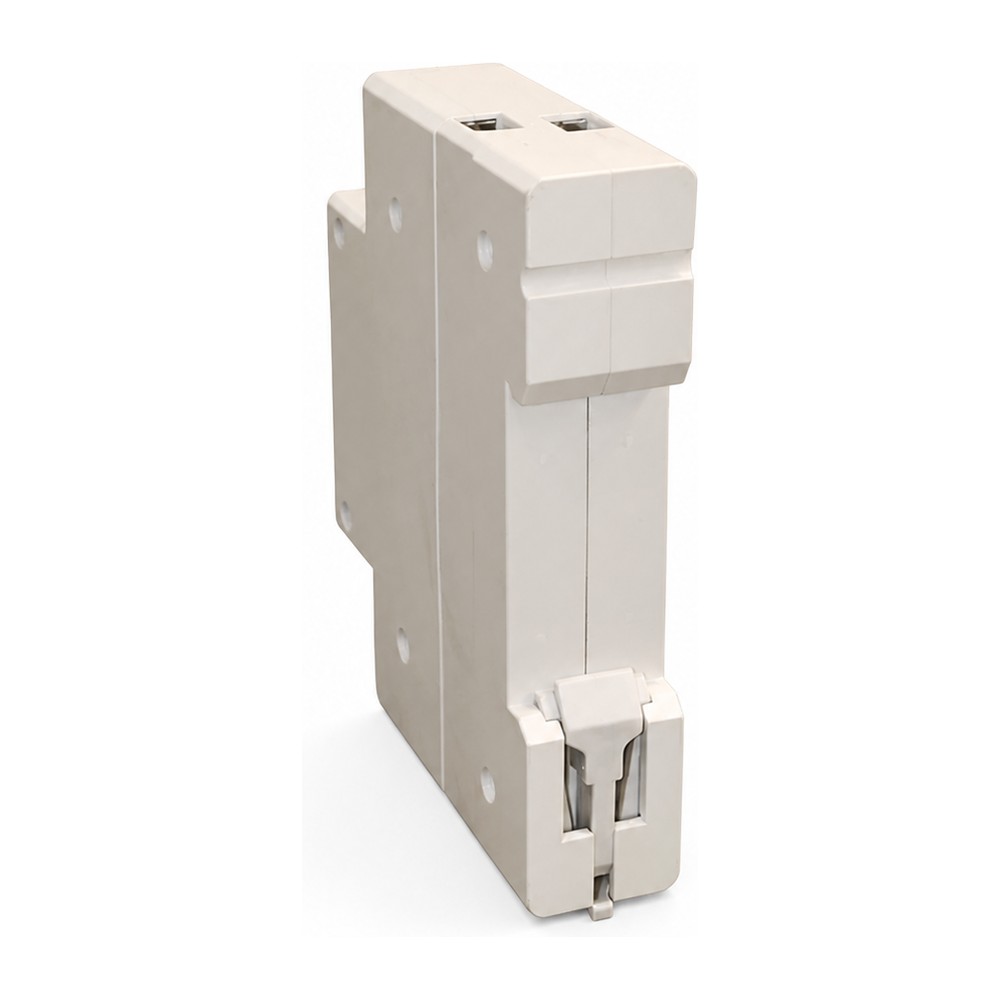

The image displays a JIGO WT-63TJ-1 WiFi Smart Circuit Breaker and Multi-Function Protector. This compact IoT-enabled electrical safety device mounts directly to standard distribution boards. It integrates remote switching, real-time power metrics, and comprehensive fault shielding in a single module.
Product Details
- Brand: JIGO
- Model: WT-63TJ-1
- Rated Current (\(I_{n}\)): 1A to 63A (Adjustable threshold via app)
- Operating Voltage: AC 90V – 300V (Single-phase system)
- Frequency: 50/60Hz
- Connectivity: 2.4 GHz WiFi (Integrates natively with the Tuya / Smart Life ecosystem).
- Mounting Type: Standard 35mm DIN Rail Mount.
Key Features
- Remote Control: Instantly switch your primary line power supply ON or OFF from anywhere globally using a smartphone.
- VA Protection (Voltage & Amperage): Actively safeguards connected loads by tripping during critical over-voltage, under-voltage, or over-current conditions.
- Energy Metering: Measures and logs real-time electricity metrics, including active voltage, load current, and cumulative power consumption (kWh).
- Intelligent Automation: Supports countdown delays, cyclic loop timers, and complex scheduling rules directly via mobile automation scripts.
- Manual Override: Equipped with a physical illuminated green power button that dual-purposes as a local toggle and a pairing indicator light.
Applications
- Smart Home Automation: Manages heavy residential circuits supplying high-power infrastructure like air conditioners, geysers, and water pumps.
- Electric Vehicle (EV) Charging: Monitors specific power loads dedicated to EV charging stations to safeguard against thermal overload.
- Commercial & Industrial Panels: Adds smart grid capabilities to remote retail outlets, unattended telecom base stations, agricultural pump controllers, or school facilities.
