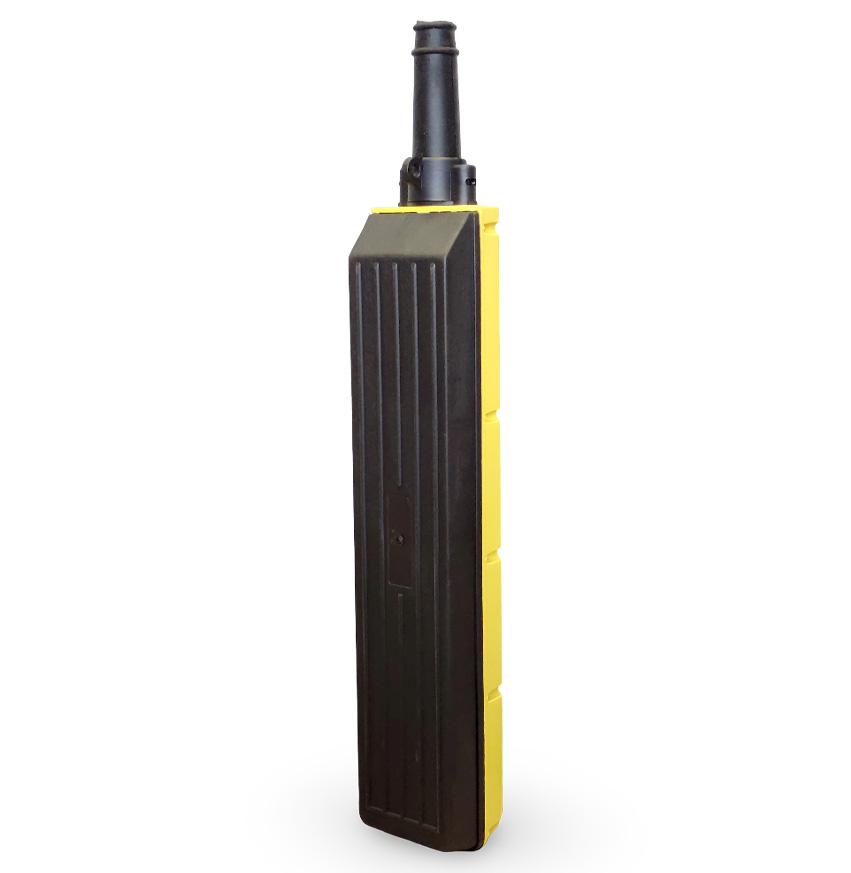

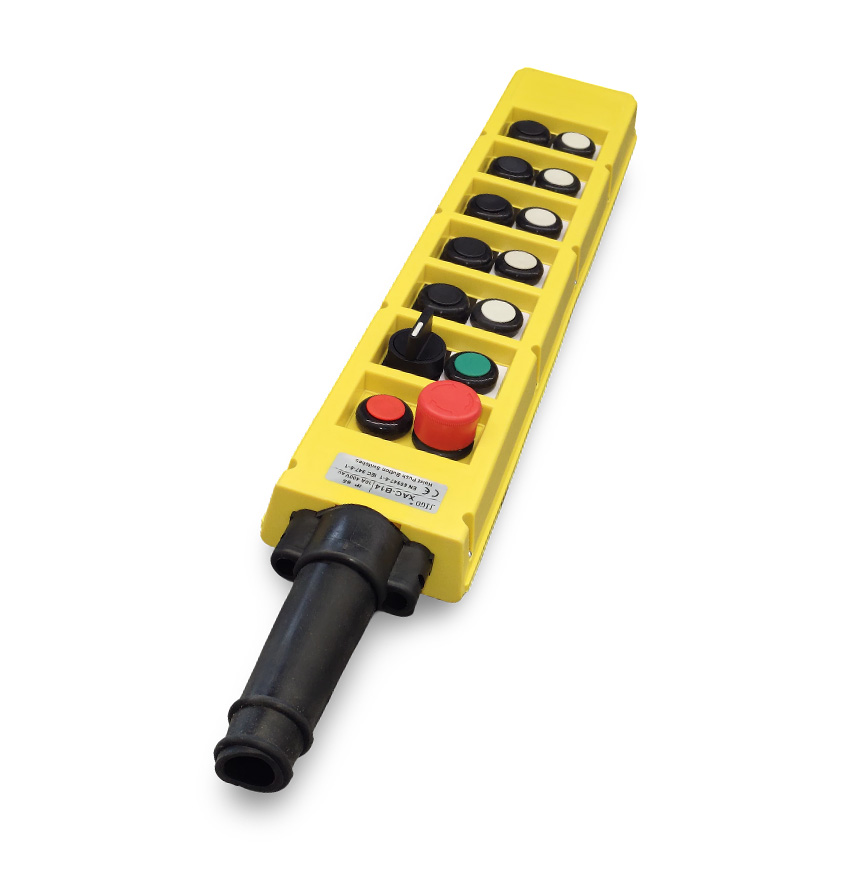

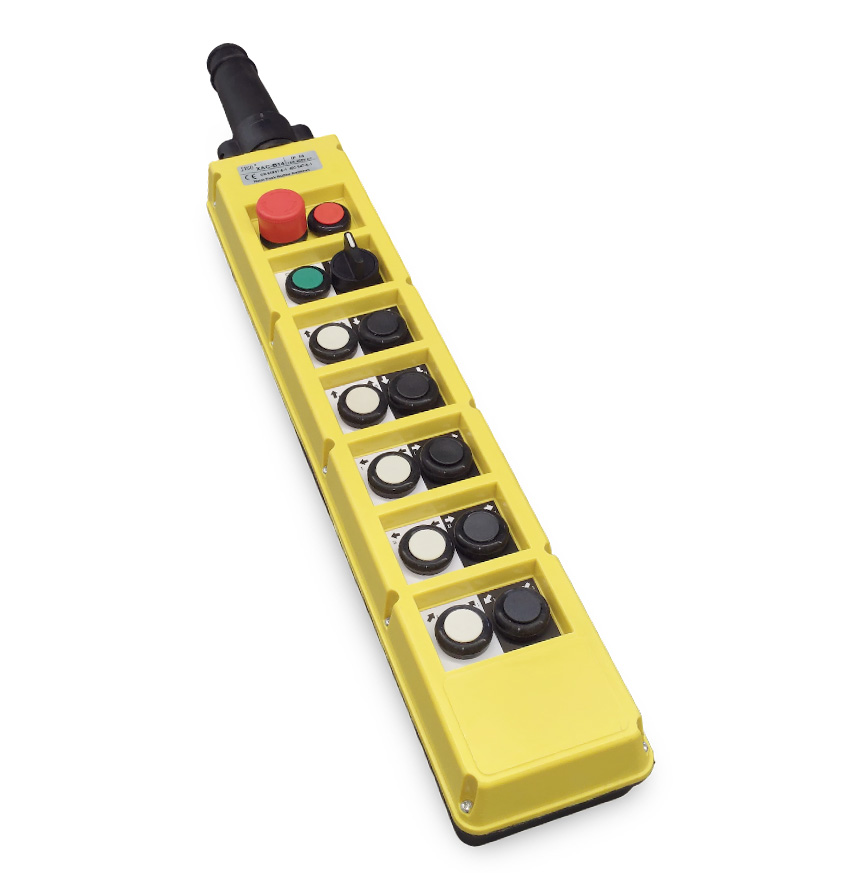

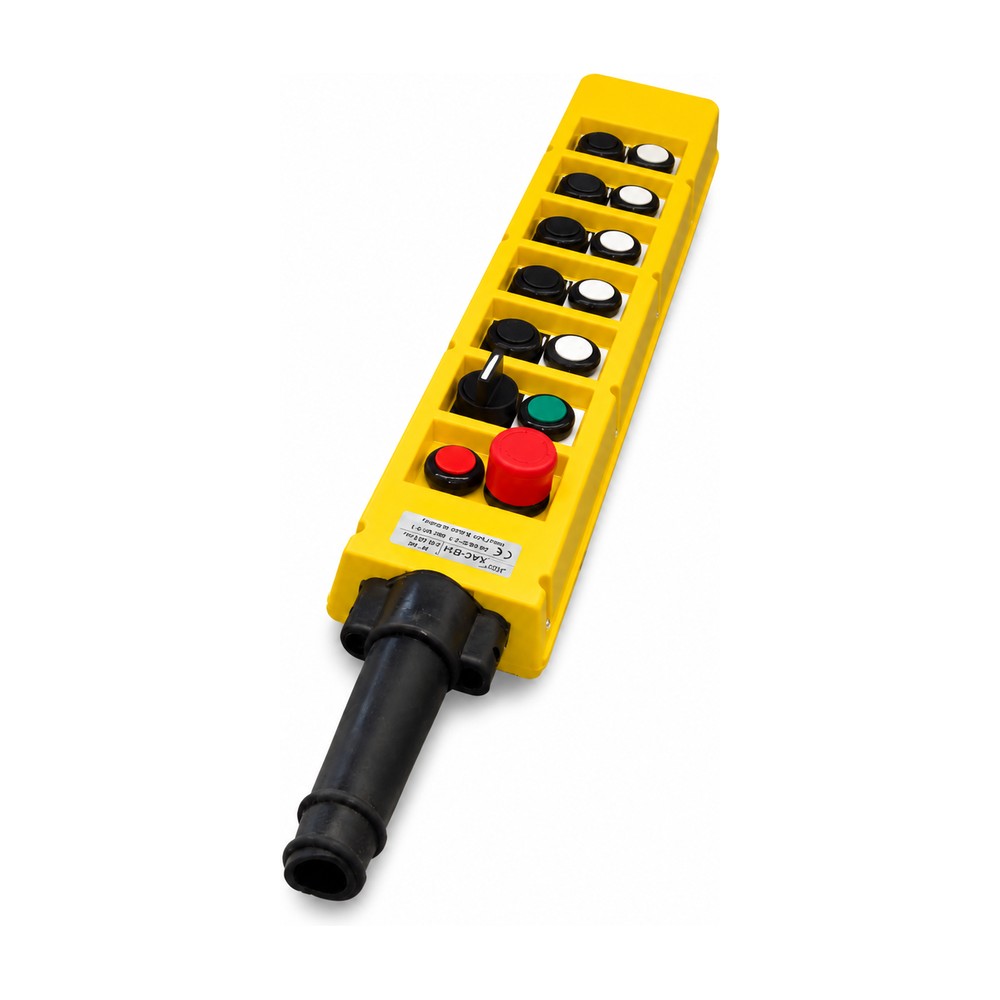

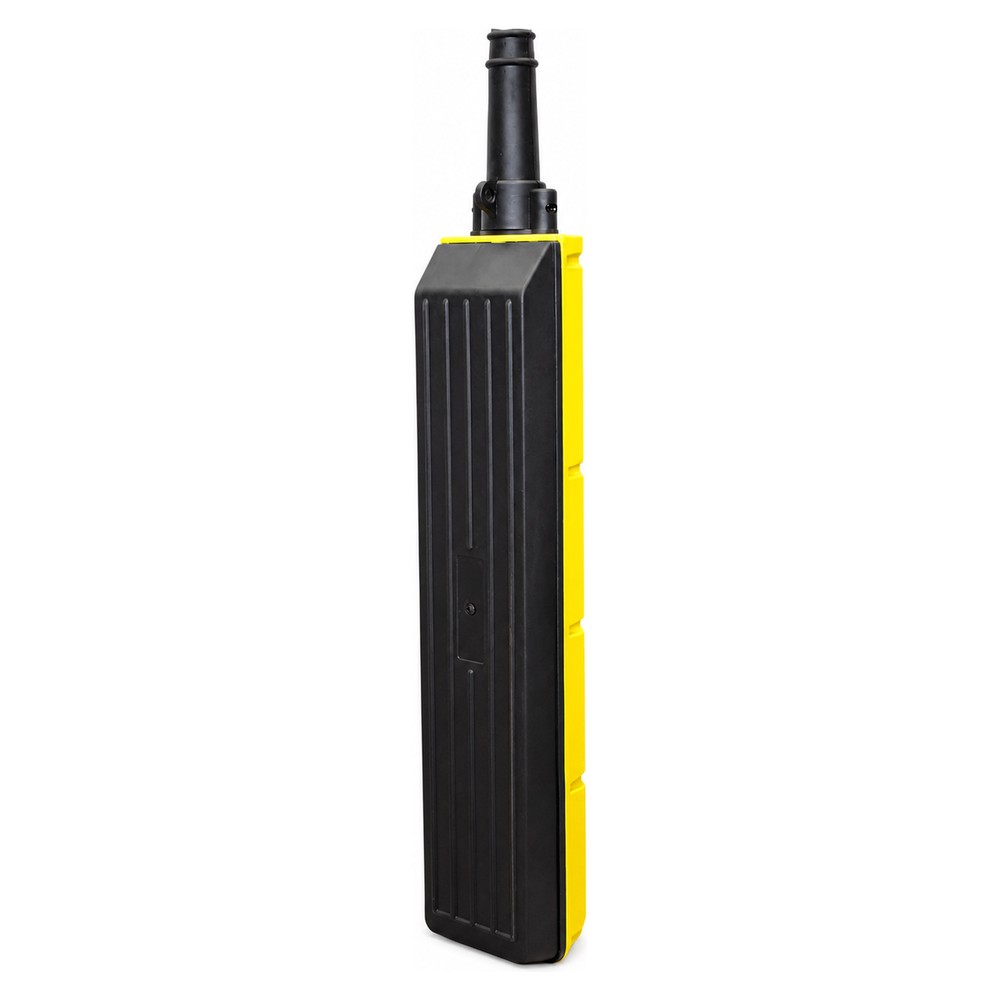

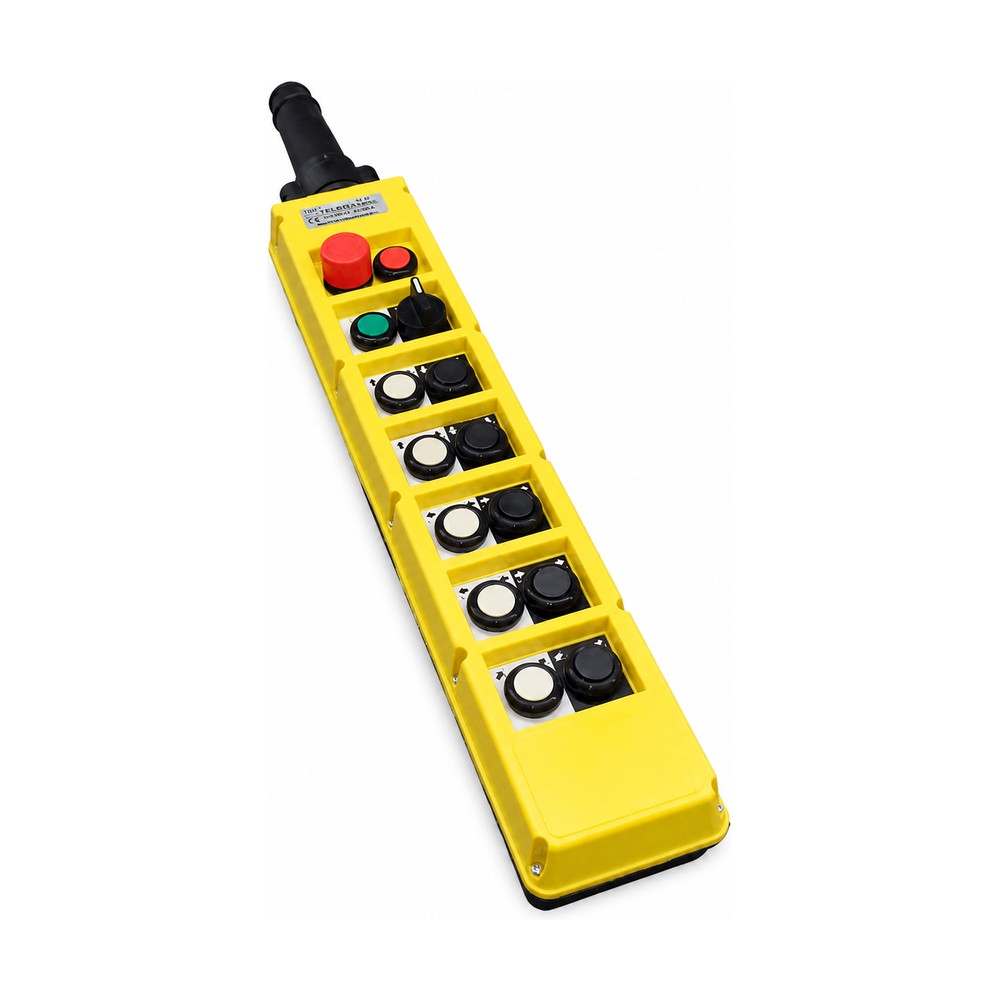

XAC-B14 Crane Pendant Control Station
- Category: XAC SERIES
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 4000
XAC-B14 is a 14-button industrial pendant control station designed for hoisting and crane control systems. It ensures safe and efficient operation in heavy-duty applications.
Enquire on WhatsAppProduct Details:
Model: XAC-B14
No. of Buttons: 14 (including emergency stop and direction controls)
Function: Controls operations like up/down, left/right, forward/backward, and emergency stop
Contact Type: Mechanical contact element with snap-action mechanism
Enclosure Material: High-impact thermoplastic
Ingress Protection: IP65 (dust-tight and water-resistant)
Operating Temperature: -25°C to +70°C
Cable Entry: Bottom cable gland entry
Mounting Type: Hand-held pendant
Key Features:
14-button configuration for multi-directional control
Emergency stop button for enhanced safety
Ergonomic design for comfortable operation
Rugged housing for industrial environments
IP65 rating for dust and water resistance
Durable contacts for long operational life
Easy wiring and maintenance
Applications:
Crane and hoist control systems
Conveyor belt operations
Industrial lifting machinery
Warehouse material handling
Construction site equipment control
Overhead gantry cranes
