ABS-400X350X120
- Category: ABS JUNCTION BOXES
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 2000

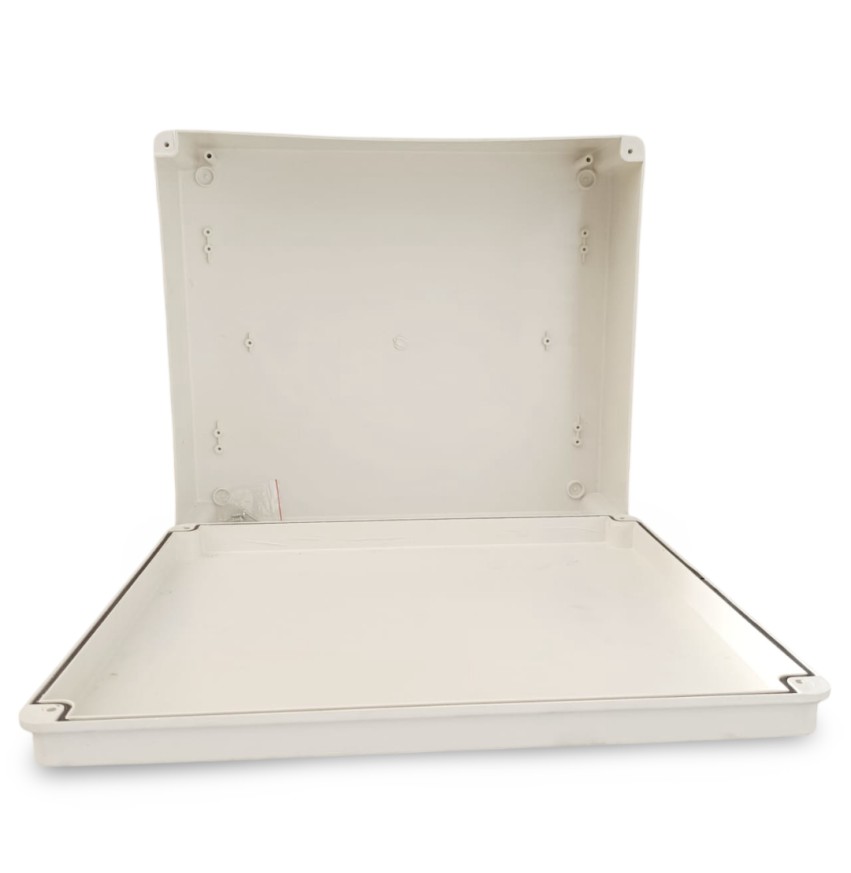

The ABS-400X350X120 junction box is a large-capacity, impact-resistant enclosure designed for high-density electrical and electronic installations. Made from durable, UV-stabilized ABS plastic, it offers excellent protection from environmental factors, making it ideal for both indoor and outdoor applications. Its spacious design accommodates multiple components, making it suitable for industrial and commercial projects.
Product Details:
Material: High-quality ABS plastic (UV-resistant, flame-retardant)
External Dimensions: 400mm (L) x 350mm (W) x 120mm (H)
Color: Light Grey (RAL 7035); other colors available upon request
Ingress Protection Rating: IP65/IP66 (based on sealing method)
Cover Type: Screw-fastened (stainless steel/plastic screws); hinged lid optional
Mounting Options: Built-in internal mounting bosses & external wall-mounting points
Internal Layout: Compatible with DIN rails, backplates, terminal blocks, or PCBs
Operating Temperature Range: -20°C to +80°C

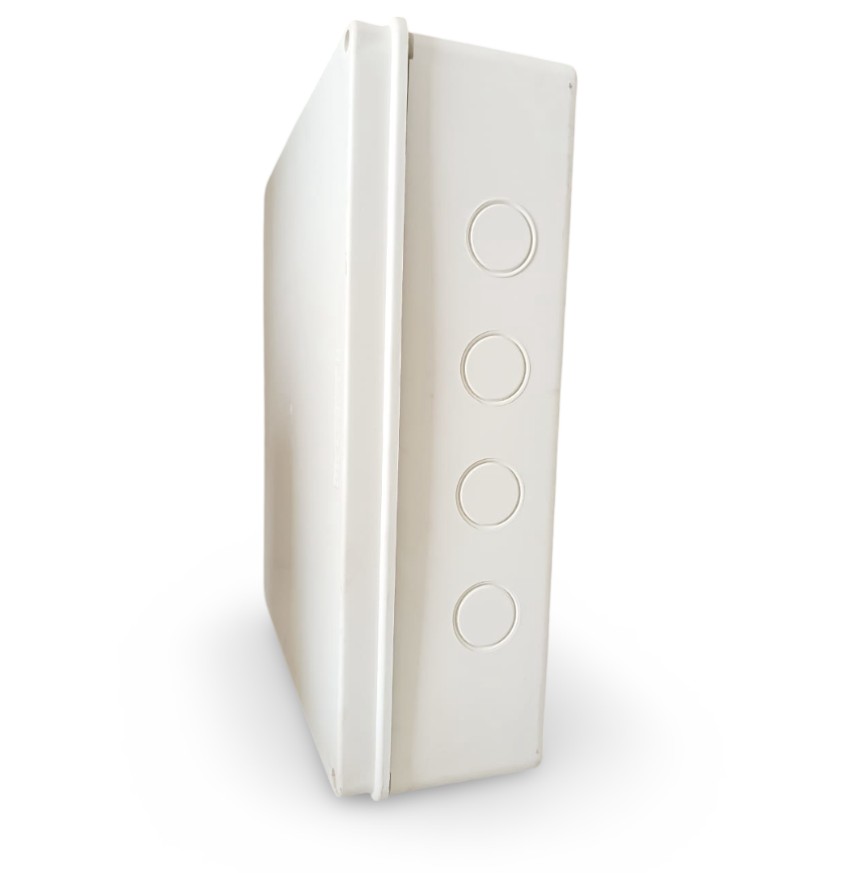

Cable Entry: Knockouts or customizable entry points on request
Weight: Approx. 2.5–3.5 kg depending on configuration
Key Features:
Extra-large internal volume for complex setups and multiple devices
IP-rated protection for use in wet, dusty, or outdoor environments
High-impact ABS construction with excellent insulation properties
Smooth, modifiable surface for labeling or custom openings
Flame-retardant and corrosion-resistant
Supports various internal mounting accessories
Non-conductive and electrically safe housing
Applications:
Industrial control panels and automation systems
Renewable energy systems (solar, wind, etc.)
Network, telecom, and IoT infrastructure housing
HVAC and building management systems
Security and surveillance system integration
Agricultural and marine electronic protection
Electrical power distribution and metering setups
