CH 2
- Category: Wiring Connectors
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 5

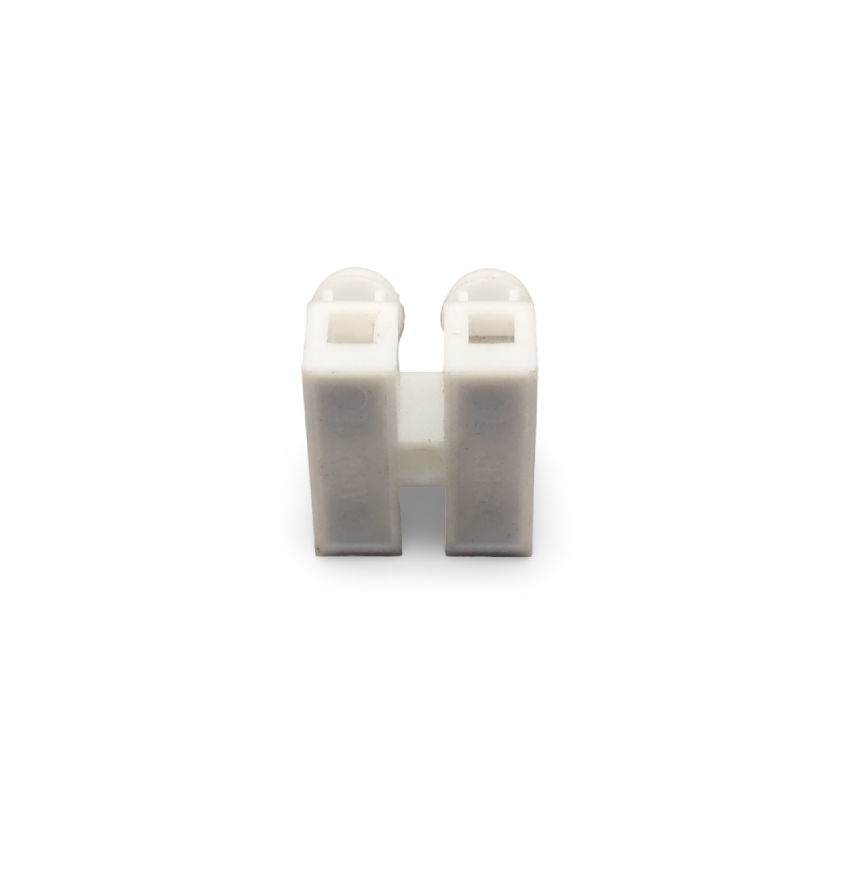

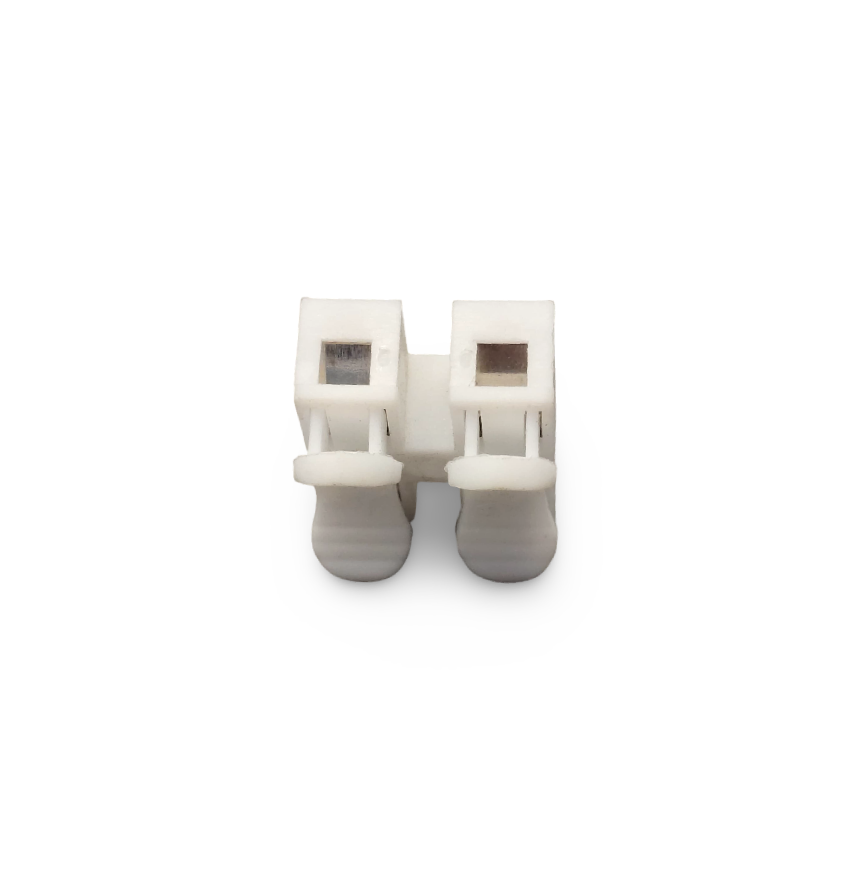

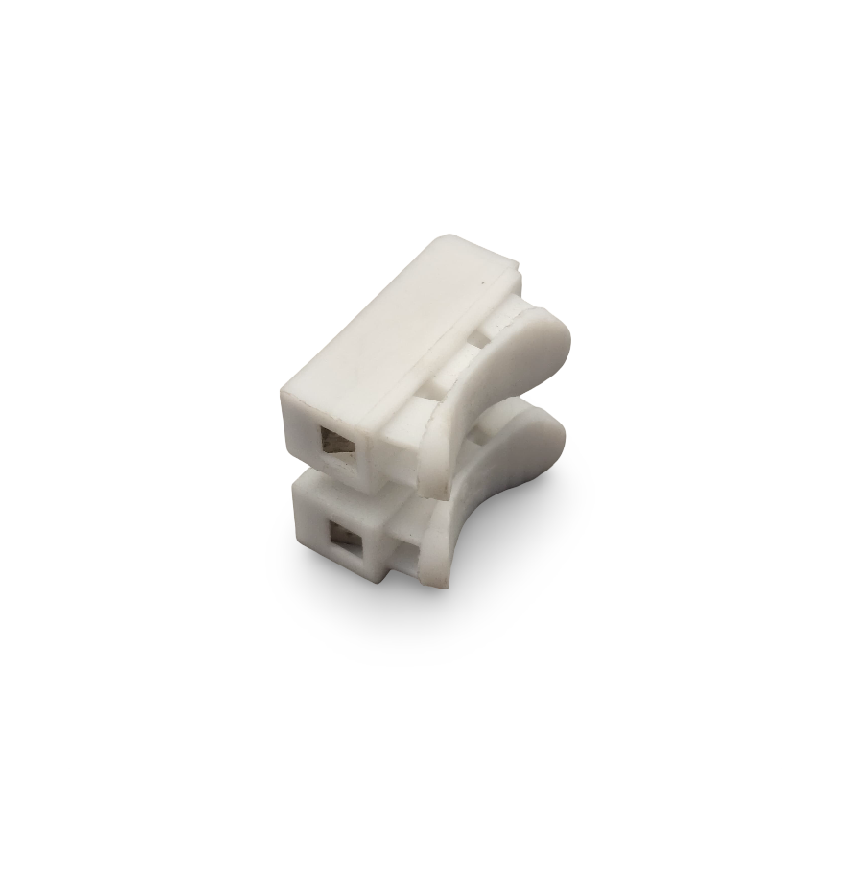

The CH2 Spring Quick Connector by JIGO is a compact, two‑pole, spring‑loaded wire connector that enables secure and fast tool‑free electrical connections.
Product Details
Brand: JIGO
Model: CH2 (2‑pole spring quick connector)
Size: Approx. 17 × 19 × 13–17 x 19 mm (about 0.66 × 0.76 in)
Material: Flame‑retardant PP housing with steel spring and copper conductor
Rated Voltage: 250 V
Rated Current: 10 A
Wire Range: 0.5–2.5 mm² (~20–12 AWG) for both solid and stranded wire
Operating Temperature: –40 °C to +85 °C (some specs up to +150 °C)
Key Features
Spring‑loaded clamp – Provides strong contact without screws or tools
Tool‑free installation – Just press the top, insert stripped wire, and release
Clear L/N marking – (One side labelled “L” for live, the other “N” for neutral)
Insulated, flame‑resistant body – Prevents arcing, dust/water ingress, and supports high reliability
Compact design – Ideal for confined spaces; multiple connectors can be used in tight spots
Applications
Residential & commercial lighting – LED strips, luminaires, fixtures
Building wiring – Quick, dependable wire splices without needing screws
Industrial & automotive – Control circuits, sensors, small motors
Appliances & panel assemblies – For reliable, ergonomic internal wiring
