CH 3

    Category: Wiring Connectors
  • Brand: Jigo
  • Minimum quantity: 1
  • Price: ₹ 10

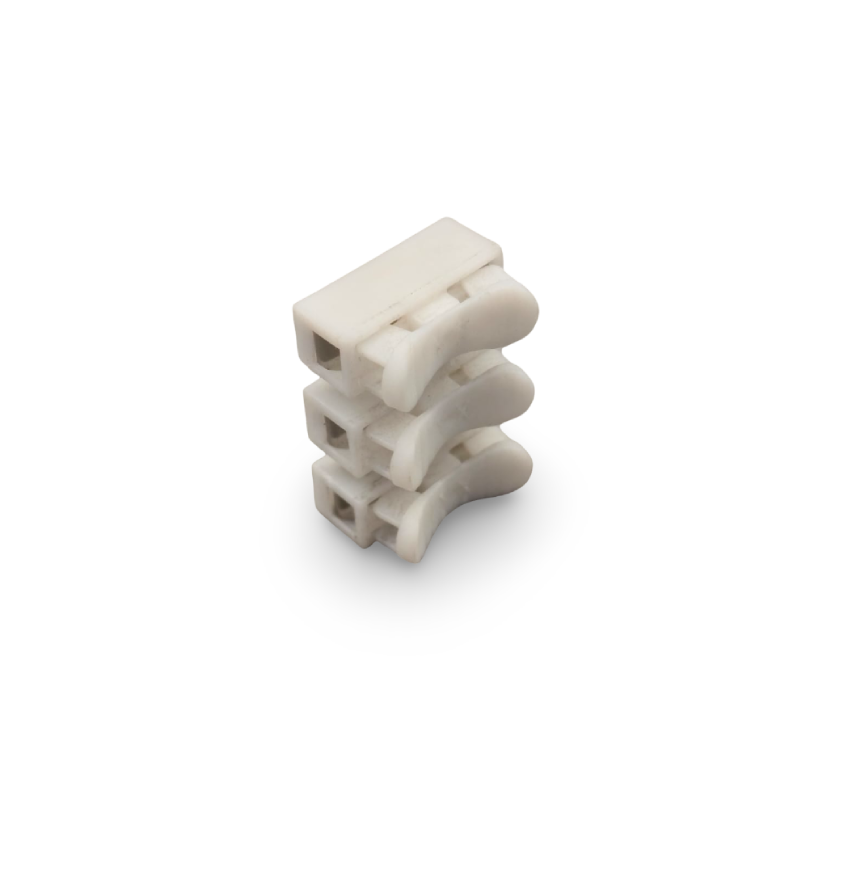

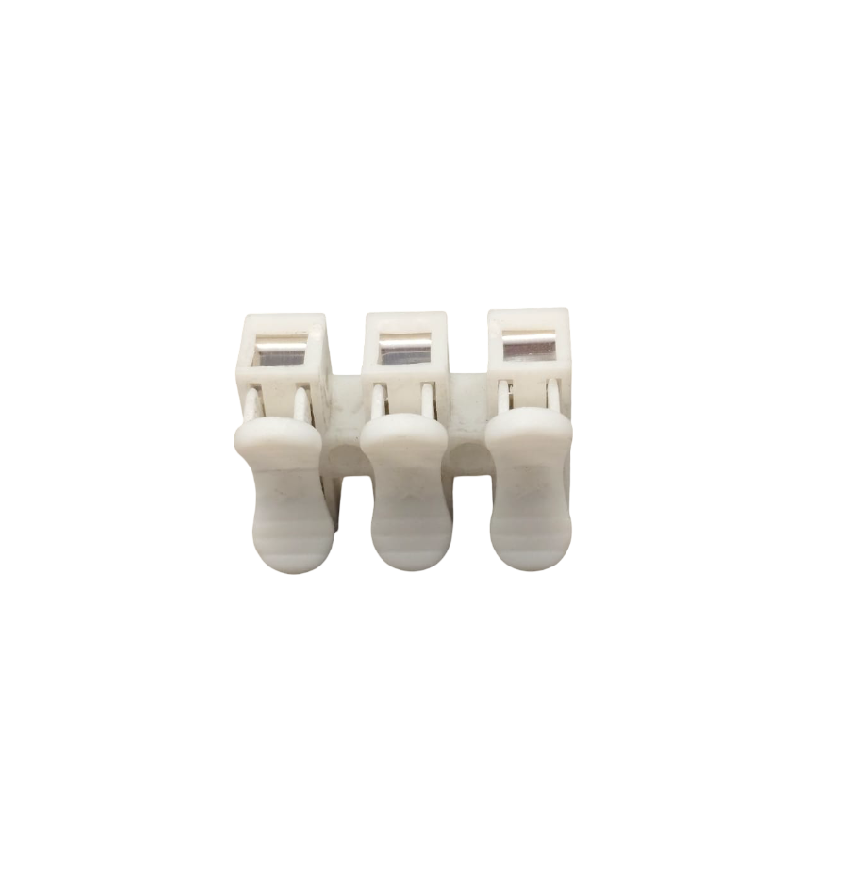

The JIGO CH3 Spring Quick Connector is a compact, three‑pole, spring‑loaded electrical connector designed for fast, reliable, tool‑free wire connections.



Product Details

Brand: JIGO (commonly referred to as CH3 quick connector)

Model: CH3 — 3-position spring-loaded quick terminal block

Material: Insulated housing (typically PP/PE/ABS), with stainless-steel/manganese-steel internal spring clamp

Rated Voltage: Up to 250 V

Rated Current: ~10 A

Wire Compatibility: 0.5–3.5 mm² (approx. AWG 20–12)

Operating Temperature: –40 °C to +150 °C (housing)

Dimensions: About 27 × 20 × 13 mm

Color: Typically white or grey body

Key Features

Spring‑loaded mechanism: Provides secure, vibration-resistant connection without screws

Tool‑free installation: Press the top, insert stripped wire, release spring — connection done

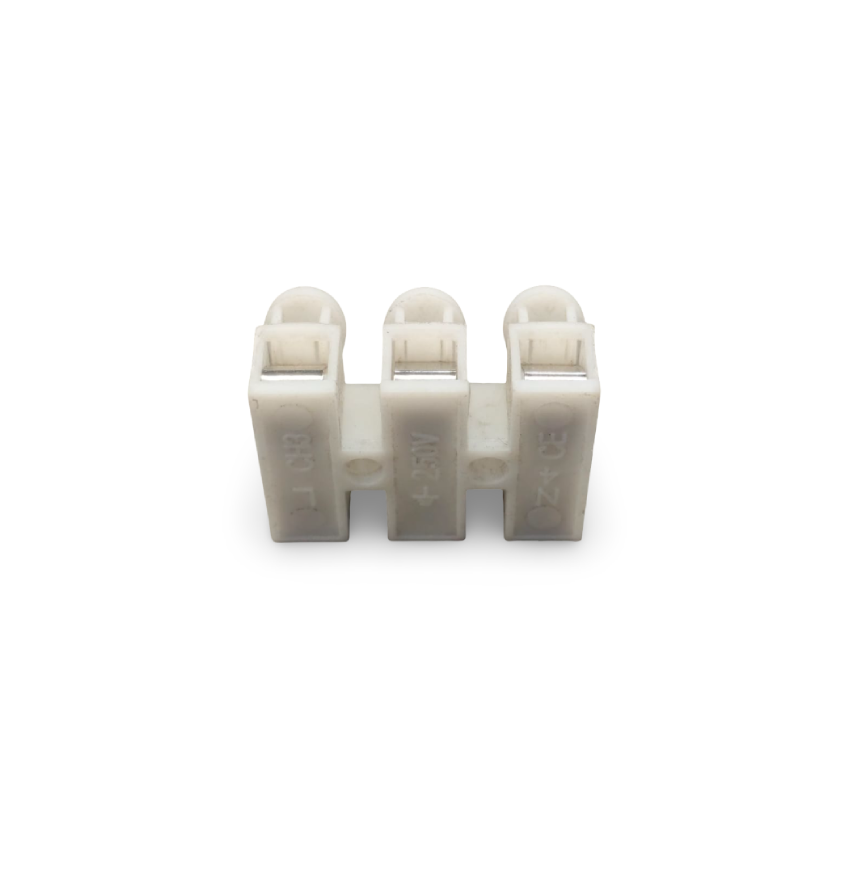

Labelled terminals: Usually marked L, N, and Earth for clear identification

Durable materials: Flame-retardant housing with corrosion-resistant spring — meets CE, RoHS, UL/IEC standards

Compact form factor: Fits neatly in junction boxes and confined spaces

Applications

Residential & commercial lighting — ideal for LED strips, fixtures, and bars

Building electrical wiring — for joining live, neutral, and earth conductors

Industrial control panels — used in motor, sensor, and control wiring

Household appliance wiring

Automotive or machinery installations needing quick and reliable wire connections
