DJ622-D6.3B
- Category: CABLE TERMINAL ENDS
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 5

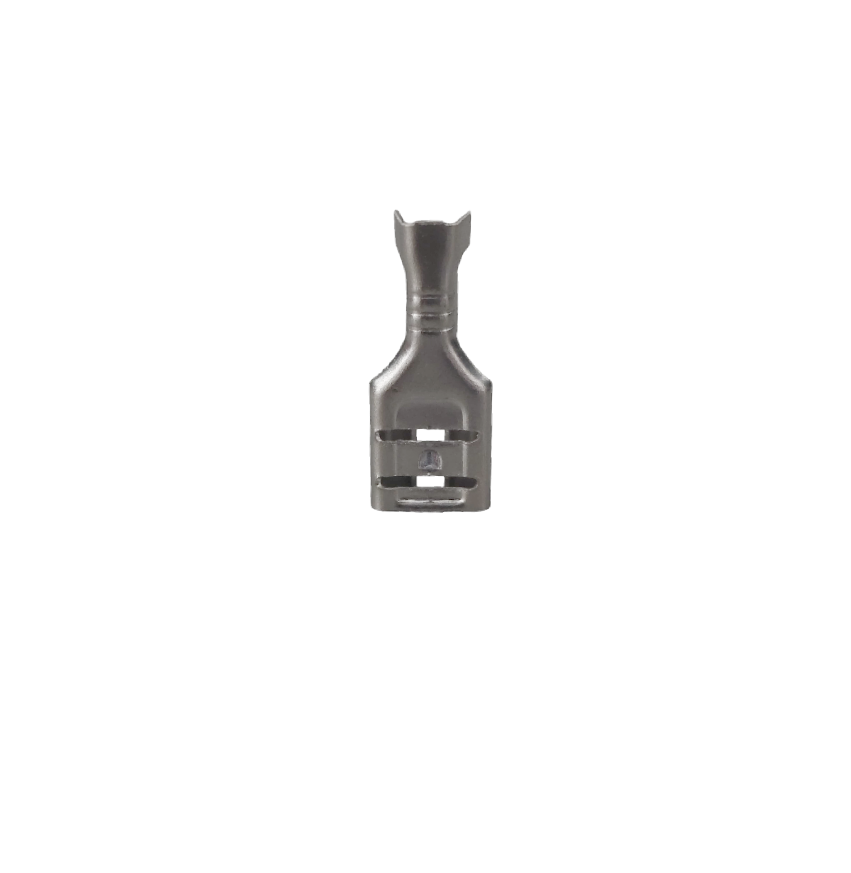

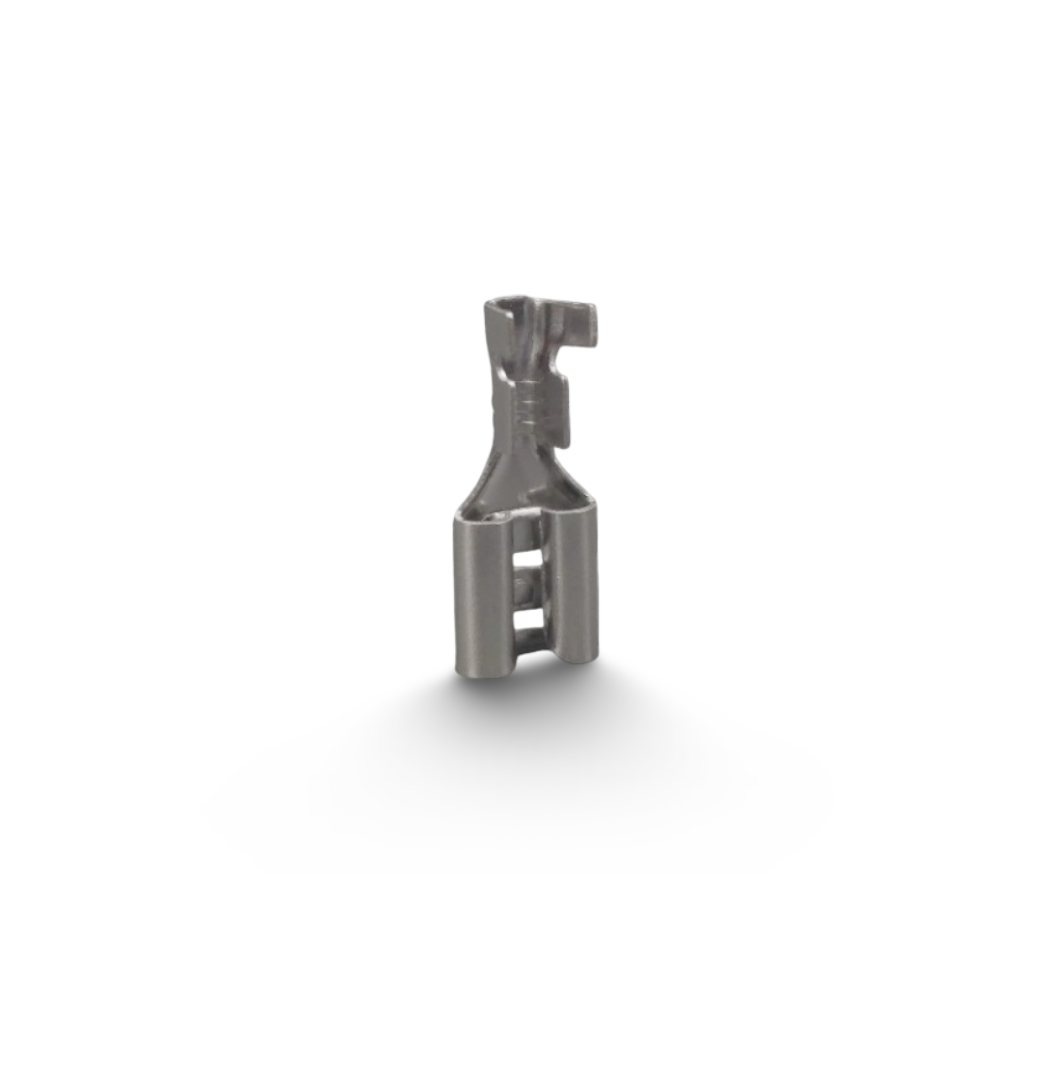

The DJ622‑D6.3B is a non-insulated, open-barrel female quick-disconnect terminal (NEMA 6.3) designed for crimping onto stranded copper wires. It delivers a secure, reliable, and easily detachable connection between wires and male spade terminals.
| Feature | Specification |
|---|---|
| Model | DJ622‑D6.3B |
| Terminal Type | Non-insulated open-barrel female connector |
| Wire Gauge | 18–16 AWG (1.0–1.5 mm²) |
| Tab Width | 6.3 mm × 0.4 mm (NEMA B) |
| Dimensions | Length ≈ 17.5 mm; Width ≈ 7.7 mm; Height ≈ 3.2 mm |
| Material | Brass (H65Y) with optional tin plating |
| Metal Thickness | 0.4 mm |
| Certifications | CE compliant, RoHS compliant |
Key Features
Open-barrel design offers strong mechanical and electrical crimp connections
Non-insulated structure suitable for high-temperature environments and compact installations
Secure latch mechanism ensures reliable engagement with male tabs in harsh conditions
Wide conductor range supports 1.0–1.5 mm² (18–16 AWG) flexible wires
Durable brass construction, with optional tin plating to resist corrosion
Applications
Quick electrical connections in automotive wiring harnesses
Industrial control panels and modular terminal blocks
Household appliances and HVAC equipment
Any environment requiring frequent plug-and-play or secure detachable connections
