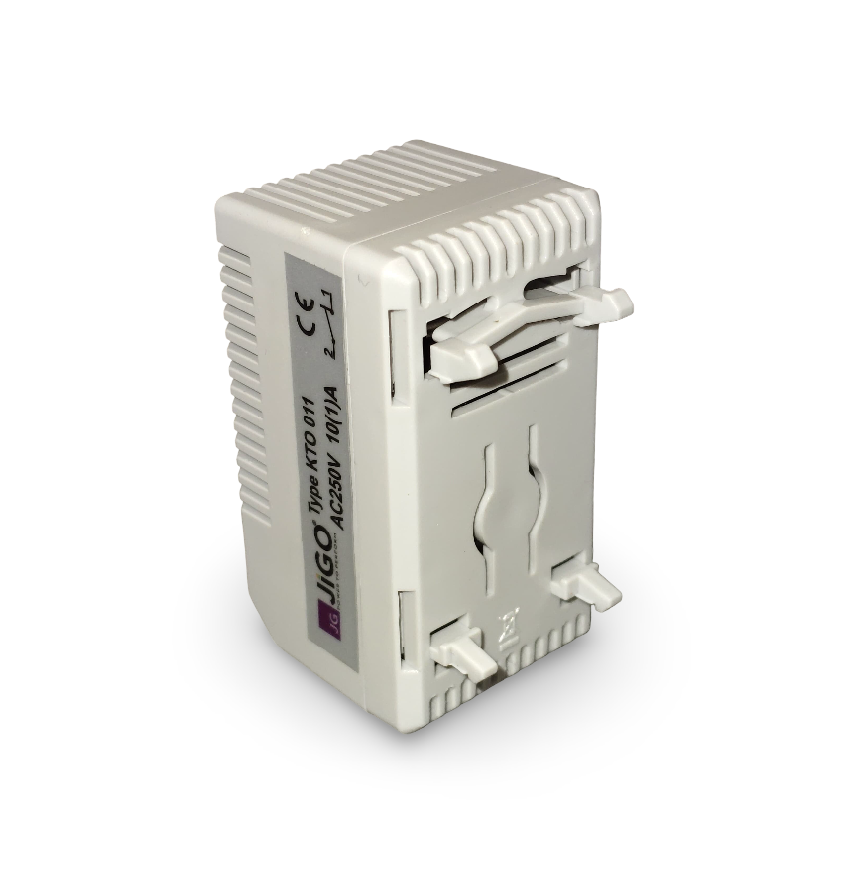

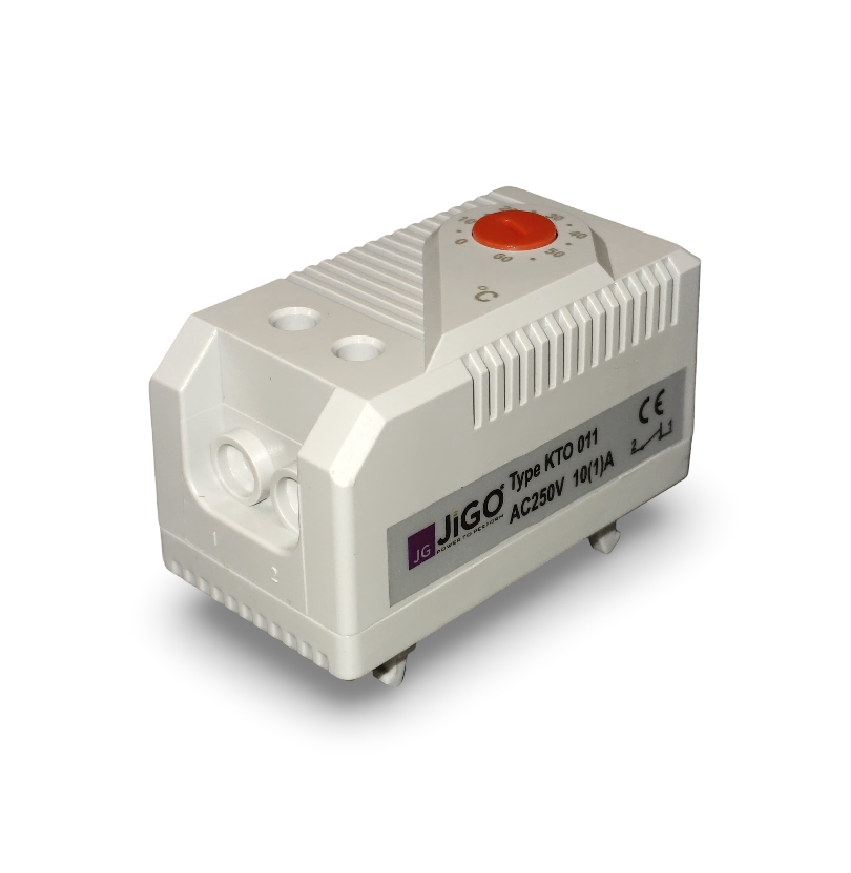

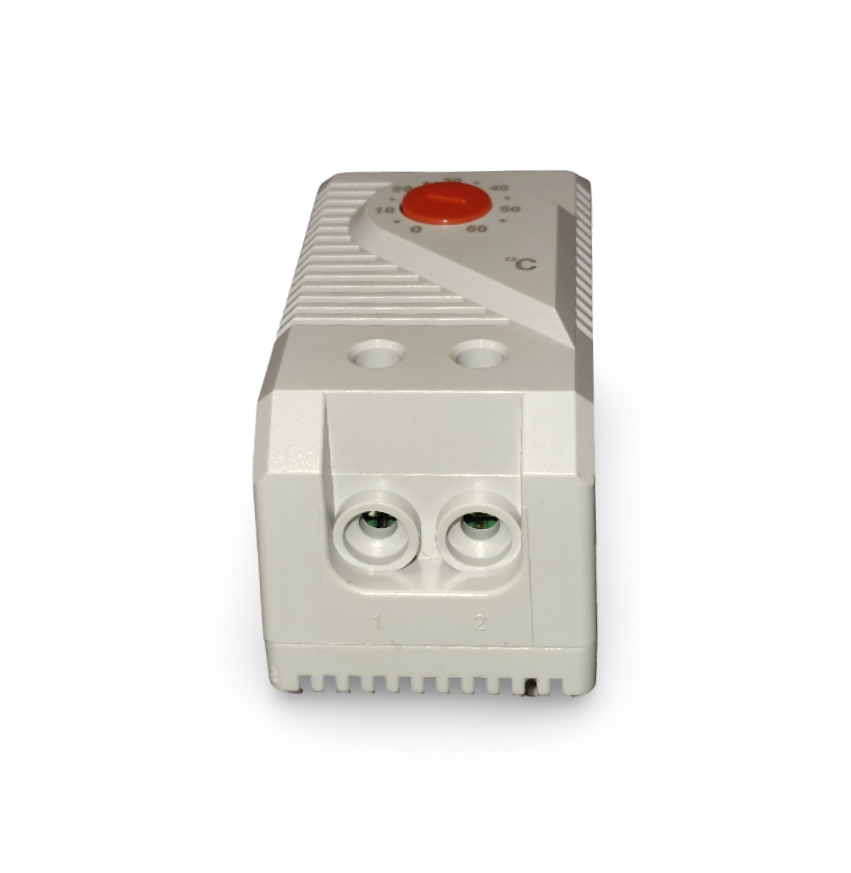

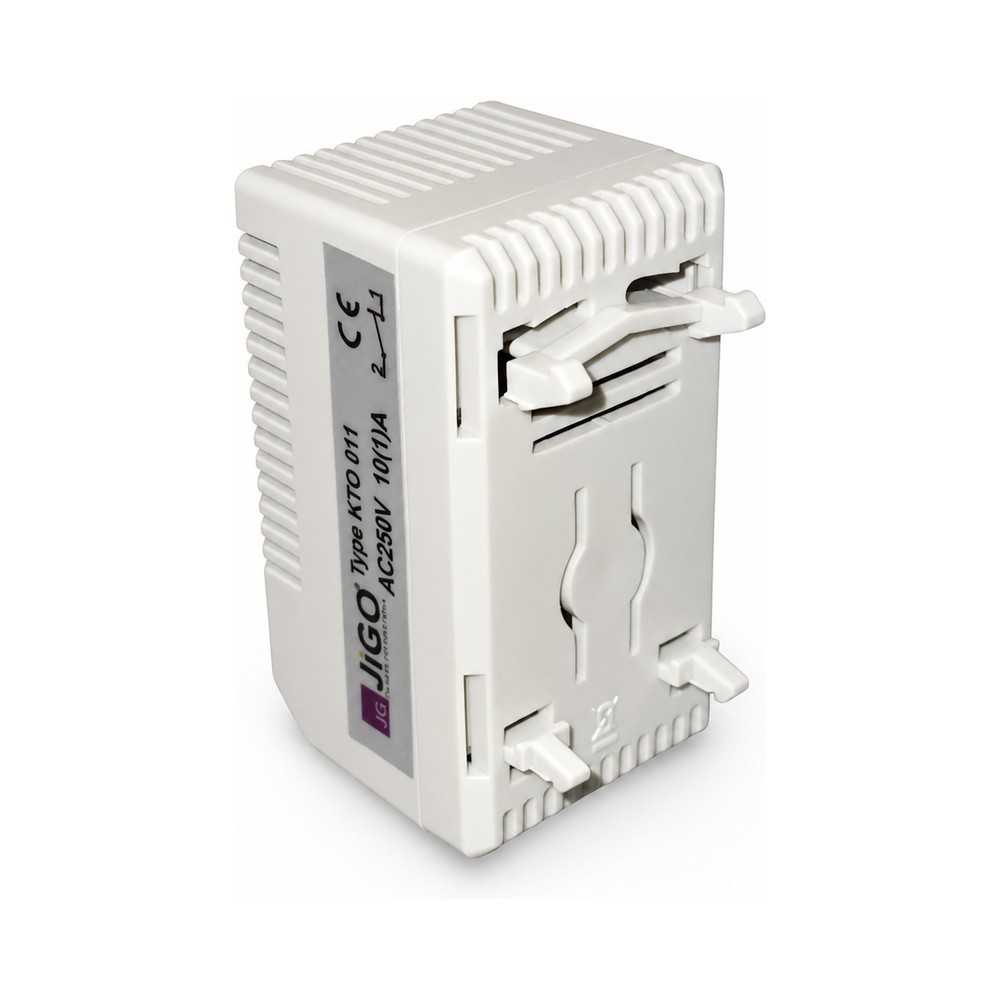

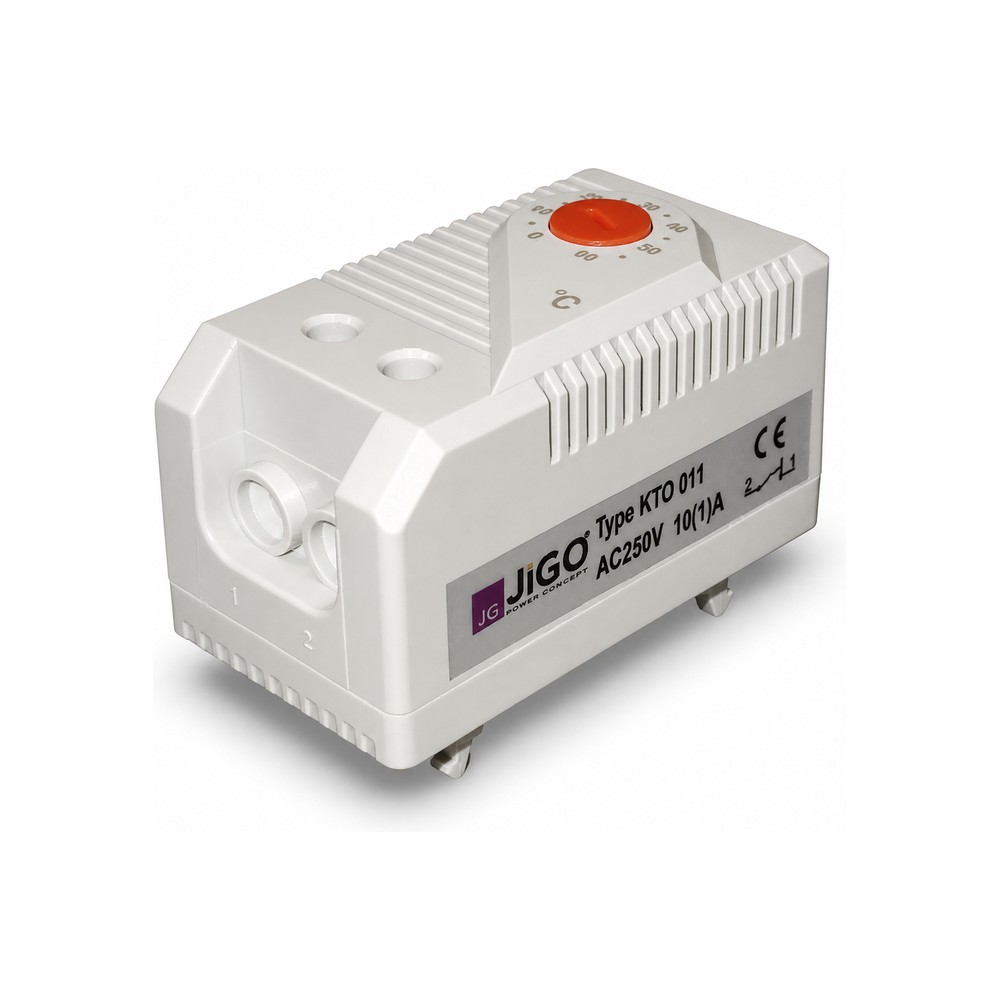

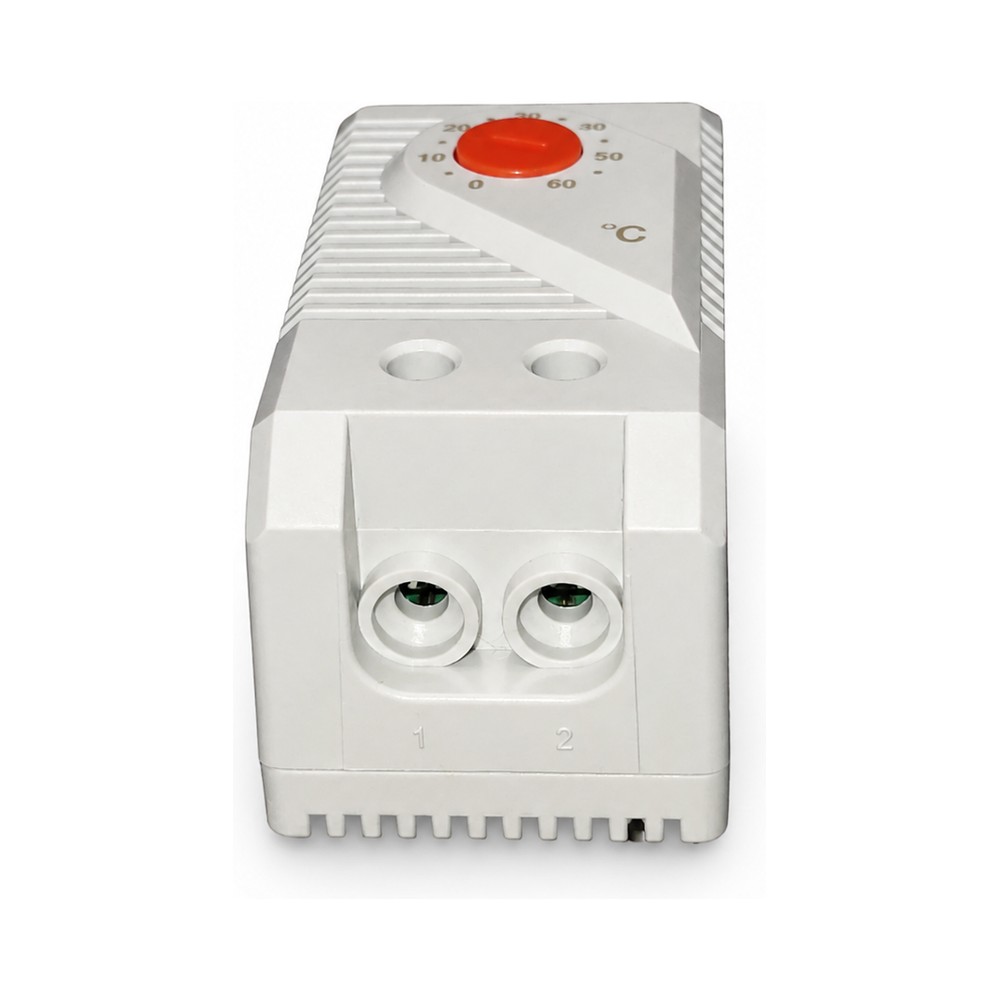

KTO-011

    Category: THERMOSTAT
  • Brand: Jigo
  • Minimum quantity: 1
  • Price: ₹ 500

The KTO-011 is a compact and reliable mechanical thermostat, designed for temperature regulation inside electrical enclosures. It automatically activates cooling devices such as fans or filters when the ambient temperature exceeds the set threshold.



Product Details:

Model: KTO-011

Type: Normally Closed (NC) – opens at set temperature

Operating Voltage: AC 250V / 120V

Contact Rating: 10A resistive load @ 250V AC

Setting Range: +0°C to +60°C

Function: Temperature control for cooling equipment

Contact Type: Bimetallic snap-action

Mounting: 35mm DIN rail (EN 60715)

Housing Material: Flame-retardant plastic (UL94 V-0)

Connection: Screw terminals

Dimensions: Compact enclosure (approx. 60 × 33 × 43 mm)

Ingress Protection: IP20

Key Features:

Simple and effective mechanical temperature control

Fast and reliable snap-action contact mechanism

DIN rail mounting for quick installation

No external power supply required for operation

Maintenance-free and long service life

Compact design fits easily inside control panels

Applications:

Electrical and control panels

Enclosure heating/cooling systems

Automation cabinets and switchboards

Temperature control for fans, heaters, and filters

HVAC and industrial control equipment

Protection of sensitive electronics from overheating
