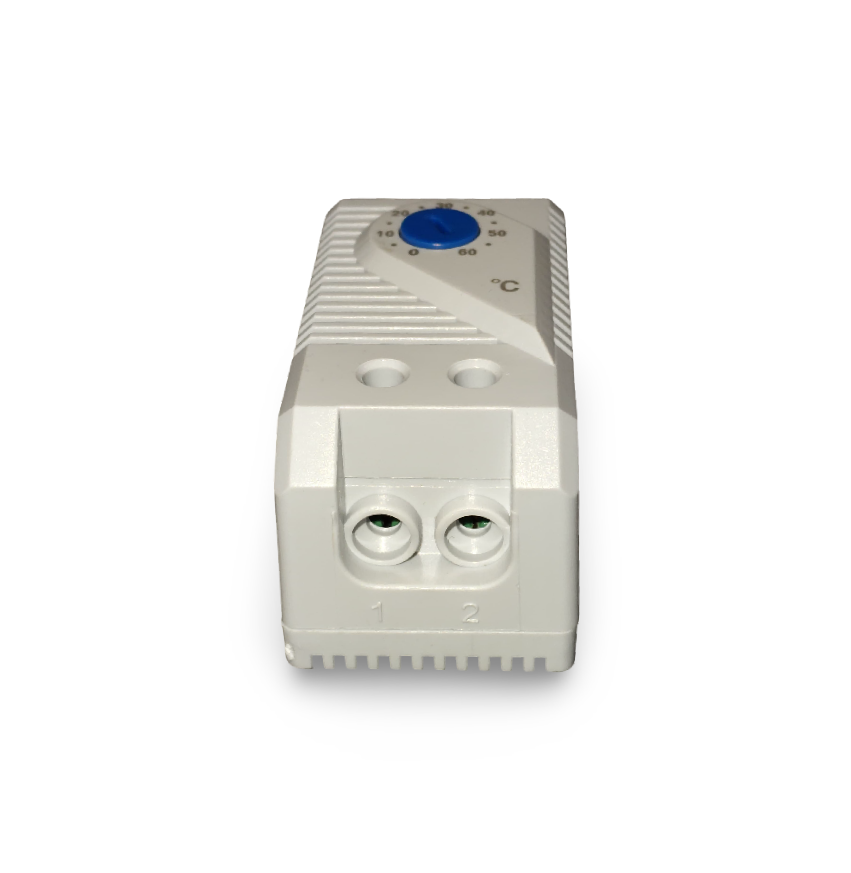

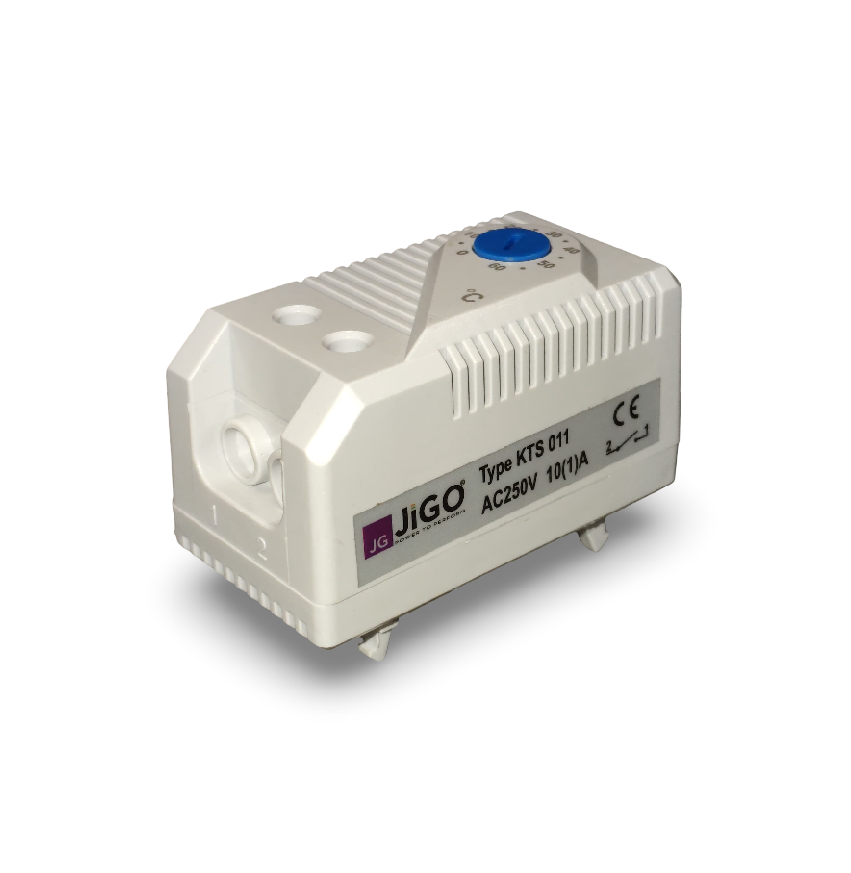

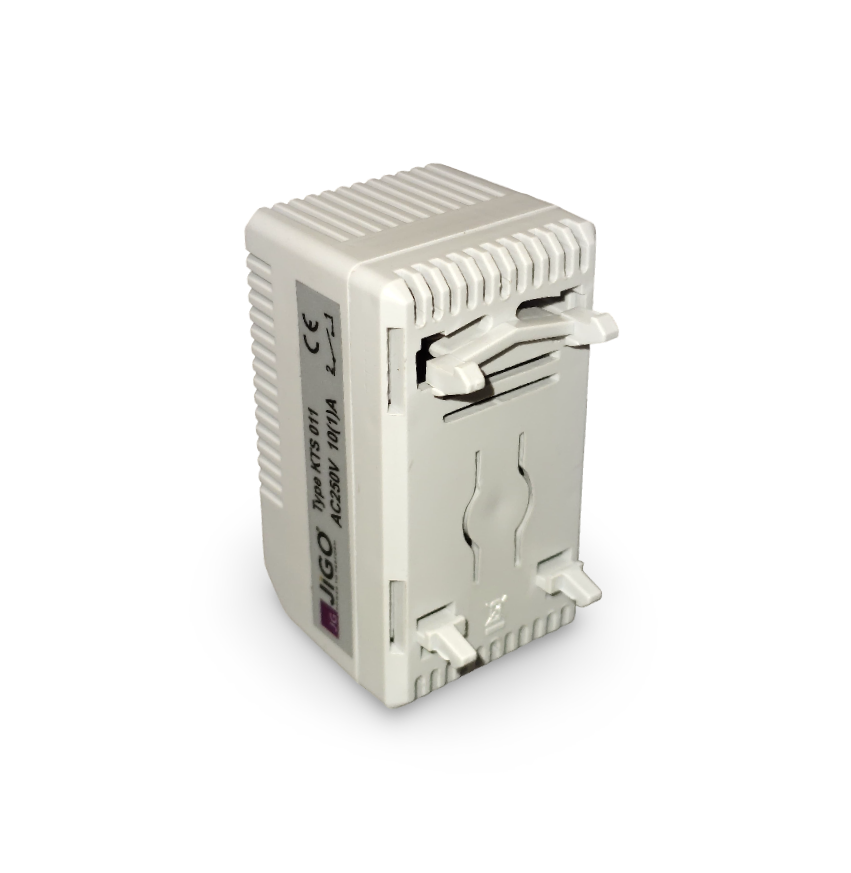

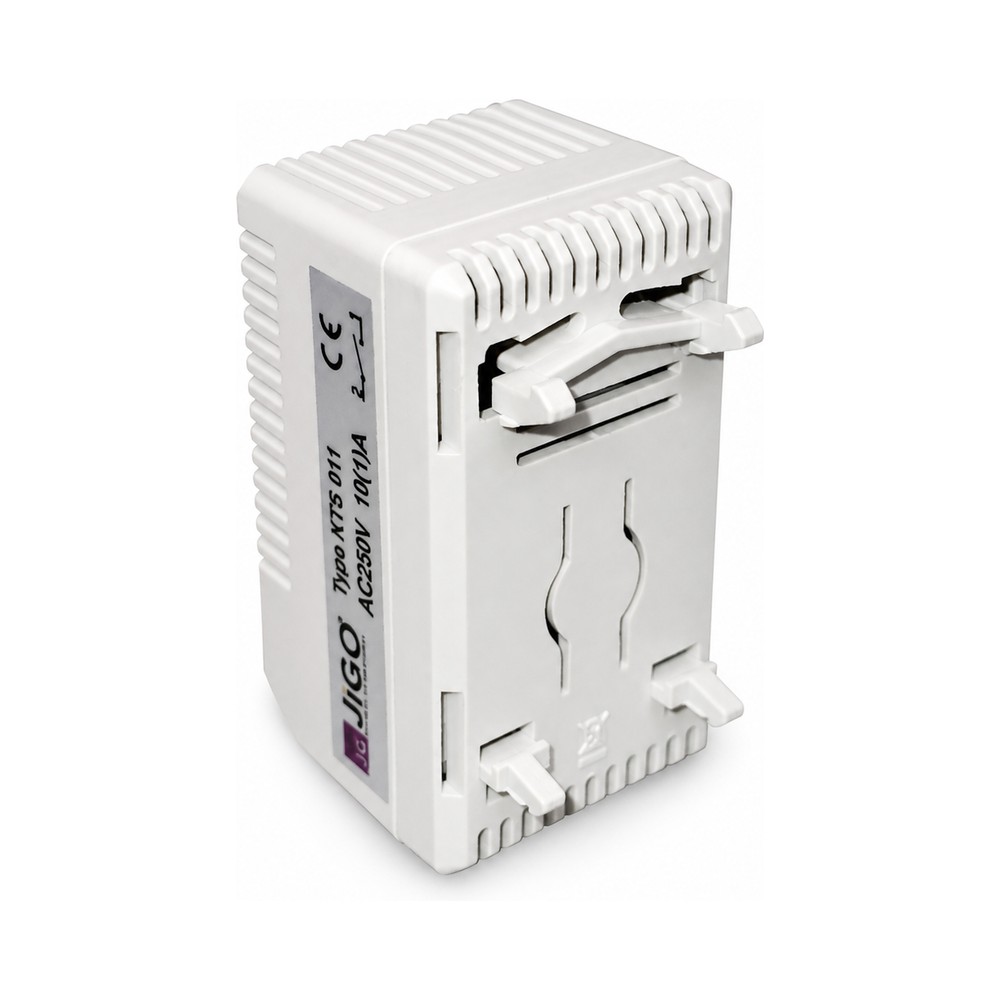

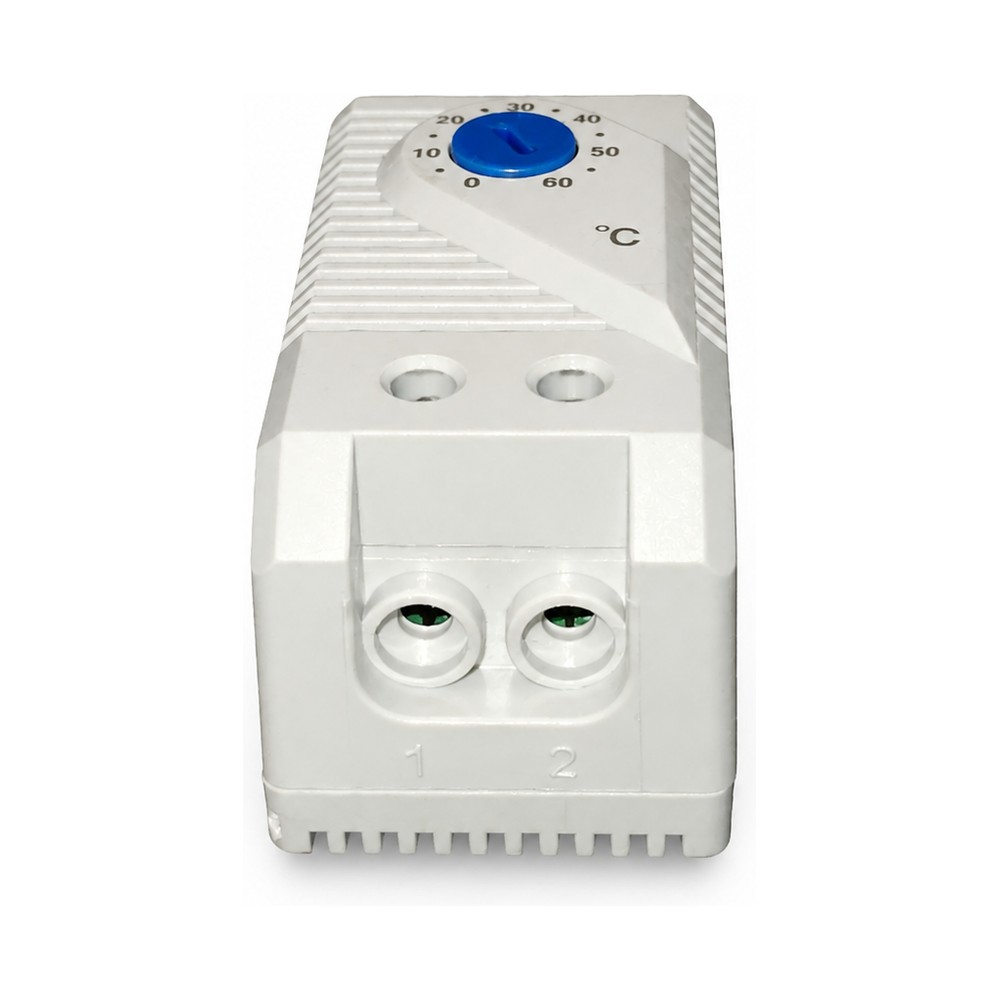

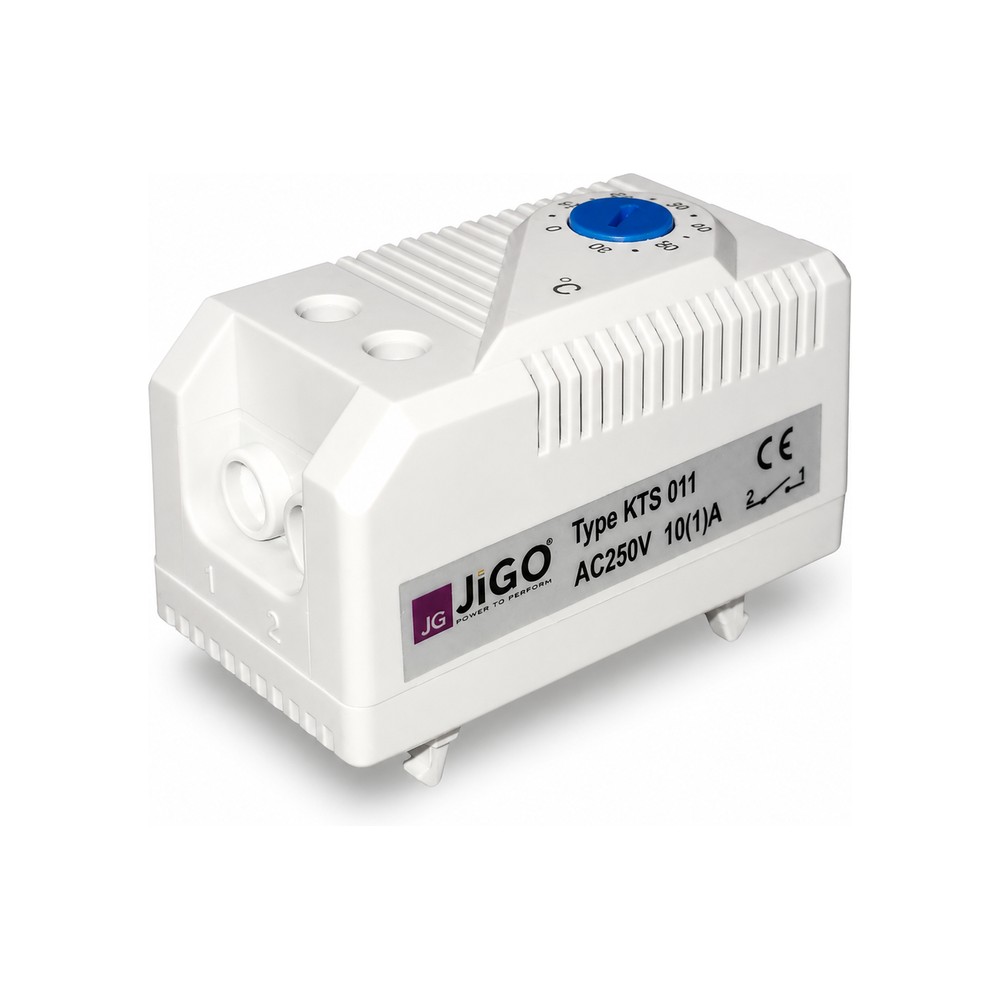

The KTS-011 is a mechanical normally open (NO) thermostat, designed to activate heating devices when ambient temperature falls below the set value. It is ideal for maintaining minimum temperature in enclosures to prevent condensation and ensure smooth equipment operation.
Model: KTS-011
Type: Normally Open (NO) – closes on temperature drop
Operating Voltage: AC 250V / 120V
Contact Rating: 10A resistive load @ 250V AC
Setting Range: 0°C to +60°C
Function: Temperature control for heating applications
Switch Type: Snap-action bimetallic sensor
Mounting: 35mm DIN rail (EN 60715)
Housing Material: Flame-retardant plastic (UL94 V-0)
Wiring: Screw terminal connections
Dimensions: Approx. 60 × 33 × 43 mm
Protection Class: IP20
Activates heating at low temperatures to prevent condensation
Easy installation on standard DIN rails
Compact, space-saving design
High mechanical durability and long service life
Does not require a separate power supply
Maintenance-free operation
Electrical cabinets and control panels
Enclosure heating in cold environments
Automation systems and switchgear
Condensation prevention in sensitive devices
Communication and server cabinets
HVAC and climate control equipment
