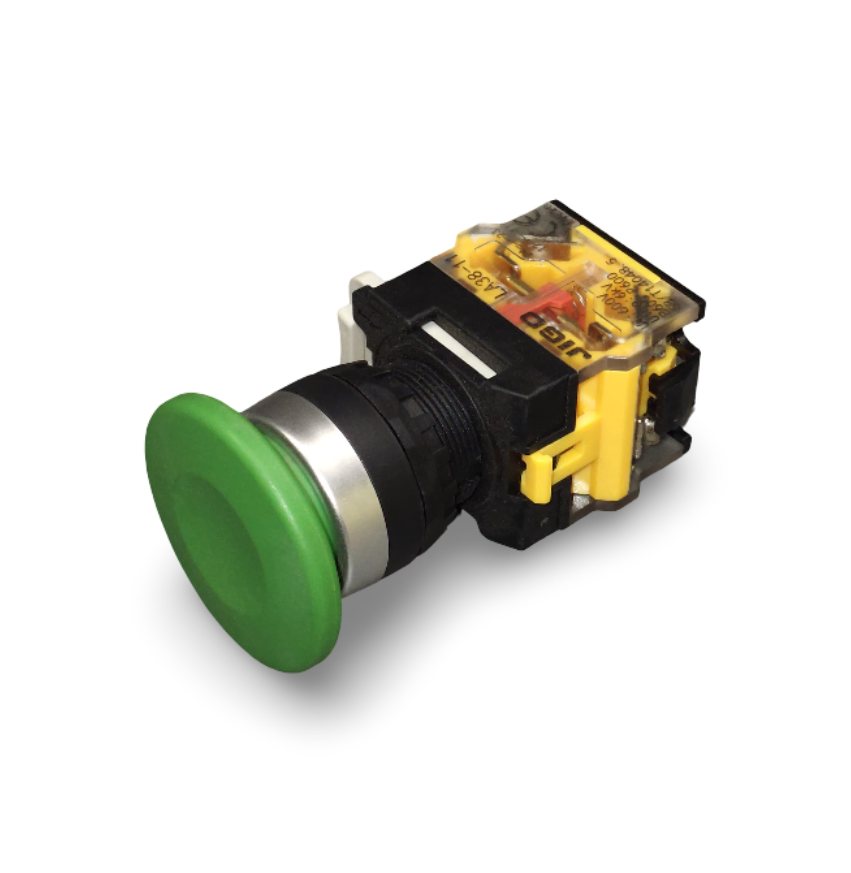

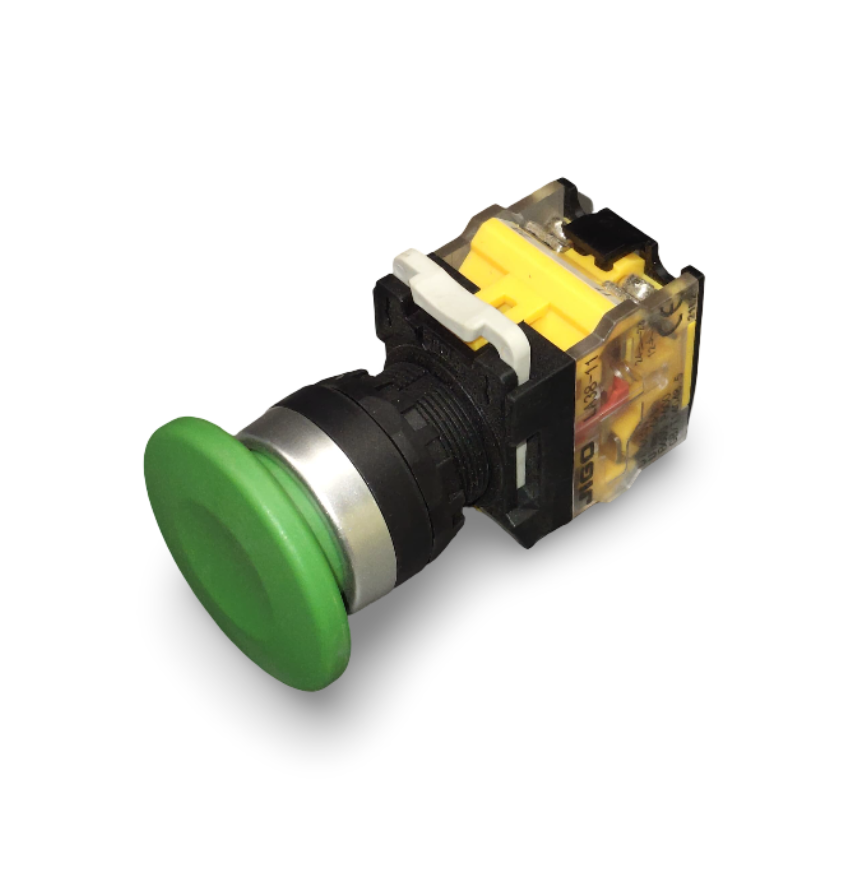

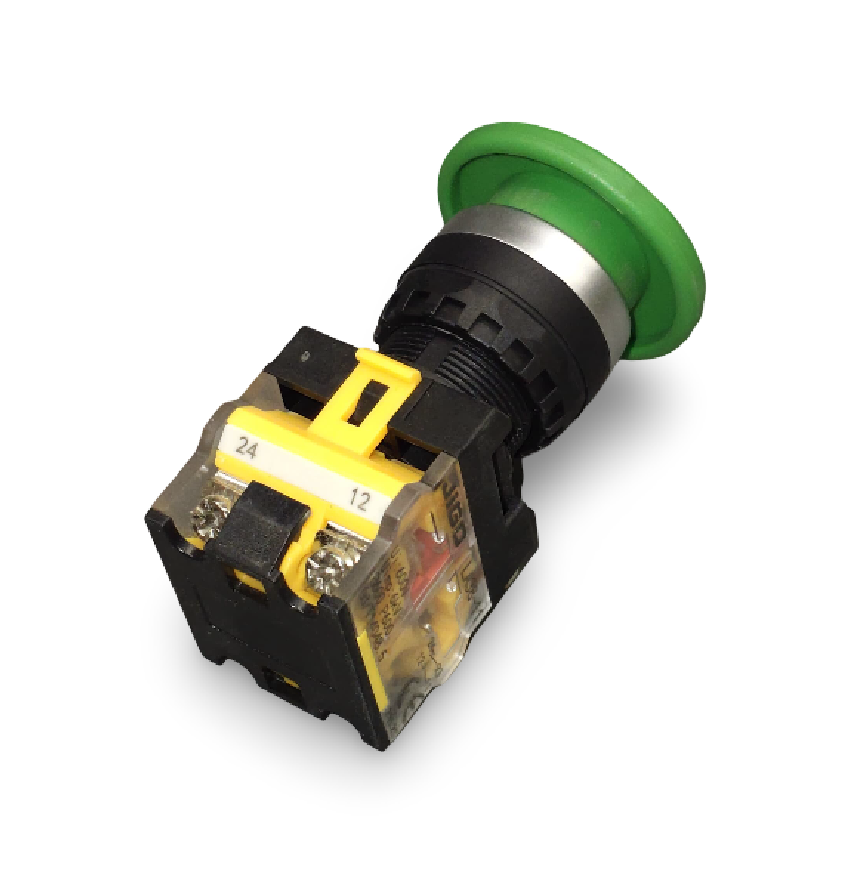

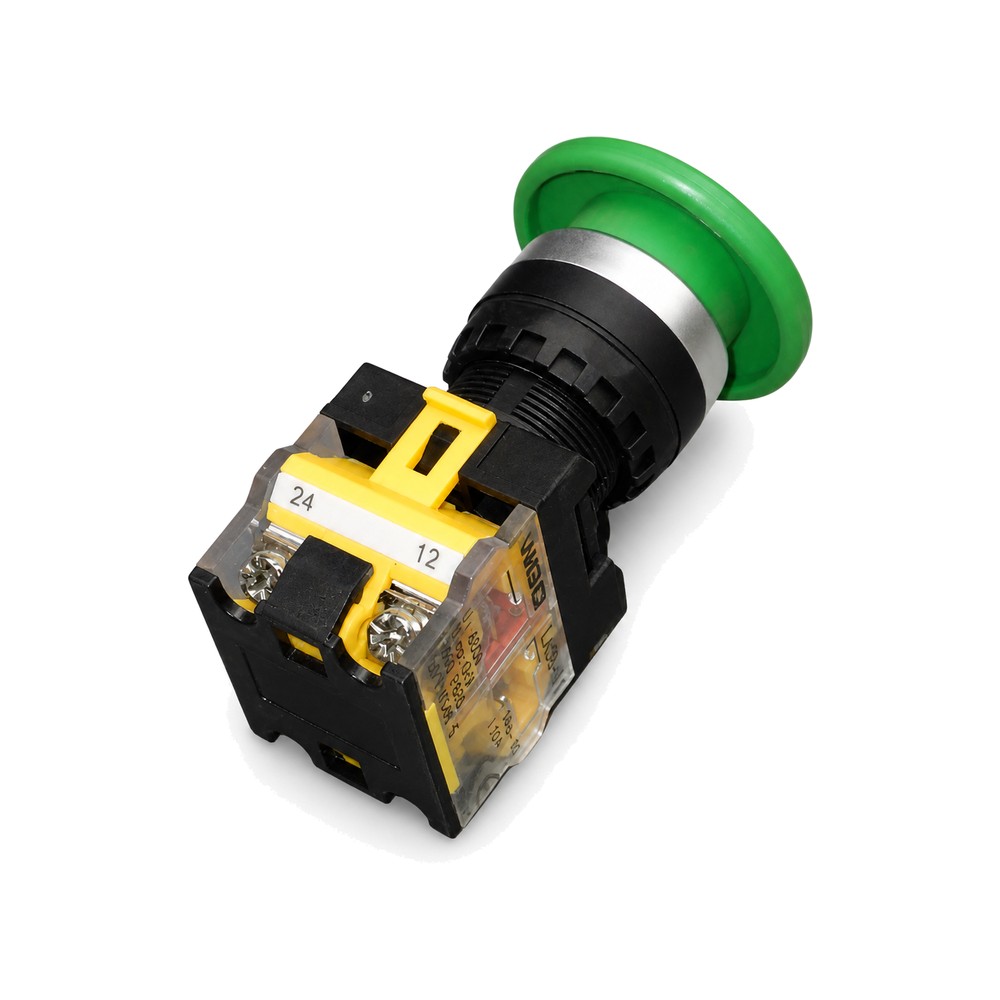

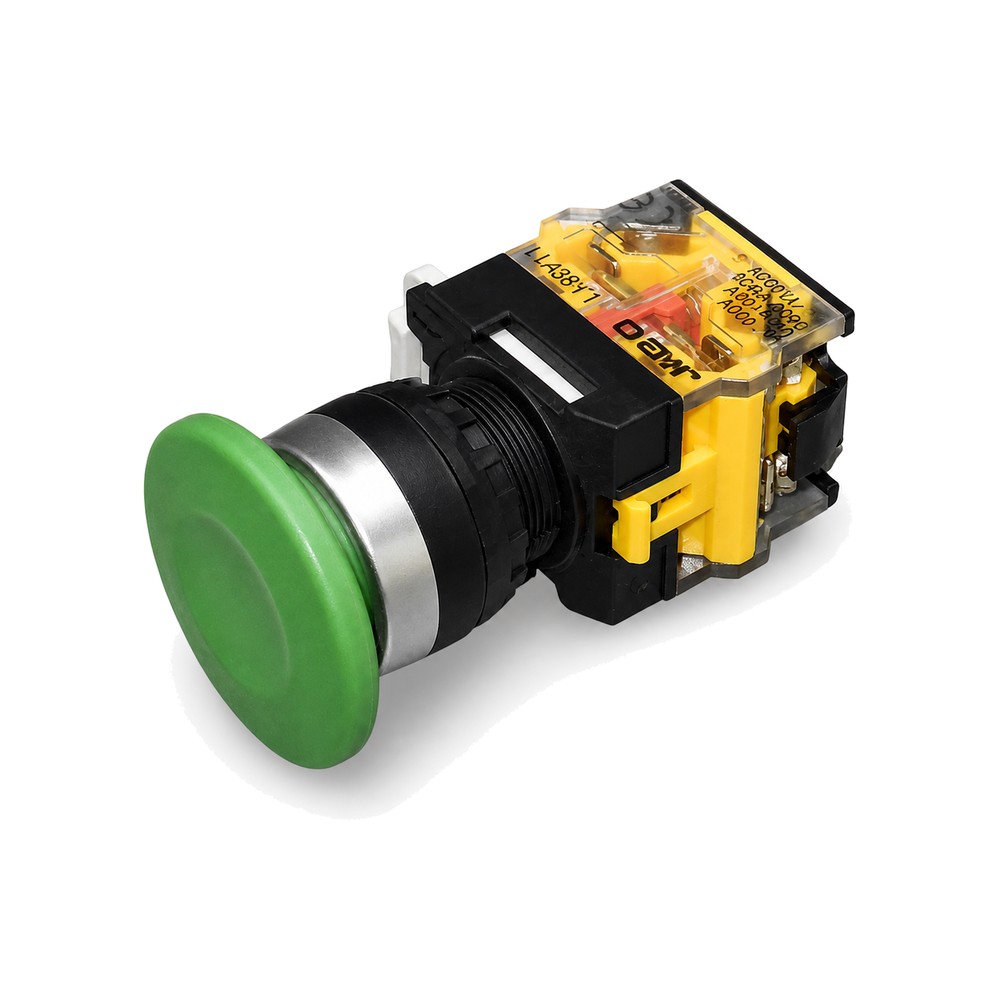

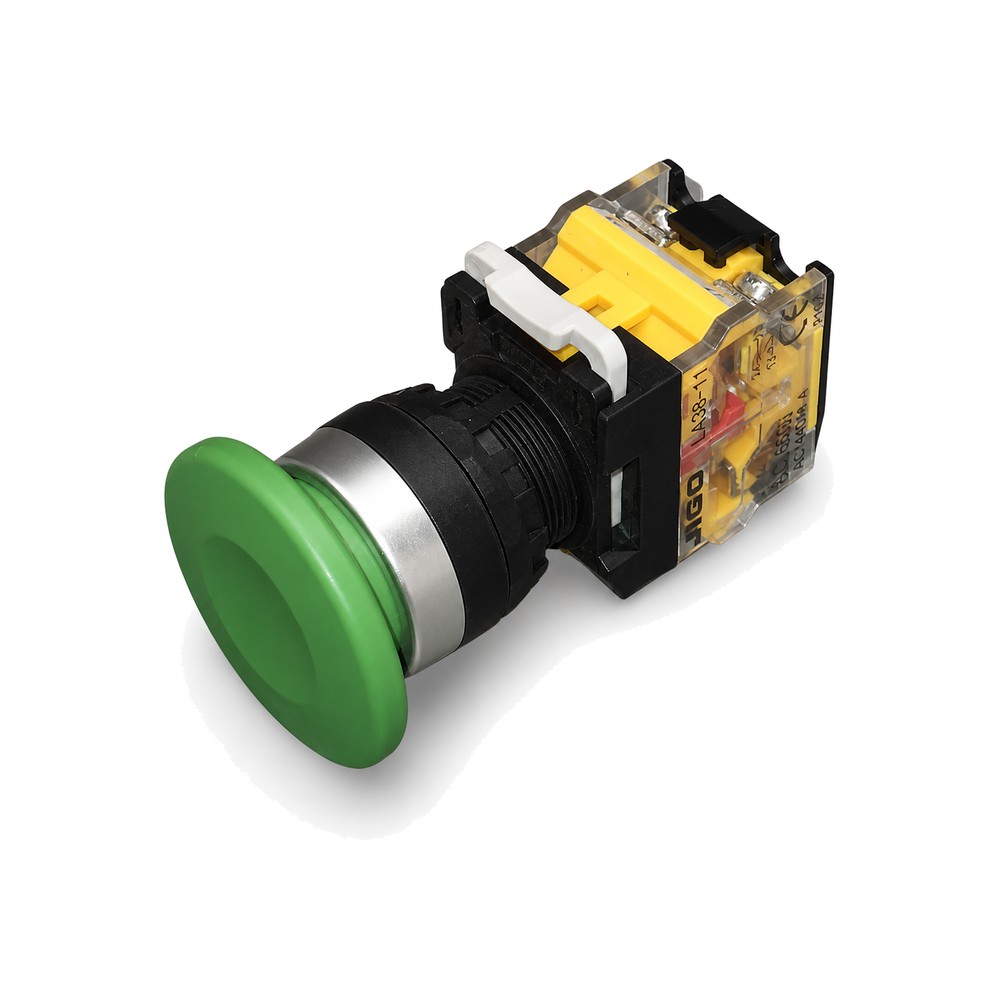

LA38-11 M40 GREEN Push Button Switch
- Category: LA38 PUSH BUTTON
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 200
The LA38-11 M40 GREEN Mushroom Button is a momentary push button with a large 40mm actuator, ideal for quick and safe manual operation in industrial control systems.
Enquire on WhatsAppProduct Details:
Model: LA38-11 M40 GREEN
Button Type: Momentary Mushroom Head Push Button
Color: Green
Button Head Size: 40mm (M40)
Mounting Hole Diameter: 22mm
Contact Type: 1NO + 1NC (1 Normally Open + 1 Normally Closed)
Operation Mode: Momentary (springs back when released)
Material: High-durability plastic with silver alloy contacts
Voltage Rating: Up to 660V AC
Current Rating: 10A
Connection Type: Screw terminals
Protection Level: IP40 / optional IP65
Key Features:
Mushroom head for emergency or priority activation
Highly visible green color for start/ready indications
Reliable operation with long mechanical life
Easy to install with standard 22mm mounting
Durable construction suitable for industrial use
Dual contact blocks: 1NO + 1NC for flexible wiring
Applications:
Start/Go buttons in machinery and control panels
Industrial automation systems
Operator control stations
Conveyor belt operations
Emergency stop or reset functions (non-latching)
OEM equipment panels
